GD-106
GOLD

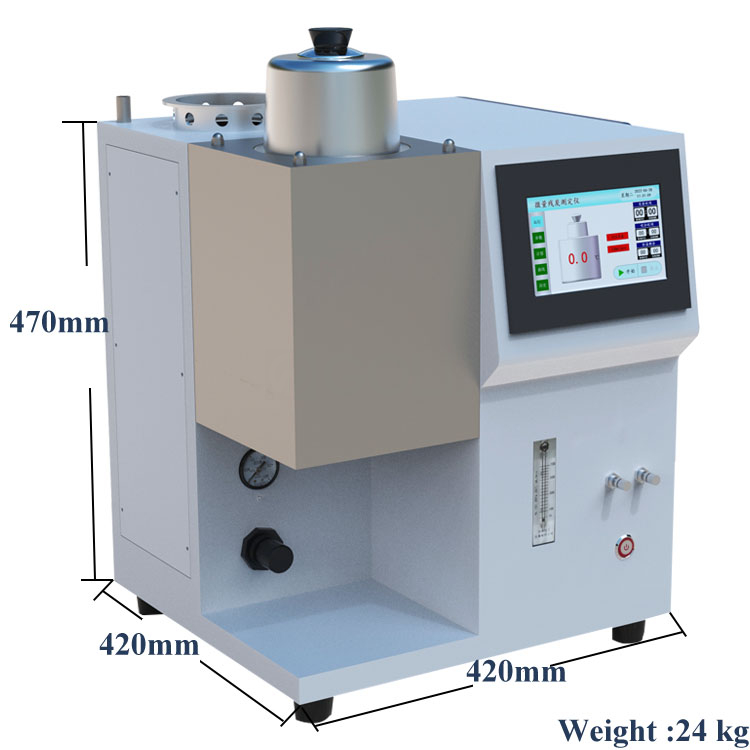

ASTM D4530 (MCRT) Carbon Residue Test Apparatus by Micro Method
Introduction:
The GD-106 is a fully automated instrument for the determination of residual carbon according to the standard test methods ASTM D4530 and GB/T 17144, which is in good consistency with Conradson method residual carbon. During the test, automatically adjust the heating speed and nitrogen flow without manual intervention. With accurate heating control and simple and convenient operations, all this ensures that the instrument can be tested quickly, safely, and accurately.
Key Features and Advantages:
1.Automatic micro carbon residue tester in accordance with the standards of GB/T 17144 - 2021 and ASTM D4530
2.Excellent temperature rising curve
3.Fully automated testing process ,saves your time
4.Easy to operate and measure multiple samples at the same time
5.Good repeatability and reproducibility
6.Optional communication digital balance for automatic weight reading.
Excellent temperature rise curve:
1.GD-106 realizes smooth and safe temperature rise during the whole temperature control process. Automatic switching of the nitrogen flow rate, the system will automatically sound a reminder when the temperature in the furnace drops to a point where the lid can be opened.
2. In the GD-106 Automatic Micro Residual Carbon Tester, an advanced temperature control system that achieves temperature stability of better than +/-2°C eliminates overshoots when the temperature just reaches 500°C and callbacks below 498°C. This ensures that you achieve temperature stability quickly. This ensures that you achieve temperature stability quickly and can accurately measure your samples at the right temperature regardless of environmental conditions.
Customized 600 degrees oven temperature, determination of heavy oil solids content:
1.GD-106 can be upgraded into a fully automatic heavy oil solids tester to accurately determine the solids content in oil slurry.
2. The maximum oven temperature reaches 600 degree Celsius, the maximum programmed temperature increase speed is 10℃/min, and automatic control of nitrogen and air intake.
Optional Direct connection with weighing balance to prevent transcription error:
GD-106 Fully Automatic Micro Residual Carbon Tester With the optional communication module, it can be directly connected to the weighing balance through the interface, avoiding the risk of transcription error that may occur when manually inputting the data from the external balance. Read the value with one click and calculate the stored of the residual carbon value.
Parameters:
standards | GB/T 17144 - 2021 、ASTM D4530 - 07 |
Measurement range
| Room temperature to 600°C |
No. of test tubes | 12、6、4 |
Temperature measurements | Rugged metal and type K thermocouple with built-in calibration program with 6 calibration points
|
Temperature control accuracy | 500±1℃ |
Normal pressure 150 kPa; Flow rate 150 mL/min and 600 mL/min switching automatically | |
User interface | 7-inch color LCD display unit Resolution: 1024*600 |
Main unit dimensions and weight | |
power supply | AC 220V ±5% |
