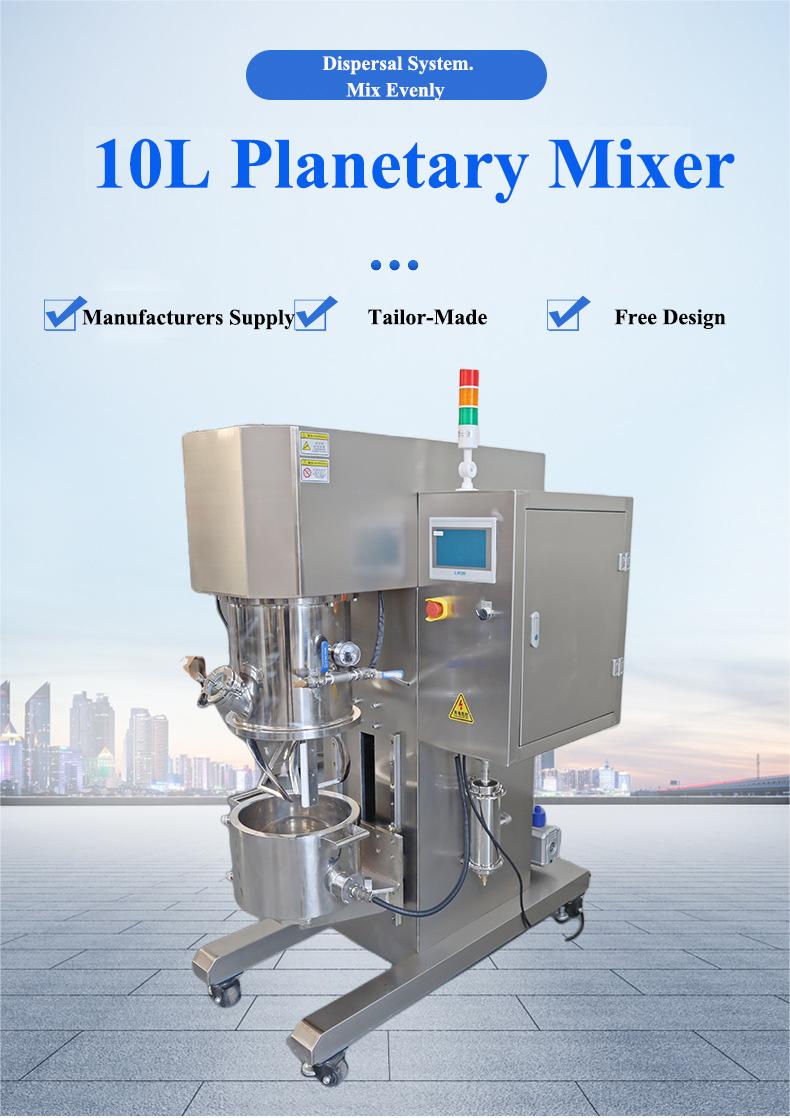

Detailed Technical Parameters of Double Vacuum Planetary Mixer

1-2 Basic structure

A. Electric pot lifting type, RV40.

B. Single direct measurement of material temperature mode

C. Double stirring shaft + dispersing shaft + scraping wall

1-3 Barrel(agitator Bucket)

A. Design volume: 13.5L; B. Effective volume: 10L.

Material: SUS304;

The container wall is mirror polished after turning process to ensure good roundness;

The upper flange plane of the mixing barrel fits with the upper barrel body flange;

The bottom of the barrel with G1" (DN20) discharge ball valve 1

Barrel body diameter: 280mm depth: 220mm

1-4 Upper barrel (kettle cover)

A. Material: SUS304.

B. A powder/liquid dosing hopper, which can be switched on and off quickly; 1 spotlight; 2 small windows (a spotlight port and an observation hole), reserved a vacuum pressure gauge , and other necessary connections ( vacuum/emptying/backup).

1-5 Mixing principle

Two decentralized disks installed on the high -speed decentralized axis are combined with the low gap design of the double stirring slurry, no blind spots. low -speed stirring paddles strongly pinch interference movement and upper and lower/left and right circulation movements, as well as high -speed shear dispersing effects of dispersed disks Stir with planetary mixing paddle to ensure that the materials are fully dispersed and mixed.

1-6-1 Orbital revolution/agitator and Variable-frequency Drive, Reducer

Quantity: one set;

Power of motor: 1.5Kw;.

With a frequency converter speed controller matched with the motor.

Matching reducer, reduction ratio of about I = 40.26,  coefficient fa = 1.55.

1-6-2a. Speed of planetary rotation

Speed: 0-65rpm/min, adjustable

1-6-2b Scraper

Quantity: 1 set;

Material of scraping wall: SUS304 and Teflon; Consistent with the planetary rotation speed.

1-6-3. Gap reference value (optional)

A. Tolerance of mixing pulp and mixing paddle：6±2 mm;.

B. Tolerance of mixing pulp and bottom: 2~6mm;

C. Tolerance of mixing pulp and barrel wall: 5±1.5mm;

1-7-1 Stirring shaft / Stirring pulp speed

Speed: 0-170 rpm/min ,adjustable

1-7-2 Stirring pulp

Material: SUS304;

B. Quantity: 2pcs(group).

1-7-3 Select the form of stirring pulp

Standard: twist type

1-8-1 Dispersion motor

Quantity：One set;

B. Motor power: 1.5kw.

C. With the motor to match the 1.5kw frequency converter governor

1-8-2 Dispersion speed (Rotation)

Speed 0-1400 rpm.

linear velocity 4.3m/s

1-8-3 Dispersing shafts and disc

Material: SUS304;.

Single, two dispersing discs are installed on the dispersing shaft, the positions are staggered from each other to ensure better dispersing/stirring.

C. Diameter of dispersing disc:50 mm ;

1-9. Lifting (pot)：

A. Electric lift: with linear guide, with positioning device; positioning is safe and reliable.

B. Lifting motor power: RV400.37kw

1-10 Vacuum system

The mixing and dispersing process can be performed in a vacuum;; vacuum degree: ≤-0.096Mpa.

Vacuum pump

Dynamic seal: mechanical seal; static seal: O-ring.

Seal material: dynamic seal is PTFE and fluororubber combination; static seal is fluororubber.

E.Maintaining pressure for 4 hours, and slurry or under the state of maintaining pressure without leaking oil into the slurry barrel

1-11 Positioning System

A. With positioning adjustment device and locking device, it can accurately position the mixing barrel and upper barrel ，and prevent rotation.

B. The positioning stop of the flange under the barrel is accurately coordinated with the stirring barrel to ensure that the position of the mixing barrel is reasonable and the positioning is accurate

1-12 The power distribution cabinet

Vacuum device, frequency conversion speed control, temperature display (control), spotlights, lifting, operation emergency stop and other functions are displayed and operated in the power distribution cabinet.

1-13 Safe operation

A. Relying on the Variable-frequency Drive and limit travel switch, the specially designed control route ensures that the upper barrel is automatically stopped after it has risen to the specified position.

B. During the upper barrel  rising process, the device stirring and dispersing part cannot be started. Similarly, when the machine is transported and mixed, the upper barrel  cannot be risen and the mixing barrel cannot be opened.

Using the circuit design such as proximity switch, it ensures that the planetary working parts can't be lifted up under the vacuum condition.

Special vacuum buffer tank design can effectively prevent the vacuum pump oil from flowing back to the mixing barrel.

1-14 Mainframe

Working voltage/frequency: 380V/50Hz/3Phase. Control Voltage: 220V.

1-15 Overall dimensions

1260*570*1340mm

1-16 Weight

about 430KG
