CFJB-10L
GOLD

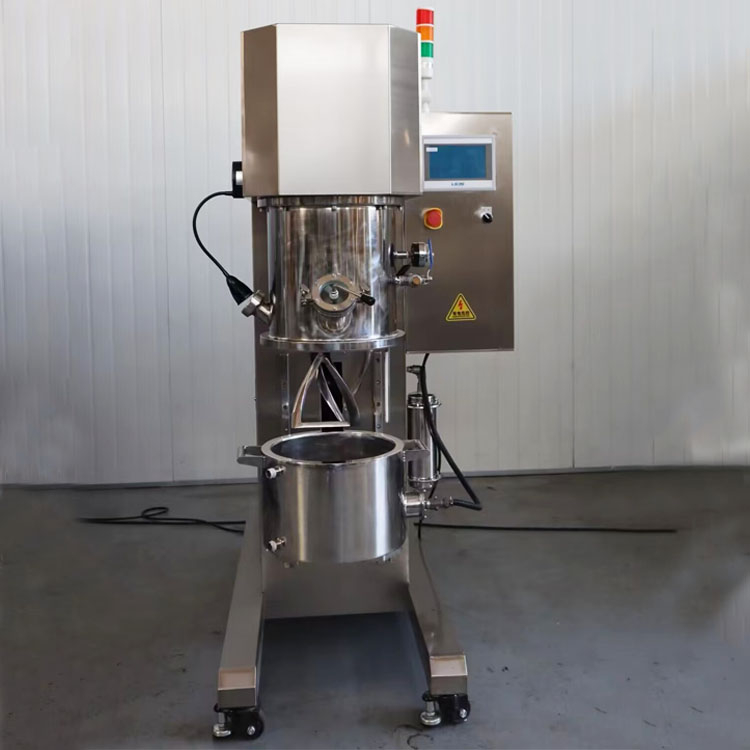

10L High Speed Double Planetary Disperser Mixer
Introduction:
1. This Planetary vacuum mixer machine is a set of vacuum mixing, dispersion of efficient equipment, suitable for lithium electricity experiment process is anode paste mixing process, solder paste, silica gel, chemical industry, etc
2. This lab planetary mixer Mixing motor adopts transmission frequency adjustment,
can choose different rotational speed and torque according to different process, different viscosity.
3. And the processed material results in the better dispersion and uniformity.
Application：
Application industry:It is suitable for dispersing and mixing materials in coating, putty, adhesive, energy, electronic and electrical appliances, medicine, cosmetics, food and other industries.
Applicable materials:Battery slurry, solder paste, ceramic slurry, silicone ink, sealant, structural adhesive, ointment, jam, etc. Various kinds of slurry with viscosity less than 3,000,000cps and solid content below 90%.
Technical description:
Dispersing shafts and disc | Material: SUS304;. |
Lifting (pot) | A. Electric lift: with linear guide, with positioning device; positioning is safe and reliable. |
| The mixing and dispersing process can be performed in a vacuum;; vacuum degree: ≤-0.096Mpa. |
Vacuum pump | |
Dynamic seal: mechanical seal; static seal: O-ring. | |
Seal material: dynamic seal is PTFE and fluororubber combination; static seal is fluororubber. | |
E.Maintaining pressure for 4 hours, and slurry or under the state of maintaining pressure without leaking oil into the slurry barrel | |
| A. With positioning adjustment device and locking device, it can accurately position the mixing barrel and upper barrel ,and prevent rotation. |
The power distribution cabinet | Vacuum device, frequency conversion speed control, temperature display (control), spotlights, lifting, operation emergency stop and other functions are displayed and operated in the power distribution cabinet. |
Mainframe | Working voltage/frequency: 380V/50Hz/3Phase. Control Voltage: 220V. |
Overall dimensions | 1260*570*1340mm |
Weight | about 430KG |
