GB-60332
GOLD
Introduction：

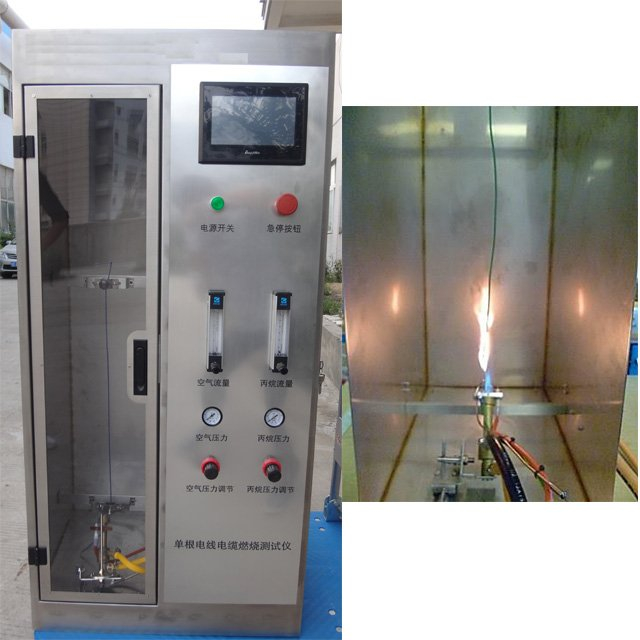

The signal cable tester is used for the vertical flame propagation for a signal insulated wire or cable according to GB/T18380.11,12-2008. It is used to test the fire retardant performance of the insulated layer that the wire or cable is under the over-current and over-temperature condition.
It is also used for the test of the vertical flame propagation for a signal insulated wire or cable and the combustion condition about the drip under the flame condition.
Standard：
IEC 60332-1-1,2,3; EN 50086-1-1994
GBT 18380.11,12-2008
Main features：
1．Touch-screen control system;Chinese and English operation interface (optional)
2．The system is auto-ignition, automatic timing, automatic data storage ;
3．Test and control components using integrated design, convenient installation and debugging.
4．Stainless steel cabinet, chamber dimension :1200mm high, 300mm wide , 450mm long;
5．Two stainless steel rods, fixing the single wire cable or fiber sample with bolts;
6．The premixing burner, inner diameter 12 ± 0.5mm, length 100mm.
7．The flame burning application time and hold time can be controlled . Test process is automatic .
8．The needle valve can precisely adjust the flame height; The blue flame 50mm ~ 60mm, total height 170mm ~ 190mm according to the standard requirements .
9．Import needle valve to control the gas flow: Equipped with a flame height.
10．Equipped with a gas flow meter and pressure regulator; Automatic ignition.
