GD-F8079 Brake Fluid Equilibrium Reflux Boiling Point Tester

This instrument is used to determine the equilibrium boiling point of engine coolant and is suitable for diluted or concentrated engine coolant. Take 60ml of sample and put it into a 100ml beaker and heat it to boiling under normal pressure. When the gas-liquid equilibrium is reached, read the temperature of the sample, which is the boiling point of the sample after being corrected by the atmospheric pressure difference.
Availability:
Quantity:
  • GD-F8079
  • GOLD

GD-F8079 Brake Fluid Equilibrium Reflux Boiling Point Tester

Introduction:

The apparatus is operated by taking a certain amount of the sample in equilibrium with atmospheric pressure in the flask and boiling at a certain reflux rate, using the temperature corrected to the standard atmospheric pressure as the boiling point of the equilibrium reflux. The instrument is suitable for determining the equilibrium reflux boiling point of brake fluid and its base fluid components.

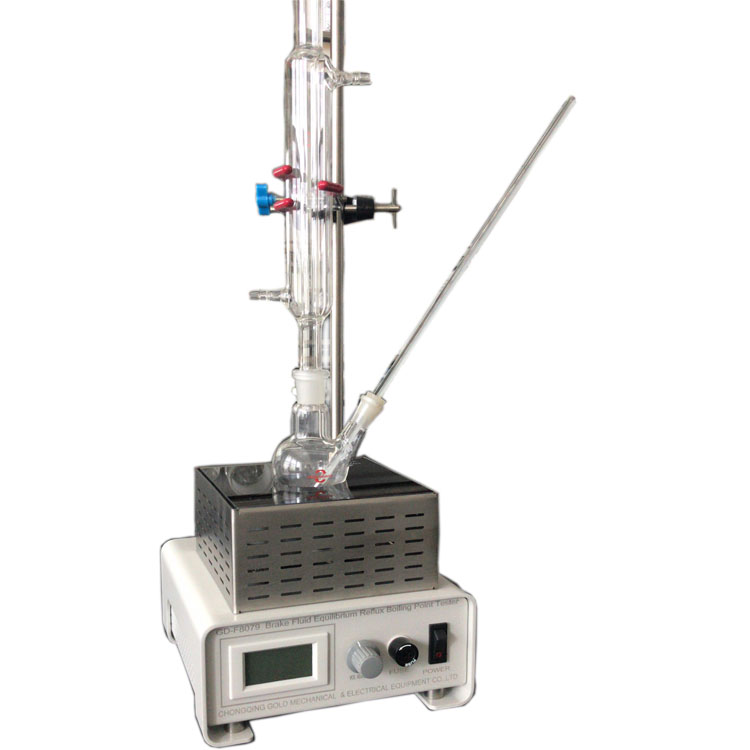

Boiling Point Apparatus

Technical Parameters:

1. Applicable standards: SH/T0430, ASTM D1120

2. Heating method: electric jacket heating

3. Cooling method: tap water circulation

4. Temperature control mode: solid-state voltage regulator

5. The whole machine power: 500W

6. Voltage display: voltmeter display

7. Working power: AC220V/50HZ


Performance Characteristics:

1. The heating jacket is heated, no open flame, safe and environmentally friendly.

2. Integrated structure, easy to operate.

3. Tap water circulation cooling.

4. High-power solid-state voltage regulator controls the heater.

5. The surface is treated with electrostatic spray, easy to clean.

6. The precision potentiometer adjusts the heating rate.

7. Contact control box is very convenient.
