GD-0168
GOLD

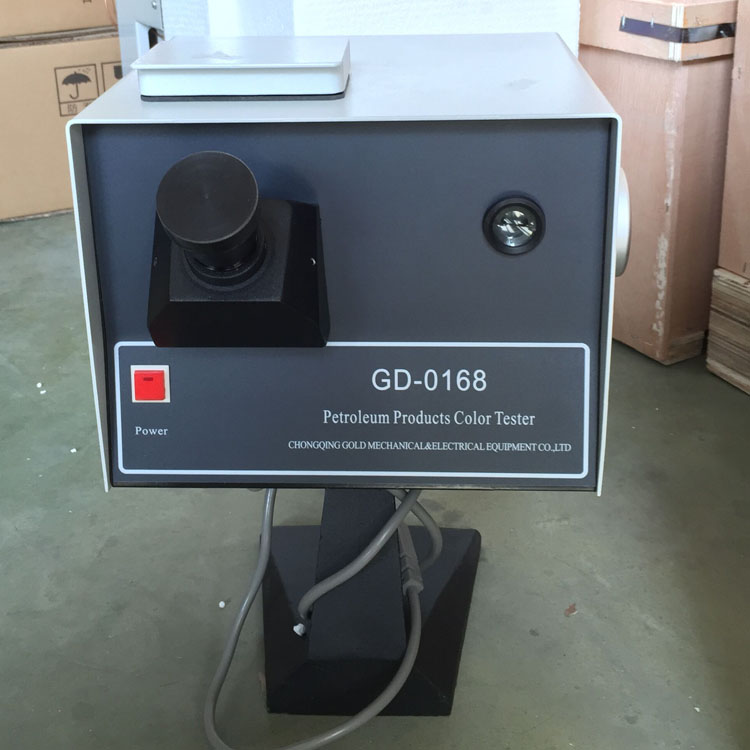

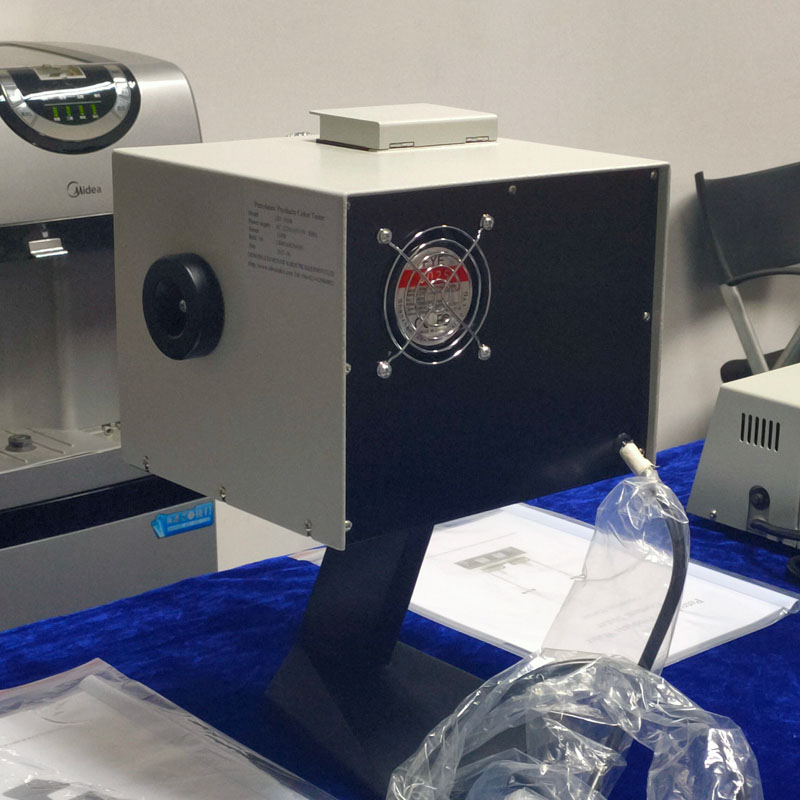

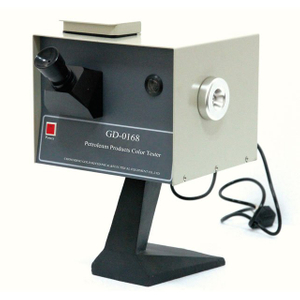

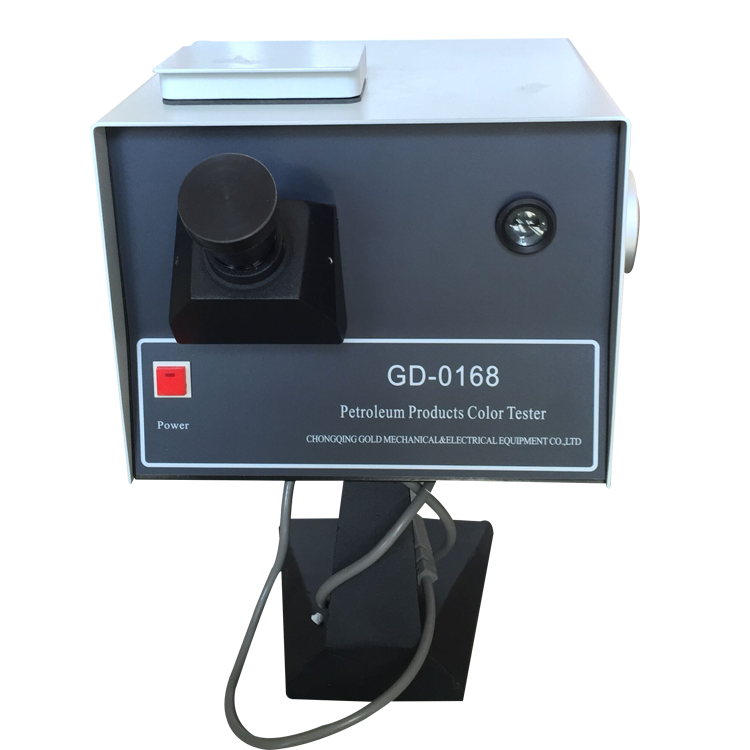

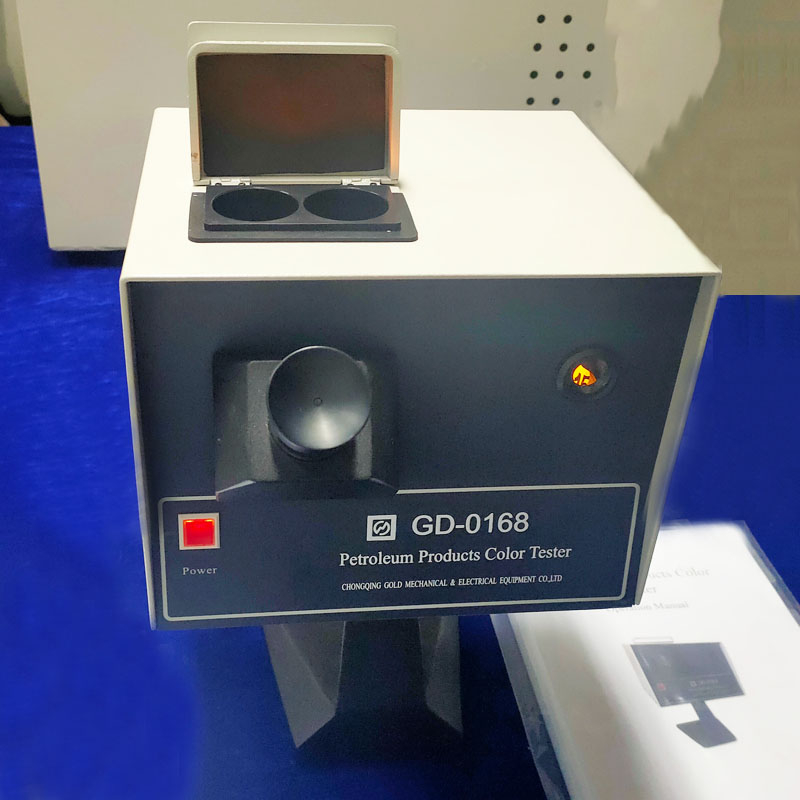

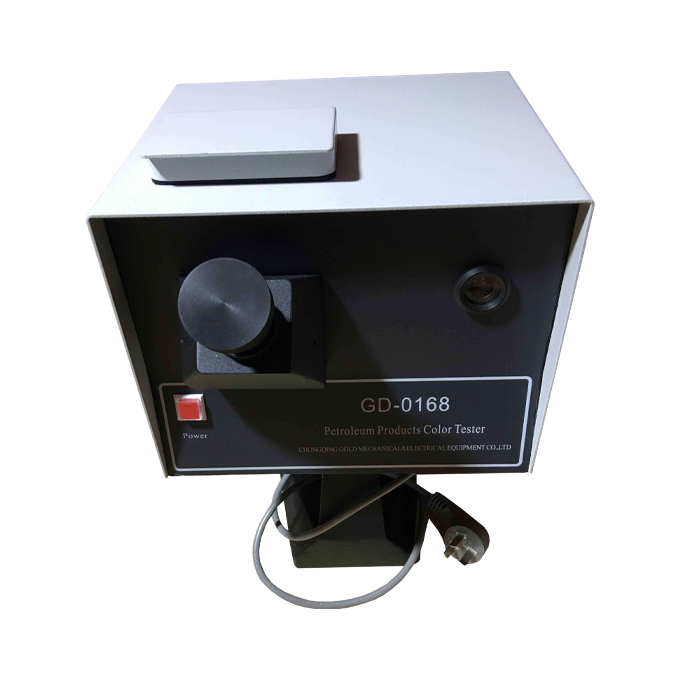

Digital Colorimeter Chroma Meter for Color Measurement of Petroleum Products
The test methods:
Fill test sample into color comparing tube and compare sample color with standard color to ascertain its color number.
Instrument structure:
The instrument is composed of standard color dial, observation lens, light source and color comparing tube.
Main performance:
1.The light source is a 220 V, 100 W, with temperature of 2750±50 K grinding milk white light bulb. After filtering color by milk white glass and sunshine filtering glass, the spectrum characteristics of light gained from sunshine is similar to it.
2.There are 26 pieces of Φ14 light holes. And standard color glasses having 1~25 color number are installed in the 25 of these holes in sequence. The 26 hole is blank. (The standard color comparing glass on the color dial should be calibrated by standard color comparing liquids. )
3.The color comparing tube is Φ32 mm, 120~130 mm high non-colorful flat bottom glass tube.
4.The observation lens is composed of concave mirror and separated bar. You can see two semicircle colors through observation lens.
Product Details:
Item | GD-0168 Petroleum Products Colorimeter |
Reference standard | ASTM D1500,GB/T6540 |
Power supply | AC 220V±10%, 50 Hz |
Light source | 220 V, 100 W, with temperature of 2750±50 K grinding milk white light bulb |
Light holes | 26 pieces ,Φ14 |
Color comparing tube | 120~130 mm high non-colorful flat bottom glass tube |
Packaging dimensions | 49*47*42cm,21kg |
