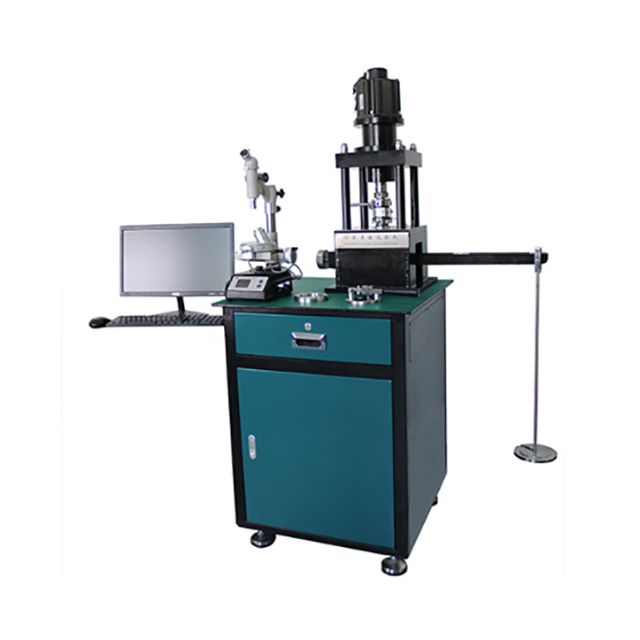

GD-3142BF Automatic Four Ball Tester by 4 Ball Methods

GD-3142BF Automatic Four Ball Tester by 4 Ball Methods

Applicable Standards: GB/T 3142, GB/T 12583, SH/T 0189, SH/T 0202, SH/T 0204, SH/T 0762, ASTM D2266, ASTM D4172, ASTM D2596, ASTM D2783.

Introduction:

The Four Ball Tester can be used to determine the anti-wear performance of lubricating oil and evaluate the load-bearing capacity of lubricants, including constant wear, maximum seizure load PB, sintering load PD, comprehensive wear value ZMZ, friction coefficient and friction curve.

Features:

1. Brand 19-inch high-definition LCD display, mouse and keyboard control.

2. Embedded host system: the embedded host system includes embedded industrial-grade motherboard, electronic hard disk, memory, USB cable, HDMI cable, external LCD display, external keyboard, and mouse. It has strong versatility and has network and USB external interfaces, which can be Carry out information inquiry, networking and data exchange.

3. The main body of the four ball tester adopts bearing steel structure and precision machining. It has the characteristics of rigidity, shock resistance, high hardness and extremely high concentricity. The radial deviation of the steel ball on the upper part of the key component bowl, measured at a distance of 3.5mm from the lowest point of the steel ball, is 0.01mm, which is the latest scientific and accurate design. The operation is stable, the measurement data is accurate, and the repeatability is excellent.

4. Loading control mode: lever type; the loading force is constant and no fluctuation during the test.

5. The speed of the servo motor can be set and the speed can be displayed in real time.

6. The friction force detection is displayed on the LCD screen, and the high-precision thrust sensor is selected for real-time measurement, and the test results are more accurate.

7. The spindle speed system is more accurate, and the speed error can be controlled within ±5r/min.

8. The stopping torque can be set and displayed in real time during the extreme pressure test, which is used to assist the judgment of the PD value or for safety protection.

9. The real-time sample temperature is displayed on the LCD screen with a temperature control resolution of 0.1°C.

10. The test ball bowl automatically heats the oil sample, and when the sample reaches the set temperature, the motor is automatically started. After the test, the temperature control is automatically stopped and the motor is automatically turned off.

11. Simple and convenient operation and intuitive display, coupled with the measurement and automatic calculation software of the electron microscope. Make the test process faster, more accurate, convenient, intelligent and humane.

12. Simple and convenient bowl and chuck loading and unloading structure, labor-saving and durable.

13. Independent research and development of high-definition image data acquisition and processing system. Equipped with high-precision measuring microscope, image adapter mirror, image sensor camera, image processing system software and digital display measurement system. It is convenient to observe, measure, save and print the test results.

Parameters:

1. Embedded host performance:

1) NANO industrial motherboard with Intel-J1900 quad-core CPU as the control core

2) 64GB electronic hard drive

3) 4GB RAM

4) 19-inch high-definition LCD display, mouse and keyboard control

5) Support LAN, USB3.0, HDMI universal interface

6) Support RS232, RS485 industrial control interface

7) The four-ball machine test software supports saving the test results as an Excel format file.

2. Power supply: AC220V±10%, 50Hz

3. Total power of Four Ball Tester: 2200W

4. Spindle speed: 50r/min～3000r/min+5r/min, continuously adjustable

5. Variable speed mode: servo motor system control to achieve stepless speed regulation

6. Sample temperature control range: room temperature +5℃～120℃±0.5℃, set arbitrarily

7. Temperature display: real-time digital display

8. Heating method: automatic heating with heating belt

9. Loading control method: lever type

10. Axial test force range: 39.2N～10kN (about 4kg～1000kg)

11. Test steel ball: GCr15 steel ball special test steel ball for four-ball machine, nominal diameter 12.7mm

12. Friction method: sliding friction 13. Friction range: 0~1000g 14. Friction accuracy: ±1%

13. Pressure contact method: point contact type

14. Test force accuracy: +1%F.S.

15. Wear scar detection: high-precision electronic camera, computer imaging

16. Measurement resolution of wear scar: 0.0001mm

17. Measurement system: DMS-15 image processing system software and digital display measurement system

18. Wear scar measurement range: 0mm~4mm

19. Leverage ratio: weight side: working side is 10:1, 20:1 two levels

20. Time setting: abrasion test: 1min～300min, extreme pressure test: 1s～1000s, timing accuracy: 0.1S

21. Protection measures: automatic shutdown protection measures for sintering or overload

22. Power protection: automatic leakage protection device, effectively preventing accidents from happening

23. Measuring microscope: high-precision electronic camera, equipped with image processing system software and digital display measurement system; digital display division value is 0.0001mm

24. The test results can be saved in an Excel file, and multiple sets of test results can be stored. The test results can be viewed and backed up at any time, which is easy to operate.

25. Ambient temperature: 5～40℃; relative humidity: ≤85%

26. Host size: 1,000 × 650 × 1,700mm

Automatic Four Ball Tester by 4 Ball Methods:
