GD-4929A
Gold

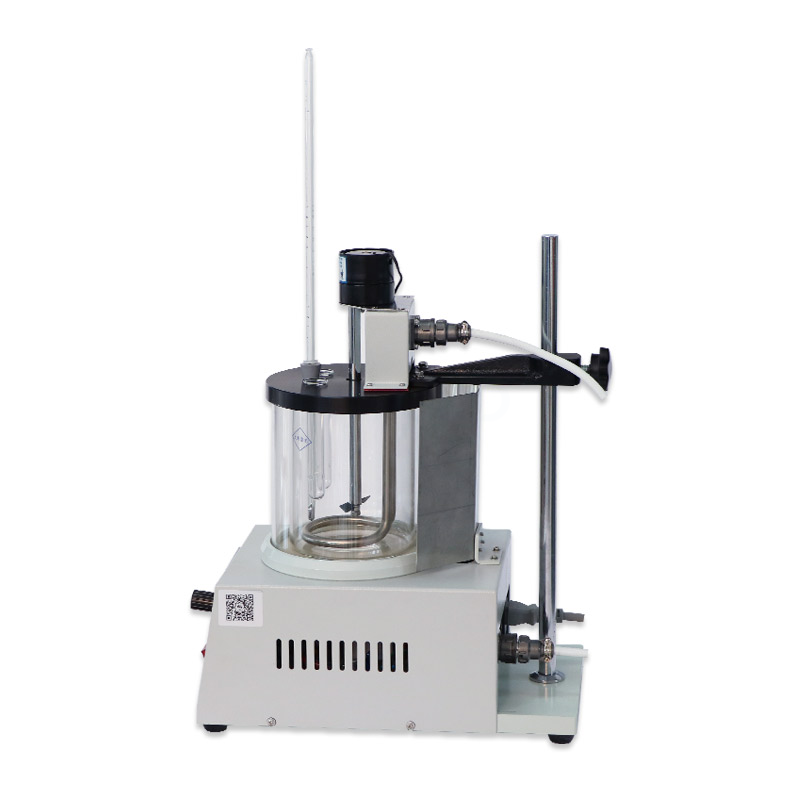

GD-4929A Dropping Point Tester for Lubricating Grease
Summary:
The instrument is designed and made as per the national standard of People’s Republic of China GB/T 4929 Lubricating grease- Determination of Dropping Point and ASTM D566 Standard Test Method for Dropping Point of Lubricating Grease.
Main technical features:
1. The oil bath is composed of heat resistant beaker, heater and electric motor. The heating power can be adjusted continuously. The temperature in oil bath is uniform.。
2. Desktop structure. Easy to operate.
Main technical specifications:
1. Power supply： AC 220 V±10%, 50 Hz
2. Oil bath： 600 ml beaker.
3. Grease cup： Made of chrome plated brass. Its inner diameter is about 9.92 mm and the diameter of orifice for dropping oil is 2.8 mm. The height of the cup is about 12 mm.
4. Test tube： A tube made of heat-resistant glass with rim. Its inner diameter is 11.1 mm to 12.7 mm. There are three indentations at about 19 mm from the bottom, equally spaced on the circumstance. These indentations are used for supporting the grease cup.
5. Thermometer： -5℃～300 ℃,scale value is 1 ℃. Its total length is 390 mm and the depth immersed is about 76 mm.
6. Heater： Tubular. Power 800 W.
7. Stirring motor： Rotating speed 60 RPM
8. Ambient temperature： -10℃～+40 ℃
9. Relative humidity： ≤85%
10. Maximum power consumption： 900 W
11. Dimension： 350mm×180mm×410mm
| NO. | Product name | Unit | Quantity | Remarks |
| 1 | GD-4929A ASTM D566 Lubricating Grease Dropping Point Apparatus, Lubricant Grease Tester | Set | 1 | Including beaker,outer cylinder et c |
| 2 | Grease cup | PC | 2 | |
| 3 | Tube | PC | 2 | |
| 4 | Cork | PC | 3 | |
| 5 | Guiding ring | PC | 2 | |
| 6 | Thermometer (-5 to 300°C,graduation 1°C ) | PC | 3 | 3# for Dropping point |
| 7 | Metal bar | PC | 1 | |
| 8 | Power wire(250V 6A) | Root | 1 | |
| 9 | Thermometer shield ring(1#) | PC | 4 | |
| 10 | Fuse 5A(5×20) | PC | 2 |
