GD-5096A
GOLD

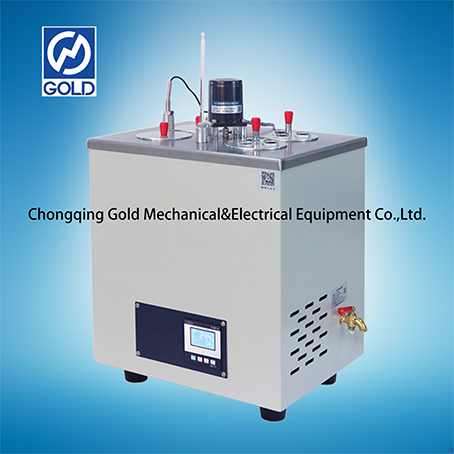

Copper Strip Corrosion Tester
The copper strip corrosion tester is designed and made as per the National Standard of People’s Republic of China GB/T 5096 “Test Methods for Detection of Copper Corrosion from Petroleum Products by the Copper Strip Tarnish Test”. It is suitable to determine the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. The instrument has functions of temperature controlling, automatic timing and alarming.
Working condition:
1. The instrument should be placed on a flat and stable workbench.
2. The test bomb containing natural gasoline and other sample of high vapor pressure should not be placed in a water bath of 100 ℃.
3. There is some combustible materials involved during test, so there should be no flame (or device can bring spark) near the instrument.
4. The power supply should be fine grounded.
Features:
1. Using a liquid crystal display temperature controller, heater, and electric stirrer to form a constant temperature bath, the temperature inside the bath is uniform; The temperature controller also has a timing function, which is used for time control setting and automatic timing during sample testing, and will also give an alarm prompt at that time.
2. This instrument has 4 sample test holes, each hole can hold one test cartridge or 3 test tube samples for simultaneous testing, with high testing efficiency.
3. Equipped with standard color palettes imported from the United States, meeting the requirements for testing and comparison.
4. Using a liquid crystal display temperature controller, the test results are intuitive and clear;
5. A constant temperature bath is composed of a heater and an electric stirrer, and the temperature inside the bath is uniform;
6. Equipped with timing function, it is used for time control setting and automatic timing during sample testing, and an alarm prompt will also be triggered at that time;
7. This instrument has 4 sample test holes, each hole can hold one test cartridge or 3 test tube samples for simultaneous testing, with high testing efficiency;
8. Equipped with standard color palettes imported from the United States to meet customer testing and comparison requirements.
Main technical specification and parameters:
Power supply | AC 220 V±10%, 50 Hz |
Temperature sensor | Industrial platinum resistance, scale number is Pt100 |
Temperature controlling range | room temperature～100 ℃ |
Temperature controlling accuracy | ±1 ℃ |
Temperature display mode | LED display |
Main heating power | 600 W |
Auxiliary heating power | 1000 W |
Time controlling range | 1 minute～24 hours |
Time display mode | LED display |
Sample hole | 4 pieces |
Sample tested at one time | 4 pieces～12 pieces |
Ambient temperature | room temperature～35 ℃ |
Relative humidity | ≤85% |
Total power consumption | not more than 1800 W |
Detail Images:
