GDY-1A+
GOLD
New Update Oxygen Boom Calory Test Machine Touch Screen Control
Definition of Calorific：
The calorific value (also known as heating value) of oil refers to the amount of heat released per unit mass when it undergoes complete combustion.
For energy fuels such as coal, petroleum, and petroleum-derived products, understanding their calorific value is essential. This metric facilitates thermal energy management, efficiency calculations for internal combustion engines, and broader research initiatives. By analyzing the heating properties of oils, users can make informed decisions and select the most suitable fuel for their specific needs.
Introduction:
The GDY-1A+ Oxygen Bomb Calorimeter is engineered to comply with multiple national and international standards, including:
1. Chinese National Standards:
GB/T 213-2008 (Calorific Value Determination of Coal)
GB/T 384-1988 (Calorific Value Testing for Petroleum Products)
Shanghai Q/YXYY 10 (Technical Standards for the XRY Series Calorimeters)
2. International Standard:
ASTM D240 (Test Method for Calorific Value of Hydrocarbon Fuels)
Calibration Regulations:
JJG 672-2001 (Chinese Metrological Verification for Oxygen Bomb Calorimeters)
This compliance ensures precise measurement of calorific values across fuels like coal, petroleum, and petroleum-derived products, adhering to rigorous quality and accuracy requirements.
Technical Features:
1. GDY-1A+ Oxygen Bomb Calorimeter adopts technology of single chip machine, touch screen, windows system
2. The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.

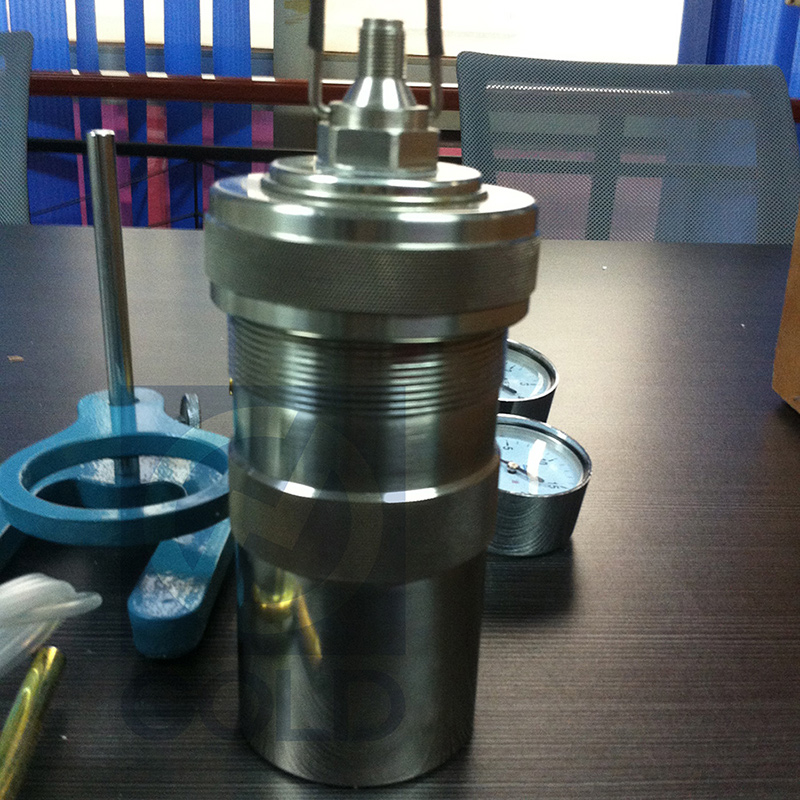

3. GDY-1A+ Oxygen Bomb Calorimeter adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.
4. The inner water container is made of stainless steel and the section likes as a pear.Its water volume is 3000g and with electric stirrer to make sure the uniform temperature in water bath.
5. The external water jacket is a double container.It will be filled fully with water when testing,and the stirrer in the water jacket will work to ensure the uniform temperature and create the constant temperature condition for test requirement.
Technical Specifications:
No | Parameter | |
1 | Working power | AC (220±10%) V, 50Hz |
2 | Total power consumption | ≤150W |
3 | Heat capacity | (14000~15000) J/K |
4 | Resolution | 0.001 K |
5 | Measurement accuracy | ≤60J/g |
6 | Measuring range | (10~35)℃ |
7 | Repeatability error | ≤0.2% (Grade C) |
8 | Pressure endurance of bomb | 20 MPa |
9 | Temperature measurement range | (15~28)℃ |
10 | Relative humidity | ≤85% |
11 | Overall dimension | 600mm×480mm×460mm |
New Update Oxygen Boom Calory Test Machine Touch Screen Control
Definition of Calorific：
The calorific value (also known as heating value) of oil refers to the amount of heat released per unit mass when it undergoes complete combustion.
For energy fuels such as coal, petroleum, and petroleum-derived products, understanding their calorific value is essential. This metric facilitates thermal energy management, efficiency calculations for internal combustion engines, and broader research initiatives. By analyzing the heating properties of oils, users can make informed decisions and select the most suitable fuel for their specific needs.
Introduction:
The GDY-1A+ Oxygen Bomb Calorimeter is engineered to comply with multiple national and international standards, including:
1. Chinese National Standards:
GB/T 213-2008 (Calorific Value Determination of Coal)
GB/T 384-1988 (Calorific Value Testing for Petroleum Products)
Shanghai Q/YXYY 10 (Technical Standards for the XRY Series Calorimeters)
2. International Standard:
ASTM D240 (Test Method for Calorific Value of Hydrocarbon Fuels)
Calibration Regulations:
JJG 672-2001 (Chinese Metrological Verification for Oxygen Bomb Calorimeters)
This compliance ensures precise measurement of calorific values across fuels like coal, petroleum, and petroleum-derived products, adhering to rigorous quality and accuracy requirements.
Technical Features:
1. GDY-1A+ Oxygen Bomb Calorimeter adopts technology of single chip machine, touch screen, windows system
2. The test procedure is fully automatic. After placing the sample and inputting the right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is over.
3. GDY-1A+ Oxygen Bomb Calorimeter adopts sealed oxygen bomb. The whole structure adopts stainless steel material.The strength is enough to resist 20MPa hydrostatic test under room temperature.
4. The inner water container is made of stainless steel and the section likes as a pear.Its water volume is 3000g and with electric stirrer to make sure the uniform temperature in water bath.
5. The external water jacket is a double container.It will be filled fully with water when testing,and the stirrer in the water jacket will work to ensure the uniform temperature and create the constant temperature condition for test requirement.
Technical Specifications:
No | Parameter | |
1 | Working power | AC (220±10%) V, 50Hz |
2 | Total power consumption | ≤150W |
3 | Heat capacity | (14000~15000) J/K |
4 | Resolution | 0.001 K |
5 | Measurement accuracy | ≤60J/g |
6 | Measuring range | (10~35)℃ |
7 | Repeatability error | ≤0.2% (Grade C) |
8 | Pressure endurance of bomb | 20 MPa |
9 | Temperature measurement range | (15~28)℃ |
10 | Relative humidity | ≤85% |
11 | Overall dimension | 600mm×480mm×460mm |
