Rust Preventing Characteristics Tester

Rust Preventing Characteristics Tester

The Rust Preventing Characteristics Test (ASTM D665) is designed to measure the ability of industrial oils to prevent rusting under conditions of water contamination. The test can be performed with either distilled water or synthetic seawater. The test consists of stirring a mixture of 300 milliliters of the oil being tested with 30 milliliters of water, either distilled or sea water, at 140°F (60°C) for four hours. A special cylindrical steel test specimen made of #1018 cold-finished carbon steel is polished and then completely immersed in the test fluid. At the end of the four-hour test period, the specimen is removed, washed with solvent, and rated for rust.

Operating Principle:

• A sample of the lubricant is mixed with water and placed in a heated bath. A polished steel rod is submerged in the oil / water mixture for a predetermined length of time, typically 4 hours. The test rod is then inspected for signs of rust. This test is run in duplicate, and to be considered passing both test rods must be free of rust. ASTM method - D665

Application scope:

• Petroleum product production enterprises

• Testing Department

Functional features:

1. Imported Omron PID temperature controller, digital display temperature, accuracy of 0.1 ℃;

2. A separate silent mixer that allows for the selection of one or more tests;

3. Each mixer is individually controlled for speed and testing time, and automatically stops after the test is completed;;

4. Sputtering type multi-channel liquid circulation device can effectively ensure temperature uniformity at all points;

5. Sliding automatic positioning device, no need to adjust stirring blades;

6. Safety protection device to prevent low liquid level;

7. 4 units of operation, expandable to 6 units;

Technical parameters:

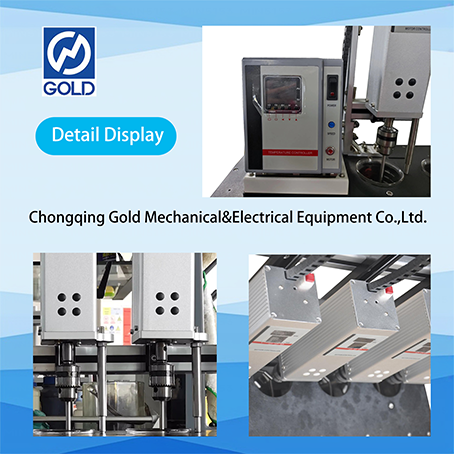

Detail Images:
