Fully-Automatic Open Cup And Closed Cup Flash Point Tester
The automatic open and closed flash point tester is designed and made as per ASTMD93 and ASTM D92 standard. Usually used in petroleum, chemical, electric power, environmental protection, railway, scientific research and other departments. open and closed flash point tester is the ideal instrument for testing open and closed port flash point.
Features:
The open and closed flash point tester is controlled by a new high-speed signal processor and an adaptive PID control algorithm, which automatically adjusts the heating curve according to standard requirements.
The lifting, mixing, ignition, detection, alarm, cooling, and printing instruments are fully automated.
The open and closed flash point tester is safe and has no gas source. Platinum alloy electric heating wire ignition method is safe, stable, reliable, and has high testing accuracy.
Differential detection, automatic correction of system deviation, automatic stop of detection and alarm when temperature exceeds the value.
The open and closed flash point tester has a powerful storage function, which facilitates historical queries.
Technical Parameters:
| Display method | 8-inch English touch screen display |
| Measurement Method | Thermocouple differential detection type |
| Display range | 59.9~400℃ |
| Measuring range | Open cup: ambient~400℃ Closed cup: ambient~350℃ |
| Resolution | 0.1℃ |
| Repeatability | Flash point≤110℃, the tolerance is ±1℃ Flash point>110℃, the tolerance is ±2℃ |
| Printer | Low power consumption high speed thermal printer, 56mm paper width |
| Temperature check | Imported platinum resistance (Pt100Ω) |
| Ignition method | No gas, electronic Ignition |
| Self-check function | Instrument fault automatic diagnosis |
| Cooling method | air cooling |
| Power Consumption | ＜550W |
| Environment | 10~45℃, humidity 30~80% |
| Power supply | AC220V±10% |

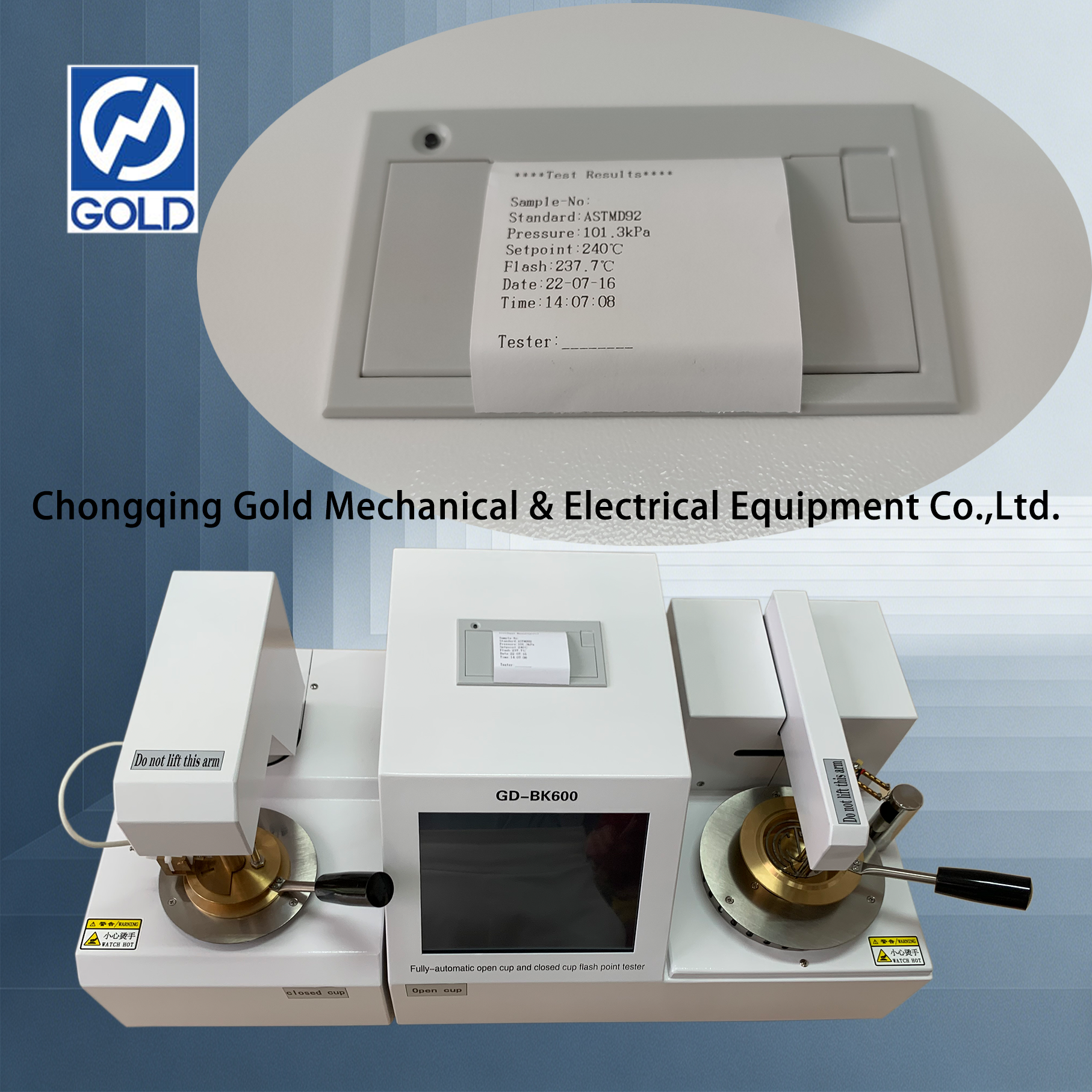

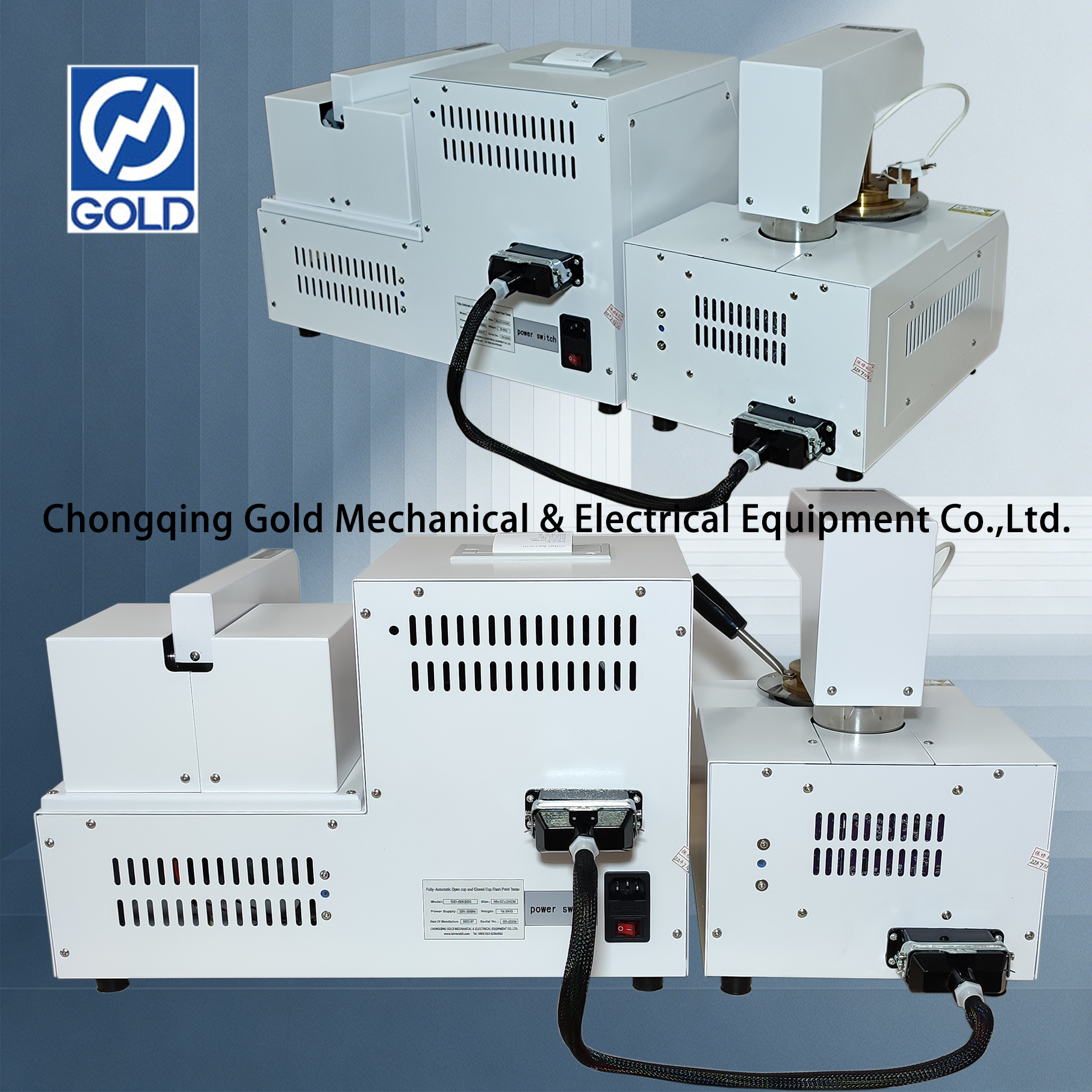

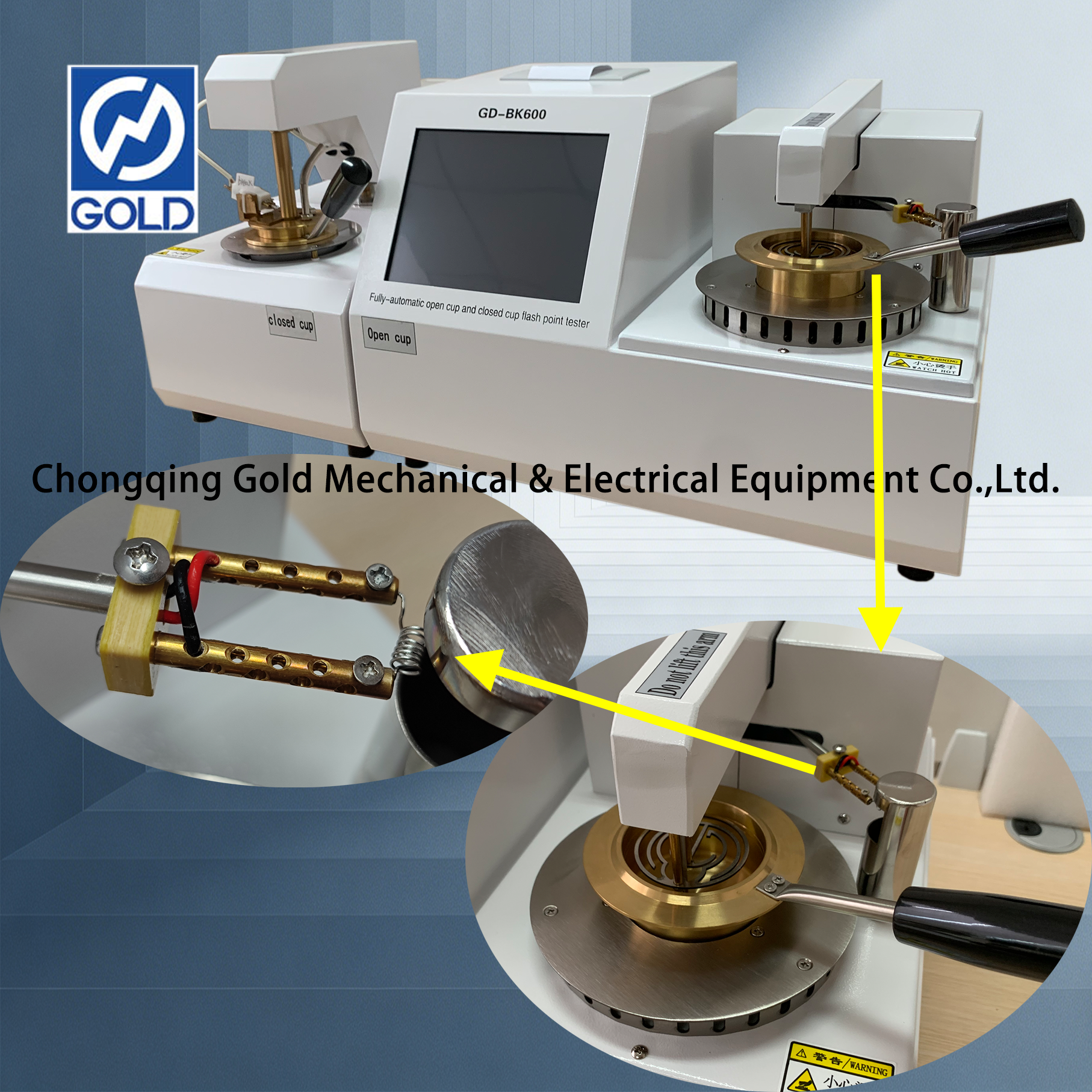

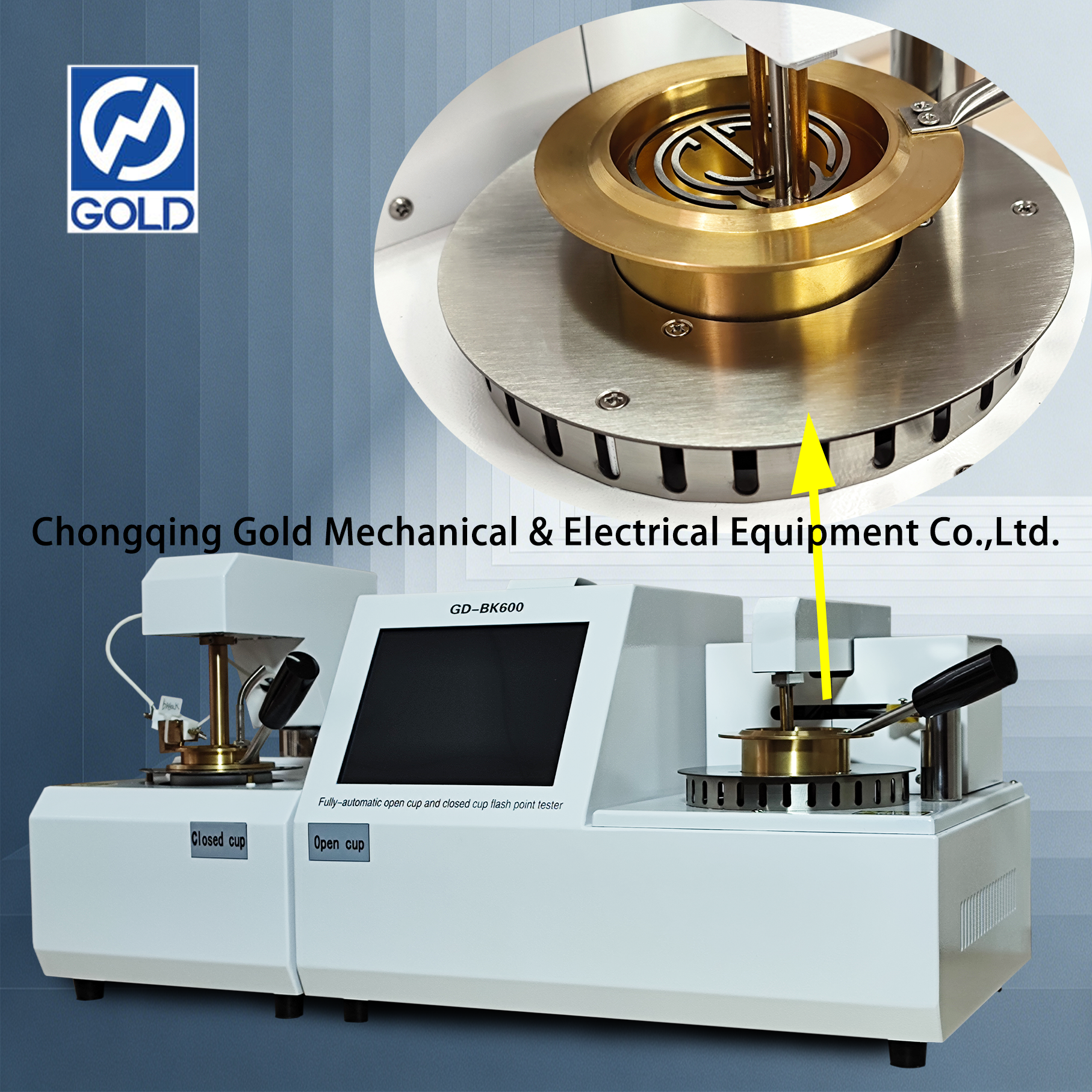

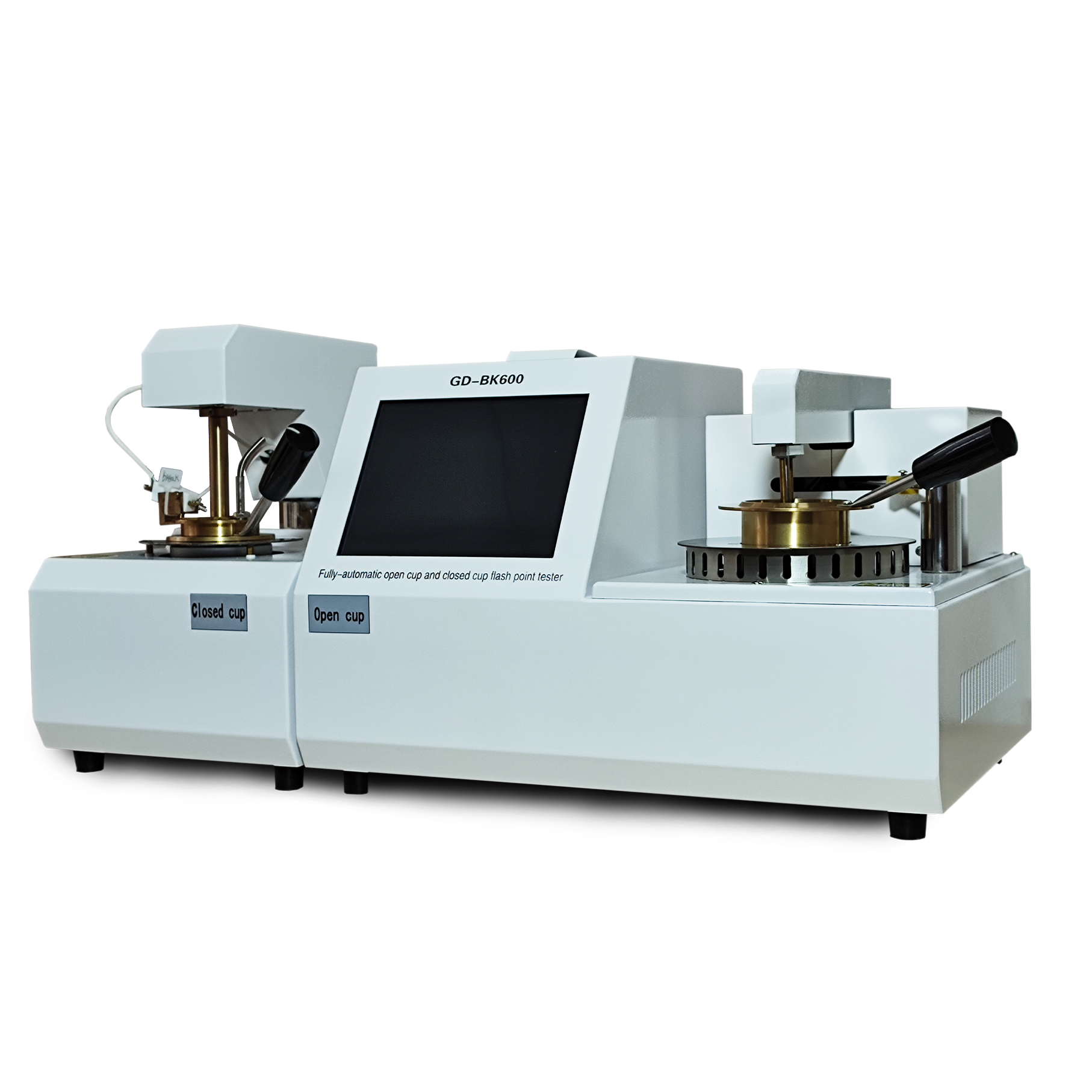

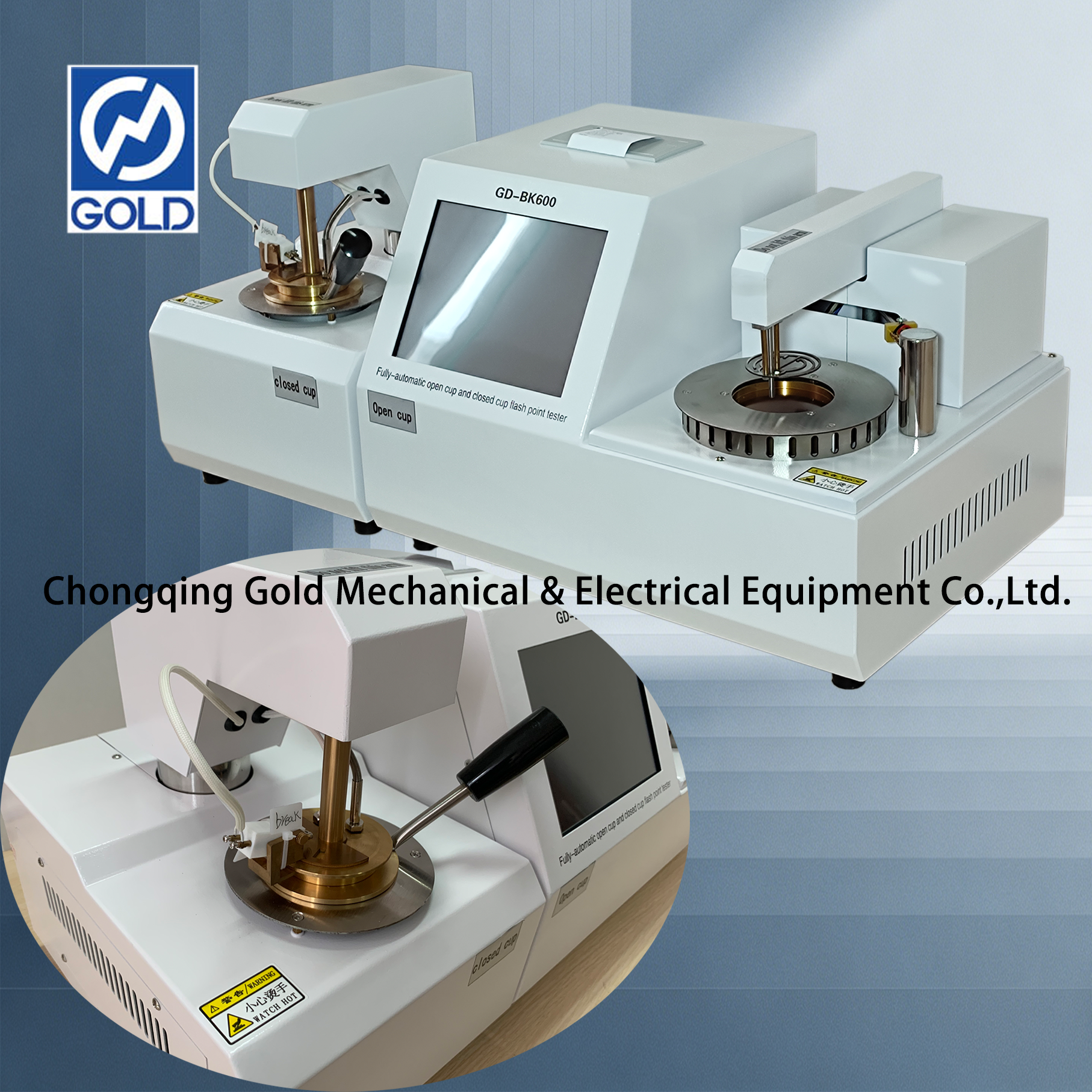

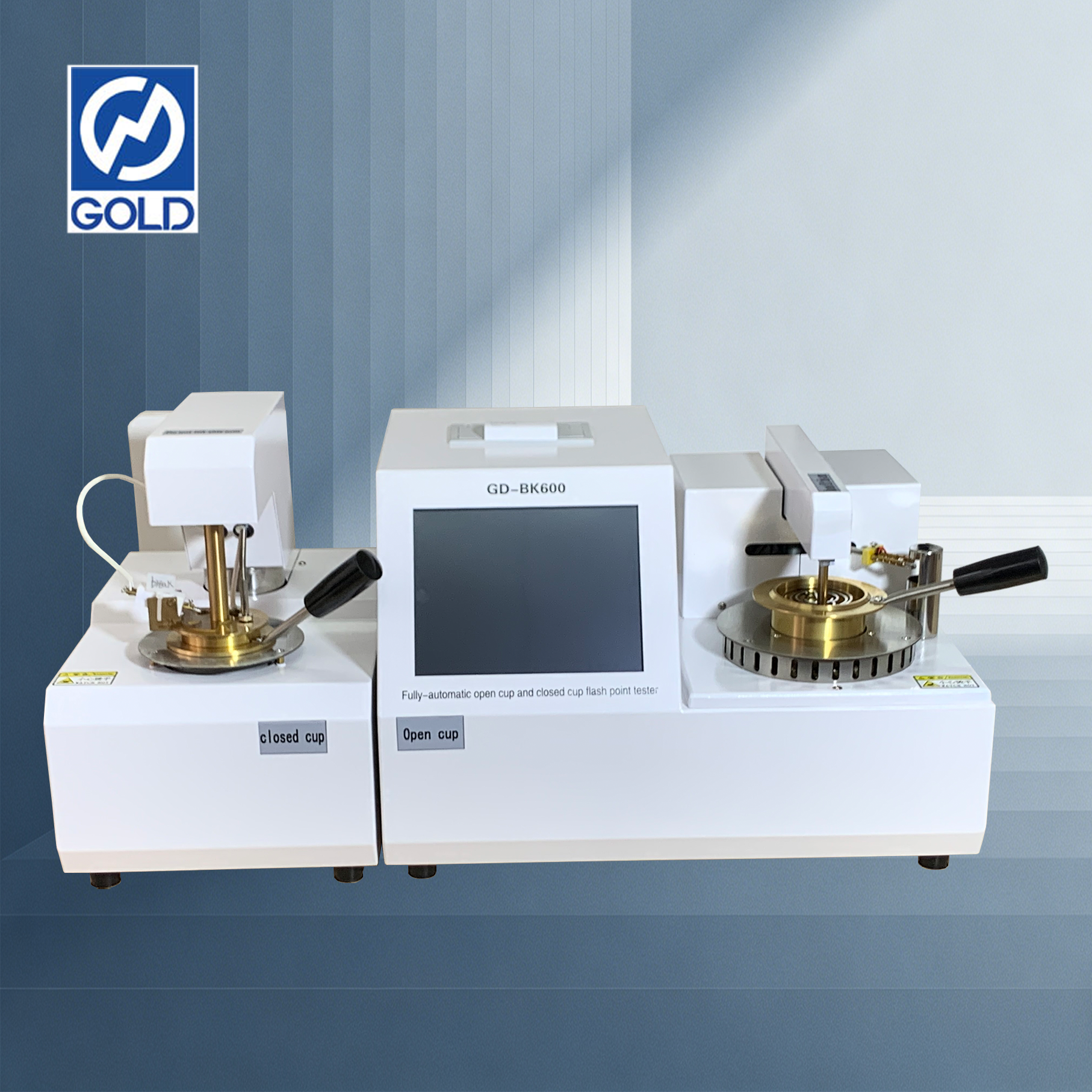

Product Details of Open Cup And Closed Cup Flash Point Tester:
