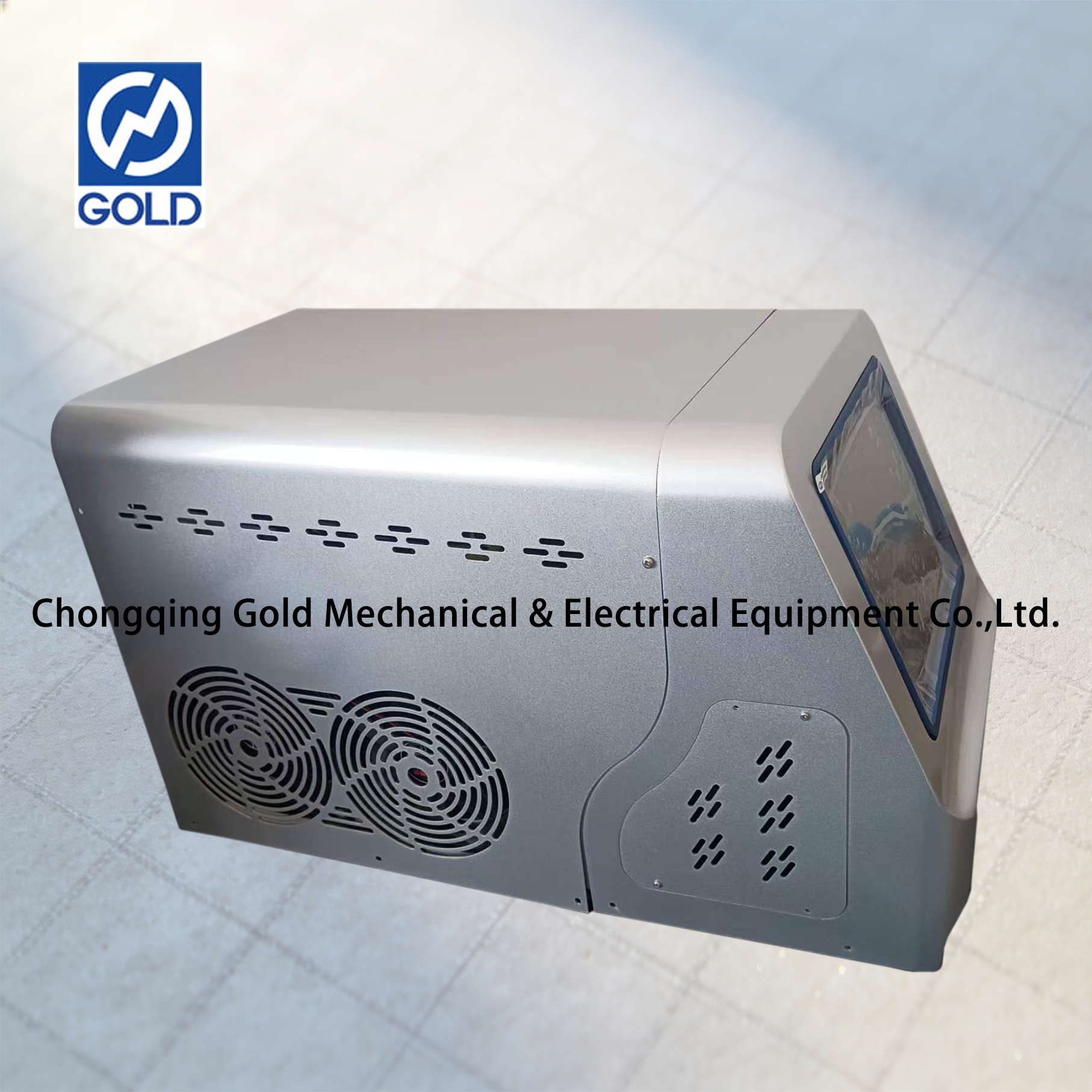

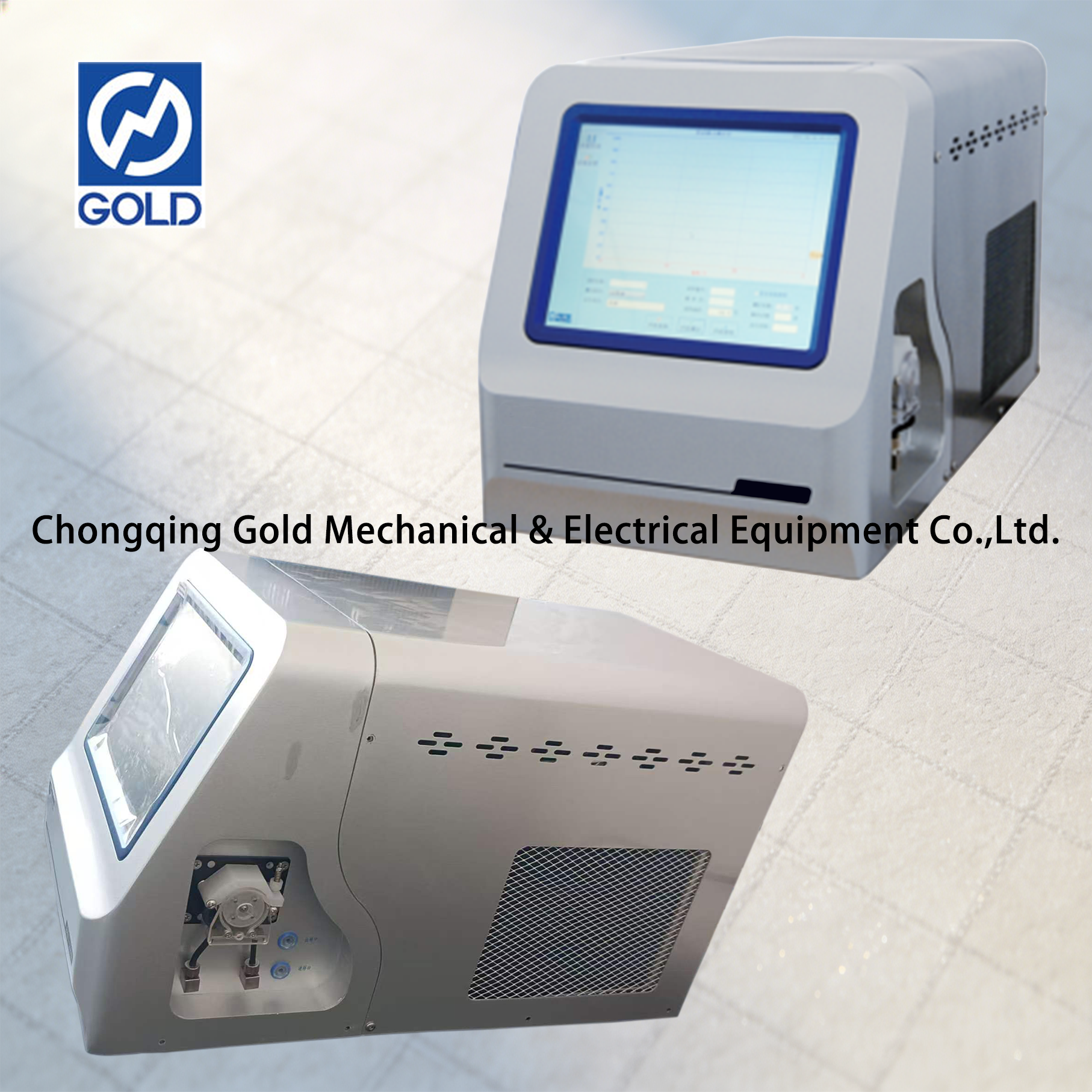

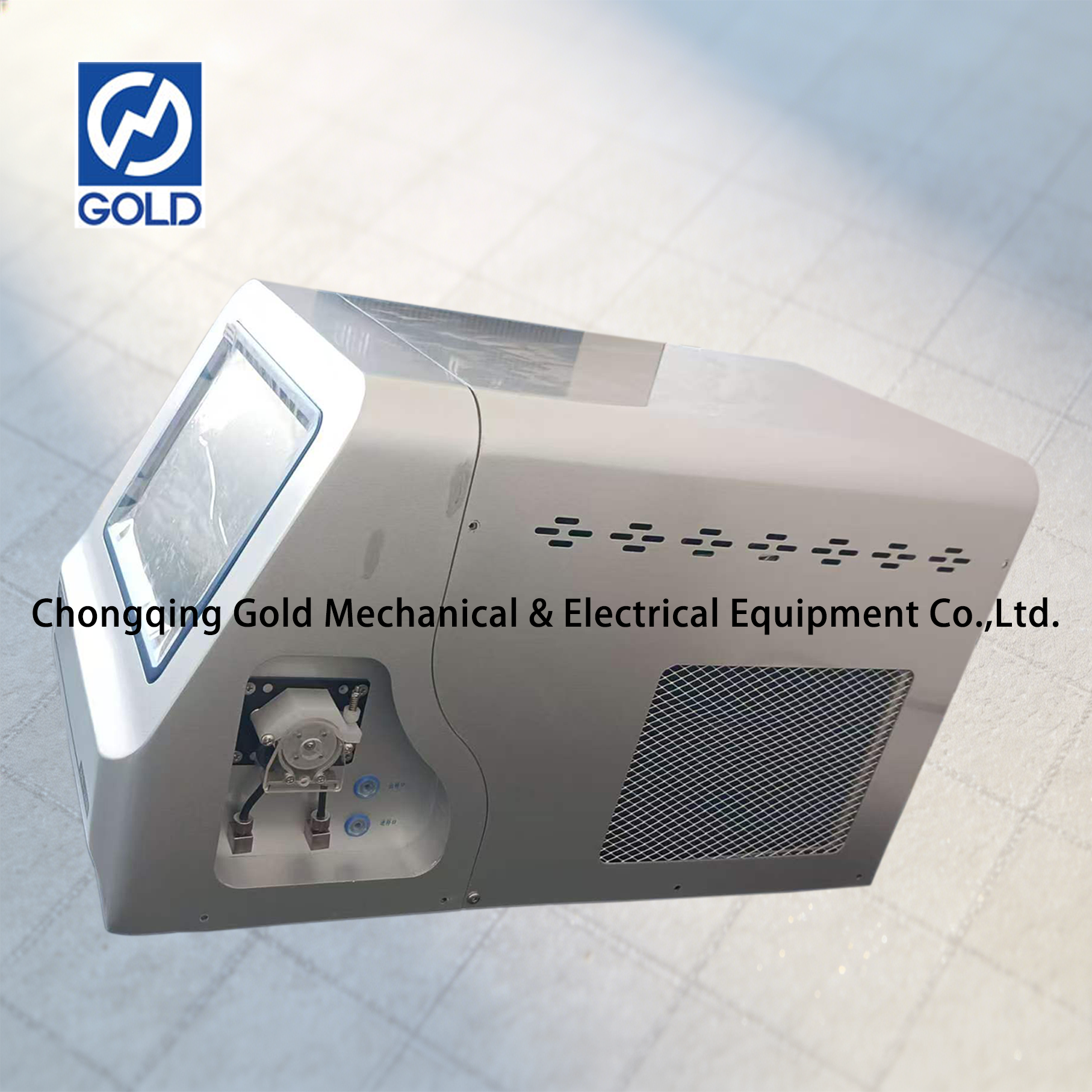

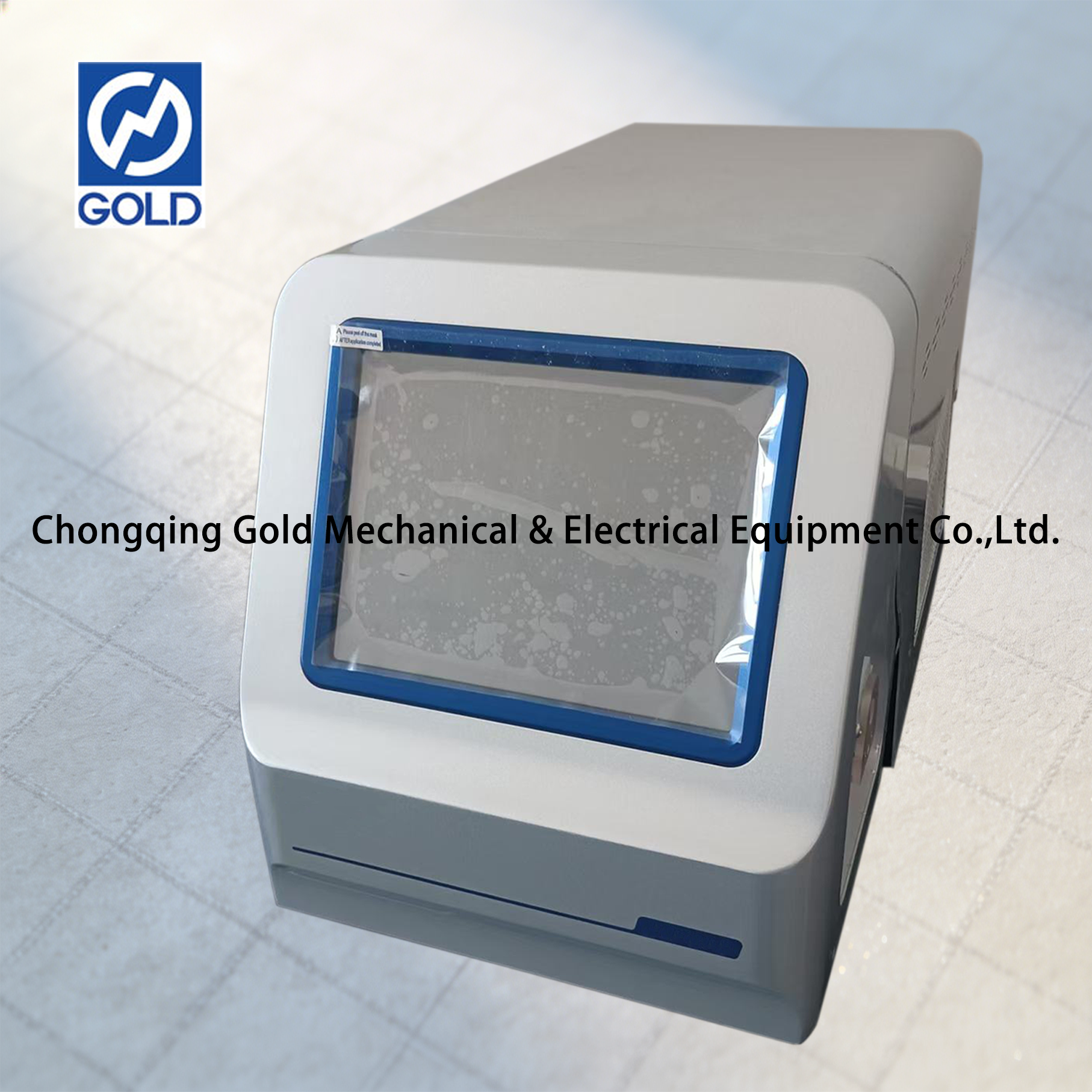

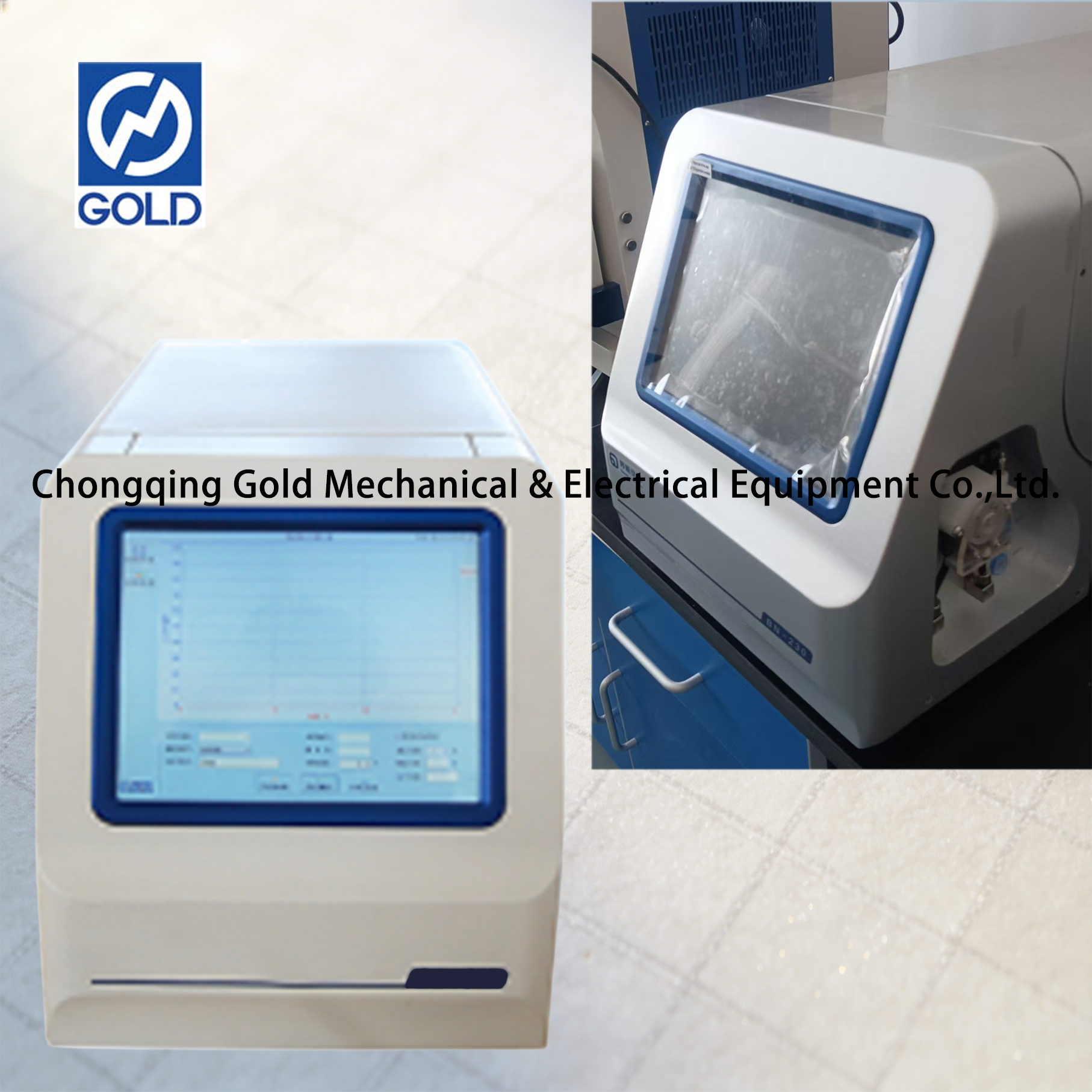

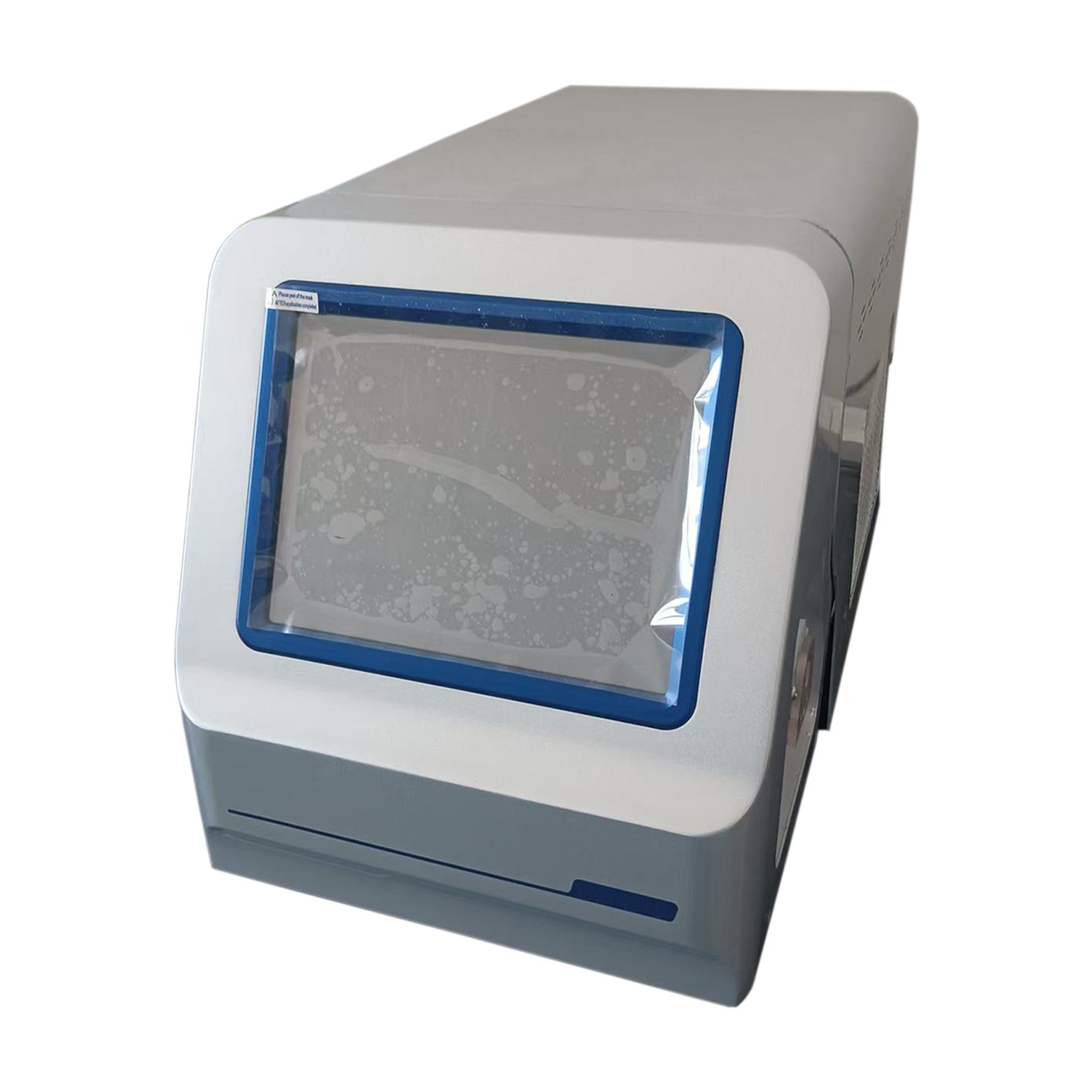

Micro Rapid Freezing Point Tester
This Micro Rapid Freezing Point Tester is an environmentally friendly instrument with independent intellectual property rights. The instrument is designed according to the optical principle of ASTM D7153 and uses electromagnetic stirring mode to determine the freezing point.
Aviation fuel forms solid hydrocarbon crystals when cooled, and then the fuel temperature rises, causing these crystals to disappear. The instrument uses optical principles to monitor the above changes, accurately measures the freezing point through detection software, and reports the test results.
Features:
The Micro Rapid Freezing Point Tester features a 10.4-inch touchscreen LCD display with real-time data display in English.
Single-unit self-cascading cooling ensures rapid cooling; from power-on to sample injection and obtaining test results, only 10-15 minutes are required.
The Freezing Point Tester uses optical principles to precisely monitor changes in the oil sample, automatically measuring and reporting experimental results through detection software.
Only 5mL of oil sample is needed per experiment; automatic continuous injection using a peristaltic pump allows for arbitrary setting of the number of injections.
The Freezing Point Tester automatically heats up after the experiment.
The Rapid Freezing Point Tester has an efficient and fast database function, allowing for easy access to and use of saved experimental results.
Password-protected operation permissions ensure database security.
Key components are selected from internationally renowned brands, guaranteeing the instrument's performance and reliability.
The Micro Rapid Freezing Point Tester can be connected to a laboratory LIMS system and can be networked with multiple machines.
Technical Parameters：
Sample measurement range | 10 ℃~-80 ℃ |
Average test time | 10-15 minutes |
Sample size | 5ml |
Power | 600W |
Dimensions | 600mm × 310mm × 370mm |
Weight | 20KG |
Structure of Micro Rapid Freezing Point Tester:
Display control system: display and control the test process, and process the test results.
Refrigeration system: provides a cold source for the experiment.
Sample injection system: including fully automatic sampler, pipeline, and waste liquid bottle (waste liquid receiving).
Detection system: Monitor the entire cooling process of the sample and detect the freezing point of the sample.
Product Details:
