GD-261-1
GOLD

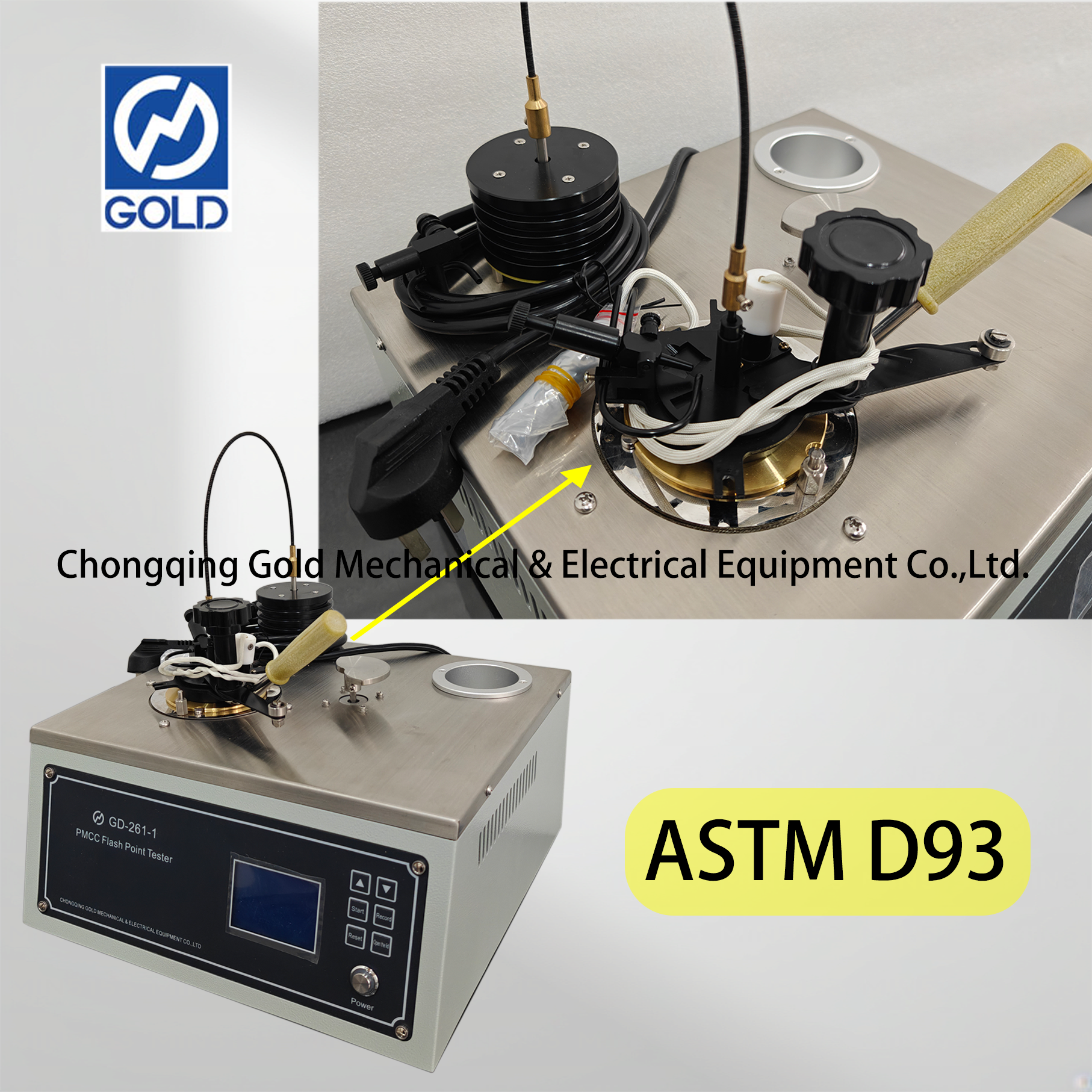

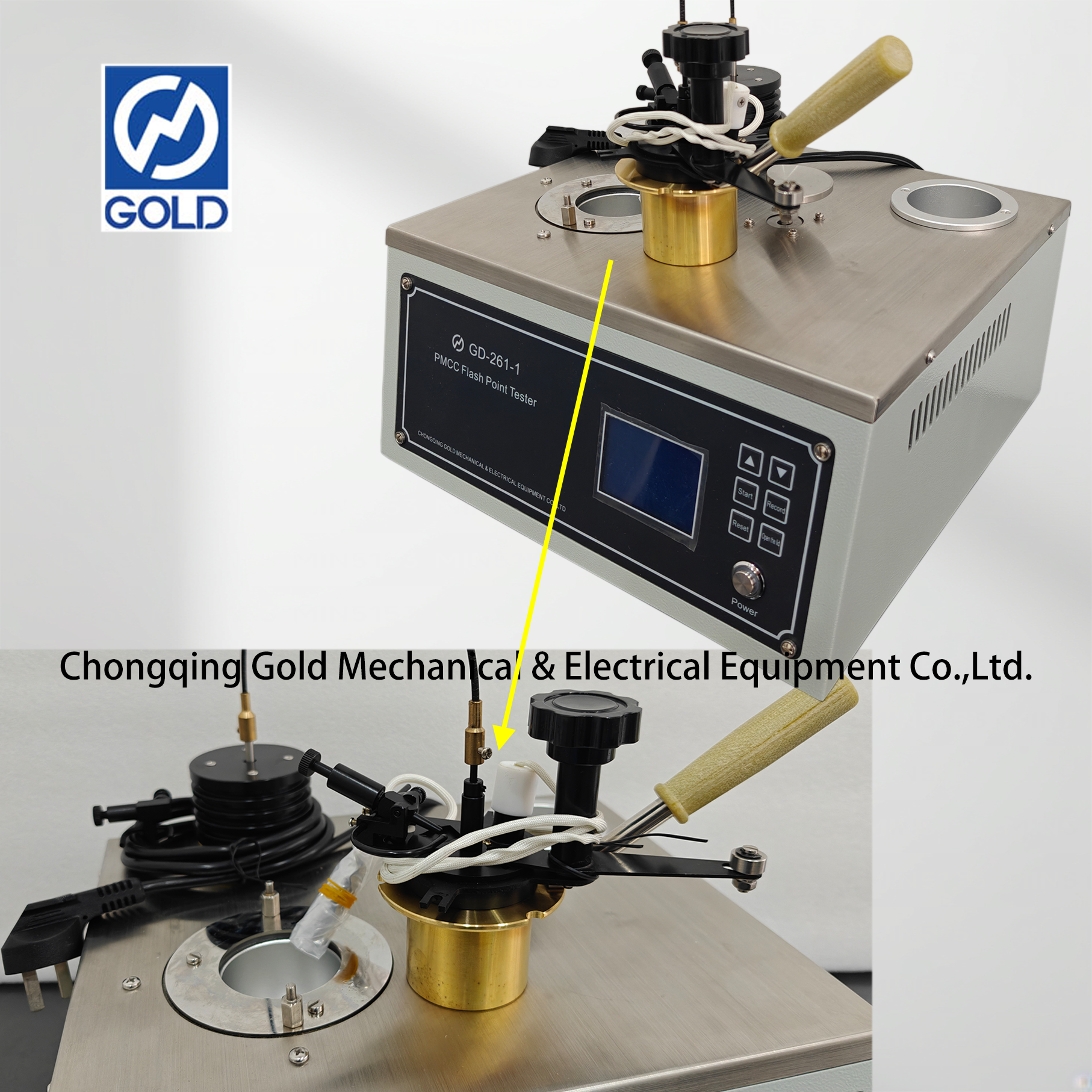

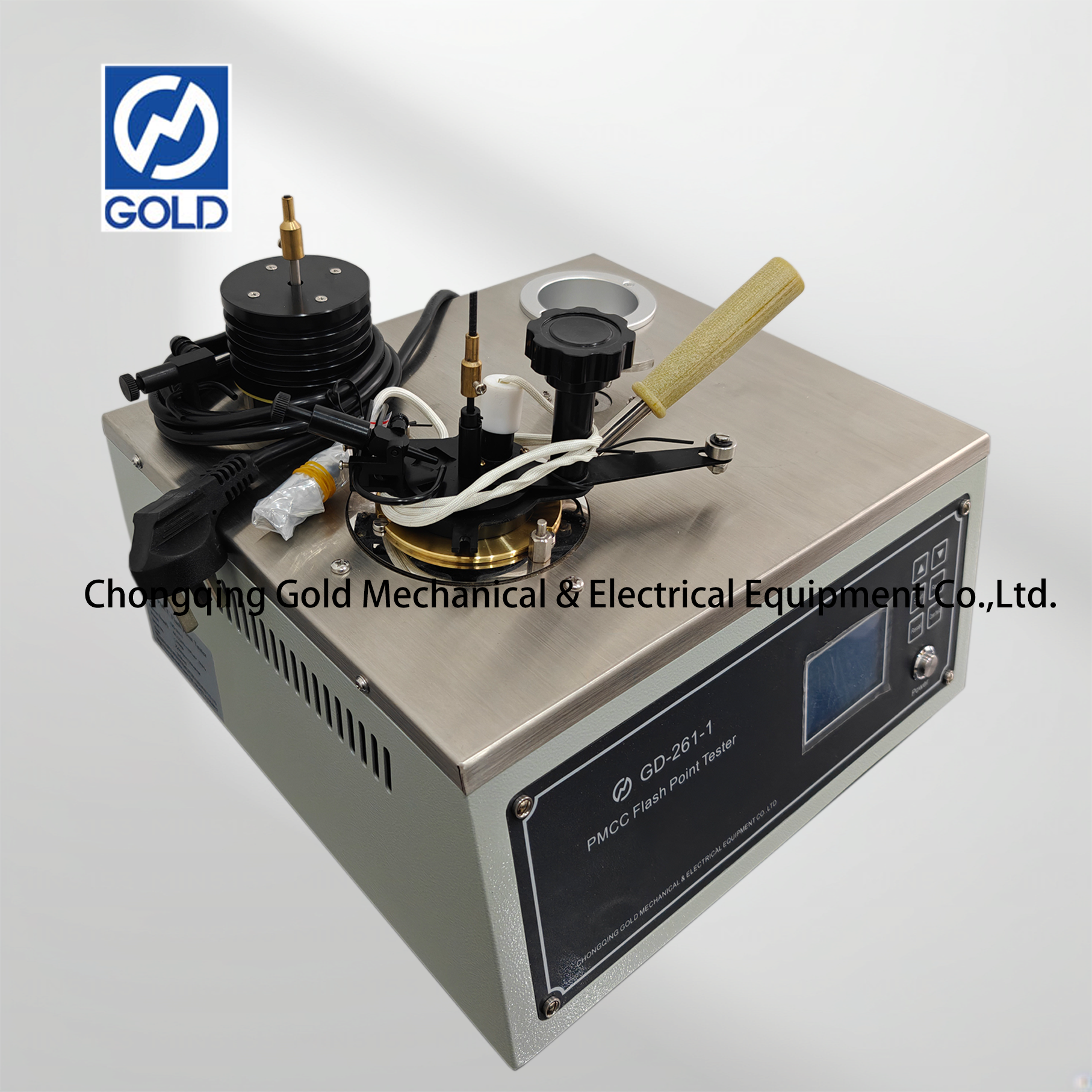

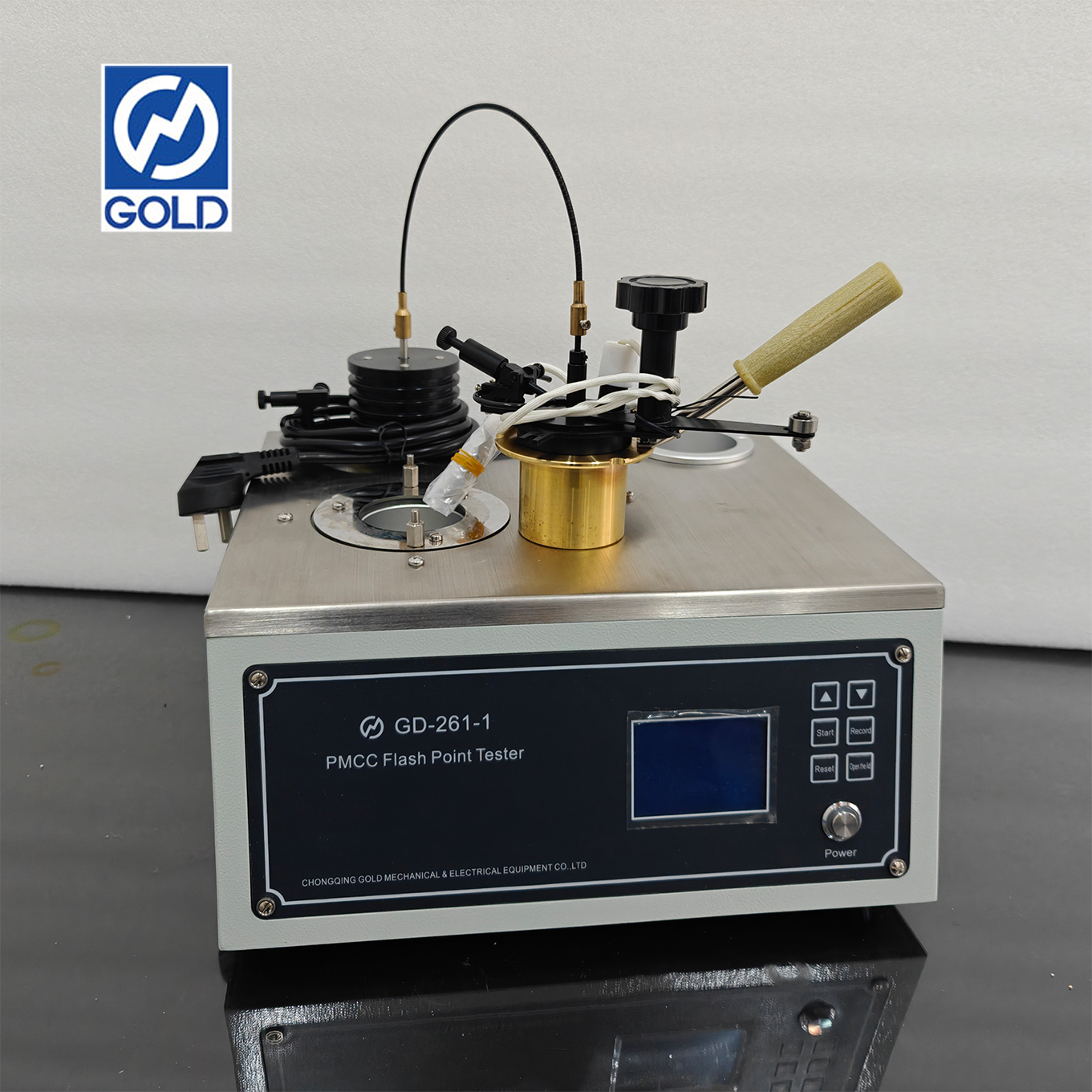

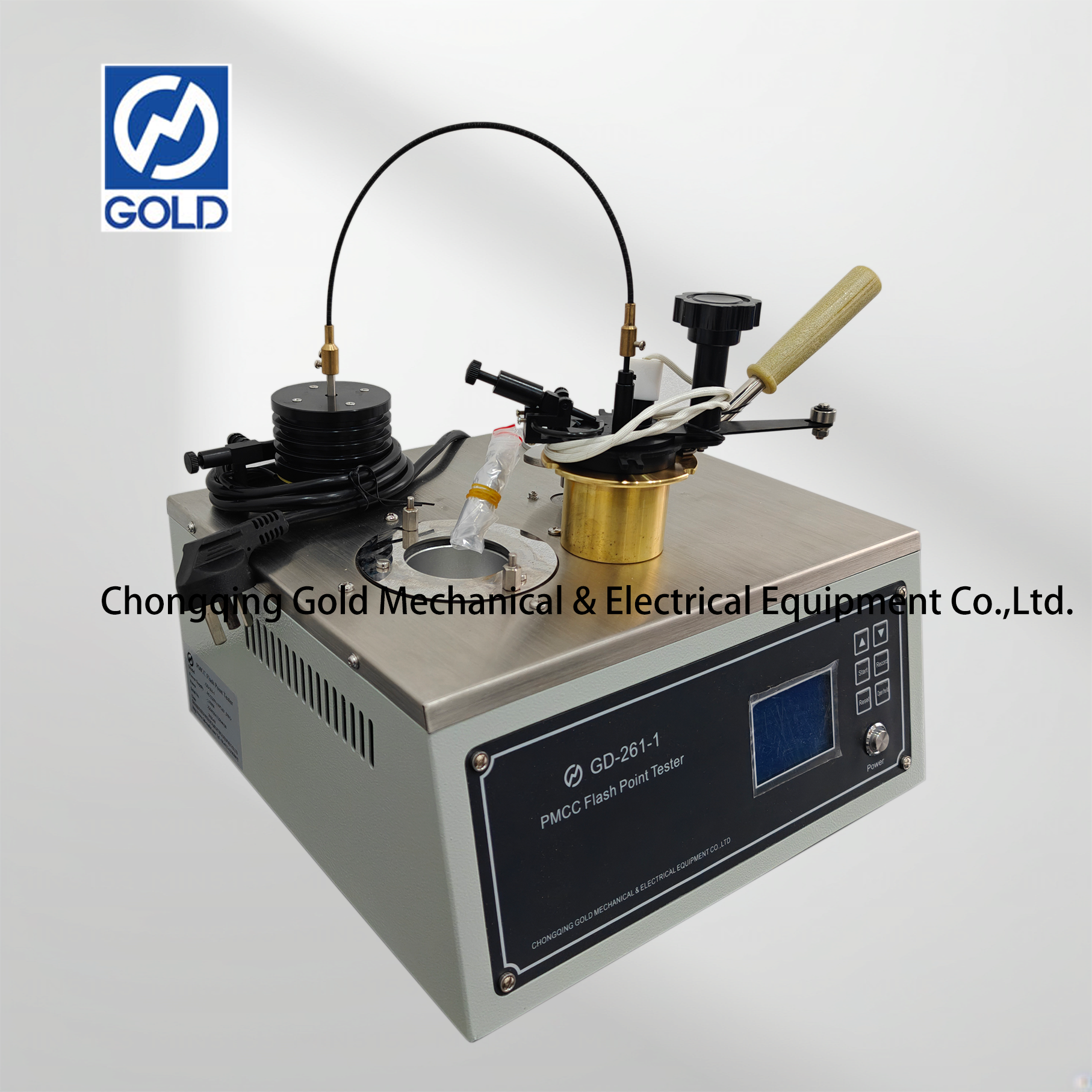

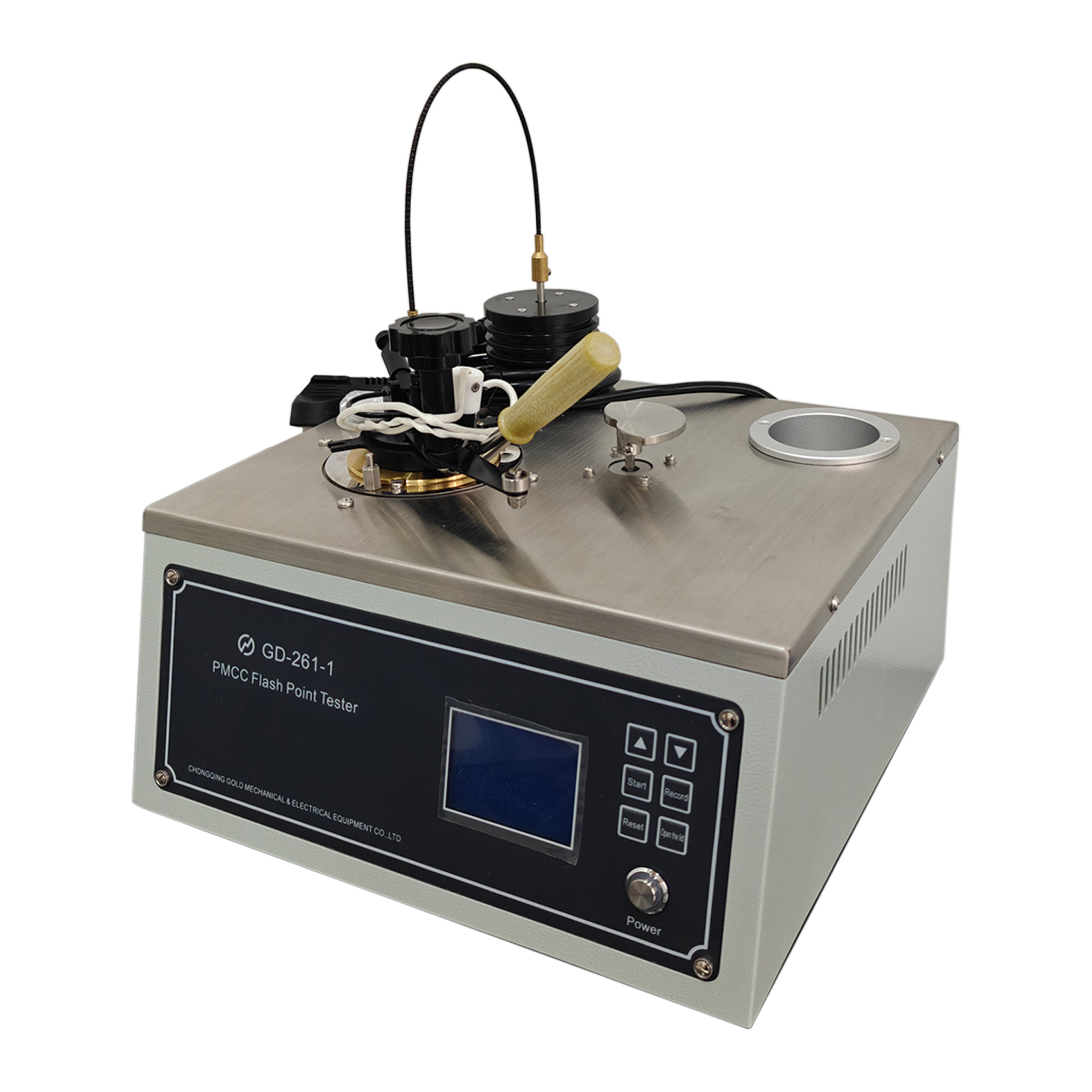

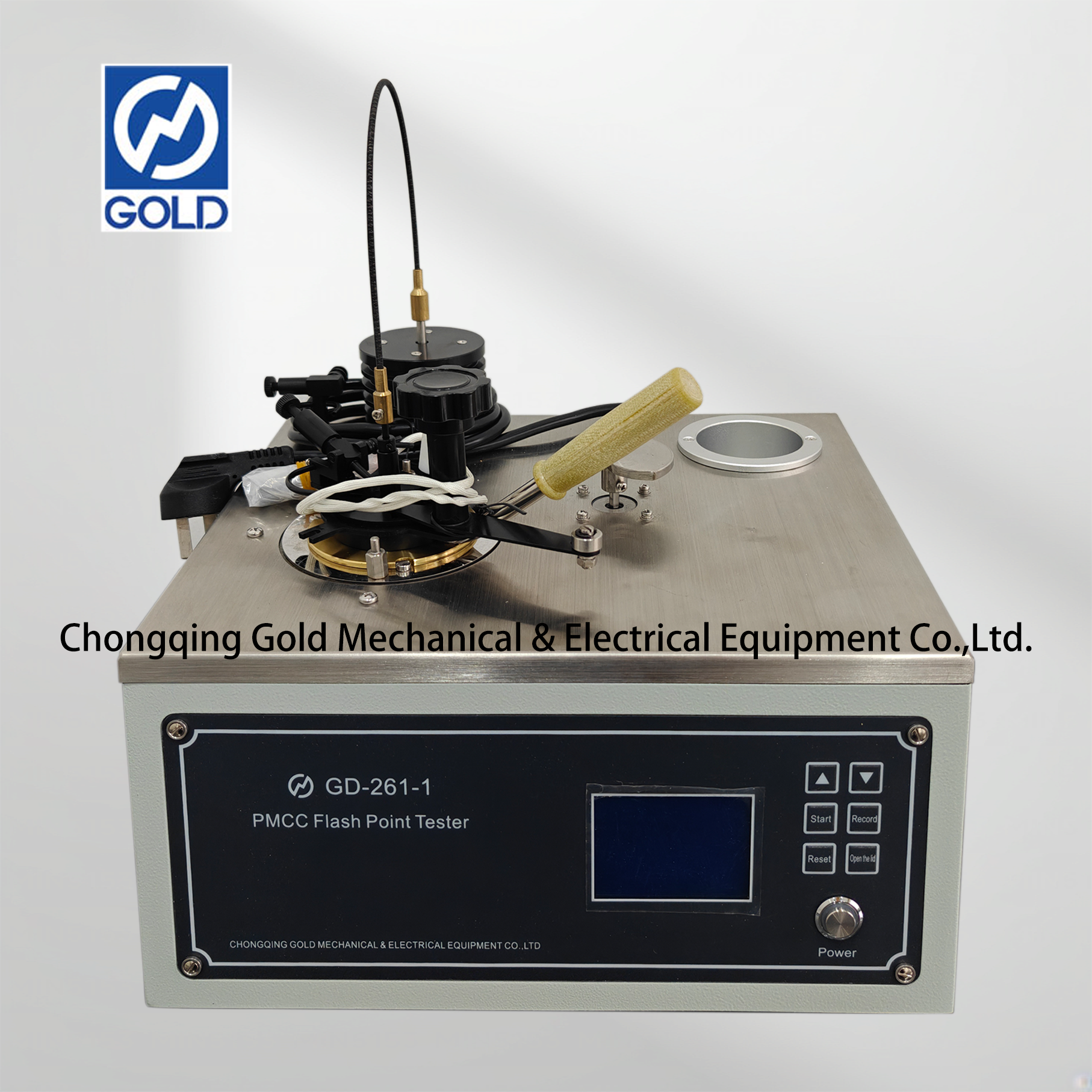

PMCC Pensky Martens Closed Cup Tester ASTM D93
This Pensky Martens Closed Cup Tester adopts a LCD screen and an English interactive interface, with intuitive operation. Users can preset key parameters such as flash point, multiple testing programs, automatic ignition and heating switches, and are equipped with prompt menus to guide operations. The instrument has a novel design and is easy to use, ensuring accurate and reliable test results. It is widely used in industrial fields such as petroleum, railway, aviation, and power, as well as universities and research institutes.
Main Technical Specifications:
| Power supply | AC（220±10%）V, 50Hz |
| Heating device of Pensky Martens Closed Cup Tester | (1) The furnace is silicon carbide material. Power is 600W heating wire. (2) The heating power is adjustable from 0 W to 600W. |
| Rate of sample’s heating up | Procedure A ：(5～6 )℃/min； Procedure B：(1～1.5)℃/min； Procedure C: (2.5～3.5)℃/min |
| Electric stirring device | (1) Stirring motor：（BYGH101stepping motor） (2) Driving mode：flexible axle (3) Stirring vane size：8mm×40mm |
| Stirring rate of Pensky Martens Closed Cup Tester | (1) 90～120 turns/min, suitable to test procedure A. (2) (250±10）turns/min, suitable to test procedure B. (3) 90～120 turns/min, suitable to test procedure C. |
| Standard oil cup | (1) Inner diameter：50.7㎜～50.8㎜ (2) Depth：55.7㎜～56.0㎜ (3) Scribed line depth of capacity of oil sample：33.9㎜～34.3㎜ (4) Capacity of oil sample：about 70ml |
| Igniting device | Igniting source：gas（or other civilian fuels, the same below） |
| Temperature testing probe | Pt100 |
| Ambient temperature | (15~ 35) ℃ |
| Relative humidity | ≤ 85％ |
| Power consumption | ≤ 650W |
| Dimension of Pensky Martens Closed Cup Tester | 340mm×330mm×380mm |
| NW | 9kg |
Structure of Pensky Martens Closed Cup Tester:
(1) Air inlet valve
(2) Igniting device
(3) Stirring motor
(4) Latex tube
(5) Temperature sensor
(6) Igniting component
(7) Automatic ignition rotating wheel
(8) Oil cup
(9) Hole of oil cup
(10) Countertop
(11) Power switch
Product Details Display:
PMCC Pensky Martens Closed Cup Tester ASTM D93
This Pensky Martens Closed Cup Tester adopts a LCD screen and an English interactive interface, with intuitive operation. Users can preset key parameters such as flash point, multiple testing programs, automatic ignition and heating switches, and are equipped with prompt menus to guide operations. The instrument has a novel design and is easy to use, ensuring accurate and reliable test results. It is widely used in industrial fields such as petroleum, railway, aviation, and power, as well as universities and research institutes.
Main Technical Specifications:
| Power supply | AC（220±10%）V, 50Hz |
| Heating device of Pensky Martens Closed Cup Tester | (1) The furnace is silicon carbide material. Power is 600W heating wire. (2) The heating power is adjustable from 0 W to 600W. |
| Rate of sample’s heating up | Procedure A ：(5～6 )℃/min； Procedure B：(1～1.5)℃/min； Procedure C: (2.5～3.5)℃/min |
| Electric stirring device | (1) Stirring motor：（BYGH101stepping motor） (2) Driving mode：flexible axle (3) Stirring vane size：8mm×40mm |
| Stirring rate of Pensky Martens Closed Cup Tester | (1) 90～120 turns/min, suitable to test procedure A. (2) (250±10）turns/min, suitable to test procedure B. (3) 90～120 turns/min, suitable to test procedure C. |
| Standard oil cup | (1) Inner diameter：50.7㎜～50.8㎜ (2) Depth：55.7㎜～56.0㎜ (3) Scribed line depth of capacity of oil sample：33.9㎜～34.3㎜ (4) Capacity of oil sample：about 70ml |
| Igniting device | Igniting source：gas（or other civilian fuels, the same below） |
| Temperature testing probe | Pt100 |
| Ambient temperature | (15~ 35) ℃ |
| Relative humidity | ≤ 85％ |
| Power consumption | ≤ 650W |
| Dimension of Pensky Martens Closed Cup Tester | 340mm×330mm×380mm |
| NW | 9kg |
Structure of Pensky Martens Closed Cup Tester:
(1) Air inlet valve
(2) Igniting device
(3) Stirring motor
(4) Latex tube
(5) Temperature sensor
(6) Igniting component
(7) Automatic ignition rotating wheel
(8) Oil cup
(9) Hole of oil cup
(10) Countertop
(11) Power switch
