GD-SD382
GOLD

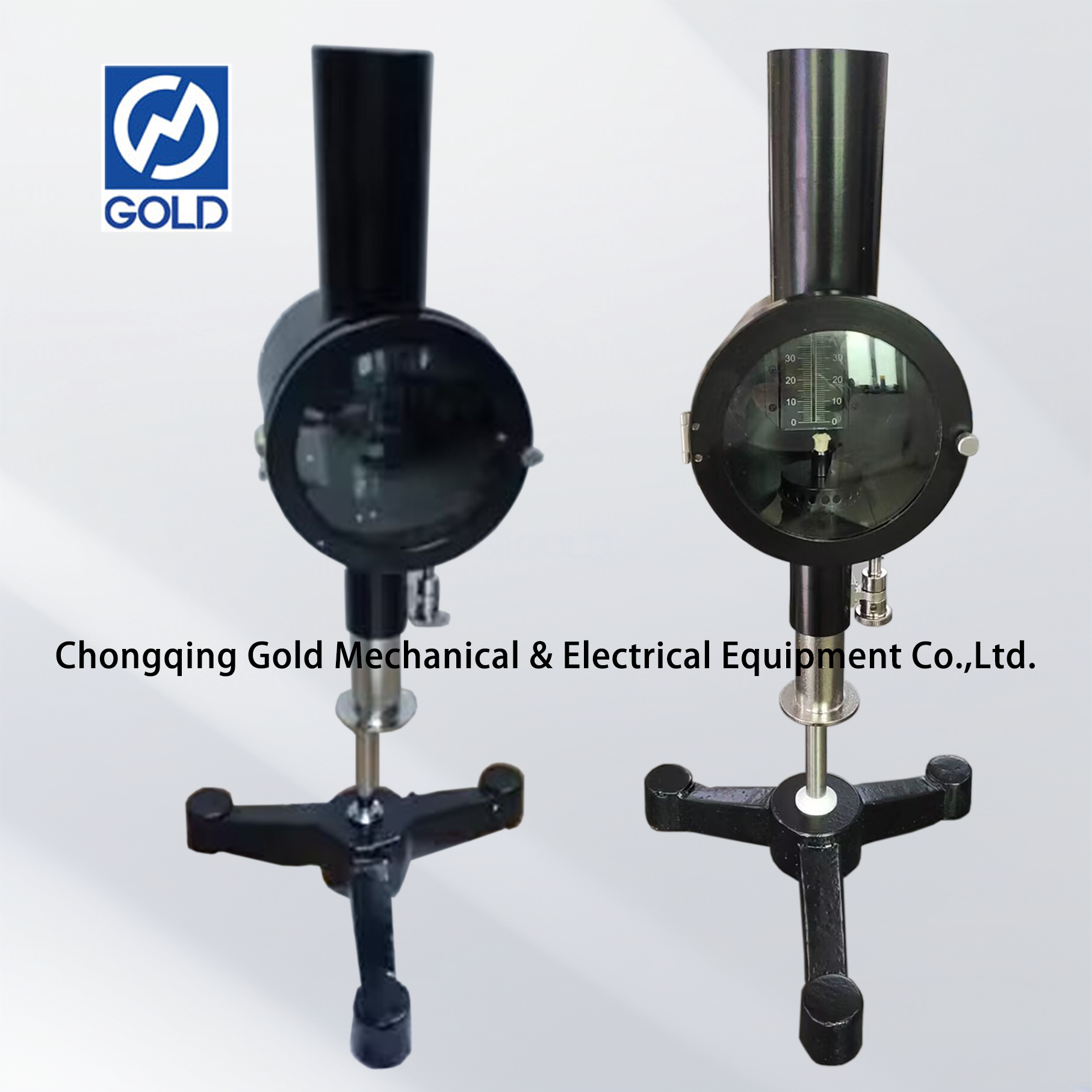

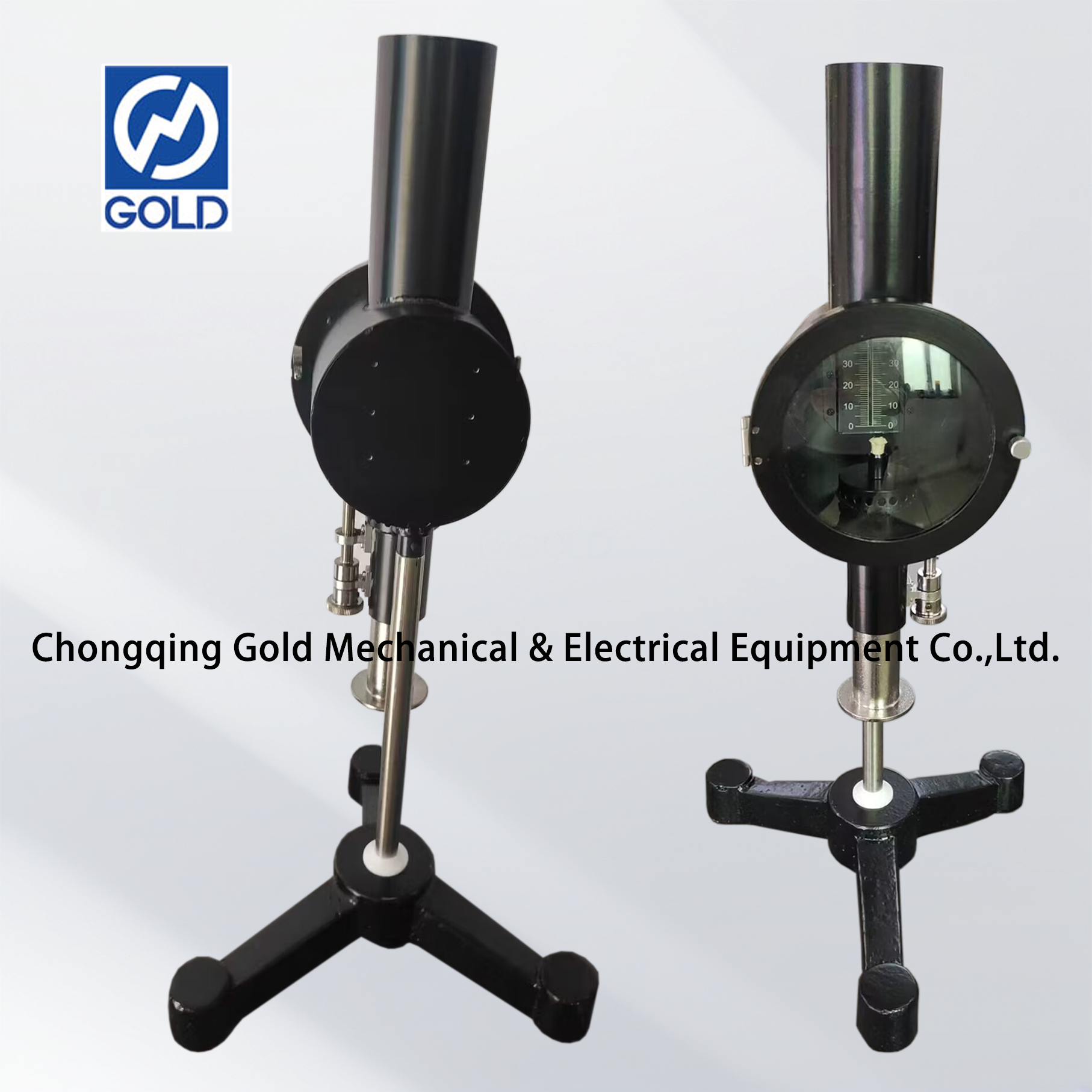

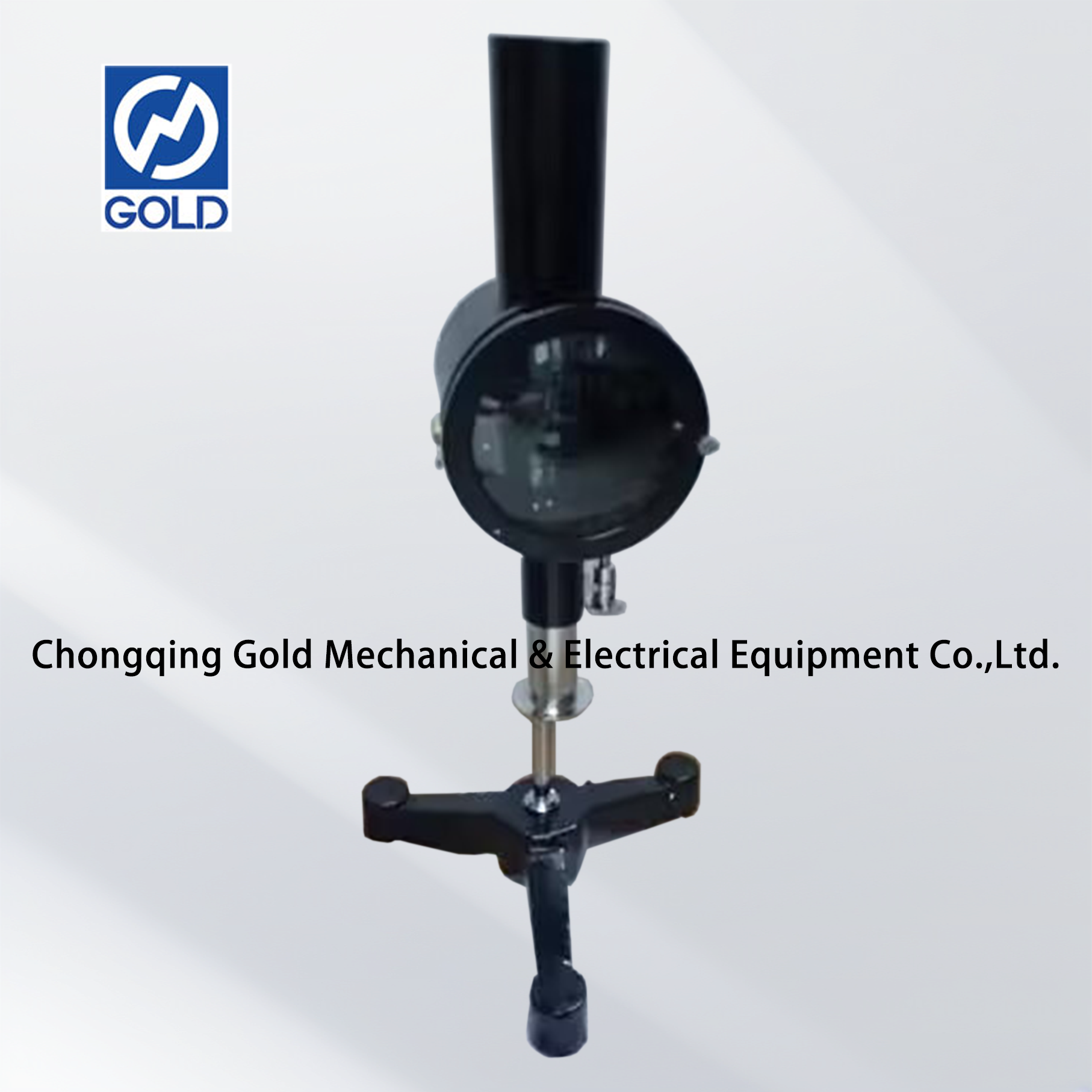

Kerosene Smoke Point Tester
The sample burns in a standard lamp, and the change in flame height is reflected on the millimeter scale background. The measurement results have high repeatability, and the entire instrument has a compact and complete structure without circuit components, which complies with GB/T382 and ASTMD1322.
Features:
The kerosene smoke point tester adopts a millimeter scale background, which can clearly read the data
The entire instrument has a compact and complete structure
The kerosene smoke point tester adopts a plug-in structure, making it more convenient to replace the wick
The kerosene smoke point tester adopts a specially designed glass observation window, which is easy to operate
The kerosene smoke point tester is easy to operate and has high repeatability in the measurement results
Technical Parameter:
| Ruler | The ruler should be marked in white on black glass, with a 2mm white or black stripe at the center dividing the ruler vertically into two equal parts. The measuring range of the ruler should be 50 millimeters, with a division of 1 millimeter. Mark numbers every 10 millimeters and use longer lines every 5 millimeters. |
Wick conduit | The top of the wick conduit should be precisely at the same level as the zero point on the ruler. |
Lift seat | The total distance of the lifting seat should not be less than 10 millimeters, and it should move smoothly and evenly. |
Oil storage container | The oil rese |
| Inner diameter size of oil storage tank body | Ф21.25±0.05 length：109.0±0.05 |
Inner diameter of wick tube | Ф4.7±0.05 Length： 82.0 ± 0.05 |
Inner diameter size of air duct | Ф3.5±0.05 length：90.0±0.05 |
Product Details Display of Kerosene Smoke Point Tester:
Complete Set of Smoke Point Tester:
| Number | Name | Unit | Quantity |
| 1 | Host | Set | 1 |
| 2 | Oil storage container | Piece | 1 |
| 3 | Wick | Piece | 2 |
Kerosene Smoke Point Tester
The sample burns in a standard lamp, and the change in flame height is reflected on the millimeter scale background. The measurement results have high repeatability, and the entire instrument has a compact and complete structure without circuit components, which complies with GB/T382 and ASTMD1322.
Features:
The kerosene smoke point tester adopts a millimeter scale background, which can clearly read the data
The entire instrument has a compact and complete structure
The kerosene smoke point tester adopts a plug-in structure, making it more convenient to replace the wick
The kerosene smoke point tester adopts a specially designed glass observation window, which is easy to operate
The kerosene smoke point tester is easy to operate and has high repeatability in the measurement results
Technical Parameter:
| Ruler | The ruler should be marked in white on black glass, with a 2mm white or black stripe at the center dividing the ruler vertically into two equal parts. The measuring range of the ruler should be 50 millimeters, with a division of 1 millimeter. Mark numbers every 10 millimeters and use longer lines every 5 millimeters. |
Wick conduit | The top of the wick conduit should be precisely at the same level as the zero point on the ruler. |
Lift seat | The total distance of the lifting seat should not be less than 10 millimeters, and it should move smoothly and evenly. |
Oil storage container | The oil rese |
| Inner diameter size of oil storage tank body | Ф21.25±0.05 length：109.0±0.05 |
Inner diameter of wick tube | Ф4.7±0.05 Length： 82.0 ± 0.05 |
Inner diameter size of air duct | Ф3.5±0.05 length：90.0±0.05 |
Product Details Display of Kerosene Smoke Point Tester:
Complete Set of Smoke Point Tester:
| Number | Name | Unit | Quantity |
| 1 | Host | Set | 1 |
| 2 | Oil storage container | Piece | 1 |
| 3 | Wick | Piece | 2 |
