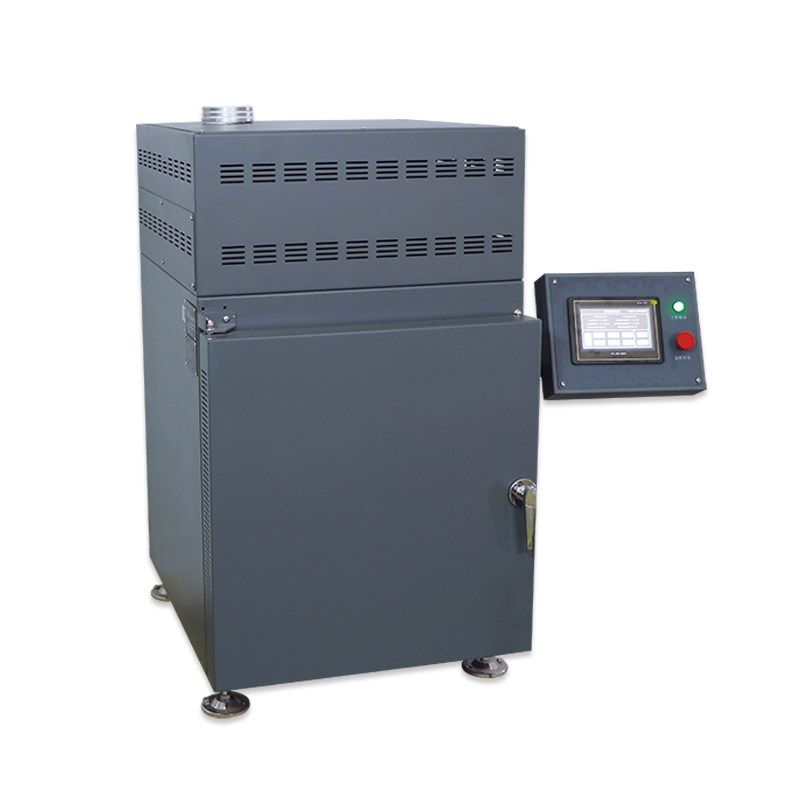

GD-GQ1 Asphalt Pyrolytic Oven/ High Temperature Lab Oven

GD-GQ1 Asphalt Pyrolytic Oven/ High Temperature Lab Oven

The GD-GQ1 high-temperature cleaning machine is a high-temperature cleaning instrument dedicated to cleaning various internal and external organic substances remaining in high-temperature resistant (greater than 800°C) glassware, metal test appliances, etc. It is especially suitable for cleaning up road asphalt, petroleum products and other residues left on various test vessels and appliances in physical and chemical tests.

The utensils and utensils that this instrument is suitable for cleaning include: beakers, sample bottles, pycnometers, pyrolysis flasks, distillation flasks, necking flasks, various capillaries, etc. for asphalt and oil samples; and needle penetration sample containers, softening Point sample ring, ductility test mold, film heating sample tray, aging oven sample tray, etc.

Special reminder: The residues in the physical and chemical tests of road asphalt, petroleum products, etc. do not include flammable solvent oils such as gasoline, kerosene, and trichloroethylene!

1. Main technical features

1. This instrument volatilizes the remaining organic matter inside and outside glassware and metalware through high temperature decomposition to achieve the purpose of removal. Green and environmental to protect the health of operators.

2. The volume of the working chamber of this instrument is large, and it can clean up 16 pieces of film heating sample trays, or 8 pieces of asphalt aging sample trays, or 6 pieces of 800ml beakers, or 5 sets of penetration, softening point and ductility test molds.

3. The residue removal effect is good, and there is no sample residue inside and outside the cleaned metal utensils and glassware.

4. The cleaning time is short, usually within 2 hours, which saves time and effort.

5. Using aerospace heat insulation materials, good heat insulation performance and safe use.

6. Industrial-grade touch screen is used to form the console. The console is connected with the instrument by a movable arm, the angle position can be adjusted arbitrarily, and the operation is simple and convenient.

7. The cleaning temperature can be processed in sections, with high temperature control accuracy, safety and reliability.

8. The use of high-temperature filtration technology can effectively prevent the blockage of the flue.

9. There are many types of utensils and utensils suitable for cleaning, and it can also clean experimental utensils and utensils that are difficult to clean, such as bent tubes and capillaries.

2. Main technical parameters and indicators

1. Working temperature: 500℃

2. Filtration temperature: 800℃

3. Studio size: 360×440×450 (mm)

4. Working power supply: AC380V±10V, 50Hz, three-phase four-wire, with working zero line

5. Power consumption of the whole machine: 7kW

6. Dimensions: 820×900×1100 (mm)

7. Overall weight: 120kg

GD-GQ1 high temperature cleaning machine           cleaning effect case

1. Asphalt  capillary

2. Kinematic capillary

3. Asphalt rotating film sample bottle

4. 2000ml beaker
