GDSX-200
GOLD
Applications:

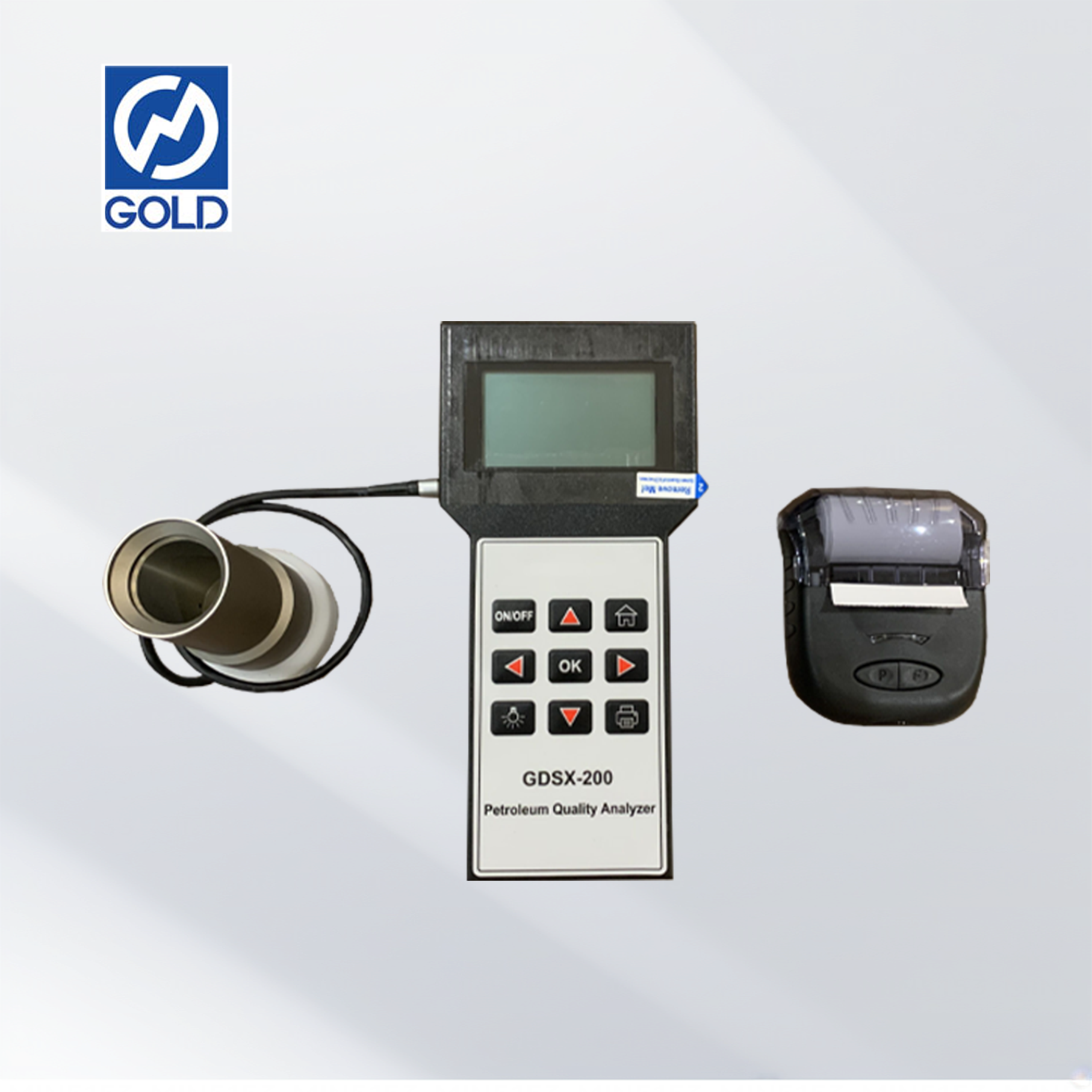

Octane&Cetane Analyzer is equipped with a complete database after long-term data collection and integrated with new technology to develop a variety of detection modes, which can detect methanol gasoline, ethanol gasoline, naphtha, solvent oil, straight-run oil, light oil, aromatics, MTBE, manganese base, methanol diesel, catalytic diesel, biodiesel, emulsified diesel and other oils, filling the gap of octane and cetane number detection for these some oils.
Specification：
No | parametric description | Value |
1 | Octane measuring range (ON) (can be adjusted by clients’requirement) | 40-120 |
2 | Allowing error of measurement per unit (maximum) | ±0.5 |
3 | Floating range of the measuring result, per unit (maximum) | ±0.2 |
4 | Measuring time (sec) | <20 |
5 | Ccritical value when the battery’s voltage too low | 5.4 |
6 | Main enginemm (length×width×hight) | 224 x 106 x 40 |
7 | Sensor（mm） | 60 x 100 |
8 | Weight Kg (maximum) | 3.5 |
9 | Normal standby time (h) | 200 |
10 | Output mode | LCD display printer output |
11 | Current consumption | 30ma |
Features：
Detail Images:
Applications:
Octane&Cetane Analyzer is equipped with a complete database after long-term data collection and integrated with new technology to develop a variety of detection modes, which can detect methanol gasoline, ethanol gasoline, naphtha, solvent oil, straight-run oil, light oil, aromatics, MTBE, manganese base, methanol diesel, catalytic diesel, biodiesel, emulsified diesel and other oils, filling the gap of octane and cetane number detection for these some oils.
Specification：
No | parametric description | Value |
1 | Octane measuring range (ON) (can be adjusted by clients’requirement) | 40-120 |
2 | Allowing error of measurement per unit (maximum) | ±0.5 |
3 | Floating range of the measuring result, per unit (maximum) | ±0.2 |
4 | Measuring time (sec) | <20 |
5 | Ccritical value when the battery’s voltage too low | 5.4 |
6 | Main enginemm (length×width×hight) | 224 x 106 x 40 |
7 | Sensor（mm） | 60 x 100 |
8 | Weight Kg (maximum) | 3.5 |
9 | Normal standby time (h) | 200 |
10 | Output mode | LCD display printer output |
11 | Current consumption | 30ma |
Features：

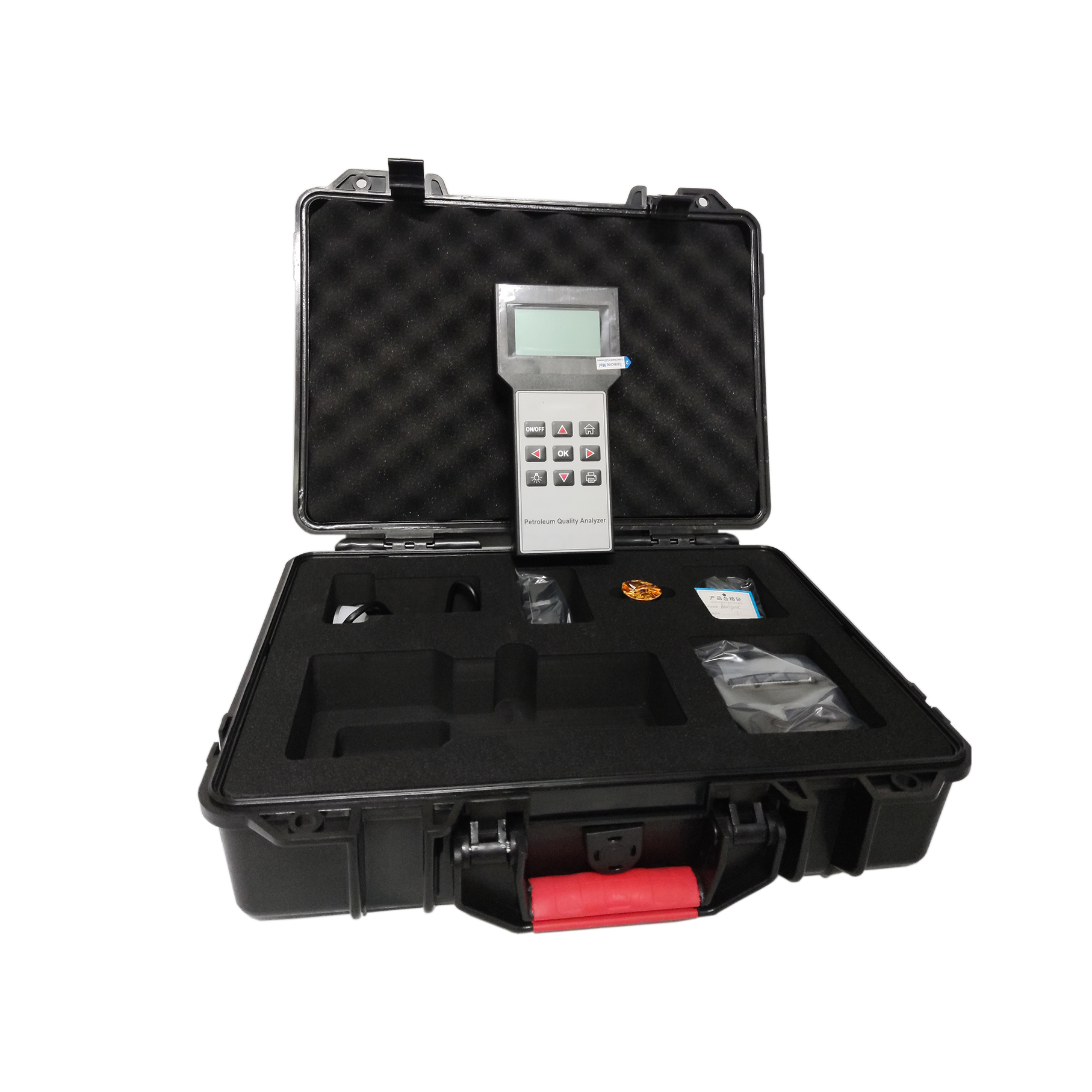

Detail Images:
