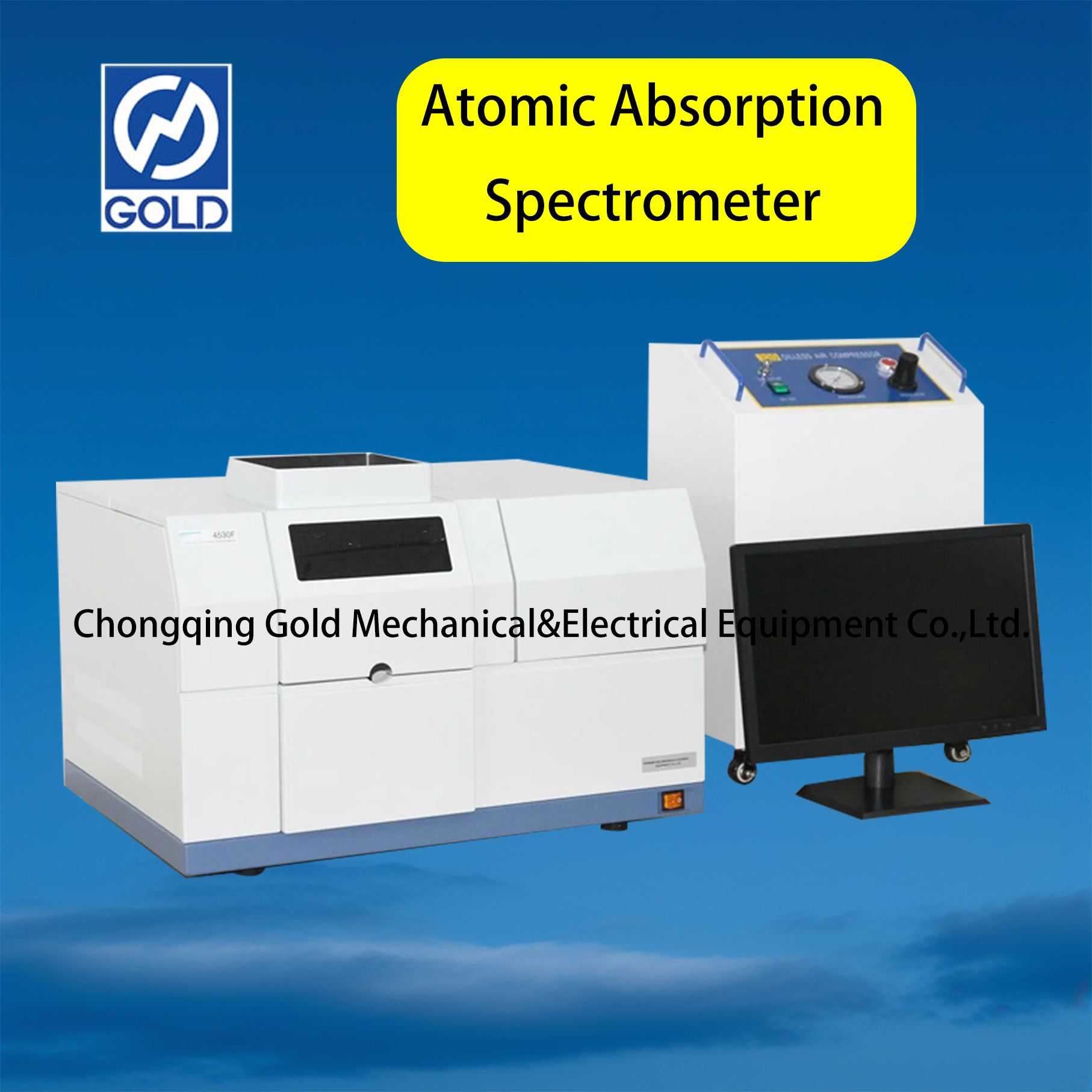

GD-4530F
GOLD
1.Complete automatic controlling system;
2.Advanced graphite furnace temperature controlling technology;
3.Safe, reliable and convenient flame system;
4.Multi-functional software workstation;
5.Completely controlled by PC, can flexibly select the flame and graphite furnace atomizer (optional);
6.Integrated floated optical platform design can obviously improve the optical system shock resistance and can keep stable though use the optical signal for a long term;
7.Eight light stands can be changed automatically and preheat the eight element lights meantime as well as optimize the working condition of the hollow cathode lamp;
8.Position adjusting: the best height of the flame burner and can automatically set the front and rear positions;
9.Fully automated wavelength scanning and peak searching;
10.Complete safety chains protection equipment: the function of warning and automatic safety protection towards the wrong burner, leakage of the gas, under voltage of air and the abnormal flameout;
11.Deuterium lamp and self-absorption background regulation;
12.Data processing: super strong database, possesses more than 500 data self-storage and cut-off storage function, can store the analyzed result with the form of EXCEL and the testing method and the result can be randomly called;
13.Measuring method: flame absorption method and emission method;
14.Result printing: parameter printing, data result printing and diagram printing;
Specification:
| Wavelength range | 190 – 900nm |
| Spectral bandwidth | Can automatically change between 0.1nm, 0.2nm, 0.4nm, 1.0nm and 2.0nm |
| Accuracy of the wavelength | ±0.15nm |
| Receptivity of the wavelength | ≤0.04nm |
| Base line stability | ≤0.002A/30min (Cu) |
| Characteristic viscosity | 0.02μg/ml/1% (Cu) |
| Checking limit | 0.004μg/ml (Cu) |
| Preciseness | 0.5% |
| Grating | 1800 lines/mm |
| Inflamer | All-metal titanium burner |
| Atomizer | Effective glass atomizer |
| Lamp stand | Eight lamps |
| D2 background correction ability | When the background is 1 A, the background ability should be deducted not less than 50 times; self absorption background deduction method |
| Size and weight | 700mm×550mm×450mm 75Kg |
| Power source | 220V±22V AC |
