ASTM D6082 Lubricating Oil High Temperature Foam Characteristic Tester

ASTM D6082 Lubricating Oil High Temperature Foam Characteristic Tester

The lubricating oil high-temperature foam characteristic tester is a professional testing instrument that simulates the actual working condition by heating the lubricating oil to high temperature and injecting air to detect the foam tendency and foam stability of the lubricating oil at high temperature, and includes heating system, gas supply system and other structural parts.

Working principle:

Heat the lubricating oil sample to a specific high temperature, inject air into it at a certain rate to generate foam, and then evaluate the tendency and stability of foam under high temperature by observing and measuring the height, volume, generation and dissipation time and other parameters of foam.

 Adopting standards:

 ASTM D6082 is a standard method used to test the high-temperature foam characteristics of lubricating oils, mainly measuring the foam characteristics of transmission fluid and engine oil at 150 ℃. The test process is as follows: first, heat the sample to 49 ℃ and keep it constant for 30 minutes, then cool it to room temperature, transfer it to the specified measuring cylinder and heat it to 150 ℃, then pass dry air into the metal diffusion head at the rate of 200ml/min for 5 minutes, and finally measure the amount of static foam, the amount of moving foam, the amount of static foam, the disappearance time of foam, and the percentage of total volume increase at the moment before stopping ventilation, and the amount of static foam at the specified time after stopping ventilation.

Application field:

• Lubricant production field

For lubricant manufacturers, this Foam Characteristic Tester is a key tool for quality control. It is applicable to testing the foam characteristics of various types of lubricating oils under high temperature, including but not limited to engine oil, transmission fluid, hydraulic oil, etc. By testing the new product formula, it can be determined whether the lubricating oil will produce too much foam under high temperature conditions, so as to adjust the composition and dosage of additives, optimize the product formula, ensure that the product quality meets the standard requirements, and produce lubricating oil with good foam characteristics.

• Industrial machinery field

In various industrial machinery, such as machine tools, metallurgical equipment, chemical equipment, etc., the high-temperature foam characteristics of lubricants are also very important. During long-term operation, the lubricating oil of these devices will be in a high temperature state. The tester can be used to evaluate whether the lubricating oil can maintain good performance under high temperature, avoid problems such as poor lubrication, energy loss and equipment failure caused by foam, and provide guarantee for the normal operation of industrial machinery.

• Quality testing and certification agencies

Quality inspection agencies can use this tester to test lubricating oil products on the market according to relevant standards (such as ASTM D6082, SH/T 0722, etc.). Certification bodies will also determine whether lubricating oil products comply with industry standards and specifications based on the data provided by the testing instrument, in order to ensure the quality and performance of lubricating oil products on the market and protect consumer rights.

Features:

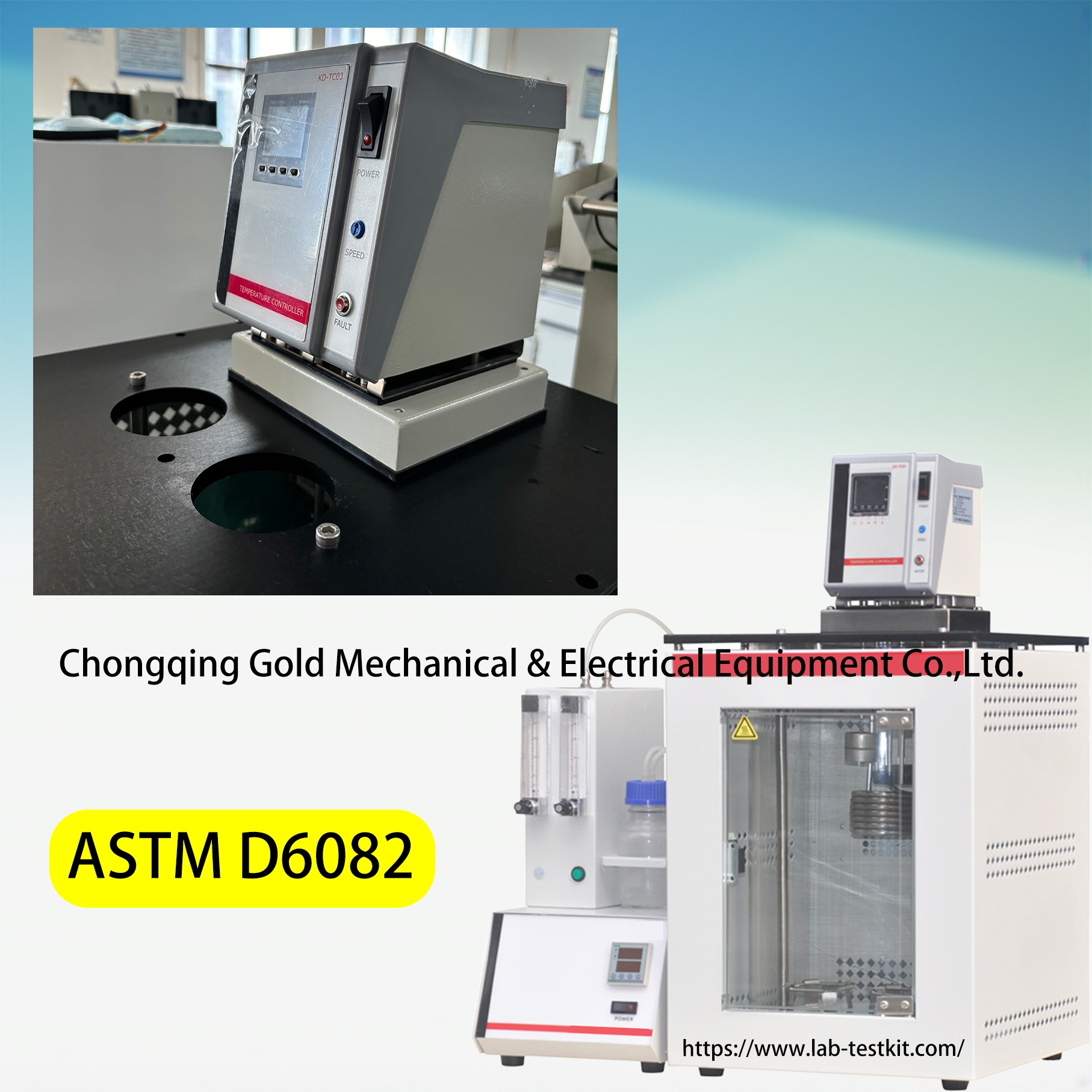

1. The instrument is split type, including heating bath and precision flowmeter.

2. lubricating oil high-temperature foam characteristic tester adopts high temperature resistant borosilicate glass cylinder, Φ300×450mm, which meets the standard requirements.

3. Adopting environmentally friendly oil bath heating, reducing the harm of oil fume to human body, efficient thermal insulation effect.

4. Adopting the stainless steel heater.

5. Precise electronic flow meter, automatic constant flow 200±5ml/min (optional function)

6. Air filter with glass wool.

7. Microprocessor thermostat and PID control digital display temperature, precision 0.1 ℃, PT100 temperature probe.

8. Safety measures to prevent overheating or low liquid level.

9. Splash type turbine stirrer to ensure the uniformity of the bath temperature.

10. Touch screen operation, foam volume segmented timing wind chime reminder.

11. Non-polluting metal material working bath body.

Technical Parameters:

Detail Images:
