GD-LPC
GOLD

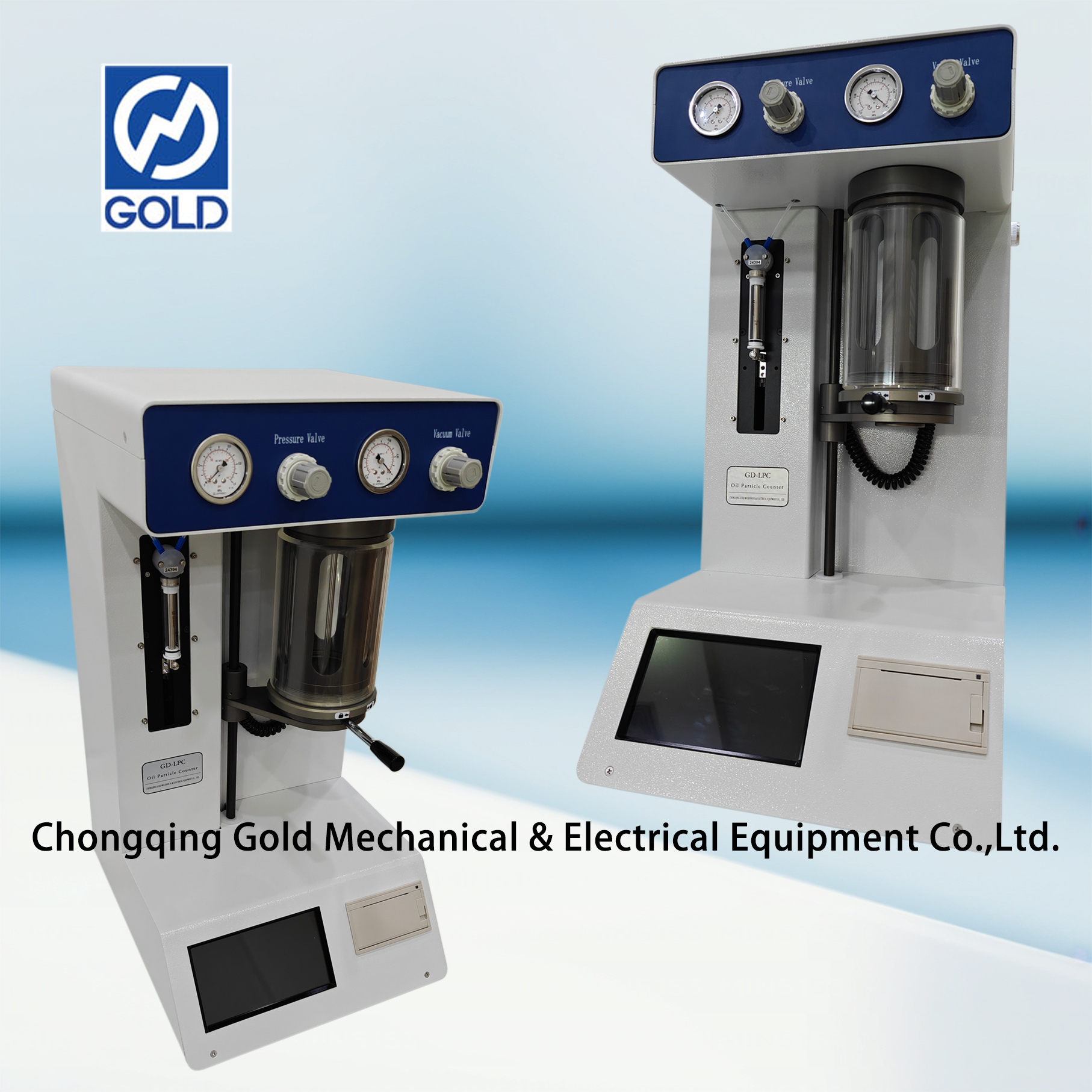

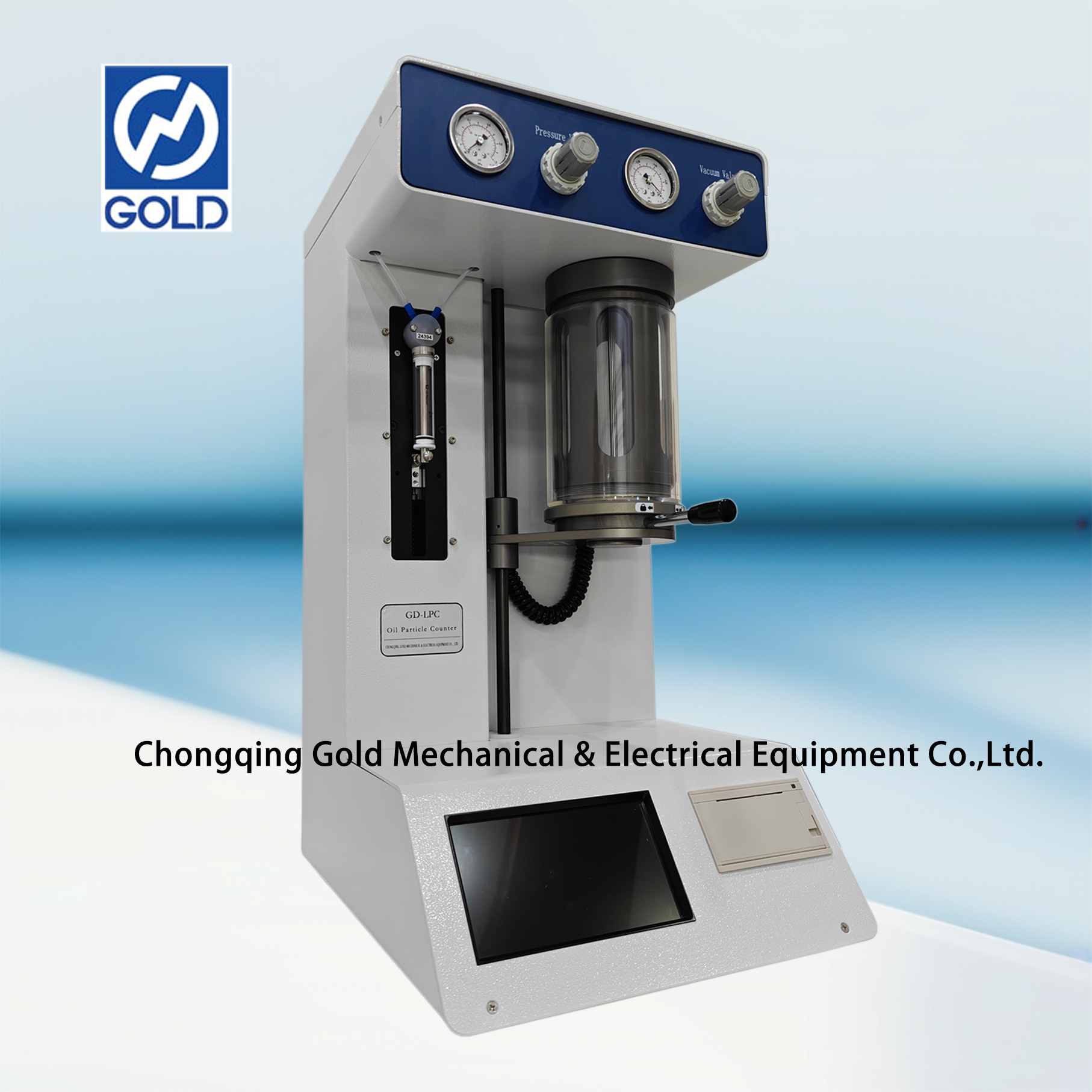

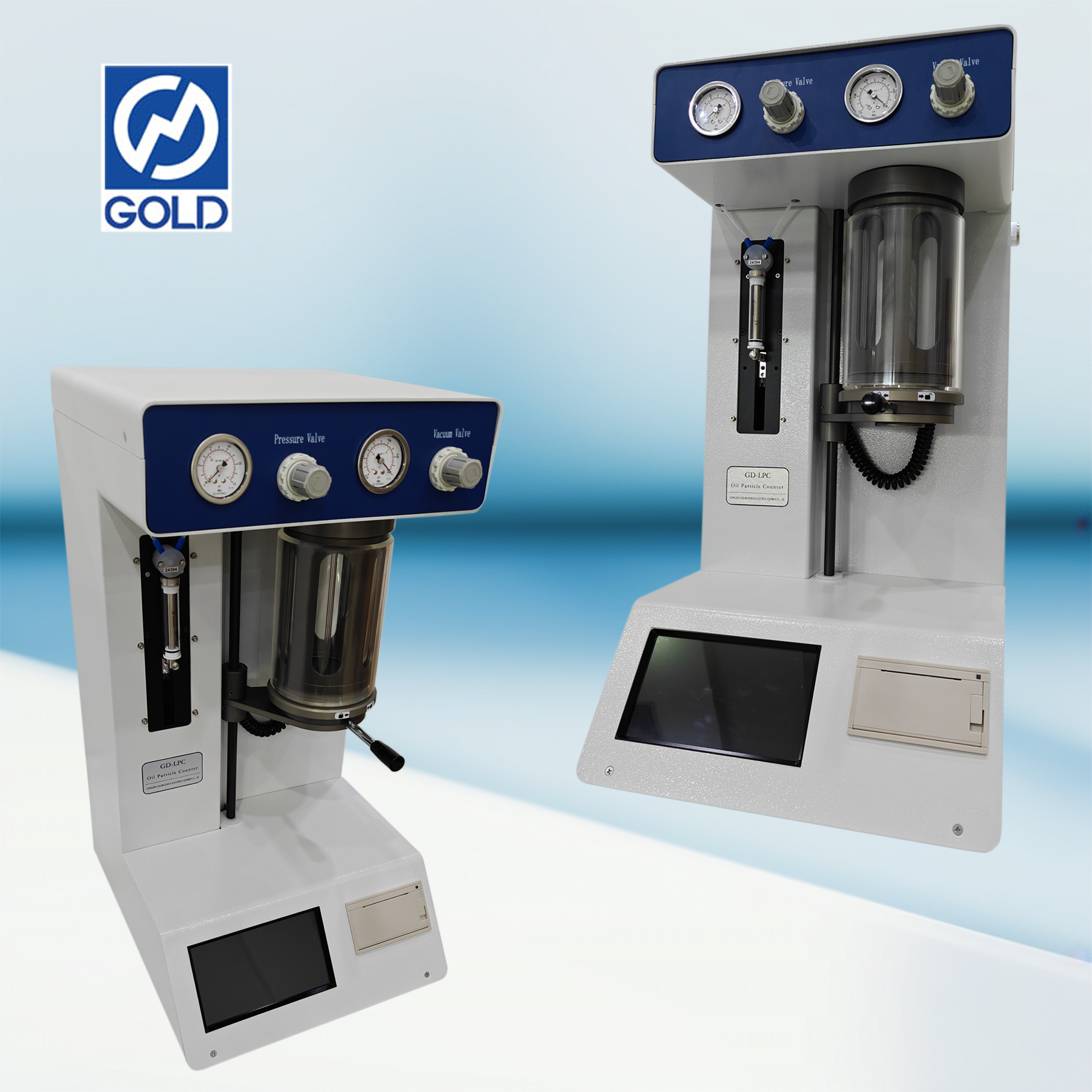

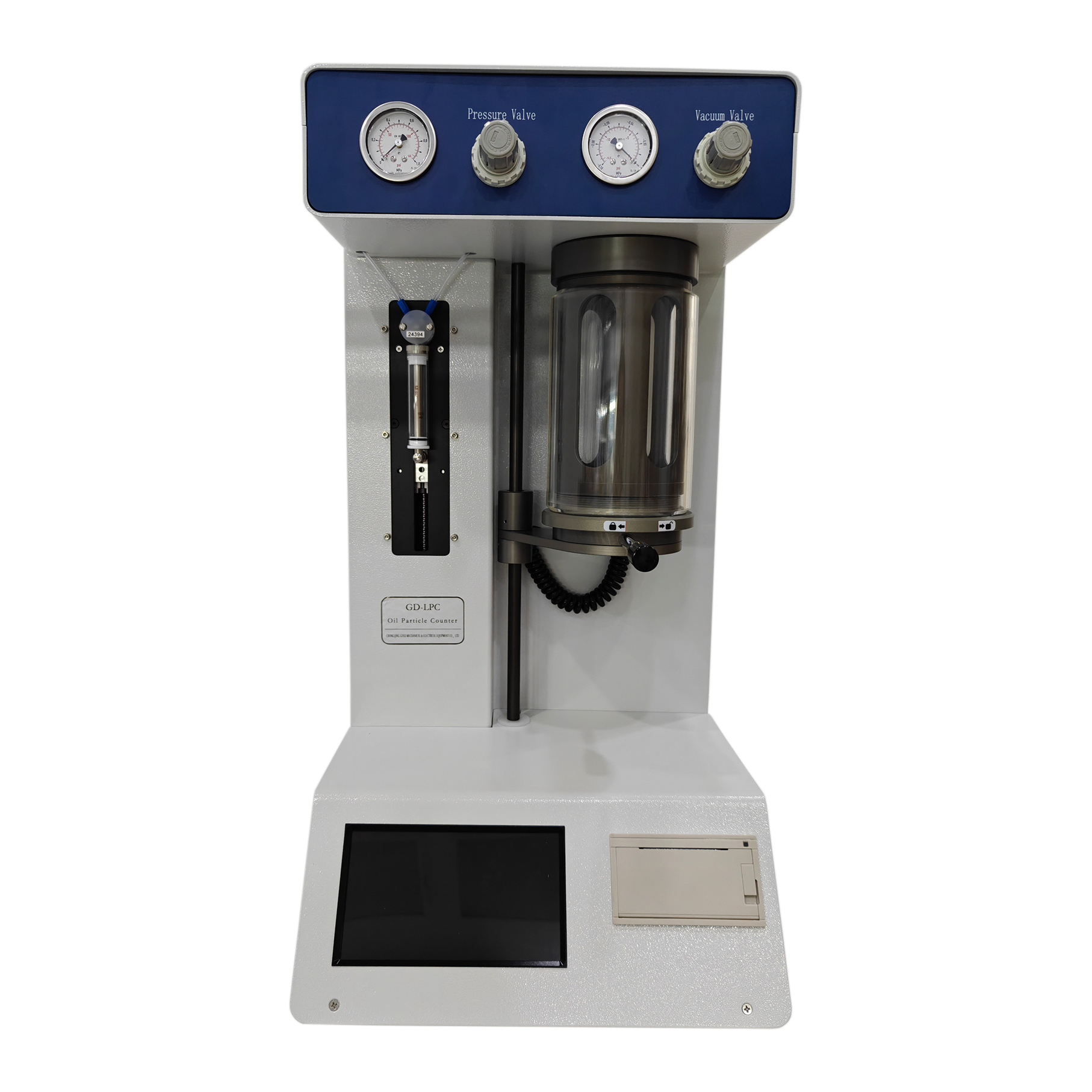

Desktop Liquid Particle Counter
The liquid particle counter is an upgraded iterative model of particle counting equipment, and the entire process of equipment development and manufacturing strictly follows authoritative standards such as GB/T 18854 and ISO 11171.
The core detection technology of this instrument adopts the photoresist counting method, and all performance indicators fully comply with the corresponding international standard requirements. It can output fast, accurate, stable, reliable, and highly repeatable detection data, and automatically generate complete oil pollution monitoring and analysis reports, suitable for determining the particle pollution level of various industrial oils such as hydraulic oil, lubricating oil, and insulating oil.
Scope of application：
With stable detection performance, this device can be widely used in various industries such as aerospace, power energy, petrochemicals, transportation, port logistics, metallurgical smelting, machinery manufacturing, and automobile production.
Features：
1. The liquid particle counter adopts the lightweight particle counting principle specified by the International Hydraulic Standards Committee.
2. The liquid particle counter is equipped with high-precision laser sensing components, which have the characteristics of wide detection range, stable operating performance, low equipment noise, and high data resolution.
3. The liquid particle counter is equipped with an integrated positive and negative pressure injection system, which can efficiently achieve sample degassing treatment and adapt to the detection needs of different viscosity oil samples.
4. Integrated built-in air purification system effectively avoids interference from external pollutants during the detection process.
5. Pre store multiple sets of calibration curves, fully compatible with various mainstream calibration standards at home and abroad.
6. The liquid particle counter is equipped with an integrated data analysis system, which can output test data and oil pollution level determination results for all standard items in a single test.
7. Support free setting of particle size parameters, with nearly 10000 sets of particle size data built-in, providing convenience for refined particle size analysis.
8. The oil particle counter supports single channel and multi-channel dual calibration modes, and can complete fully automatic calibration operations.

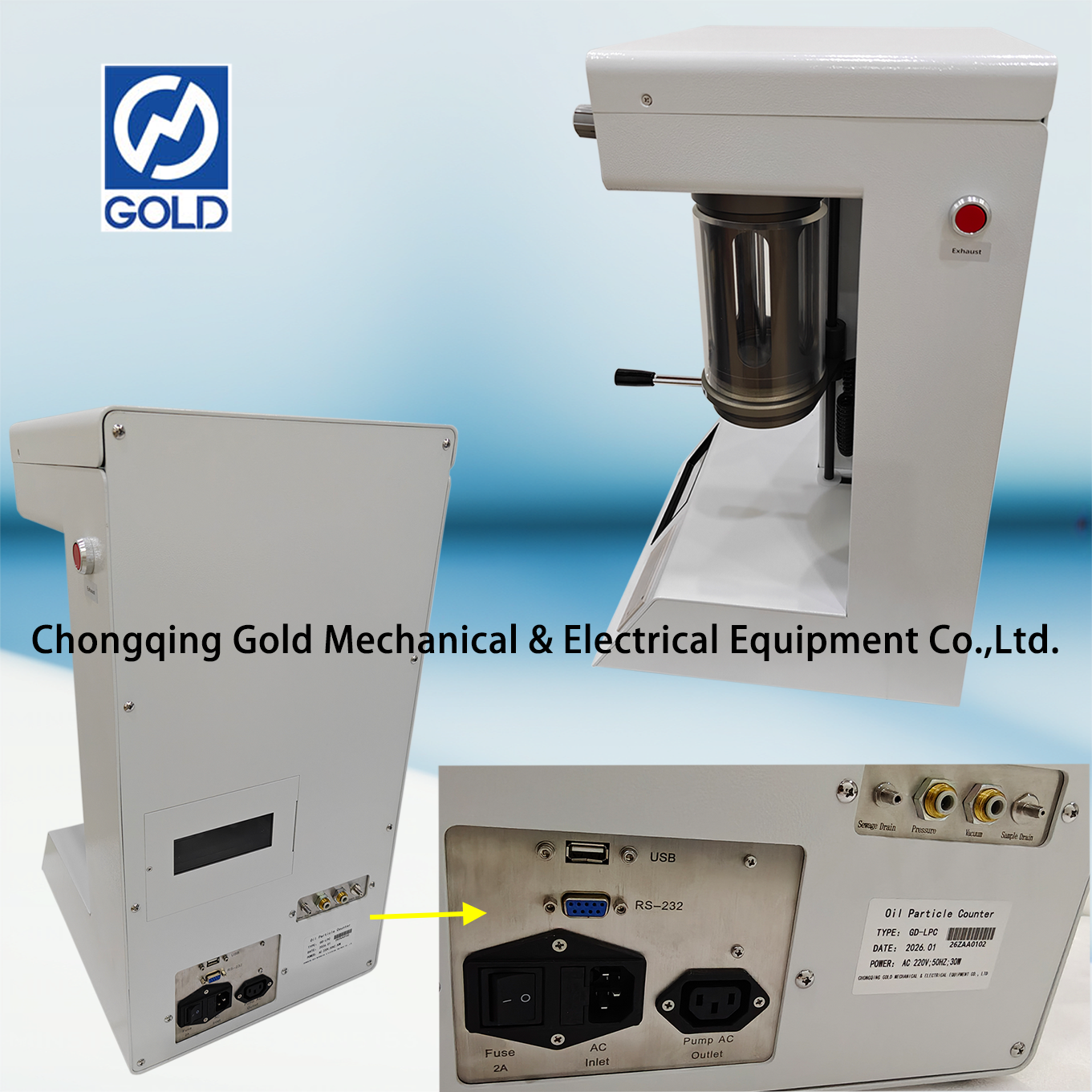

9. The liquid particle counter is equipped with an RS232 communication interface, which can achieve data exchange and processing with computers or laboratory central control platforms.
Specifications:
| Light source | Semiconductor laser |
| Particle size range | 0.8μm~600μm (depending on different sensors) |
| Detection channel | 16 channels, arbitrarily set the particle size |
| Sensitivity | 0.8μm (ISO4402) or 3μm (c) (GB/T18854, ISO11171) |
| Resolution | <10% (GB/T18854, ISO11171) |
| Repeatability | RSD<2% |
| Sample detection viscosity | ≤650cSt (excessive viscosity can be tested with heating or dilution methods) |
| Sampling volume | 0.2~1,000mL, with an interval of 0.1mL |
| Sampling accuracy | better than ±0.5% |
| Sampling speed | 5 ~80mL/min |

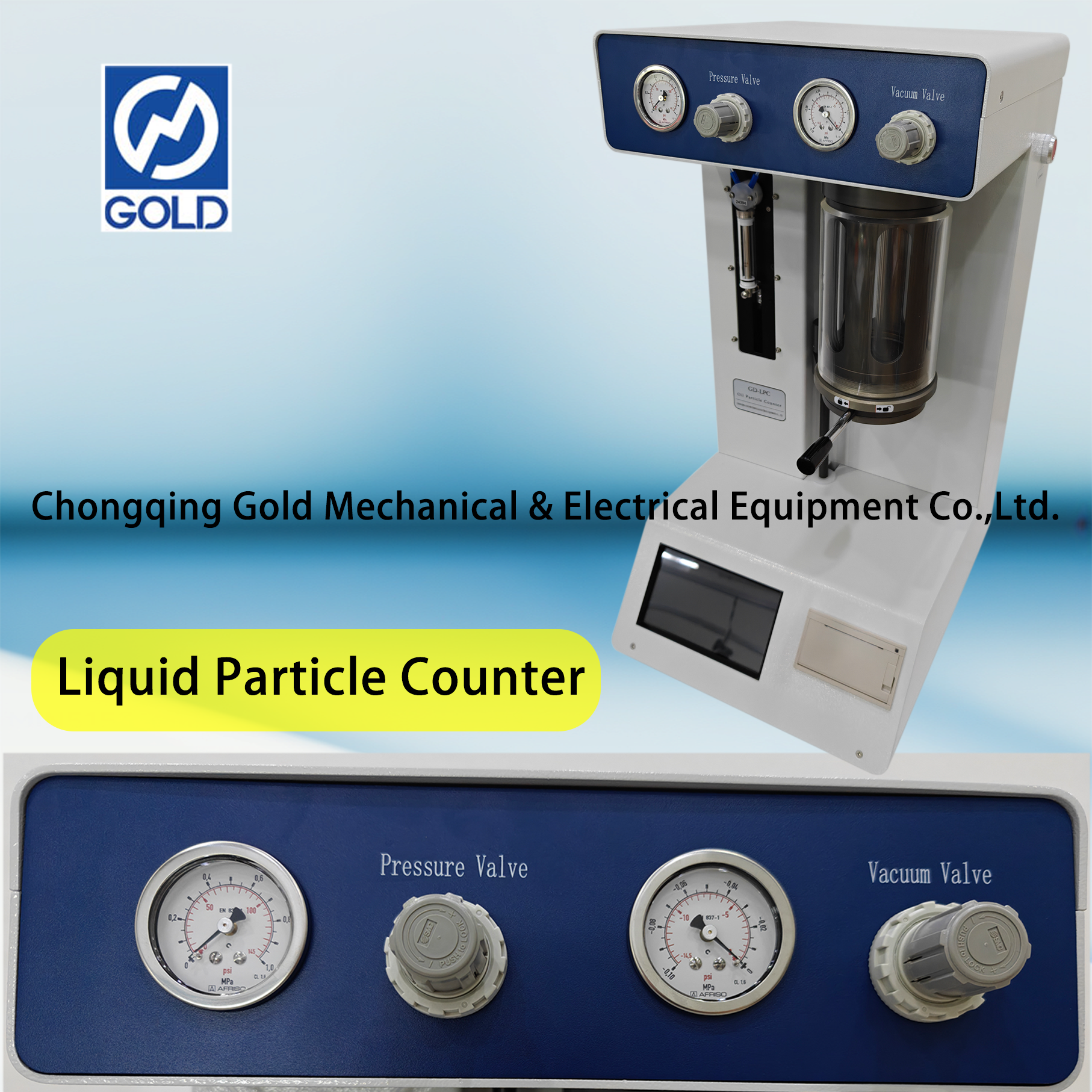

| Air pressure cabin | positive and negative air pressure cabin device to realize sample degassing and high-viscosity sample detection |
| Maximum vacuum of pressure chamber | -0.08Mpa |
| Dimensions | 340mm x 410mm x 650mm |
| Net weight | 25kg |

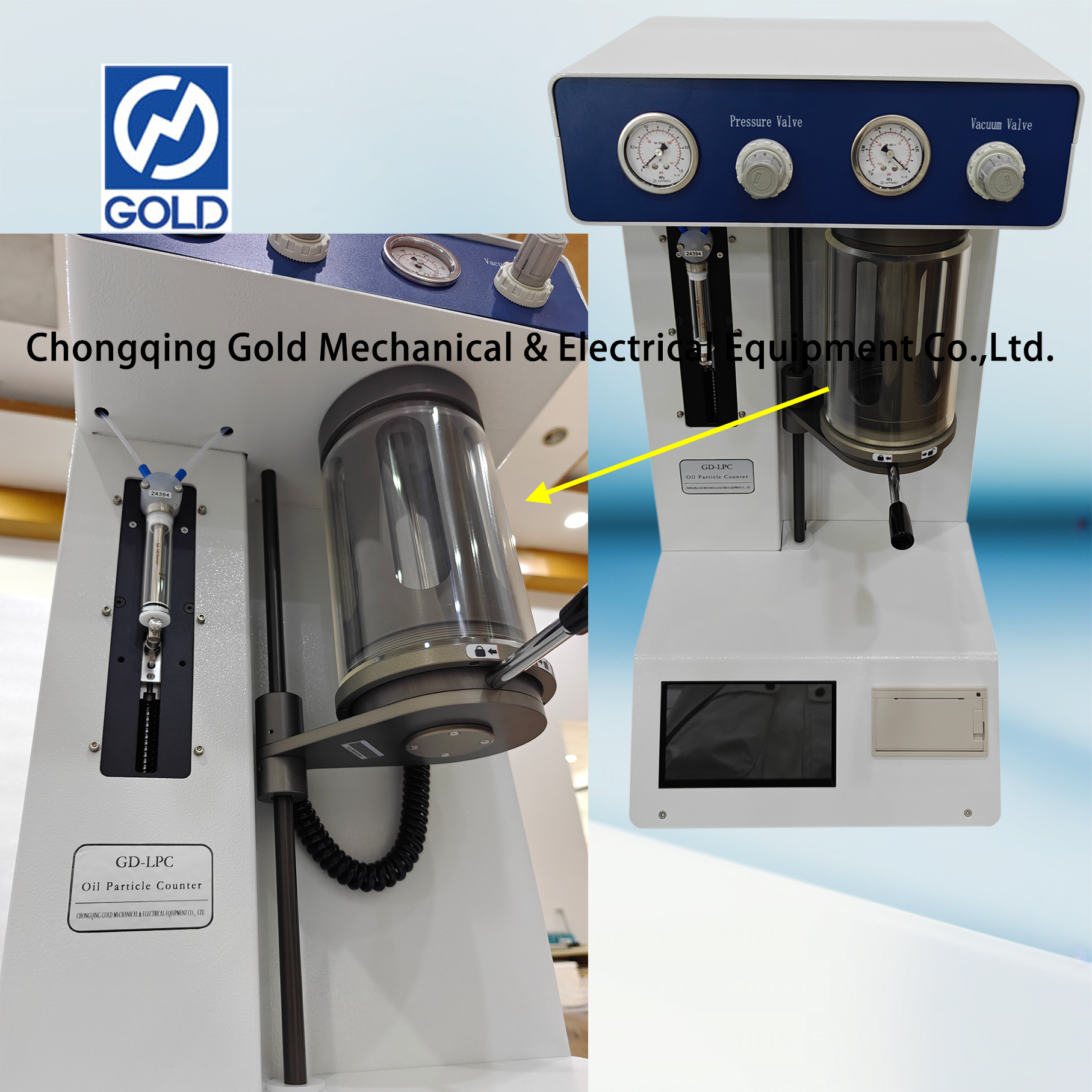

Product Details Display of Liquid Particle Counter：
