GD-LPC-P2
GOLD
Portable Oil Particle Counter
The portable oil particle counter is a specialized instrument developed based on international standards such as ISO11171 for detecting pollution levels in oil. Suitable for on-site and laboratory contamination testing of hydraulic oil, lubricating oil, transformer oil (insulation oil), engine oil, aviation kerosene and other fluids. It can also be installed on various hydraulic transmission, oil filter, cleaning machine, testing bench and other systems to achieve online detection of system oil cleanliness. It can be widely applied in fields such as aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, automobile manufacturing, etc.
Features:
The principle of light resistance (shading) test specified by the International Hydraulic Standards Committee
High precision laser sensor, wide testing range, stable performance, low noise, high resolution
High precision bidirectional plunger pump sampling method, adjustable injection speed, high sampling volume accuracy
The pipeline is made of 316L and PTFE materials to meet the testing requirements of various organic solvents and oil products
Used for laboratory or on-site measurement, with built-in pressure reducing device for online high-pressure measurement
It can be connected to an external pressure chamber to form positive/negative pressure, enabling the detection and degassing of high viscosity samples
Multiple sampling containers such as standard sampling bottles and cups can be used, or directly connected to hydraulic systems to meet the testing requirements of different industries
Built in multiple calibration curves, compatible with all commonly used domestic and international standards for calibration
Can perform automatic calibration, manual calibration, and half counting calibration
Built in NAS1638、GJB420A、GJB420B、ISO4406、SAE4059F、SAE4059CPC、GB/T14039、ГOCT17216、QC/T29104、JB/T9737、DL/T432、SAE749D、HH005-2018 Waiting for more than ten commonly used standards, one test can provide data results for all built-in standards
Support custom standard testing and can set up 64 detection channels simultaneously according to customer needs
1000 particle size channels can be set up for particle size analysis
Built in data analysis system, capable of automatically determining sample grade based on standards, with automatic data processing and printing functions
7-inch color touch screen operation, Chinese and English input, language interface can be freely switched, with preset, input, modification, storage, upload functions, easy and fast operation
Multiple user login accounts can be set arbitrarily, allowing for the addition of new users, permission settings, and deletion of old users
Optional tablet control, Windows 10 operating system, capable of editing personalized signatures for operators
Equipped with RS232 interface, it can be connected to a computer or laboratory platform for data processing, and USB can also be used for data storage
Built in lithium battery, suitable for field work, can be used without external power supply
Rotating bracket design allows for free adjustment of instrument testing angles
Technical Parameters:
| Light source | semiconductor laser |
| Particle size range | 0.8-600 μ m |
| Sensitivity | 0.1 μ m |
| Custom detection channels | 8~64 channels are optional, and the particle size can be set arbitrarily |
| Sampling volume | 0.2-1000ml, with an interval of 0.1mL |
| Sampling accuracy | better than ± 1% |
| Sampling speed | 5-80mL/min |
| Cleaning speed | 5-80mL/min |
| Cleaning volume | can be set between 0~90mL |
| Counting accuracy | error less than ± 5% |
| Resolution | ≤ 10% |
| Repeatability | RSD<2% |
| Limit coincidence error | 12000-40000 particles/mL |
| Offline viscosity detection | ≤ 100cSt |
| Pressure range | Low pressure 0-0.6Mpa, high pressure up to 42Mpa |

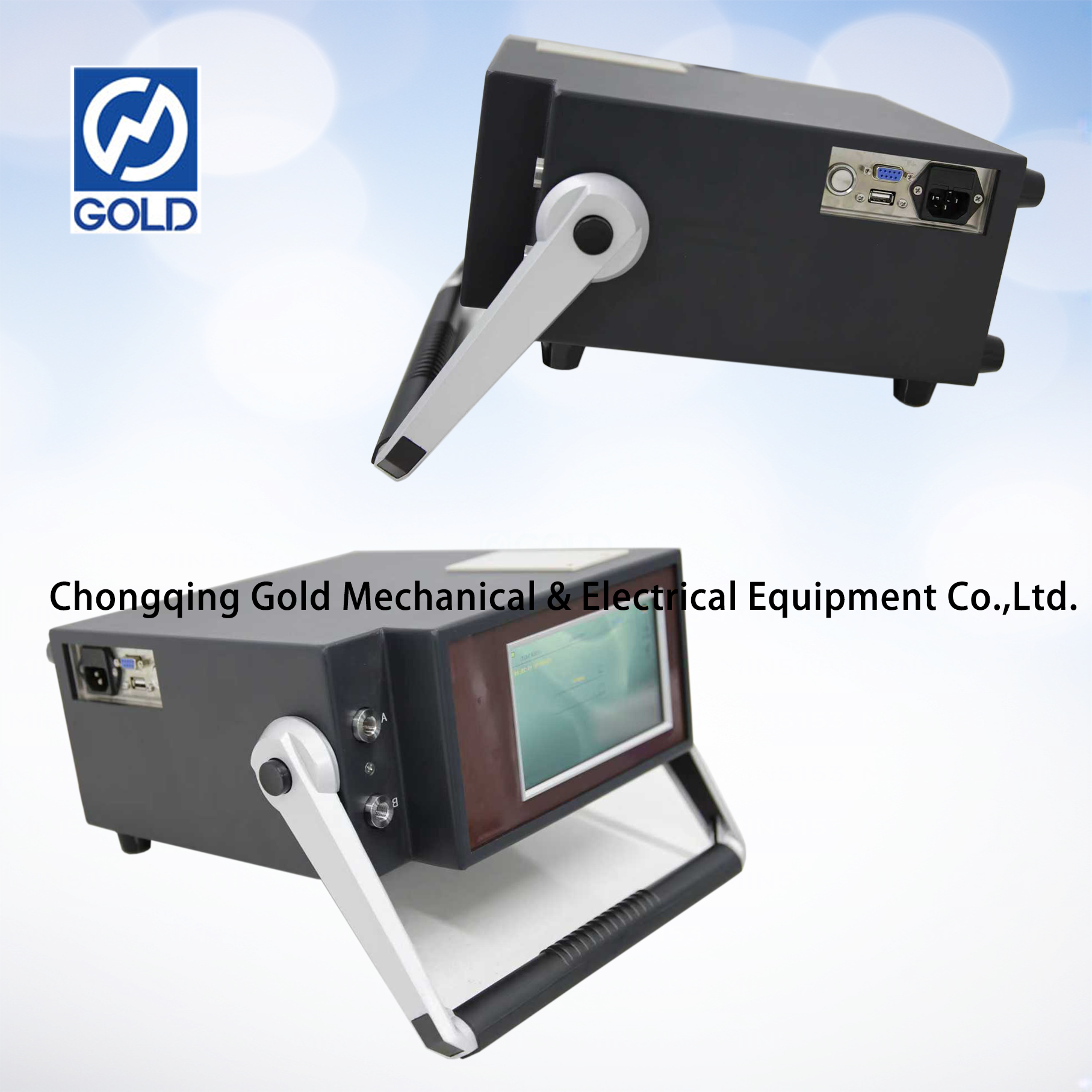

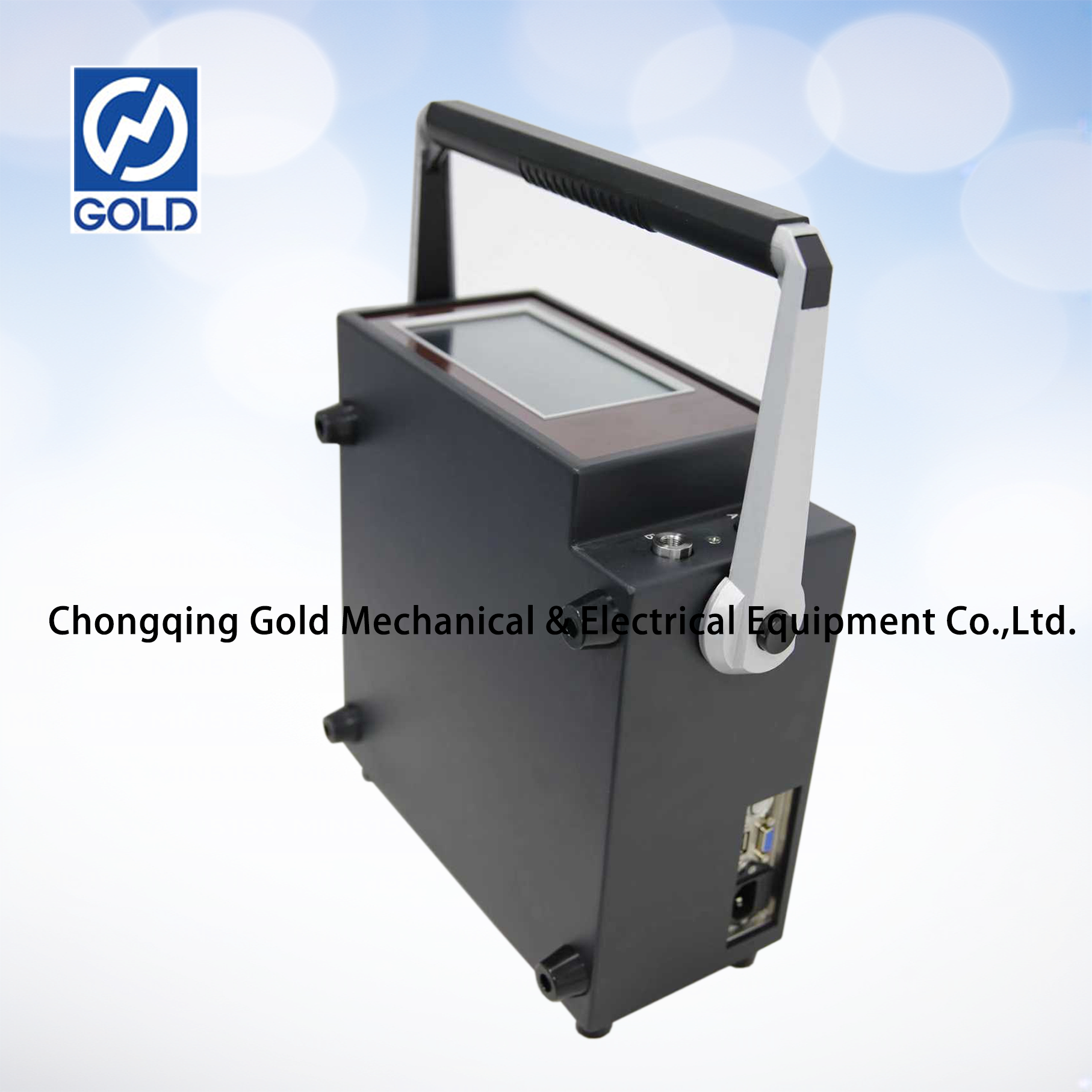

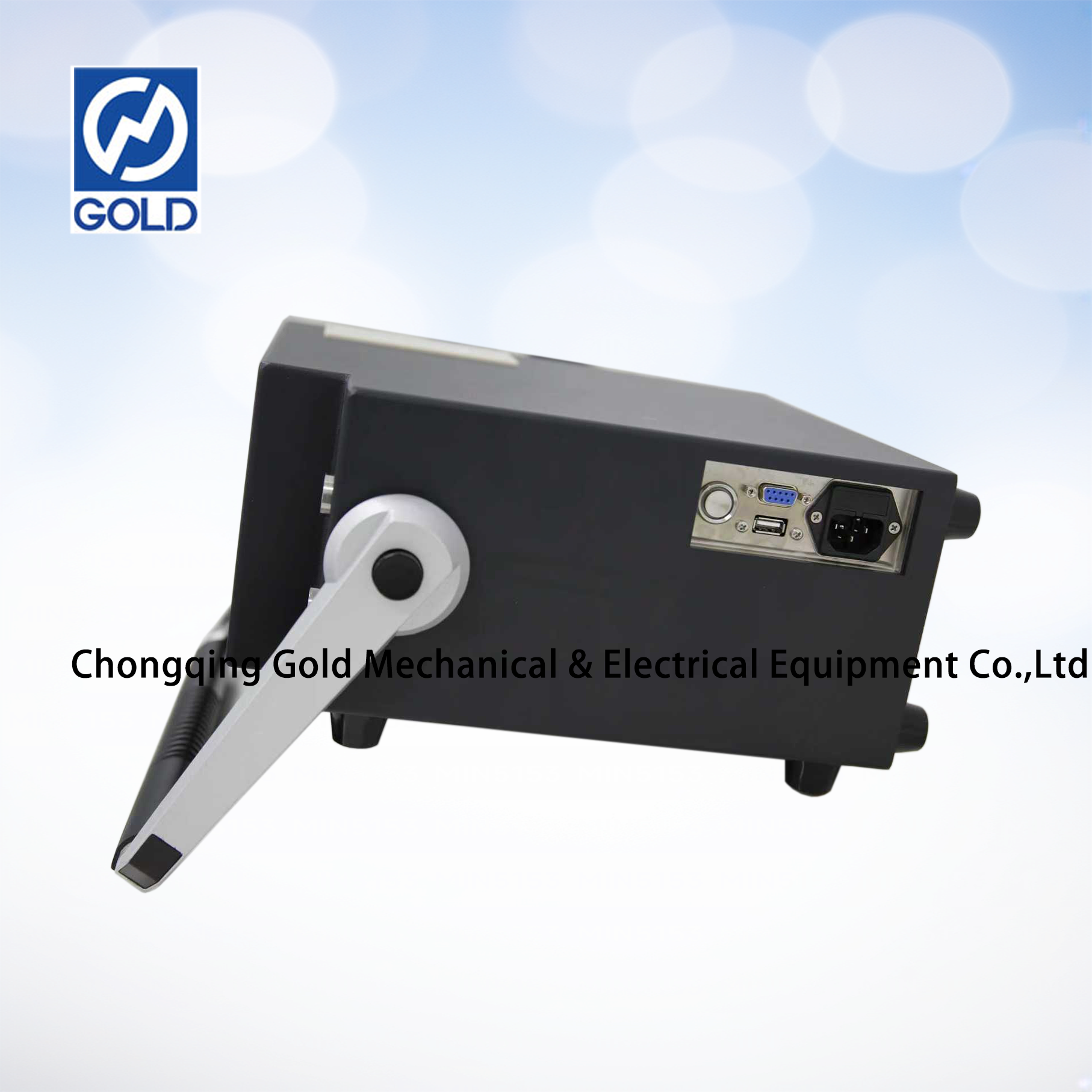

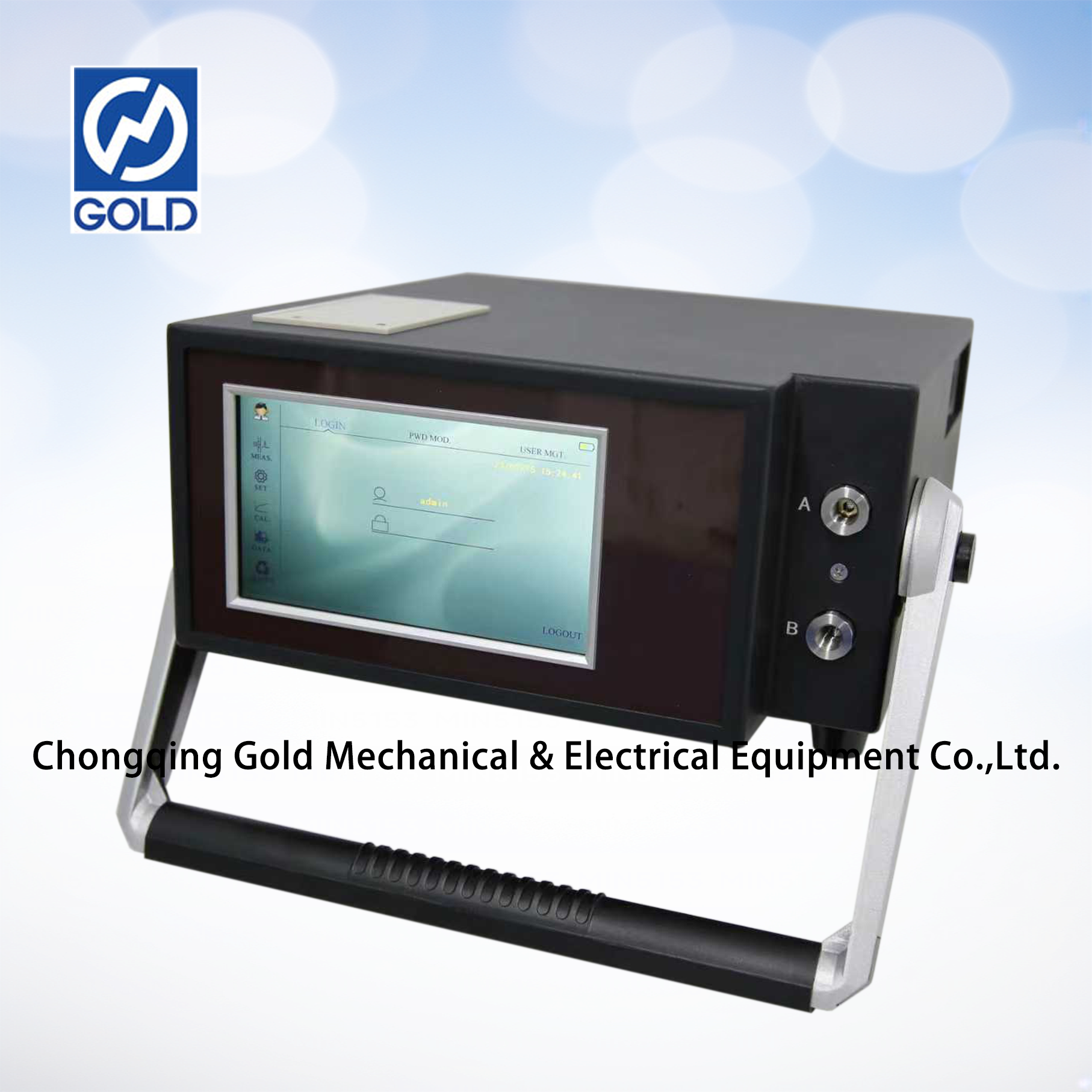

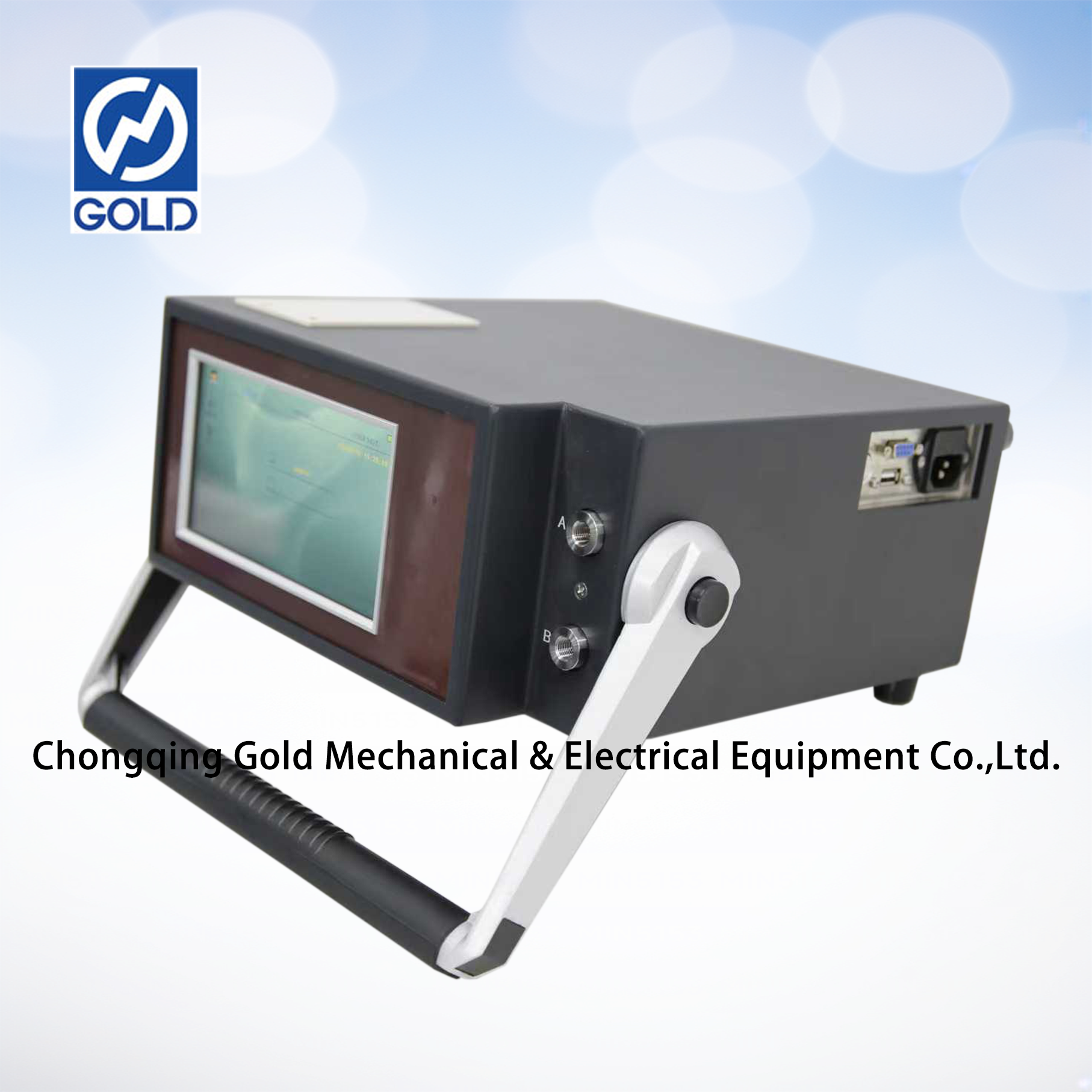

Product Details Display of Portable Oil Particle Counter:
Portable Oil Particle Counter
The portable oil particle counter is a specialized instrument developed based on international standards such as ISO11171 for detecting pollution levels in oil. Suitable for on-site and laboratory contamination testing of hydraulic oil, lubricating oil, transformer oil (insulation oil), engine oil, aviation kerosene and other fluids. It can also be installed on various hydraulic transmission, oil filter, cleaning machine, testing bench and other systems to achieve online detection of system oil cleanliness. It can be widely applied in fields such as aerospace, power, petroleum, chemical, transportation, ports, metallurgy, machinery, automobile manufacturing, etc.
Features:
The principle of light resistance (shading) test specified by the International Hydraulic Standards Committee
High precision laser sensor, wide testing range, stable performance, low noise, high resolution
High precision bidirectional plunger pump sampling method, adjustable injection speed, high sampling volume accuracy
The pipeline is made of 316L and PTFE materials to meet the testing requirements of various organic solvents and oil products
Used for laboratory or on-site measurement, with built-in pressure reducing device for online high-pressure measurement
It can be connected to an external pressure chamber to form positive/negative pressure, enabling the detection and degassing of high viscosity samples
Multiple sampling containers such as standard sampling bottles and cups can be used, or directly connected to hydraulic systems to meet the testing requirements of different industries
Built in multiple calibration curves, compatible with all commonly used domestic and international standards for calibration
Can perform automatic calibration, manual calibration, and half counting calibration
Built in NAS1638、GJB420A、GJB420B、ISO4406、SAE4059F、SAE4059CPC、GB/T14039、ГOCT17216、QC/T29104、JB/T9737、DL/T432、SAE749D、HH005-2018 Waiting for more than ten commonly used standards, one test can provide data results for all built-in standards
Support custom standard testing and can set up 64 detection channels simultaneously according to customer needs
1000 particle size channels can be set up for particle size analysis
Built in data analysis system, capable of automatically determining sample grade based on standards, with automatic data processing and printing functions
7-inch color touch screen operation, Chinese and English input, language interface can be freely switched, with preset, input, modification, storage, upload functions, easy and fast operation
Multiple user login accounts can be set arbitrarily, allowing for the addition of new users, permission settings, and deletion of old users
Optional tablet control, Windows 10 operating system, capable of editing personalized signatures for operators
Equipped with RS232 interface, it can be connected to a computer or laboratory platform for data processing, and USB can also be used for data storage
Built in lithium battery, suitable for field work, can be used without external power supply
Rotating bracket design allows for free adjustment of instrument testing angles
Technical Parameters:
| Light source | semiconductor laser |
| Particle size range | 0.8-600 μ m |
| Sensitivity | 0.1 μ m |
| Custom detection channels | 8~64 channels are optional, and the particle size can be set arbitrarily |
| Sampling volume | 0.2-1000ml, with an interval of 0.1mL |
| Sampling accuracy | better than ± 1% |
| Sampling speed | 5-80mL/min |
| Cleaning speed | 5-80mL/min |
| Cleaning volume | can be set between 0~90mL |
| Counting accuracy | error less than ± 5% |
| Resolution | ≤ 10% |
| Repeatability | RSD<2% |
| Limit coincidence error | 12000-40000 particles/mL |
| Offline viscosity detection | ≤ 100cSt |
| Pressure range | Low pressure 0-0.6Mpa, high pressure up to 42Mpa |
Product Details Display of Portable Oil Particle Counter:
