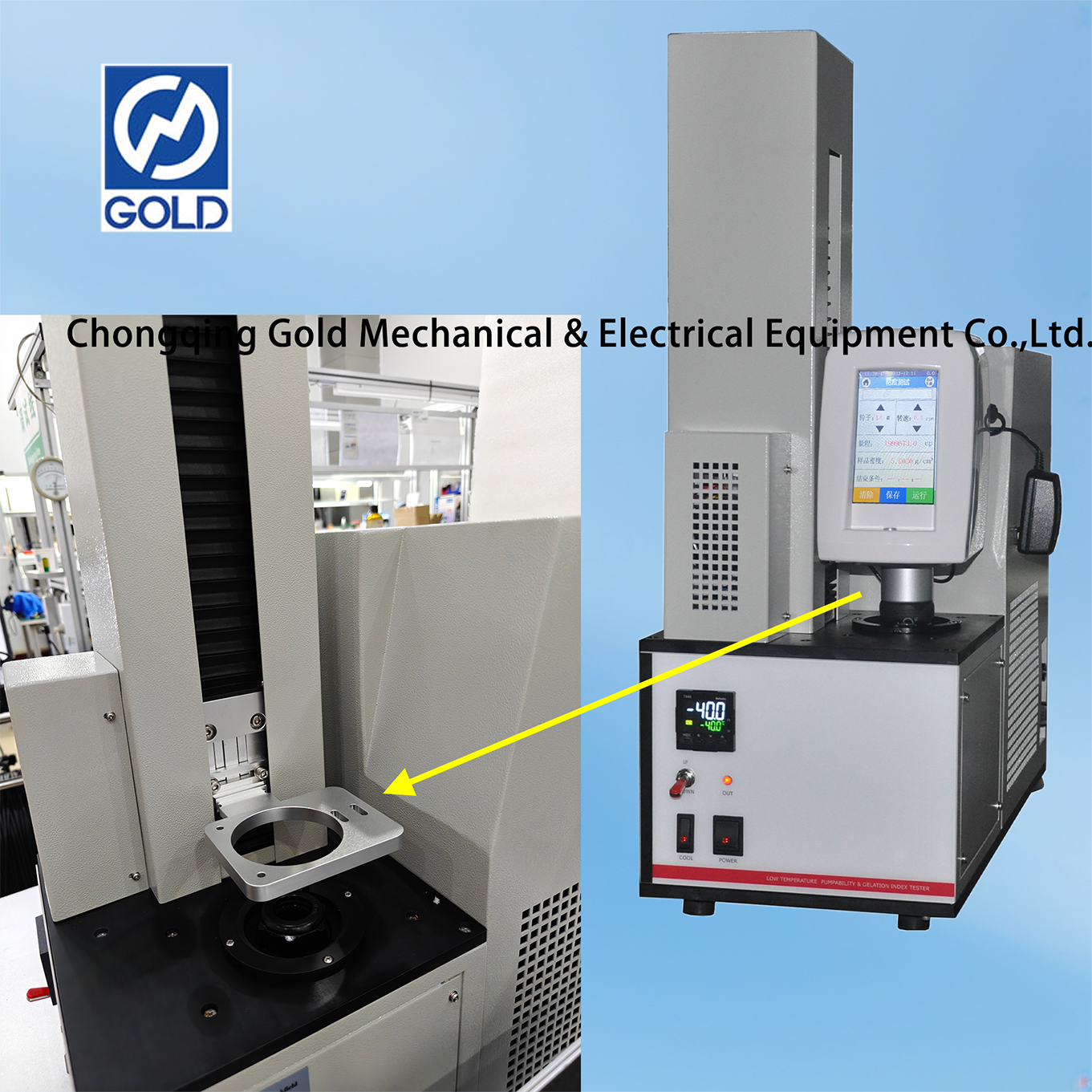

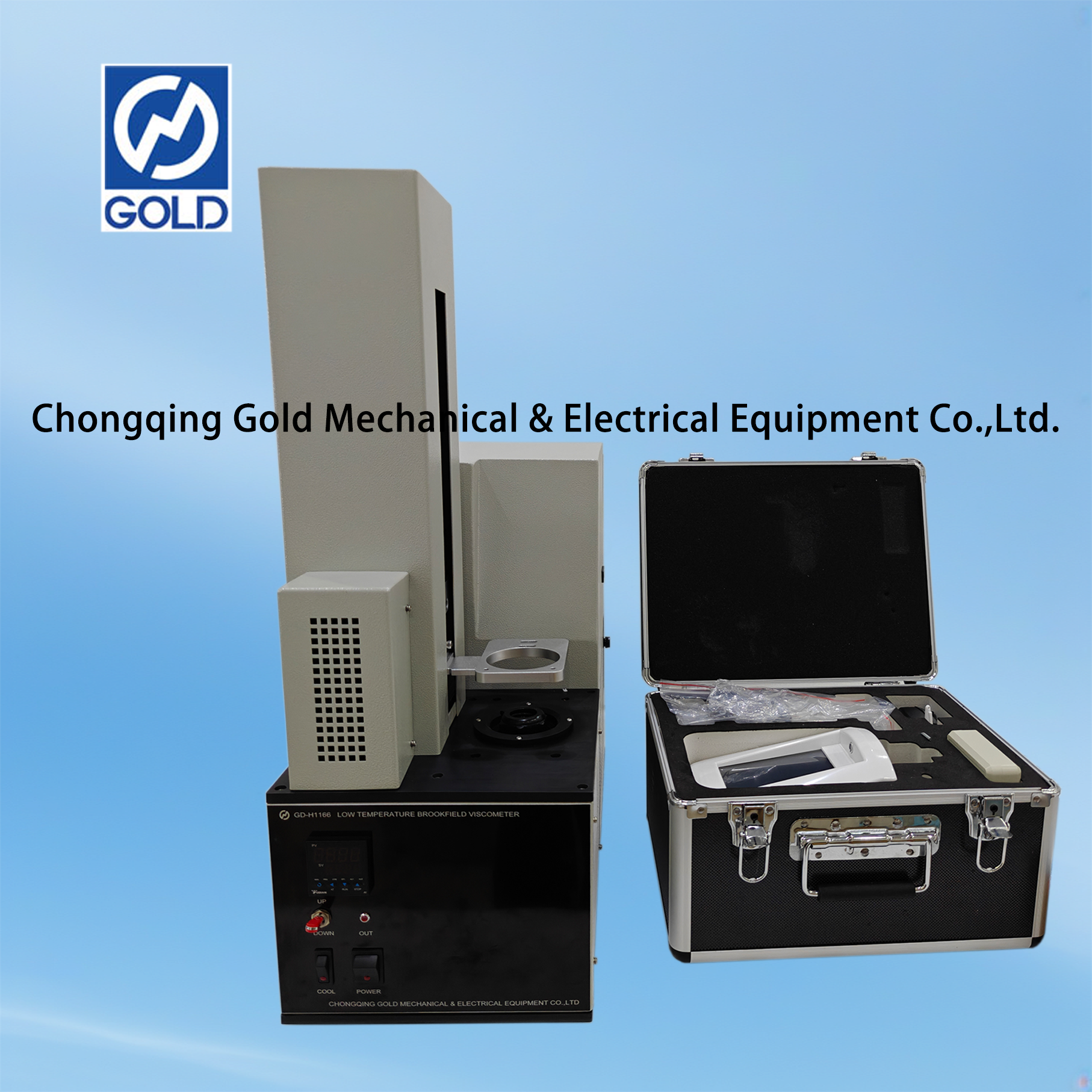

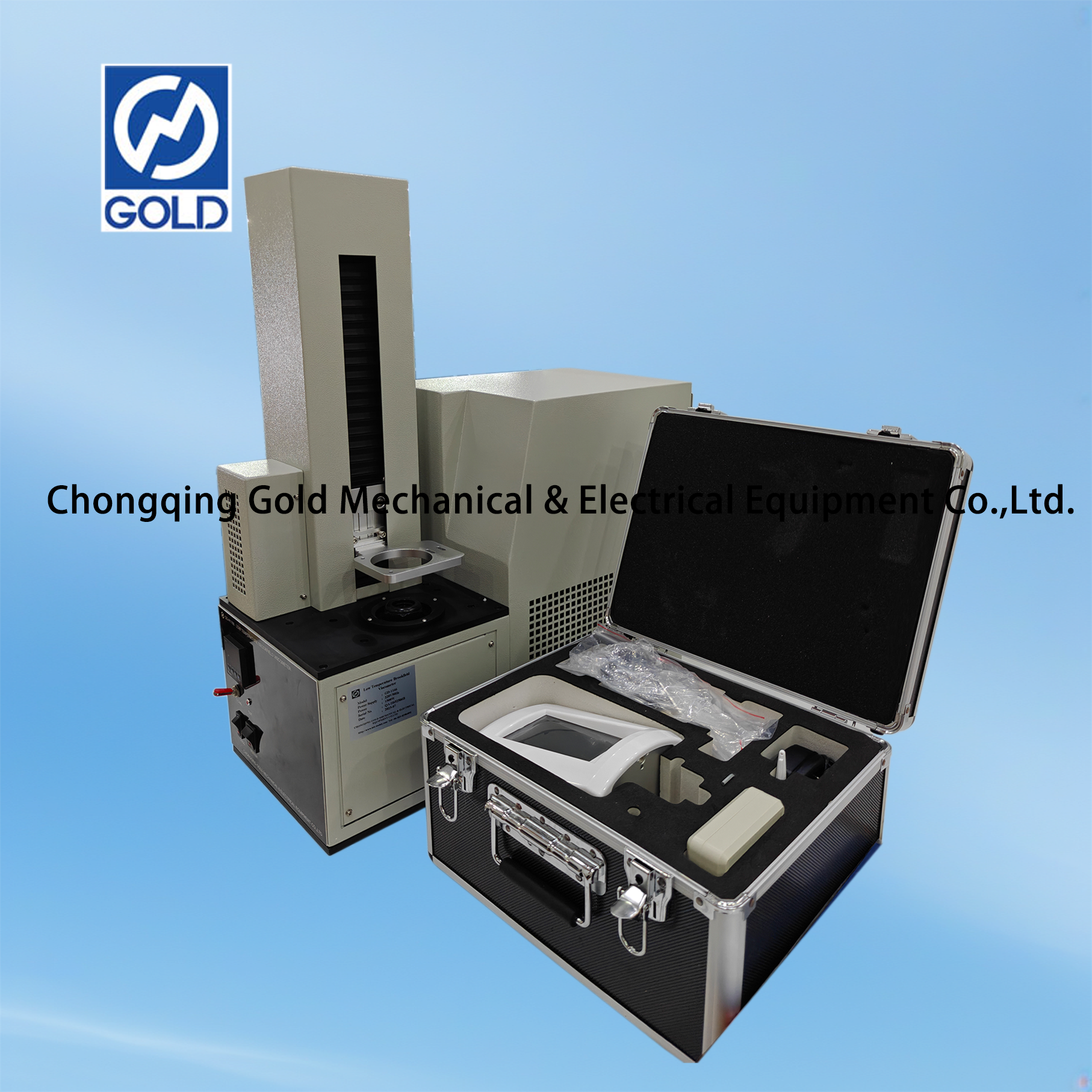

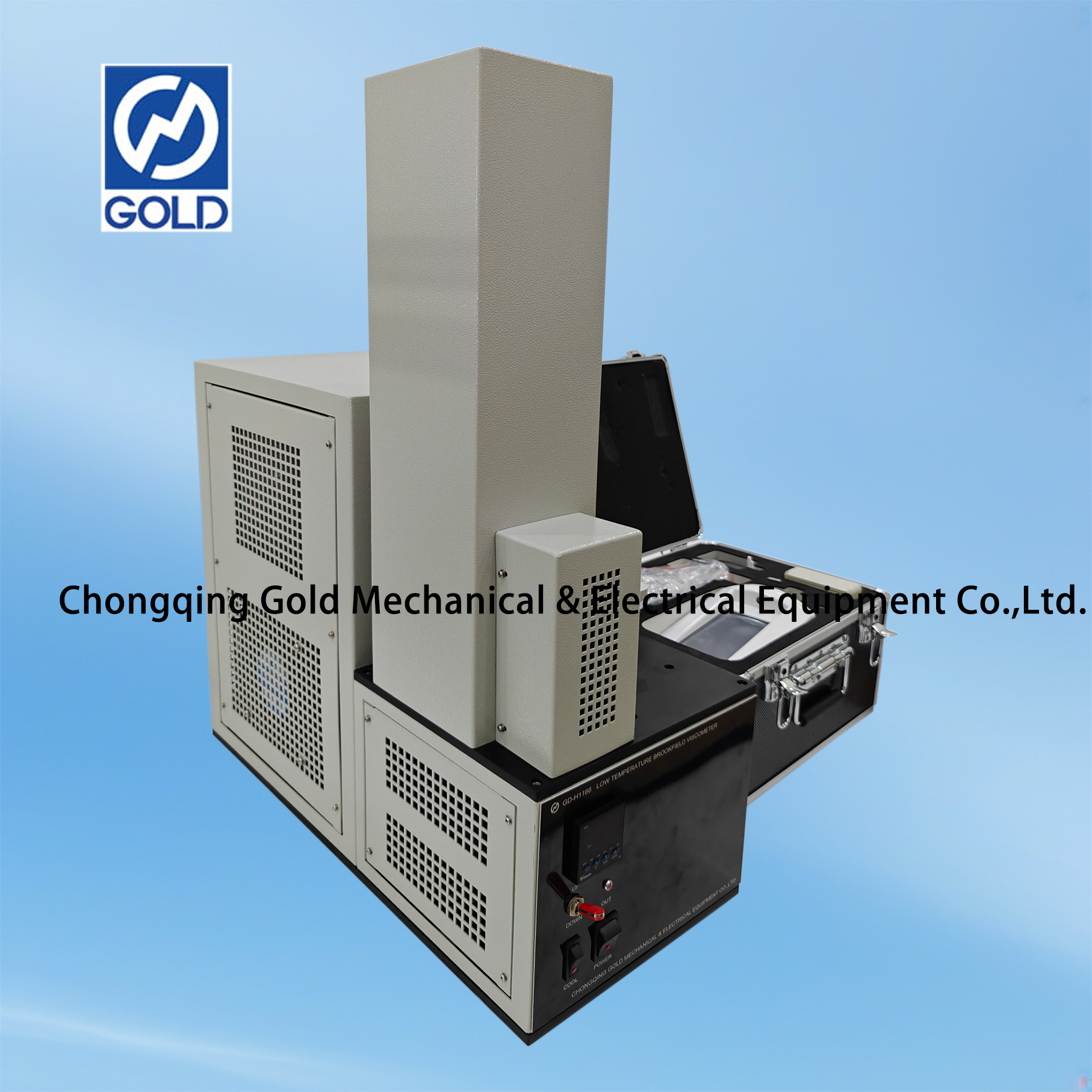

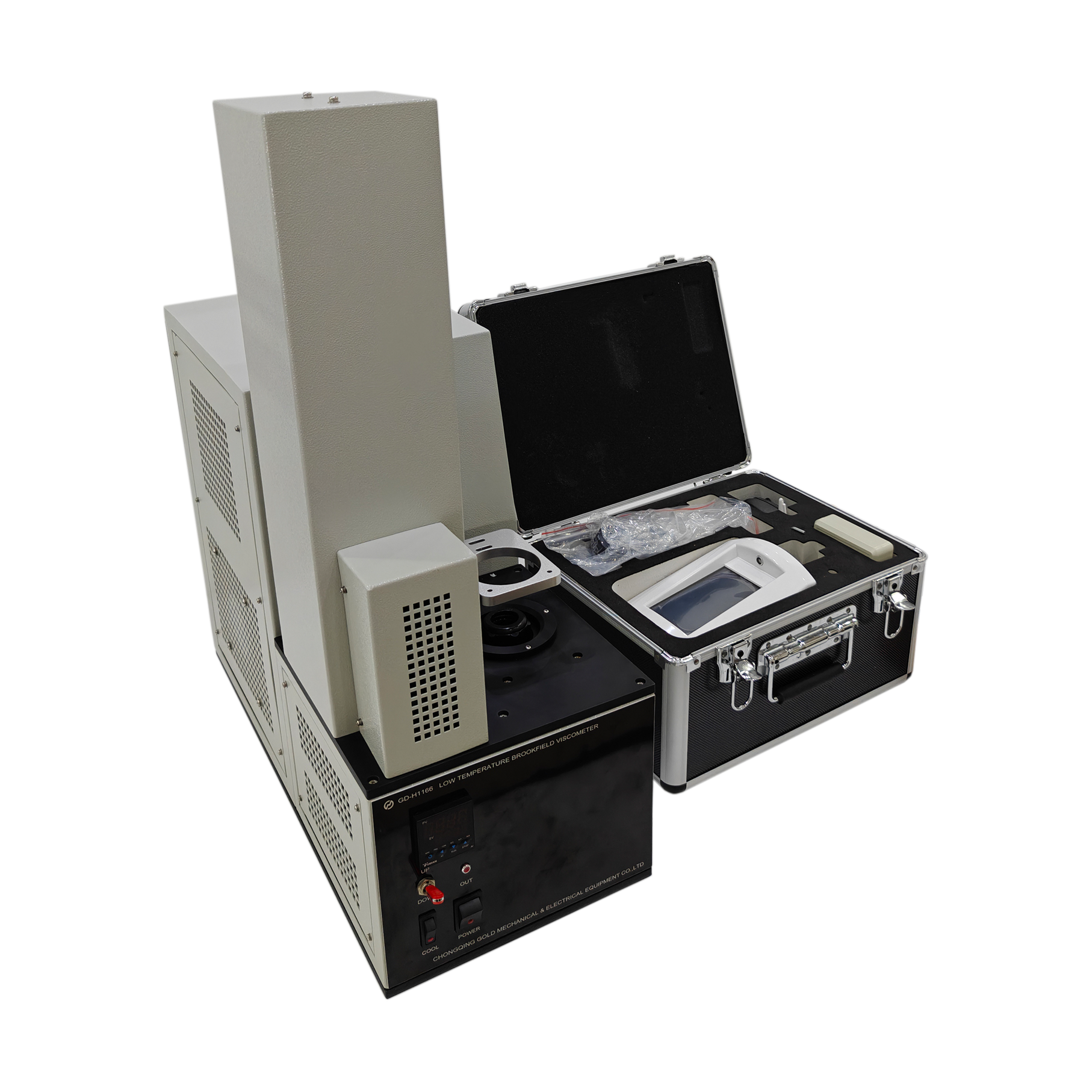

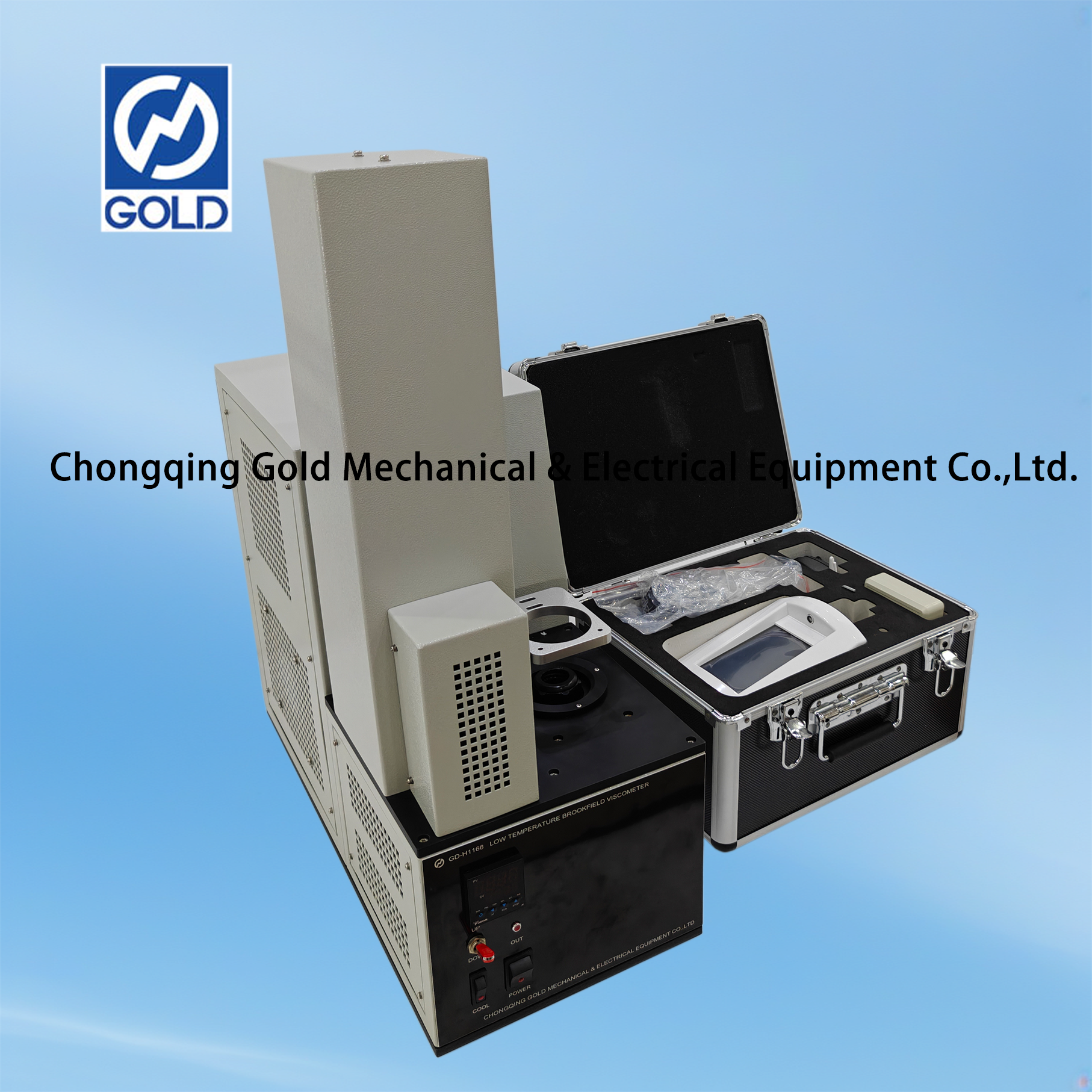

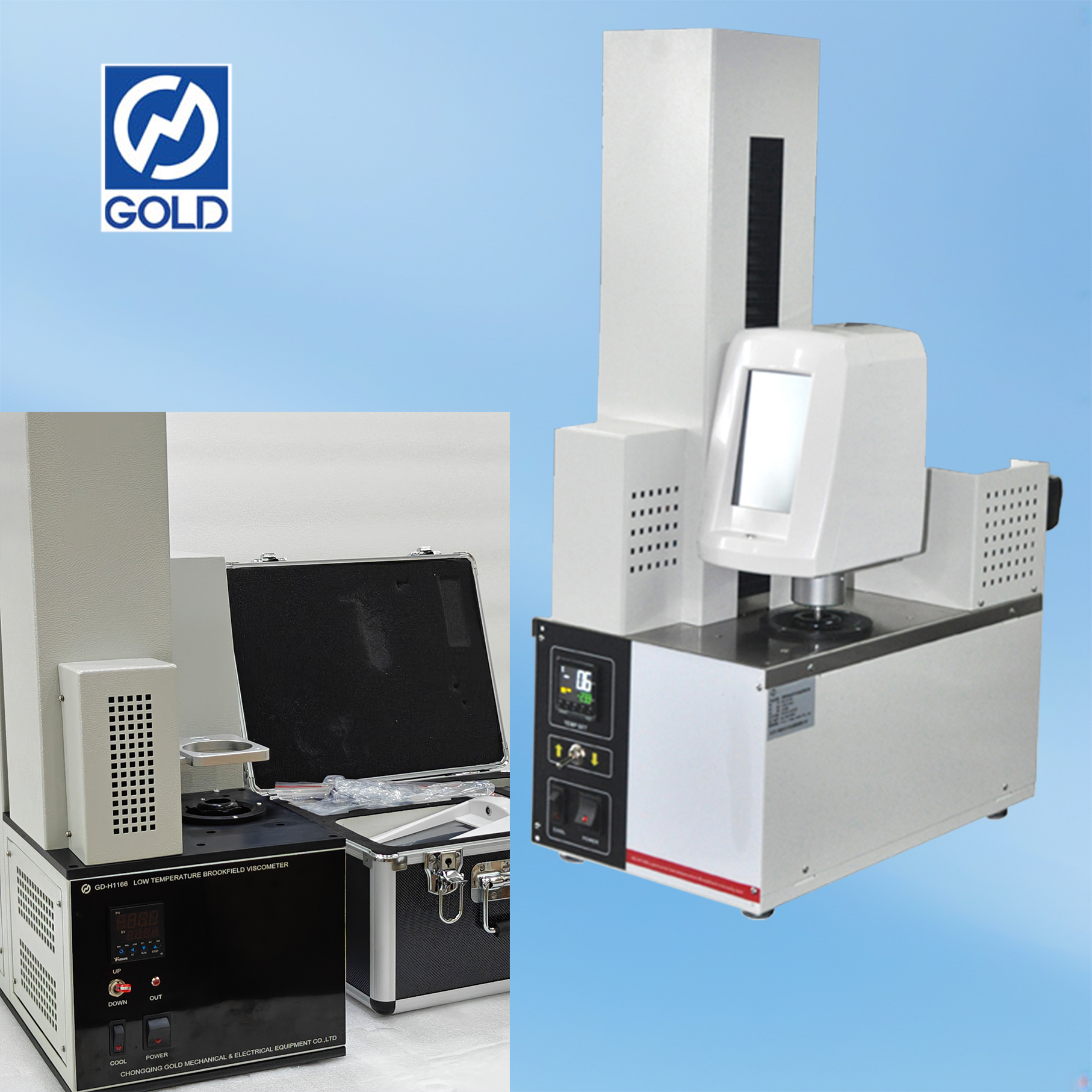

Lubricating Oil Low Temperature Brookfield Viscometer ASTM D2983

Low Temperature Brookfield Viscometer

The low-temperature Brookfield viscometer for lubricating oil is a professional instrument that strictly follows the ASTM D2983 standard. Its core is used to measure the Brookfield viscosity of lubricating oil in low-temperature environments, in order to evaluate its low-temperature flowability - which is directly related to key performance such as engine low-temperature starting resistance and oil pump delivery efficiency. At the same time, it can meet the quality control and new product development needs in lubricating oil production.

Related standards:

• ASTM D2983 Standard Test Method for Low-Temperature Viscosity of Automatic Transmission Fluids, Hydraulic Fluids, and Lubricants using a Rotational Viscometer

• GB/T11145 Standard Test Method for Measurement of low-temperature Viscosity of Lubricants - Brookfield Viscometer Method.

Application scope:

• Lubricant production enterprises

• Testing Department

Features:

1. Precision insulated spindle, meeting standard requirements, with high test repeatability;

2. One click lifting, automatic positioning of viscosity meter, reducing human error;

3. Standard glass test tube, inner diameter 22-22.5mm, length 120mm;

4. Rotational viscometer with infinite speed regulation;

5. Imported compressor refrigeration, fully enclosed, low noise, large cooling capacity;

6. Microcomputer temperature controller, built-in multi-stage test temperature cooling program, temperature control range: room temperature~-40 ℃;

7. The viscosity detection range is extremely large, ranging from 1000 to 1000000mPa. s

Technical Parameter:
