GD-H1120
GOLD
Lube Oil & Grease

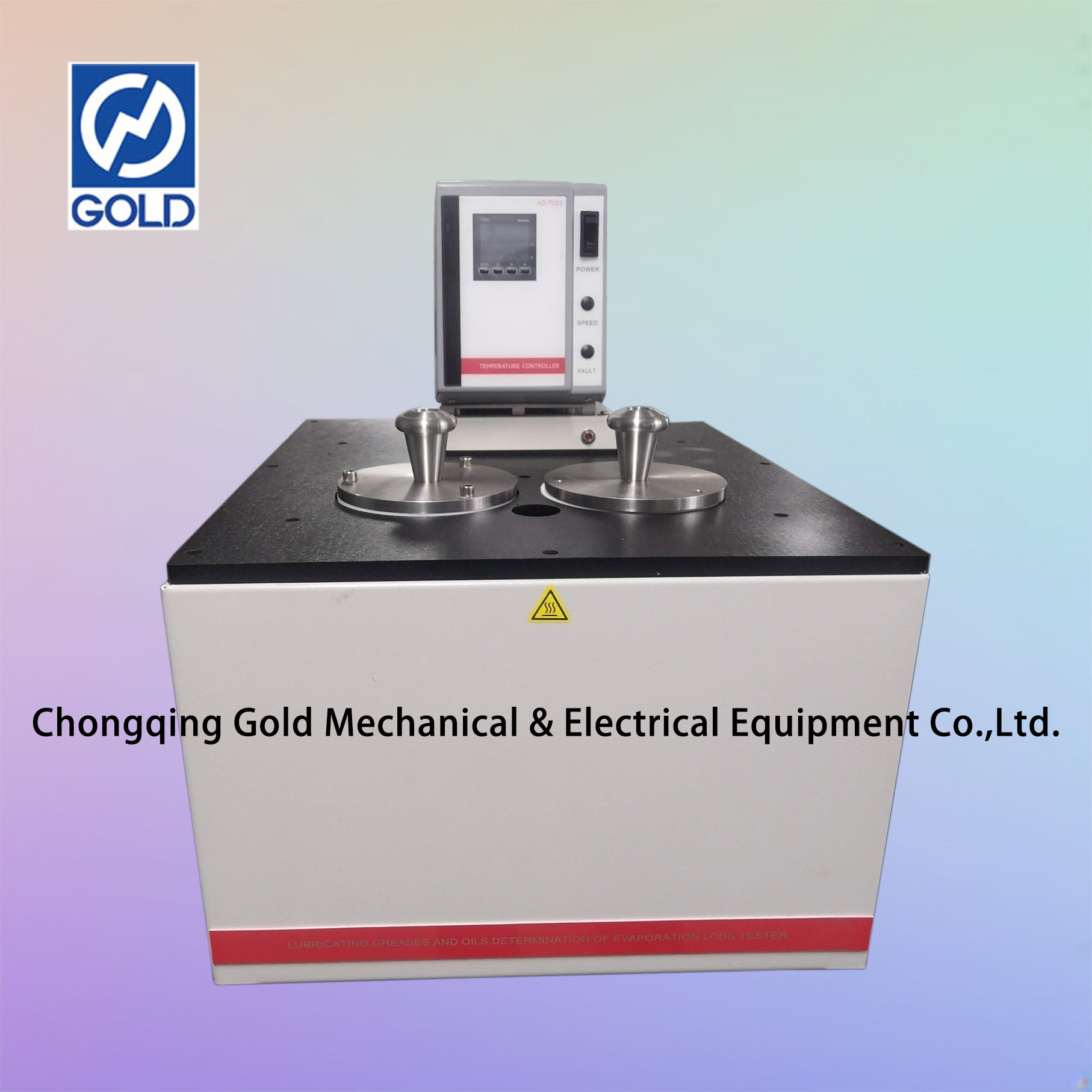

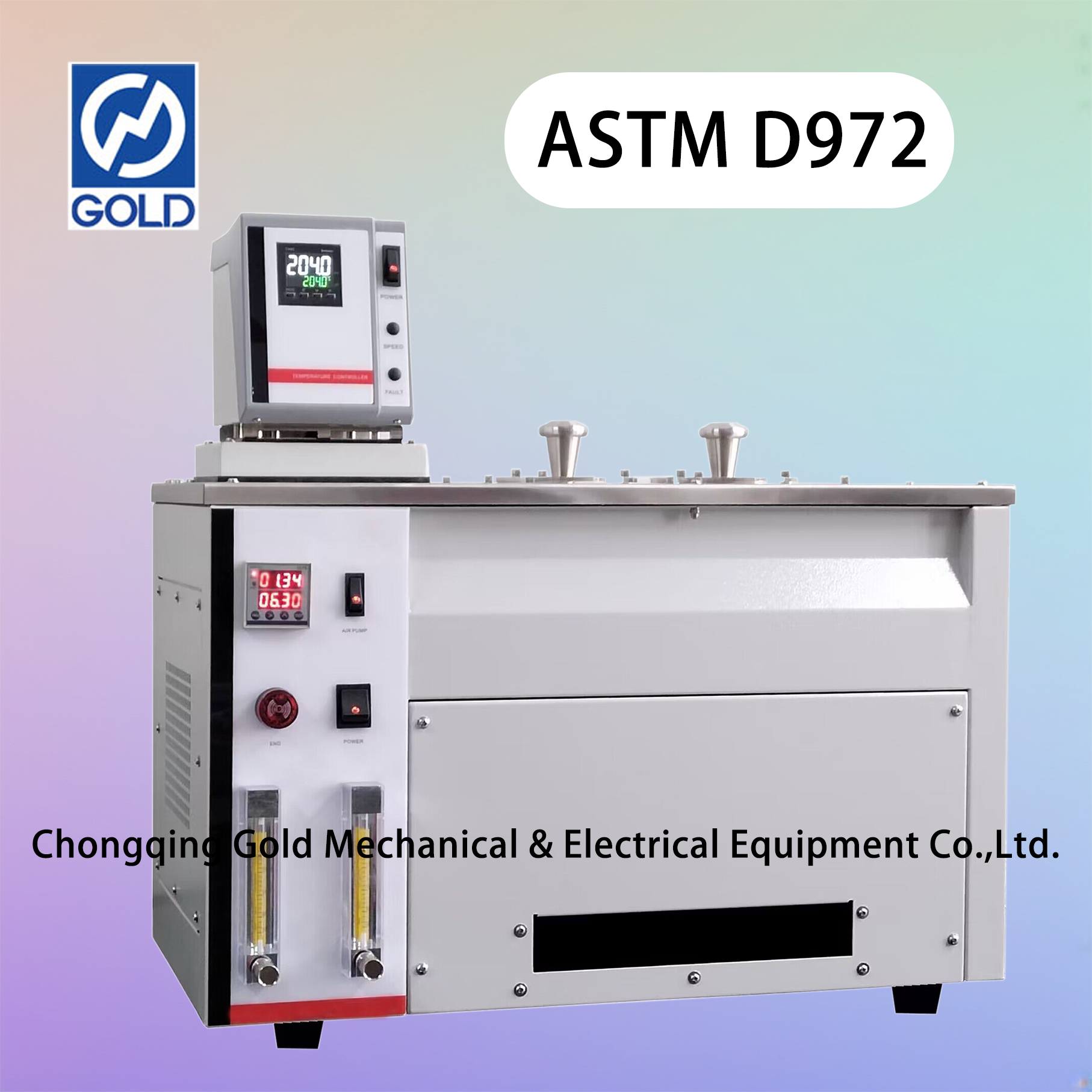

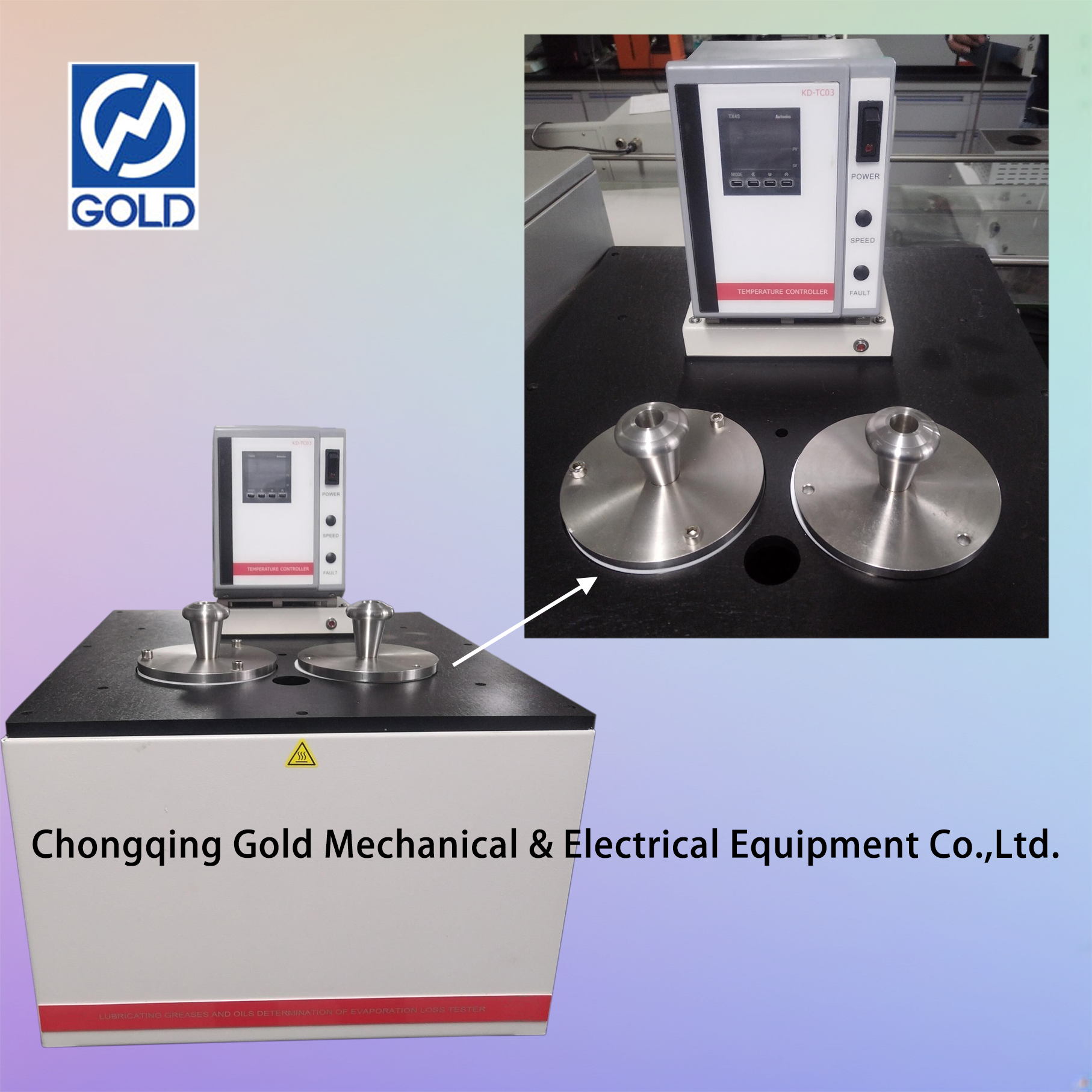

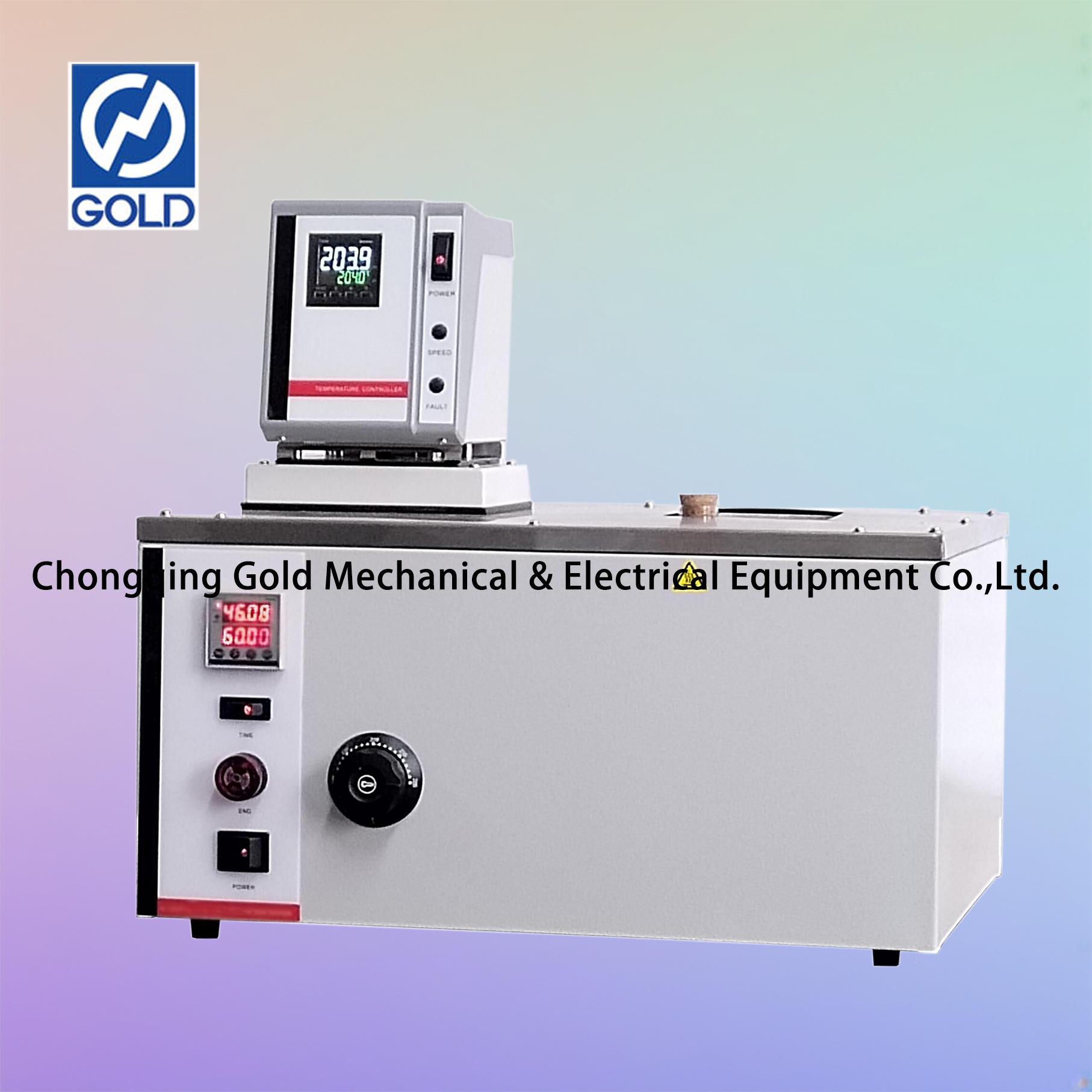

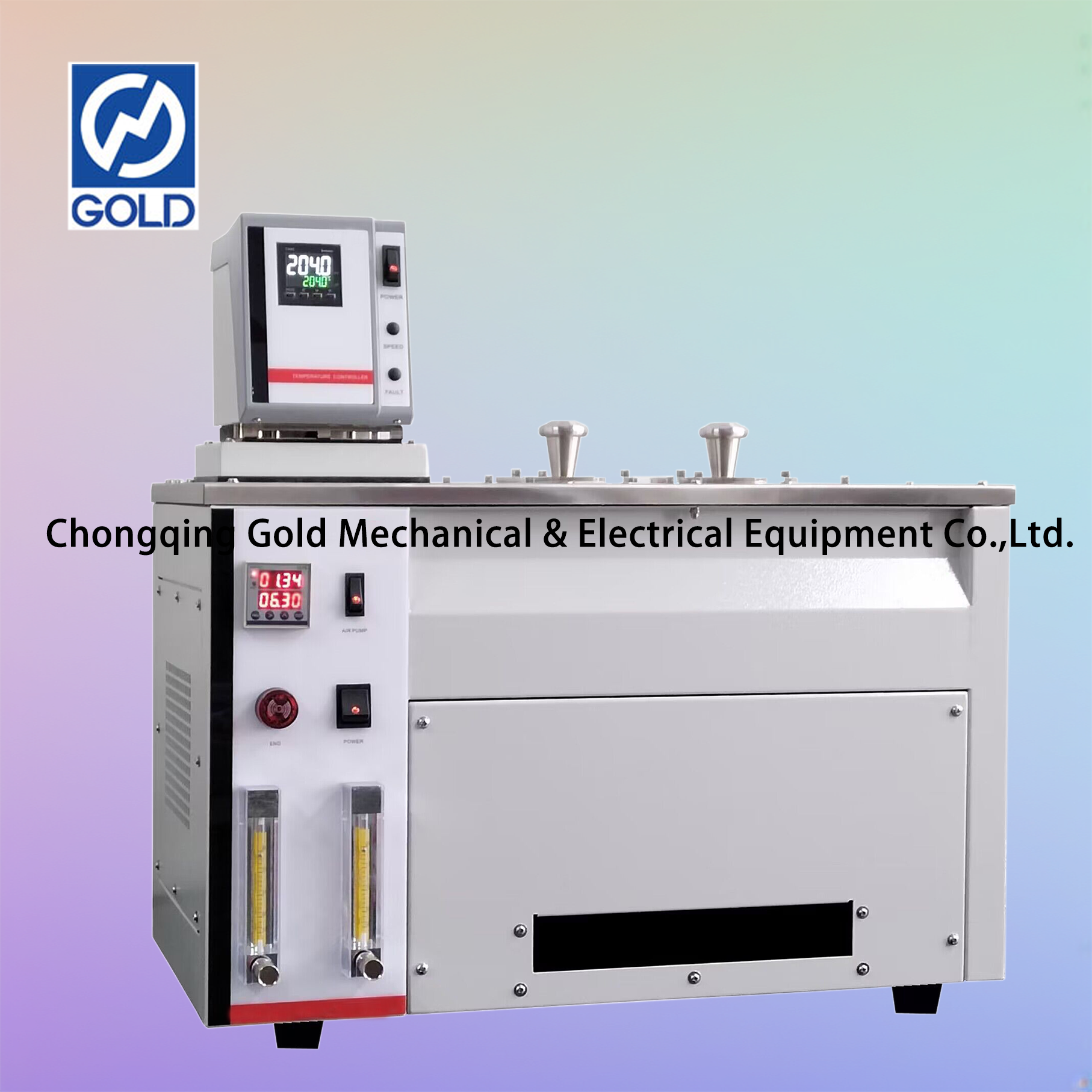

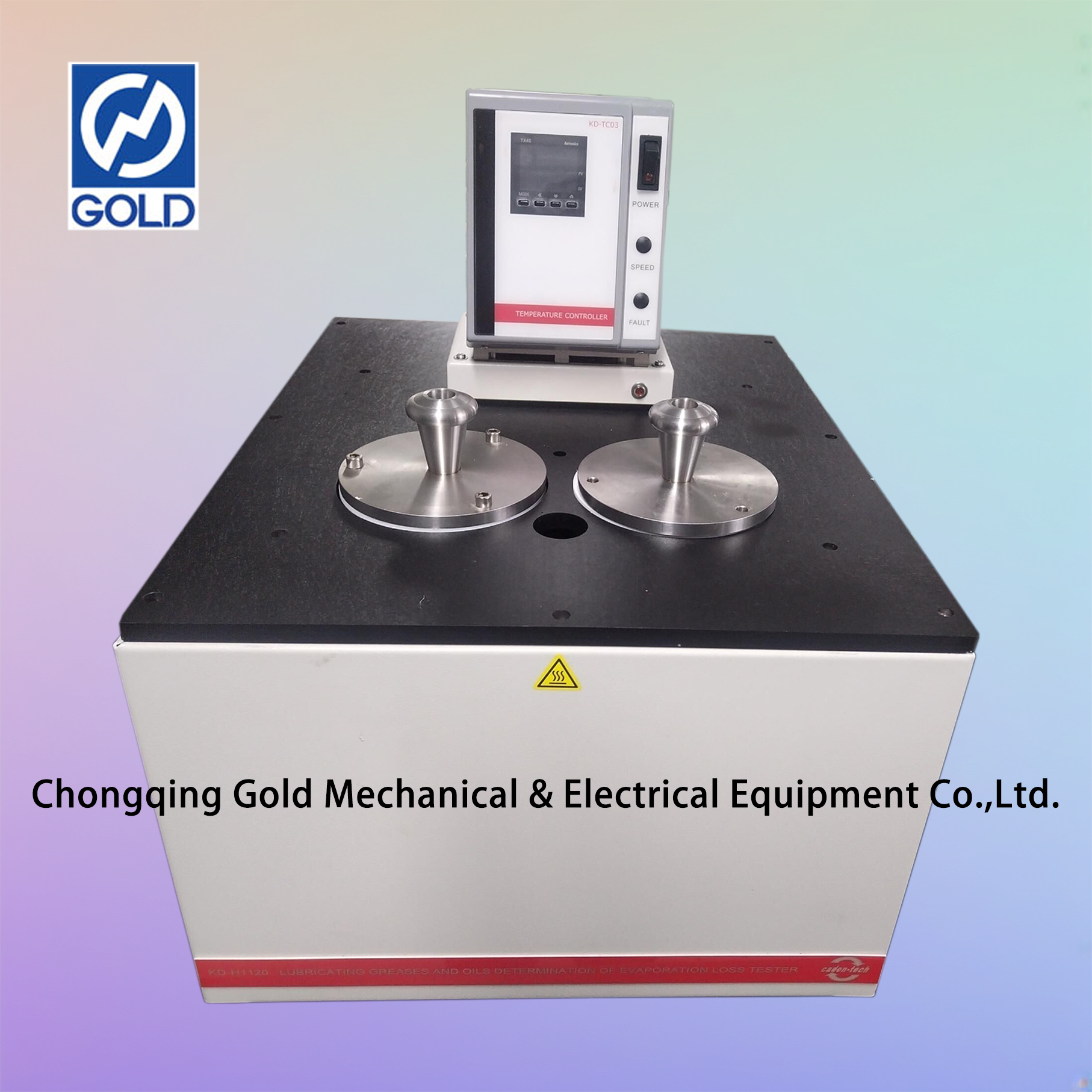

Evaporation Loss Tester
Applicable standards:
GB/T7325: Petroleum products. Lubricating greases and oils. Determination of evaporation loss
ASTM D972: Standard Test Method for Evaporation Loss of Lubricating Greases and Oils
Features:
The evaporation loss tester is desktop type, including heating bath and flowmeter. The stainless steel lid has holes to put in the specimen bottle.
The stainless steel structure with ceramic coating.
Environmentally friendly metal bath heating, avoid oil smoke caused by oil bath heating to human body damage, efficient thermal insulation effect.
Stainless steel heater.
Precise flow meter with needle valve, flow rate 0~2L/min.
Air filter with glass wool.
Microprocessor thermostat and PID control, digital continuous display temperature, precision 0.1 ℃, Pt100 RTD temperature probe.
Operating temperature range: room temperature~250°C; safety measures to prevent overheating or low liquid level.
Specifications:
| Applicable standards | GB/T7325, ASTM D972 |
Temperature control method | Imported PID digital display temperature controller |
Temperature control precision | Normal temperature～250±0.1℃ |
Heating method | Metal bath heating |
Total power | 2.5KW |
Working unit | 2 tubes |
Flow control | Precision flowmeter |
Power supply | AC220V/50Hz |
Timing mode | Digital display timer |
Dimensions | 470*540*440mm |
Net weight | 25KG |
Product Details Display of Evaporation Loss Tester:
Lube Oil & Grease
Evaporation Loss Tester
Applicable standards:
GB/T7325: Petroleum products. Lubricating greases and oils. Determination of evaporation loss
ASTM D972: Standard Test Method for Evaporation Loss of Lubricating Greases and Oils
Features:
The evaporation loss tester is desktop type, including heating bath and flowmeter. The stainless steel lid has holes to put in the specimen bottle.
The stainless steel structure with ceramic coating.
Environmentally friendly metal bath heating, avoid oil smoke caused by oil bath heating to human body damage, efficient thermal insulation effect.
Stainless steel heater.
Precise flow meter with needle valve, flow rate 0~2L/min.
Air filter with glass wool.
Microprocessor thermostat and PID control, digital continuous display temperature, precision 0.1 ℃, Pt100 RTD temperature probe.
Operating temperature range: room temperature~250°C; safety measures to prevent overheating or low liquid level.
Specifications:
| Applicable standards | GB/T7325, ASTM D972 |
Temperature control method | Imported PID digital display temperature controller |
Temperature control precision | Normal temperature～250±0.1℃ |
Heating method | Metal bath heating |
Total power | 2.5KW |
Working unit | 2 tubes |
Flow control | Precision flowmeter |
Power supply | AC220V/50Hz |
Timing mode | Digital display timer |
Dimensions | 470*540*440mm |
Net weight | 25KG |
Product Details Display of Evaporation Loss Tester:
