GD-F8031
GOLD
Engine Coolant Corrosion Tester
The engine coolant corrosion tester that complies with ASTM D1384 standard is a specialized testing device used to evaluate the corrosiveness of engine coolant to metals. This equipment strictly follows the "Standard Test Method for Corrosion of Engine Coolants in Glassware" developed by ASTM International. By simulating the contact environment of the coolant during engine operation, the corrosion degree of various metal materials is measured. It is the core equipment for quality control, formulation development, and performance evaluation of coolant products.
Related Standards:
SH/T0085 Determination Method of Corrosion Test for Engine Coolants(Glassware Method)
ASTM D1384 Standard Test Method for Corrosion Test for Engine Coolants in Glassware
Features:
Precision stabilizing valve controls the inlet gas source, flow meter adjusts the flow rate: 100ml/min ± 10ml/min;
Sputtering type multi-channel liquid circulation device can effectively ensure temperature uniformity at all points;
Microcomputer temperature controller, digital display, accuracy ± 0.1 ℃, PT100 sensor;
Digital timer, recording experiment time, with alarm;
Sand core glass gas diffusion head;
6 sets of metal specimens that meet the requirements of ASTM standards;
3 units of operation, expandable to 4-6 units;
Quick disassembly device for condenser tubes;
Technical Parameter:
Cooling method | Low temperature circulating water |
Pressure control | Precision stabilizing valve |
Trial standards | ASTM D1384 SH/T0085 |
Unit of Work | 3 unit operation, expandable to 4-6 units |
Working power supply | AC220V 50HZ |
Heating method | Electric heating tube heating |
Flow rate control | Precision flowmeter |
Temperature control | Digital PID temperature controller |
Timing method | Digital timer |
Voltage display | Voltage meter display |

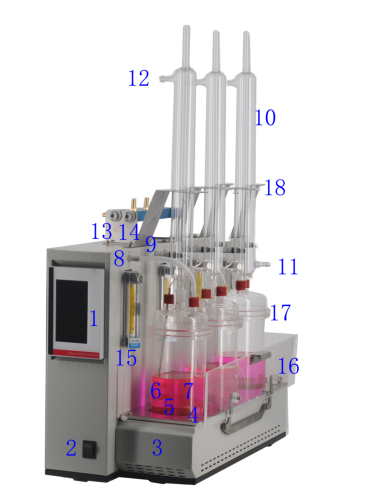

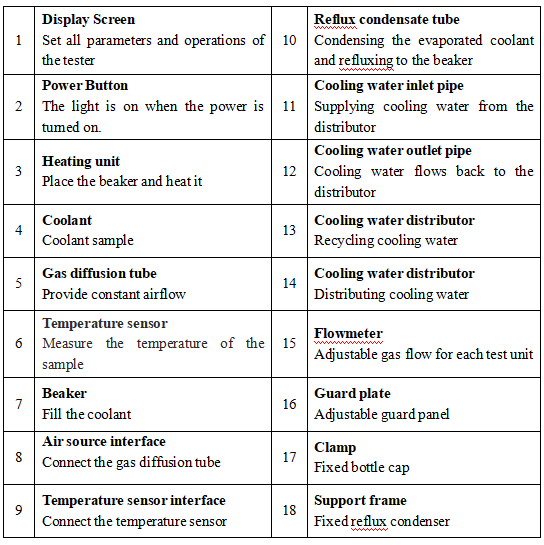

Structure Introduction:

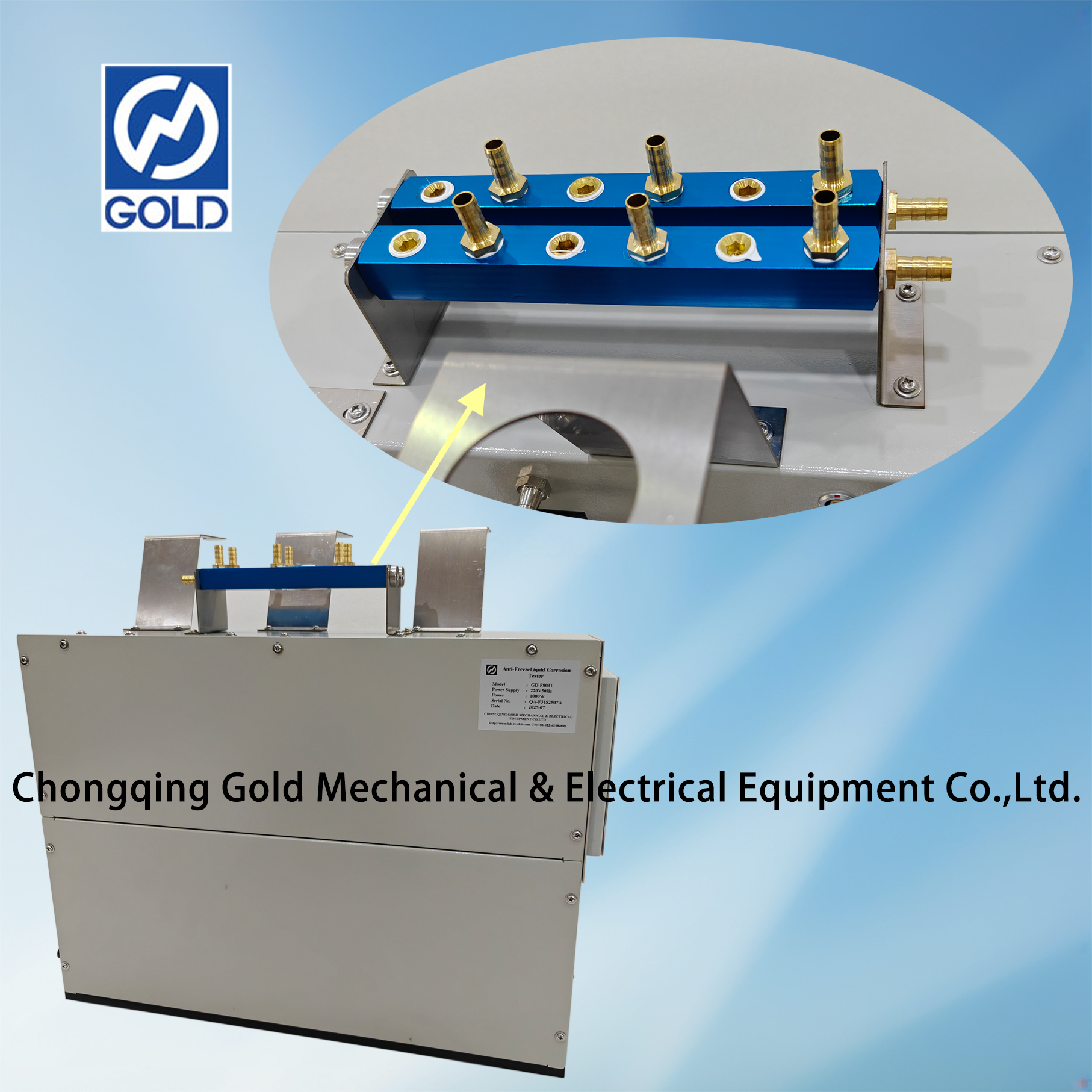

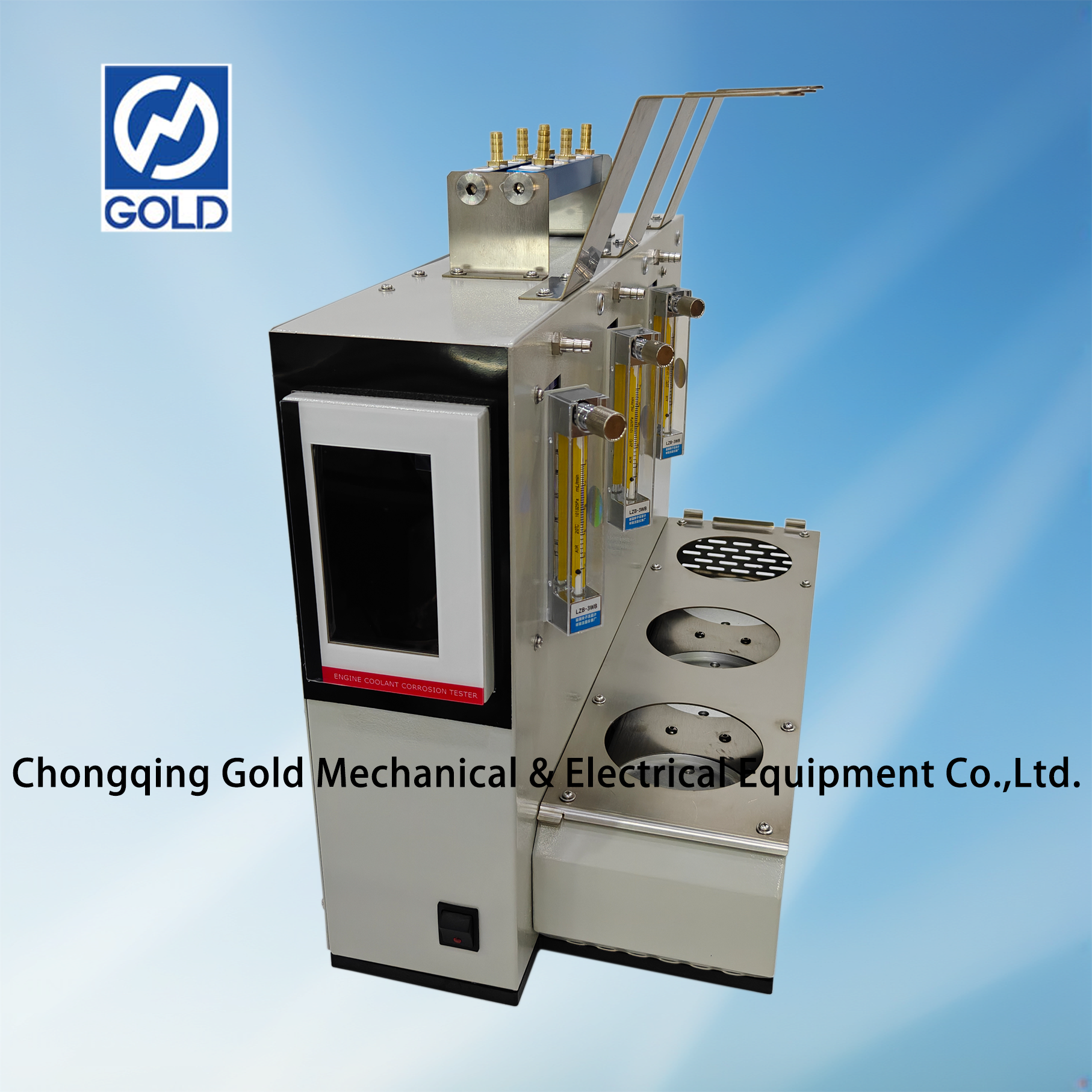

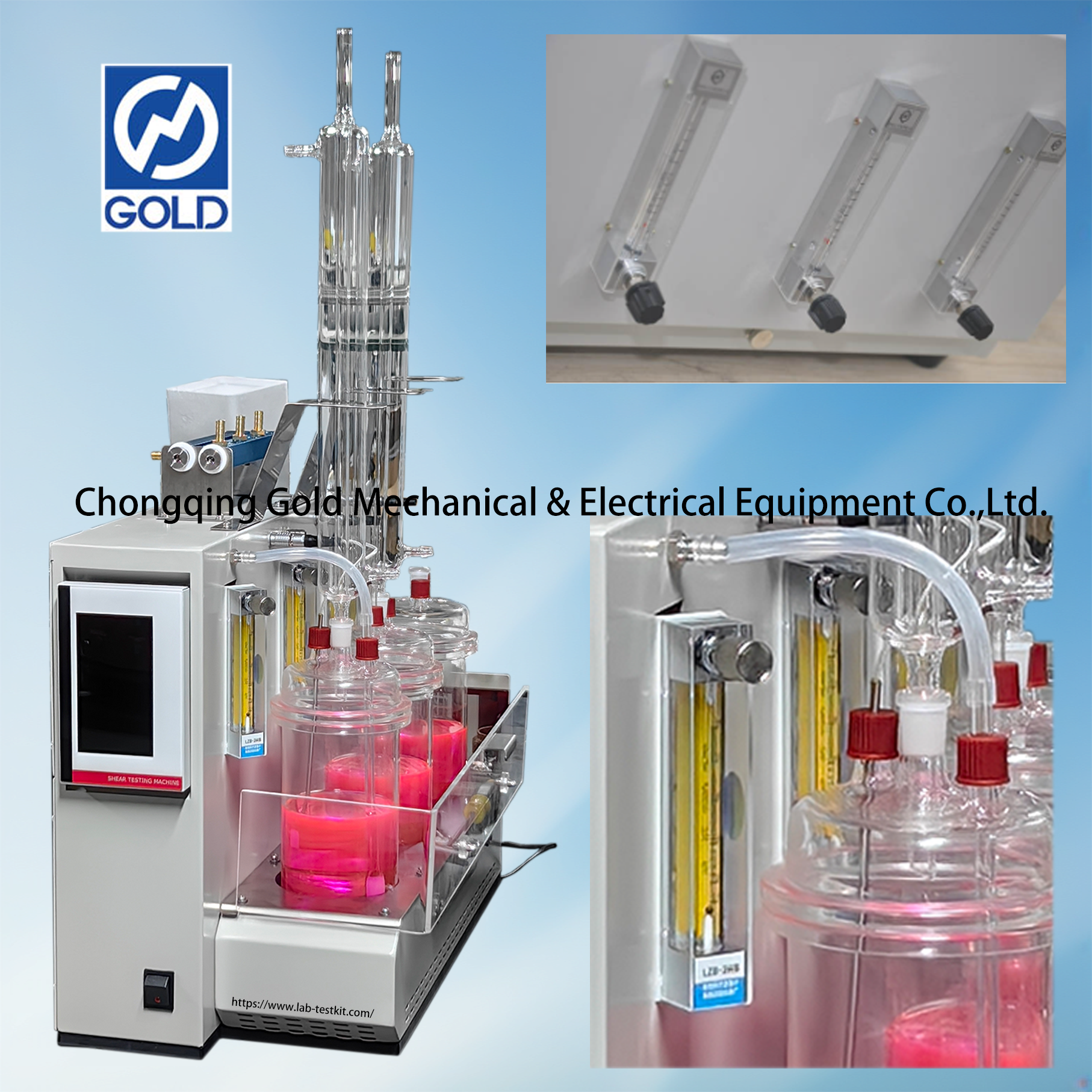

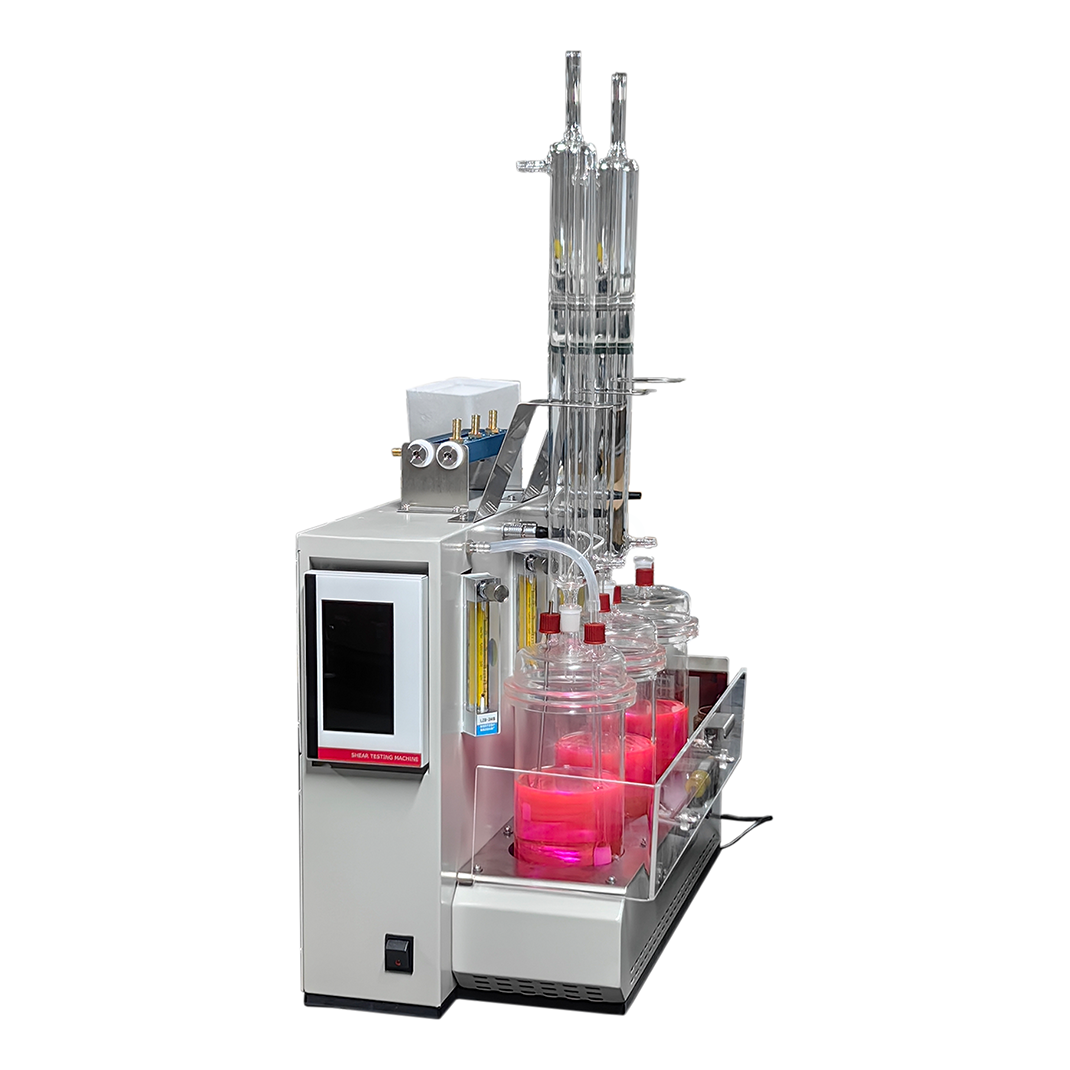

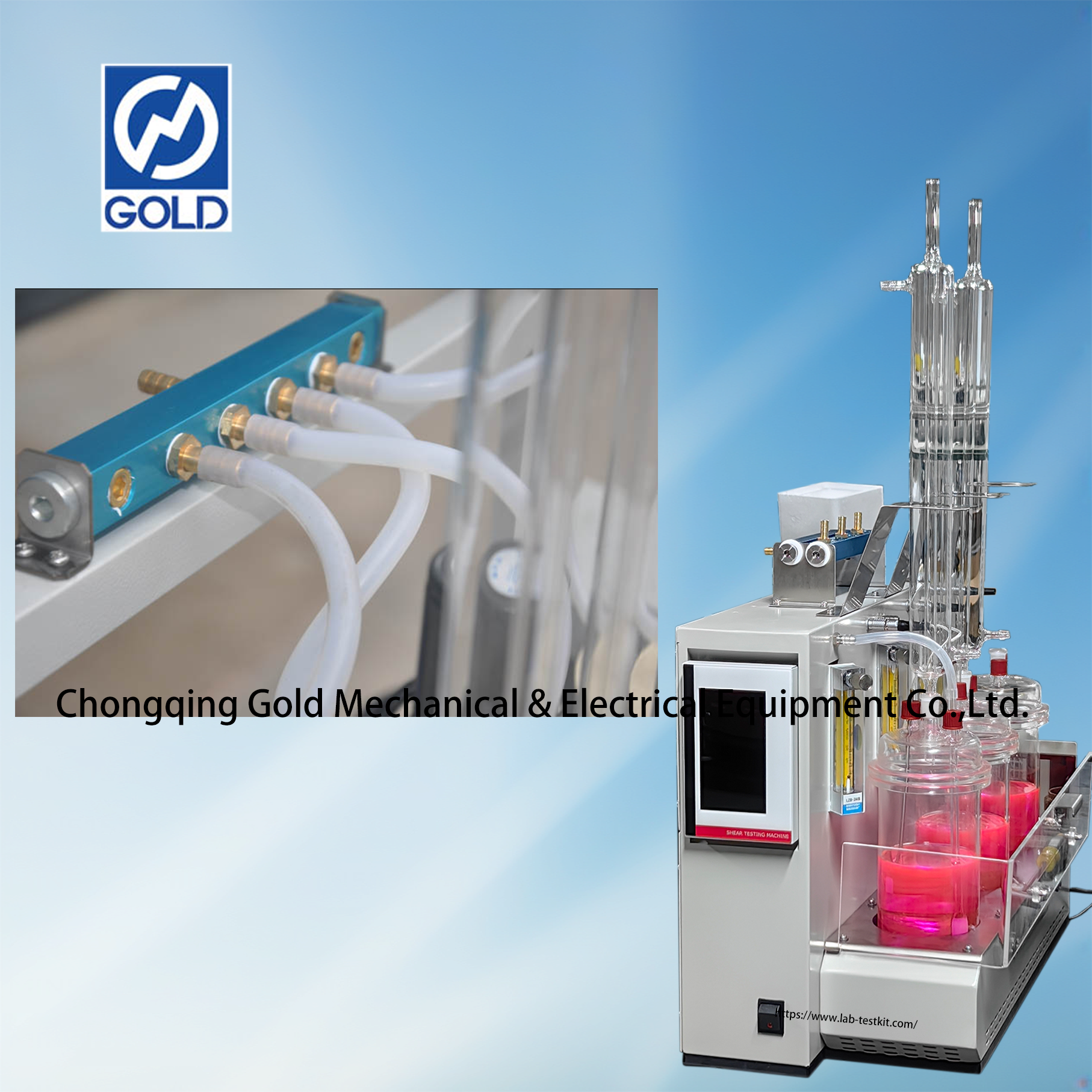

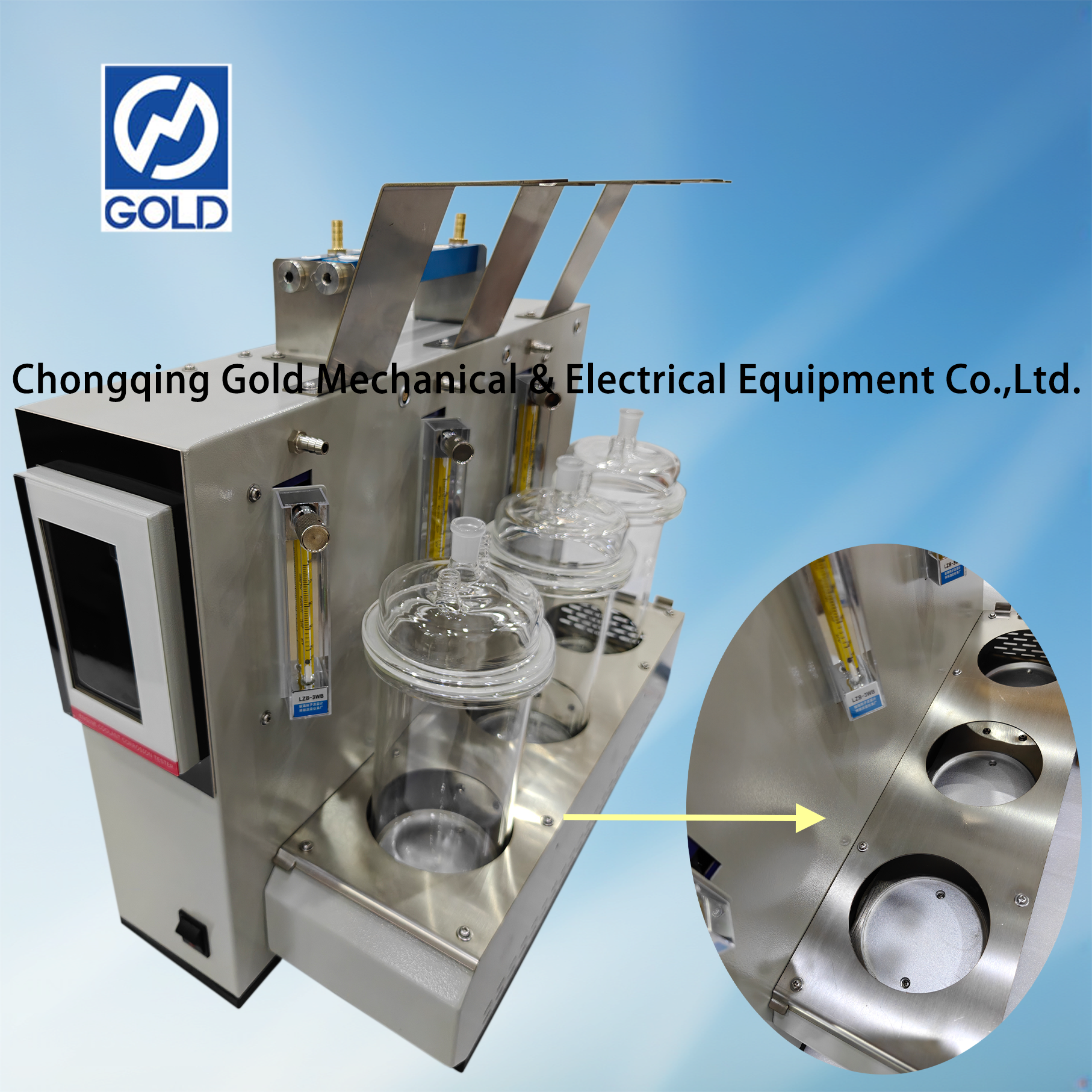

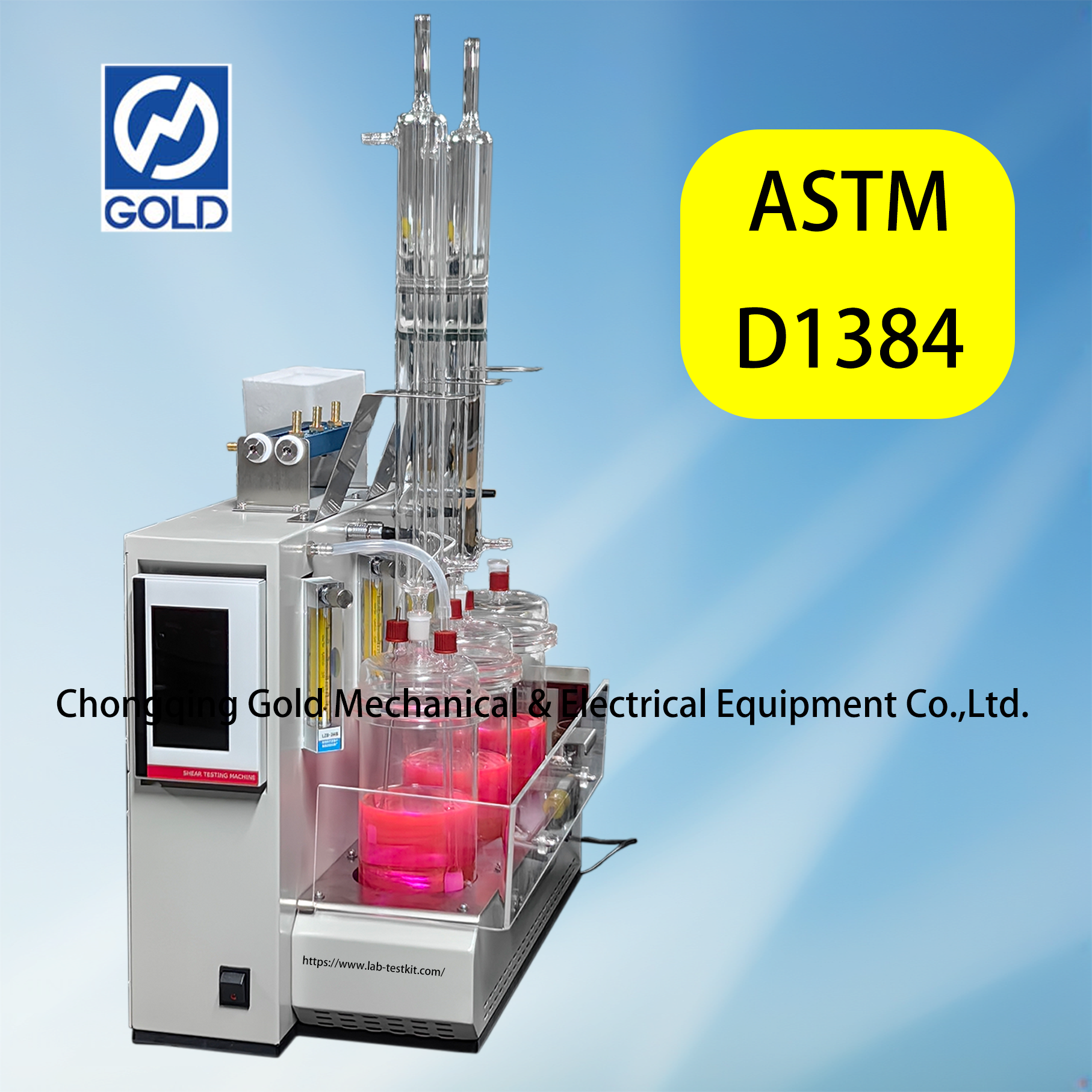

Product Details Display:
