GDSX-200
GOLD

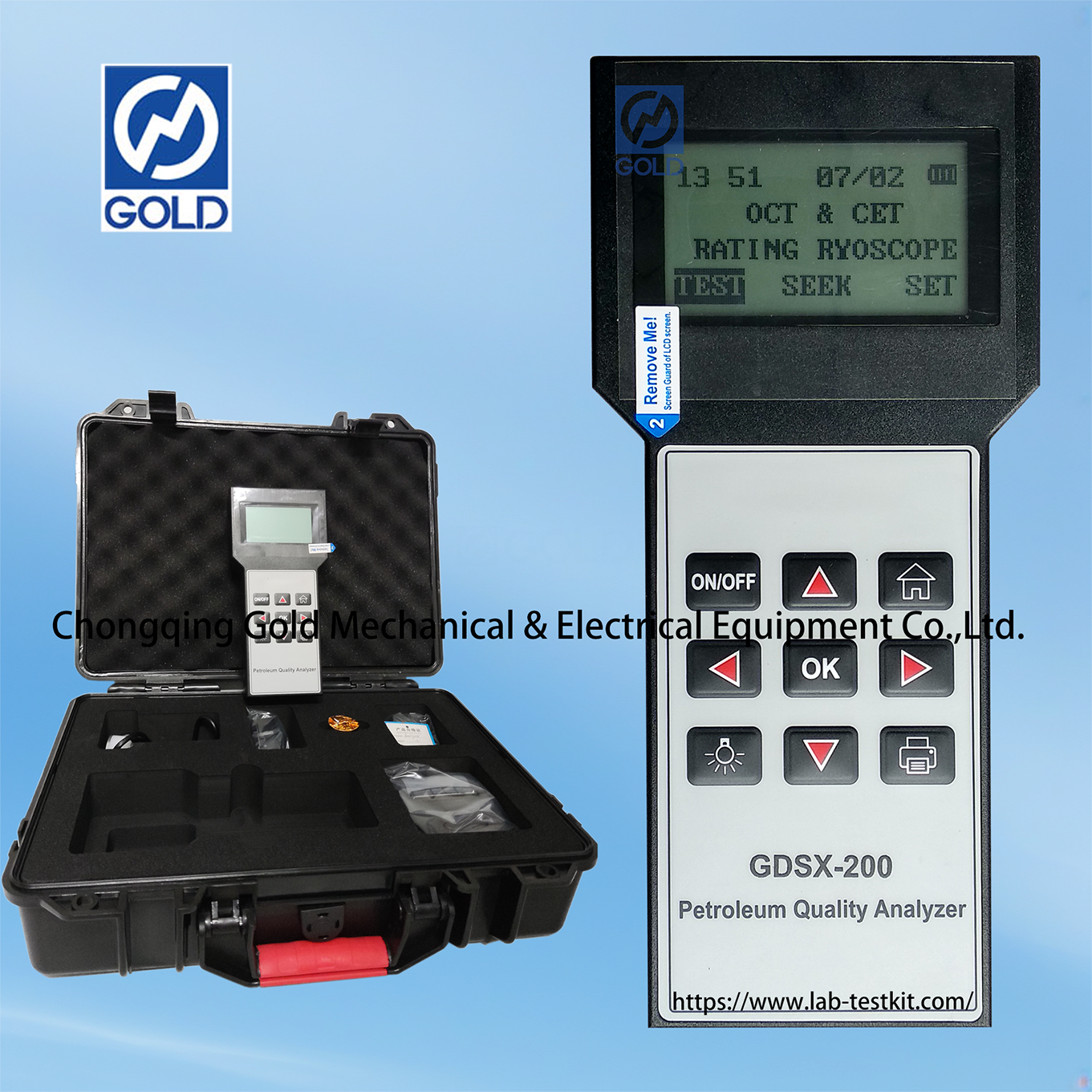

Portable Gasoline Octane Number And Diesel Cetane Number Analyzer
This portable analyzer is designed to quickly and accurately detect gasoline octane number and diesel cetane number. This analyzer has significantly improved detection efficiency and portability through technological innovation and standardized design, while ensuring measurement accuracy, making it a core tool for fuel quality control today.
Technical principles:
Dielectric constant method: By measuring the insulation permeability and electromagnetic induction charge characteristics of oil products, analyze their octane and cetane numbers. Can combine temperature compensation and atmospheric pressure correction functions to ensure data accuracy.
Features:
1. The analyzer can simultaneously detect the octane number of gasoline and the cetane number of diesel, making it a dual-use device.
2. After long-term data collection, the gasoline cetane number and octane number analyzer has a complete database and integrates new technology to develop multiple detection modes. It can detect various oil products such as methanol gasoline, ethanol gasoline, naphtha, light oil, methanol diesel, catalytic diesel, biodiesel, etc., filling the gap in octane and cetane number detection of these oil products.
3. The gasoline cetane number and octane number analyzer has fast and accurate detection, simple operation, large screen Chinese display, EL backlight support, convenient for use in low light environments, and Chinese menu style operation on the main panel.
5. The casing of the gasoline cetane number and octane number analyzer is sturdy and durable, and it is compact and easy to carry. The chip and core components are made of high-quality materials, which increases the sensitivity and service life of the instrument. The sensor is made of alloy metal and fully sealed. The outer packaging box has high strength, high impact resistance, absolute sealing, waterproof, moisture-proof, dustproof, and comes with a square sponge inside.
6. The gasoline cetane number and octane number analyzer can pre-set the upper and lower limits of the mode, and automatically display if it exceeds the range, making it convenient for users to detect their needs.
7. The gasoline cetane number and octane number analyzer has energy-saving function, low-power design, 4 rechargeable batteries, and can be recharged cyclically.
Specification:
Parametric Description | Value |
Octane measuring range (ON) (can be adjusted by clients’requirement) | 40-120 |
Normal standby time (h) | 200 |
Floating range of the measuring result, per unit (maximum) | ±0.2 |
Current consumptio | 30ma |
Allowing error of measurement per unit (maximum) | ±0.5 |
Ccritical value when the battery’s voltage too low | 5.4 |
Measuring time (sec) | <20 |

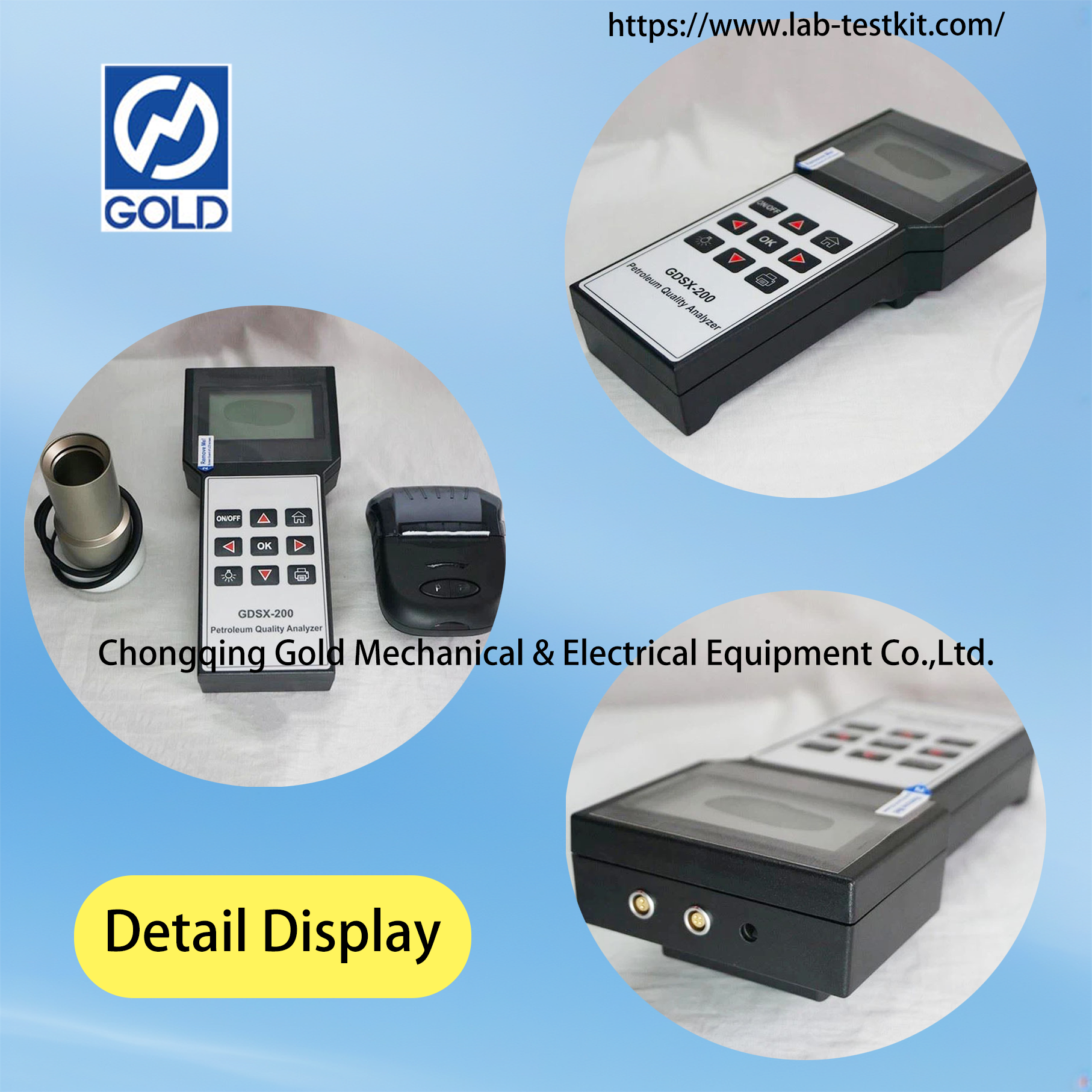

Product details display:
