GD-445
GOLD
The mechanism of the kinematic viscometer: measure the time that a certain volume of liquid flows through a calibrated glass capillary viscometer under gravity at a constant temperature, the product of the capillary constant of the viscometer and the flow time is the kinematic viscosity of the liquid at this temperature.
Reagents and Materials:
1. Chromic Acid Cleaning Solution
5. Anhydrous Ethanol: used as a refrigeration medium.
Technical Index &Parameter:
Applicable standards | ASTM D445, ISO3104, DIN51366 |
Temperature control method | PID digital temperature controller |
Temperature control accuracy | ±0.1℃ |
Temperature control range | Rt～100℃ |
Heating method | Electric heating tube heating |
Power of the whole machine | 2000W |
Working unit | 4 pipes, equipped with sliding hammer |
Working power supply | AC220,240V/50,60Hz |
Instrument size | 360*360*520mm |
Net weigh | 20KG |
Features:
1. 360° transparent structure, easy to observe;
2. All-aluminum operating table, the surface is treated by oxidation drawing;
3. The sputtering turbine liquid circulator improves the temperature uniformity of the upper, middle
4. and lower parts of the bathtub;
5. Four samples can be tested at the same time, which is convenient for parallel samples;
6. High-power solid-state relay control output, no voltage leakage;
7. There is a stirrer on the electronic heating bath;
8. Stainless steel heater;
9. The thermostat displays the heating state;
10. Safety protection device to prevent overheating and low water level;
11. Imported Omron PID thermostat, digital display temperature, degree 0.1℃

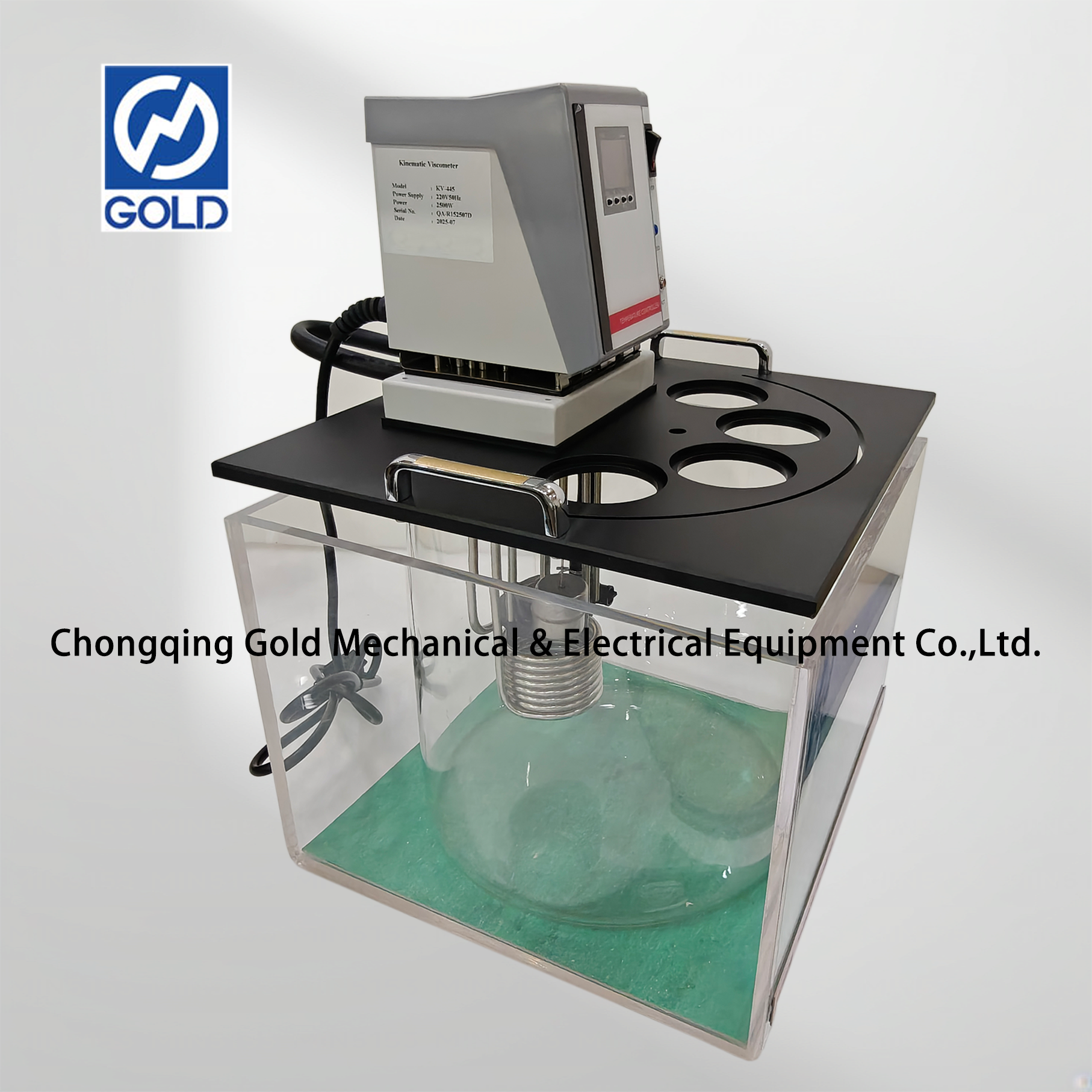

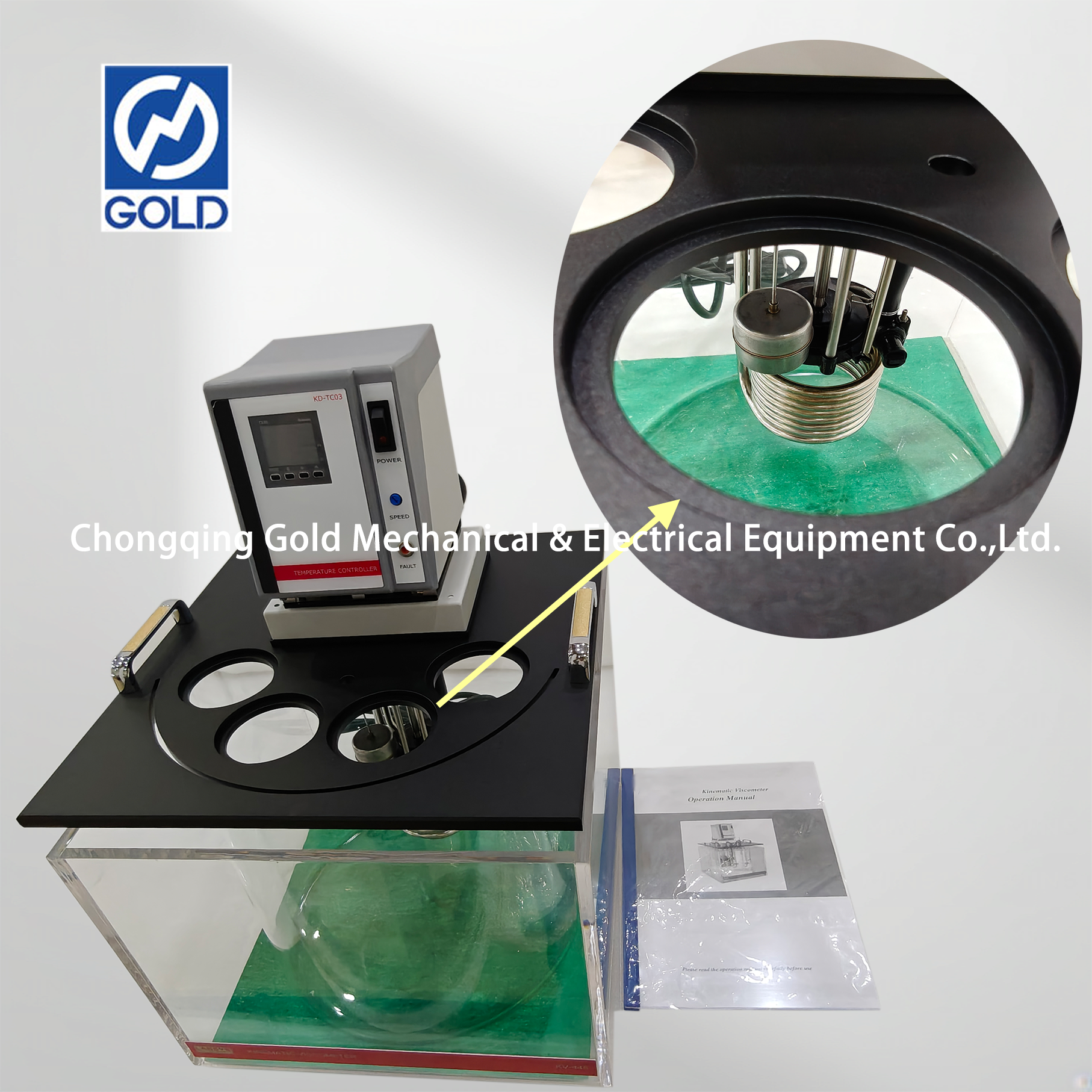

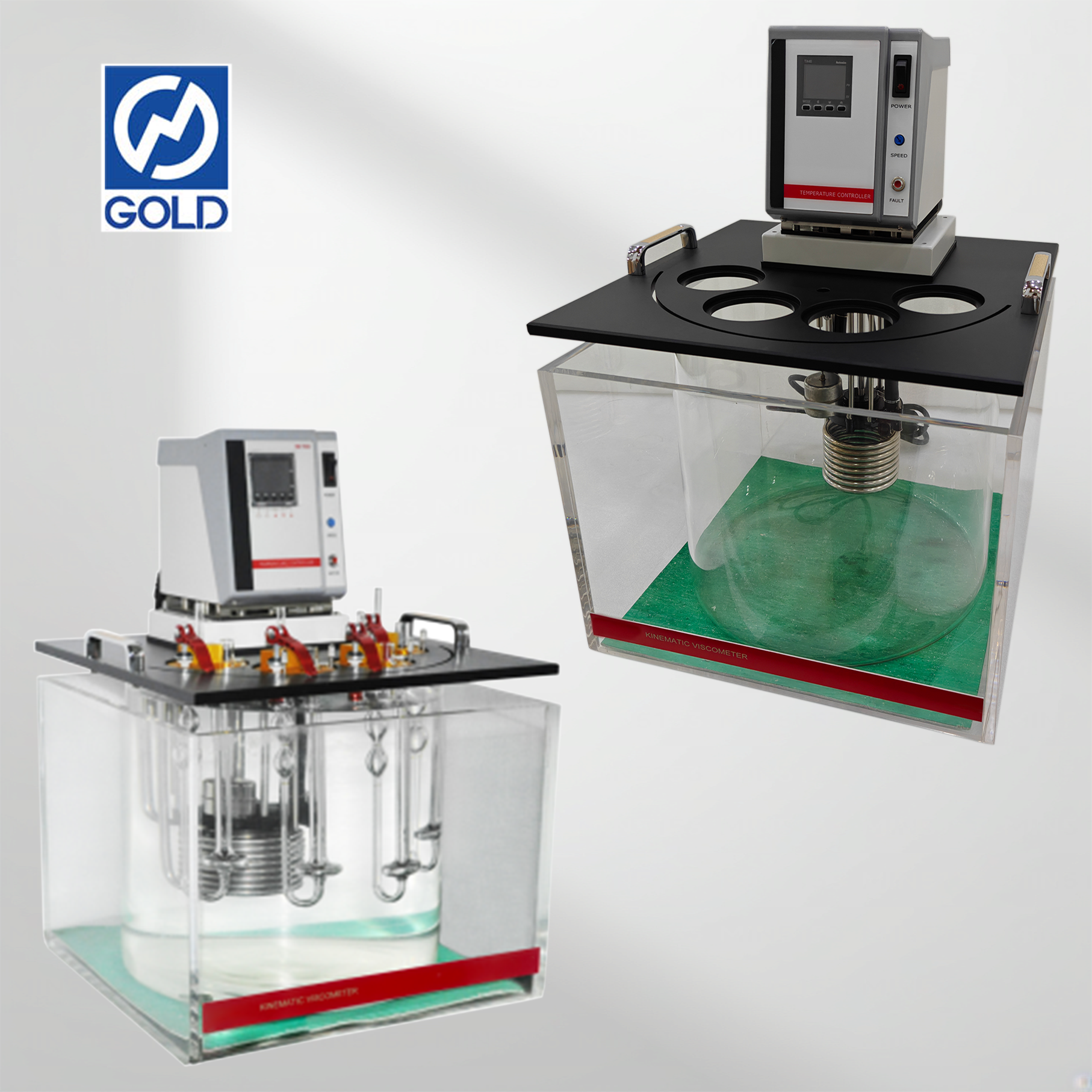

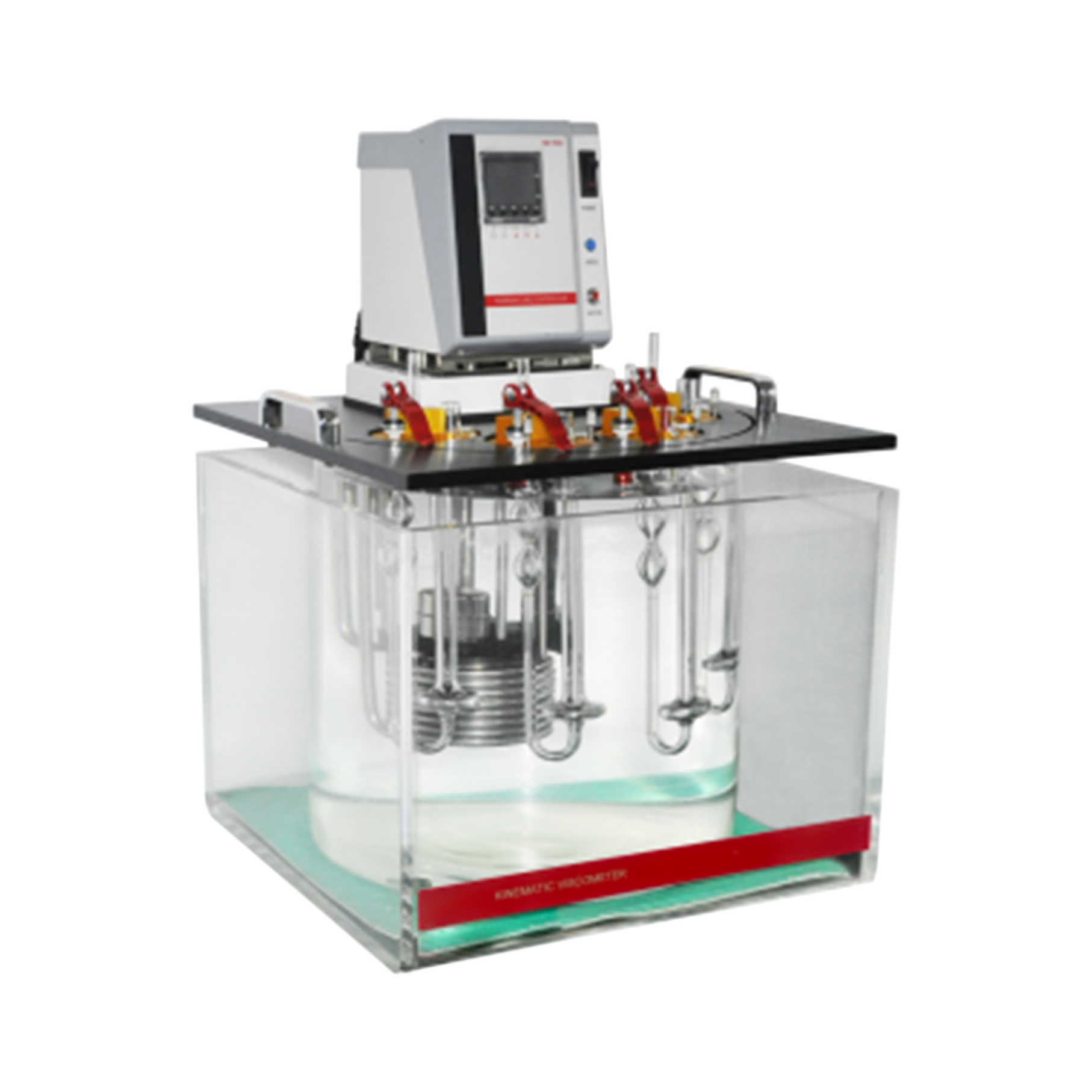

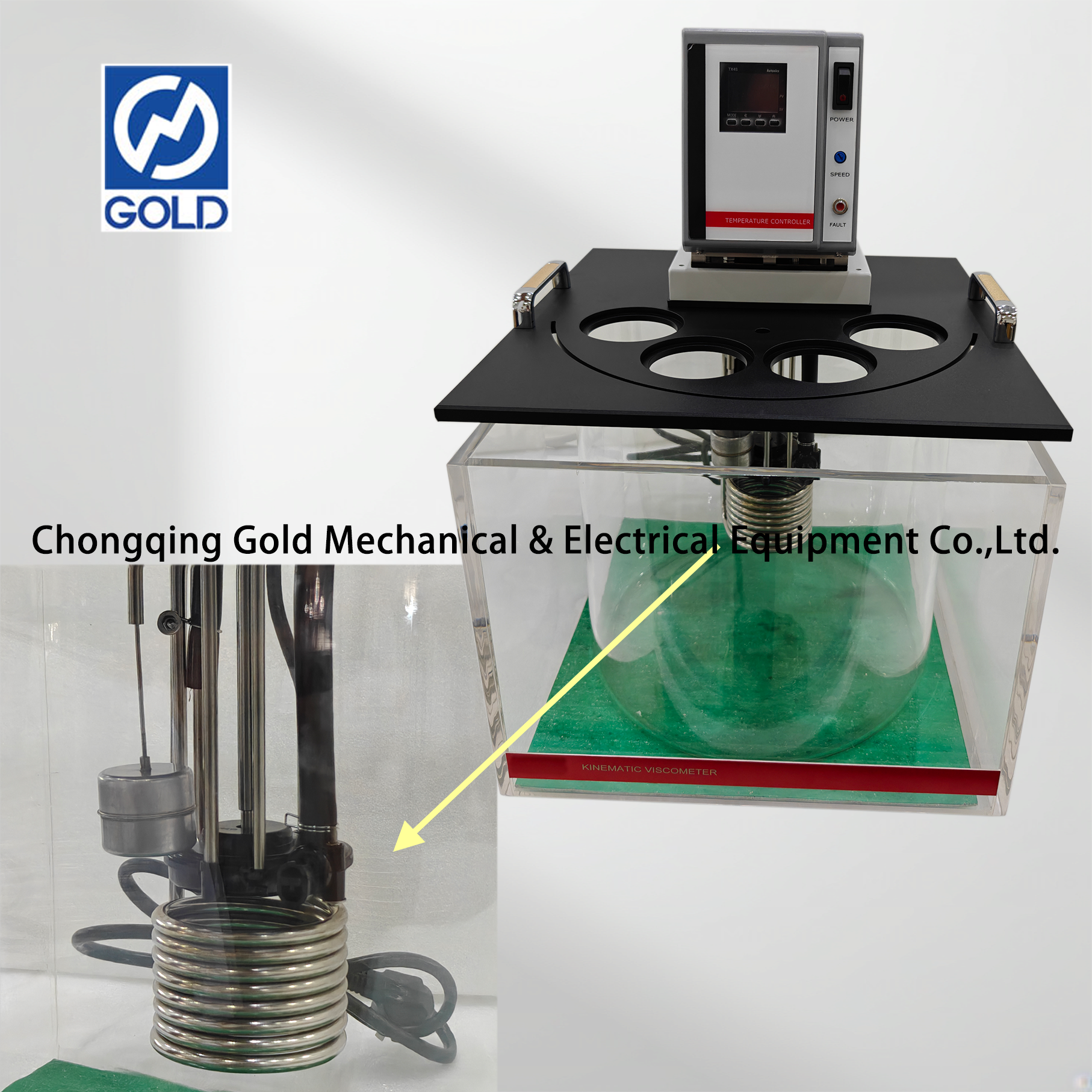

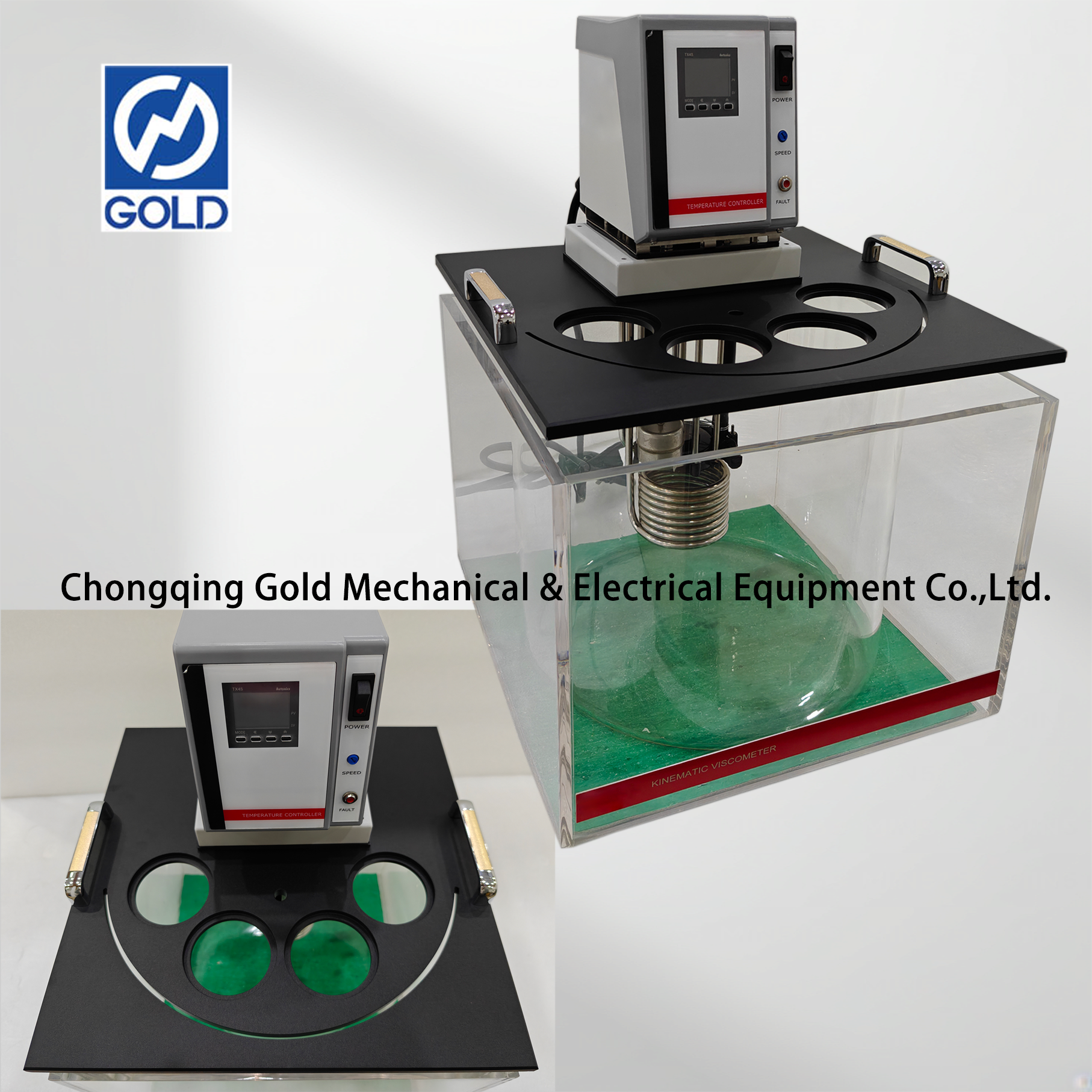

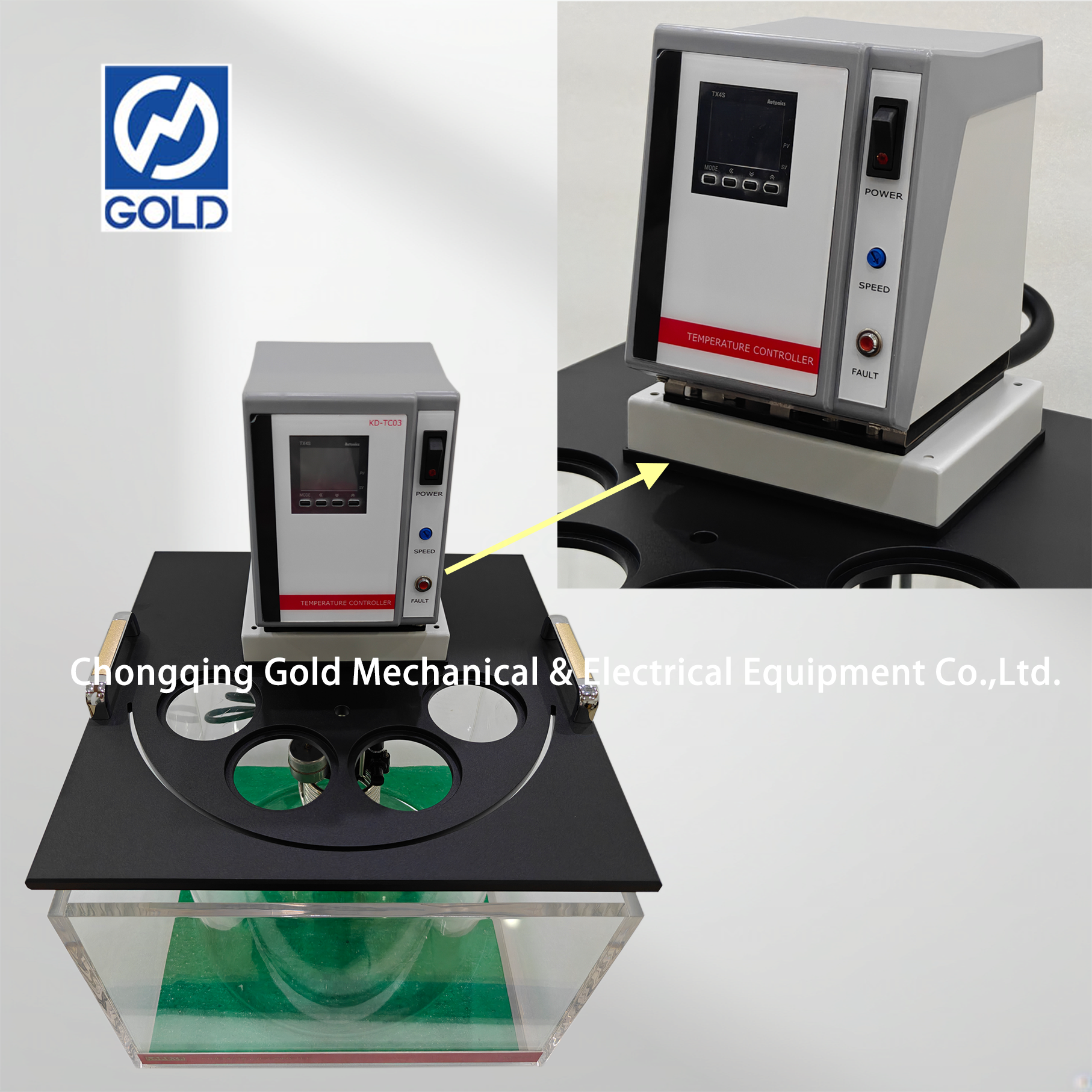

Product details display of Kinematic Viscometer:
