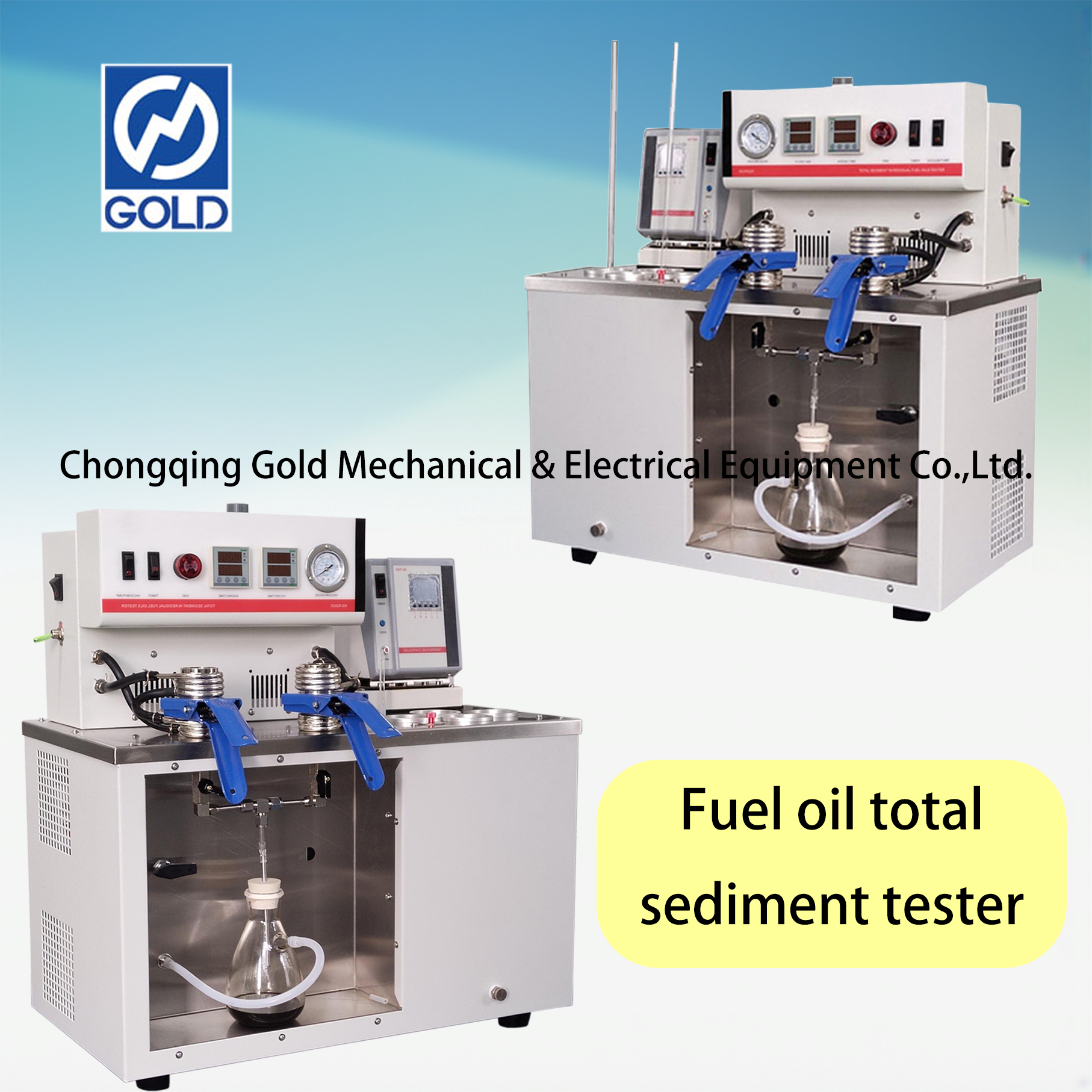

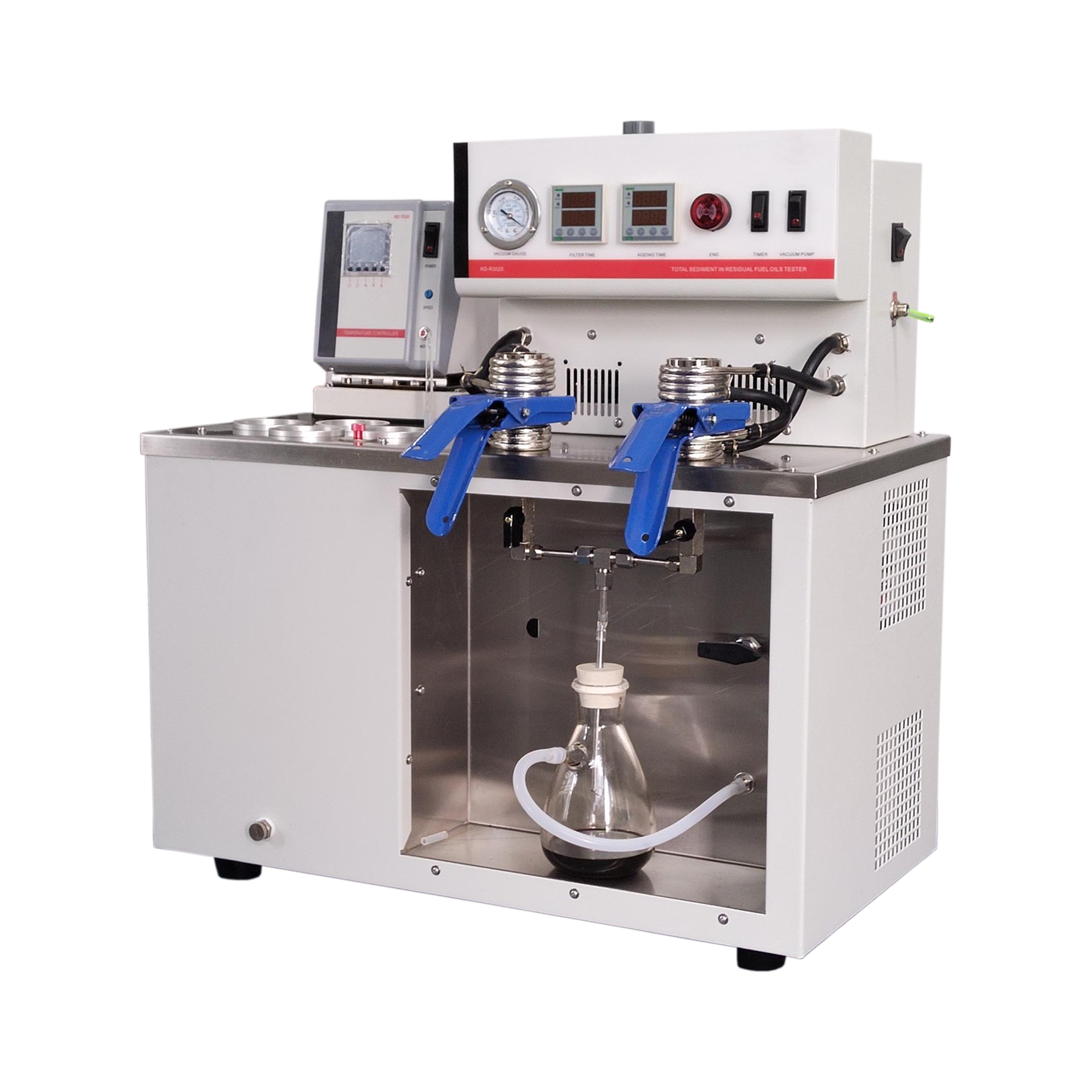

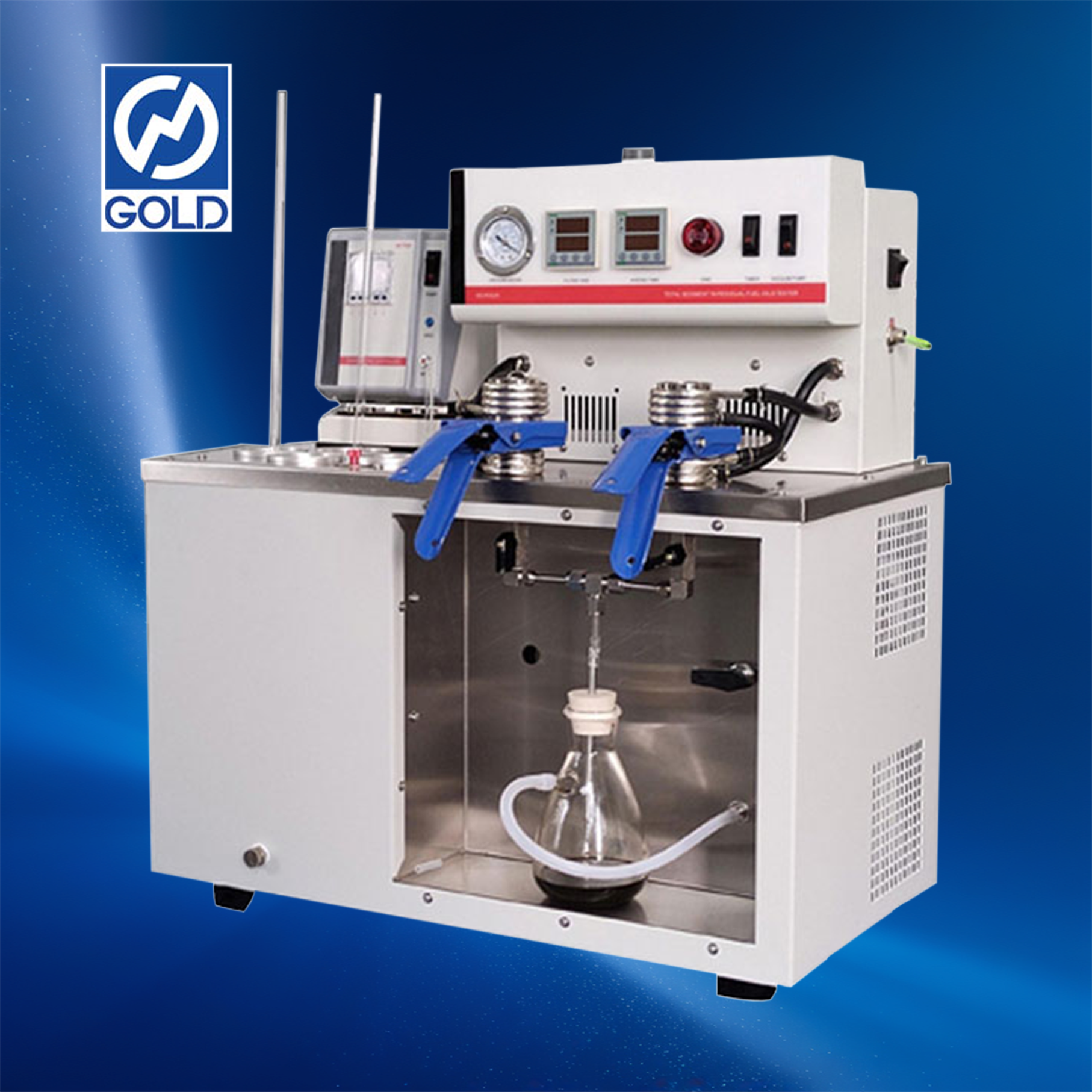

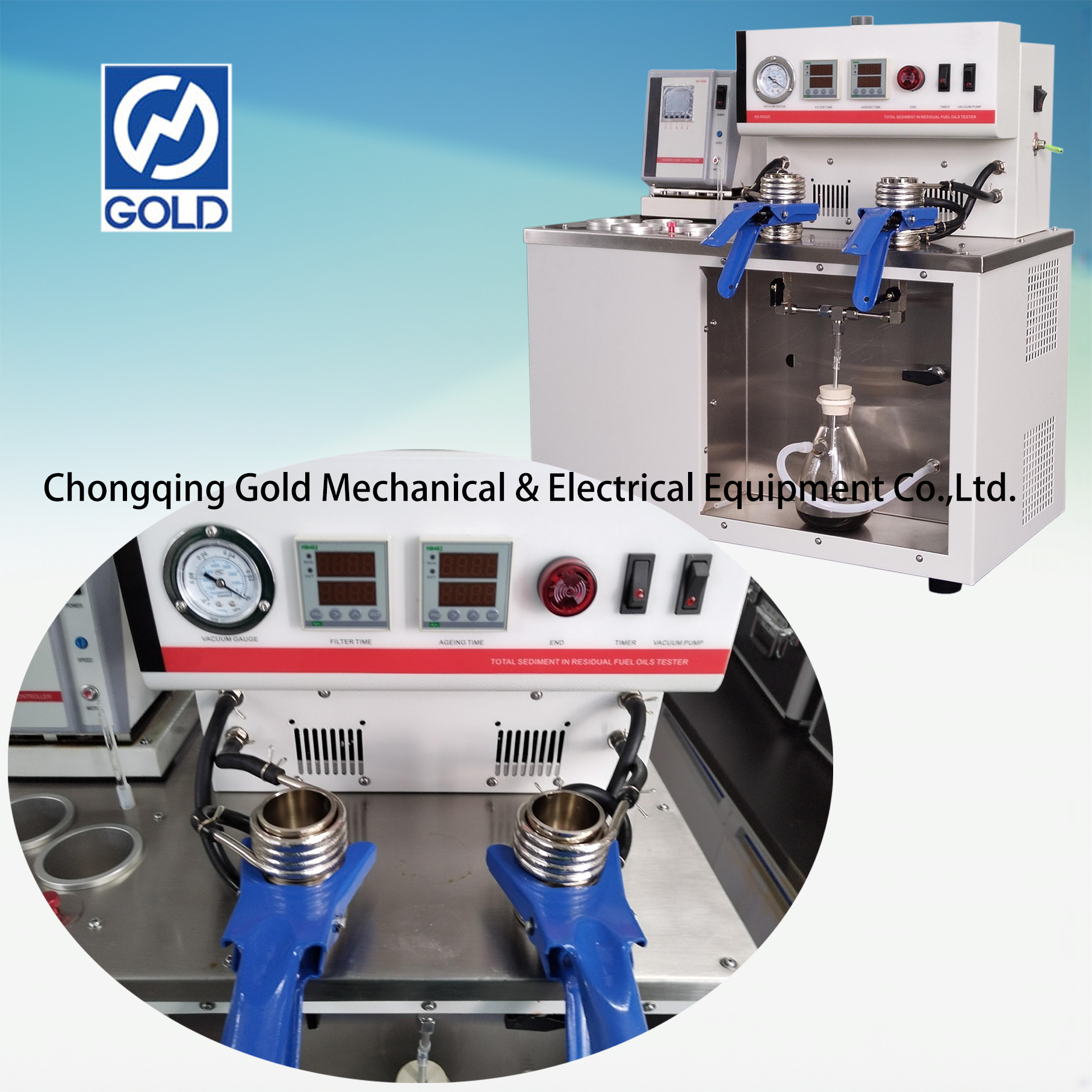

Fuel Oil Total Sediment Tester

Fuel Oil Total Sediment Tester

The fuel oil total sediment tester is a core equipment used in the petrochemical industry to evaluate the content of insoluble solid particles in fuel oil, especially residual fuel oil. This instrument quantifies sediment content through standardized aging procedures (process A thermal aging or process B chemical aging) combined with filtration weighing method, providing key data support for refining process optimization, ship fuel quality control, and international maritime regulatory compliance verification.

Related standards:

• SH/T0701 Determination of total sediment in residual fuel oils by hot filtration

• SH/T0702 Determination of total sediment in residual fuel oils (standard procedures for ageing)

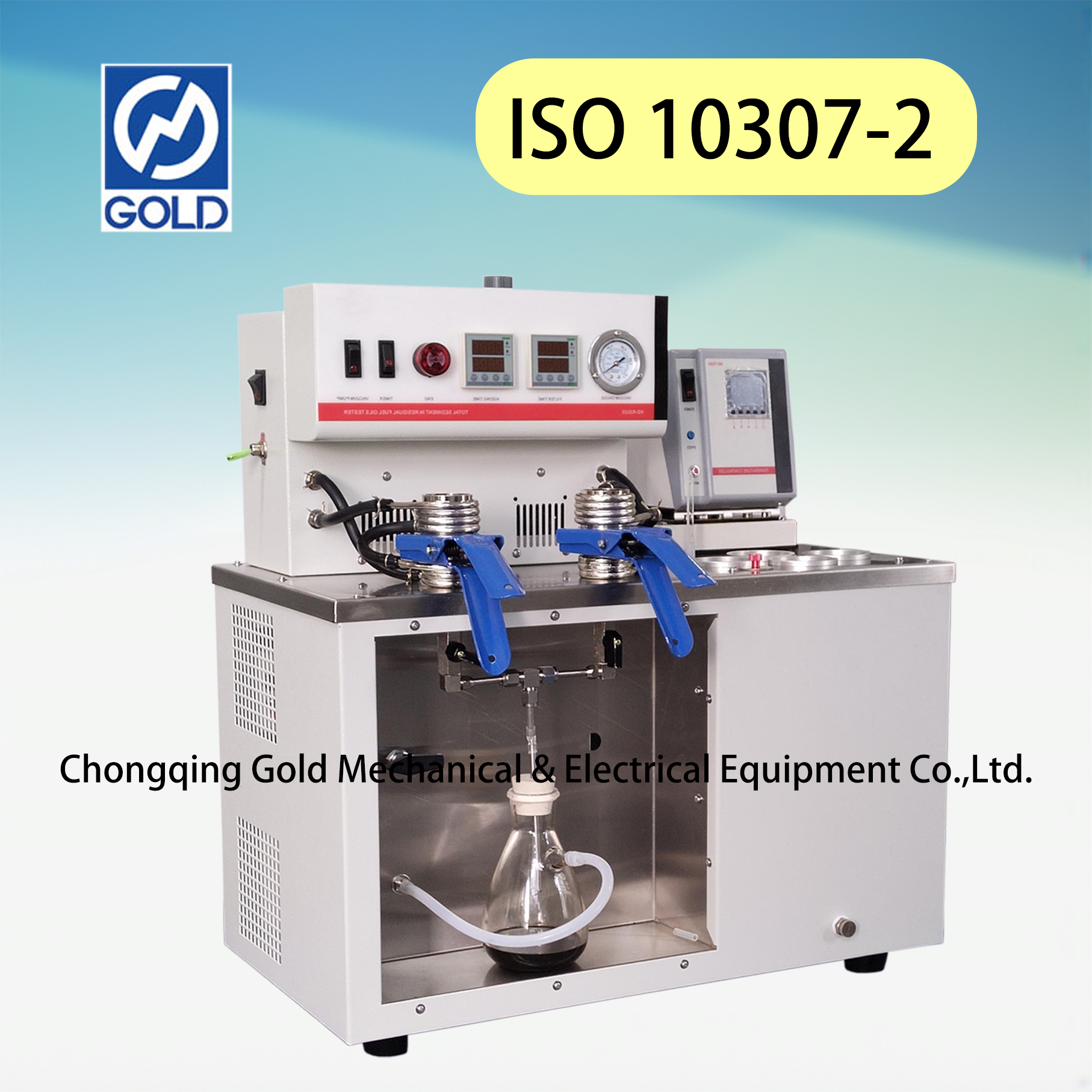

• ISO 10307-2 Petroleum products — Total sediment in residual fuel oils Part 2: Determination using standard procedures for ageing

Features:

1. The total sediment analyzer is equipped with a dedicated aging bath;

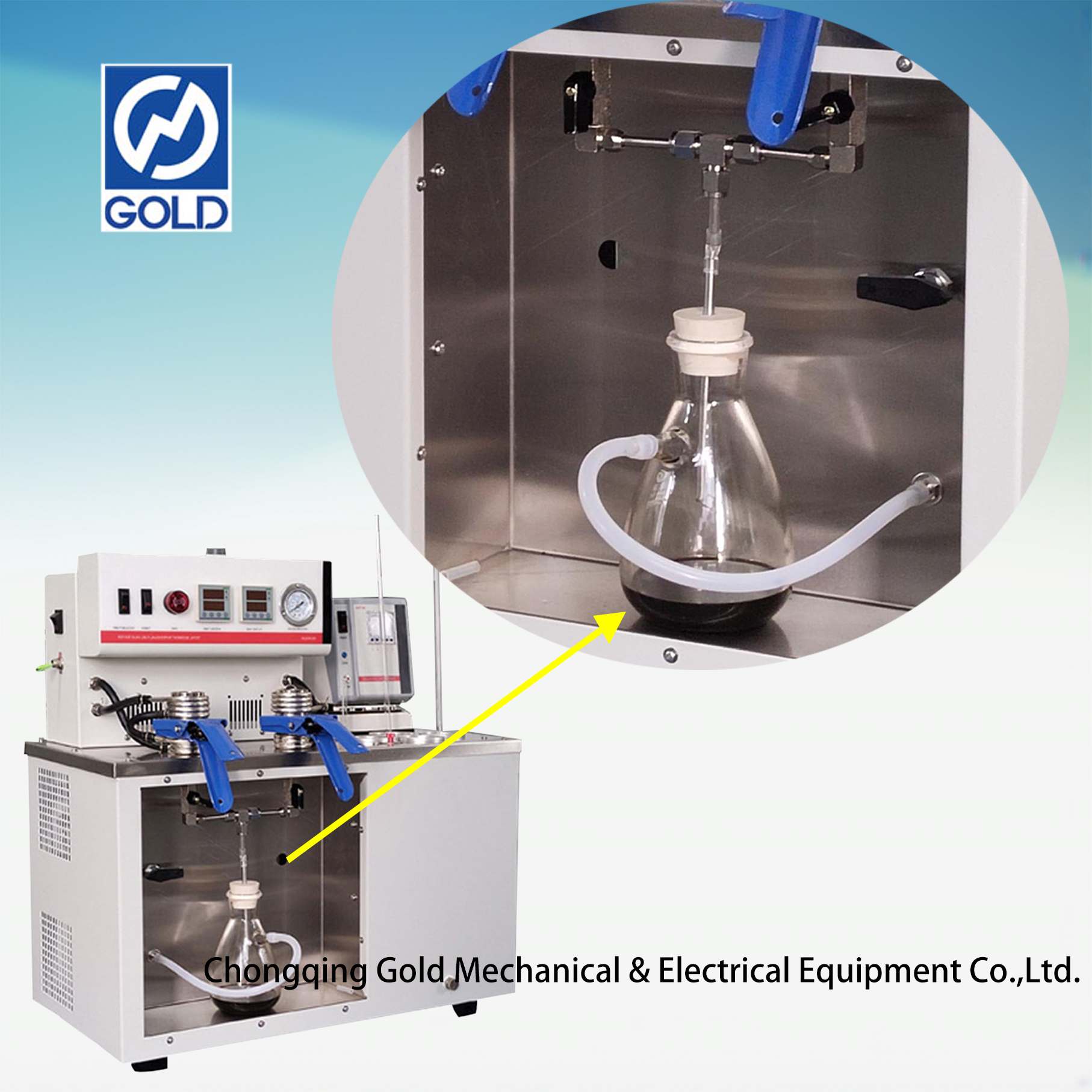

2. The total sediment analyzer is equipped with standard filtering elements and heating and cooling coils;

3. The pore size of glass fiber filter paper is 0.0016mm, with a diameter of 47mm;

4. The stainless steel ball valve of the sediment analyzer is used to switch between heat and cold sources;

5. Digital time relay is used to control working time;

6. The total sediment analyzer is equipped with a microcomputer PID temperature controller and PT100 temperature sensor, with high temperature control accuracy.

Technical Parameter:

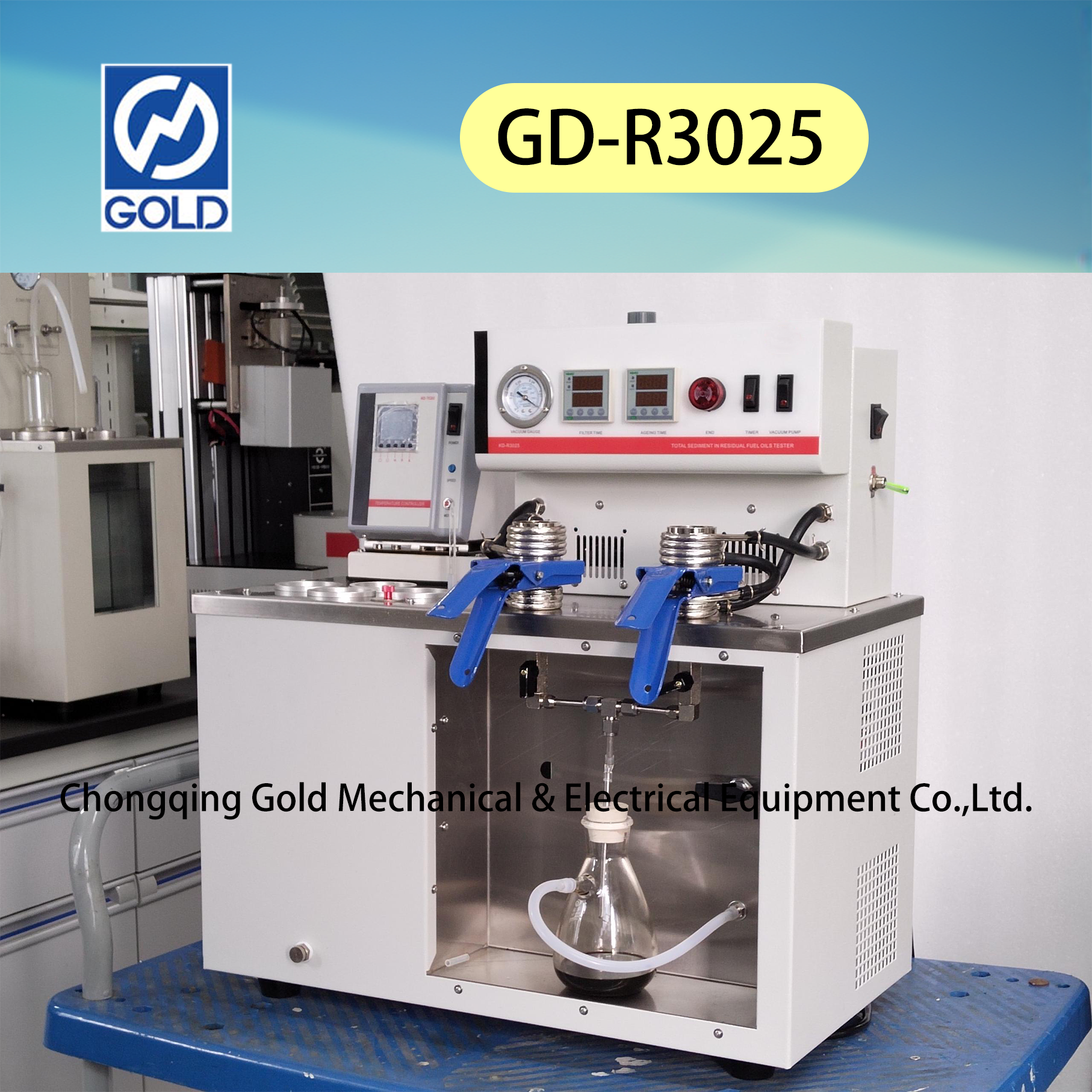

Fuel Oil Total Sediment Tester in our laboratory:
