GD-261-1
GOLD

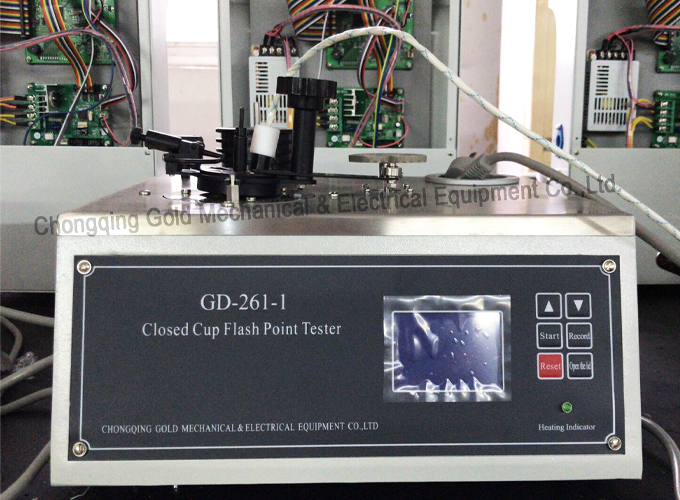

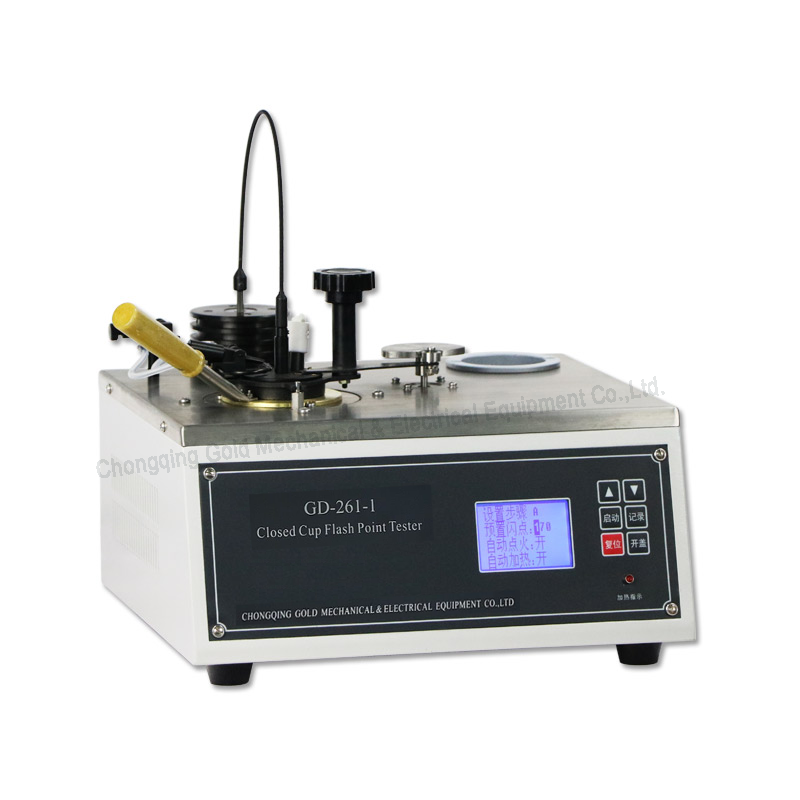

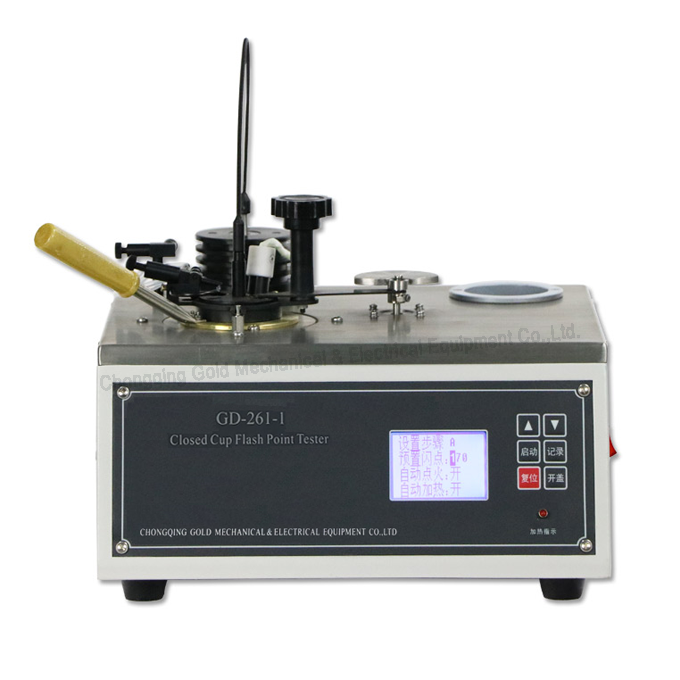

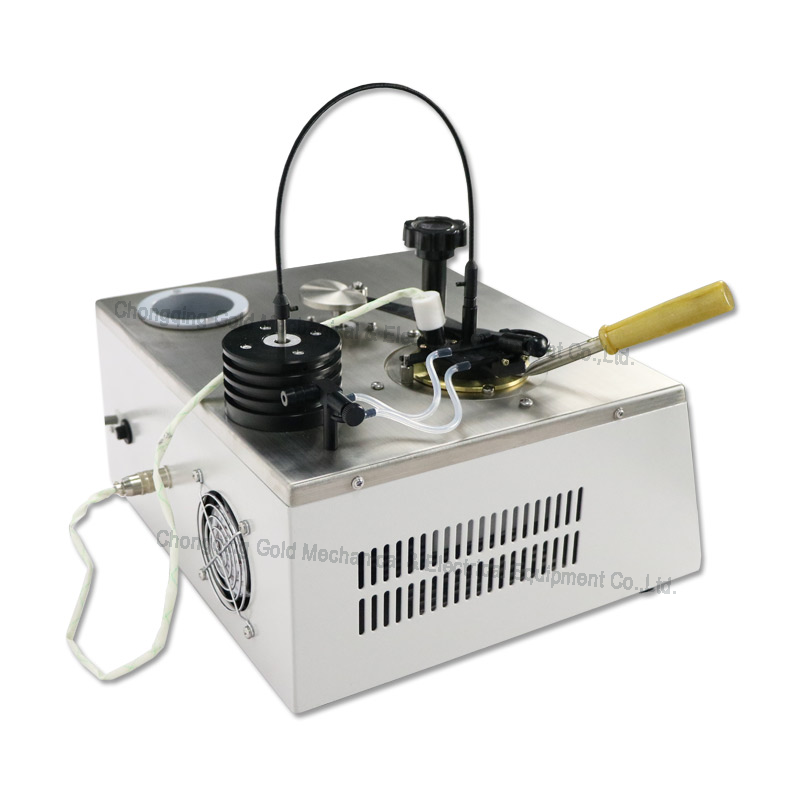

GD-261-1 Semi Auto LCD Screen Pensky Martens Closed Cup Flash Point Test Equipment
Applicable Standards
GB/T261, ASTM D93, ISO 2719

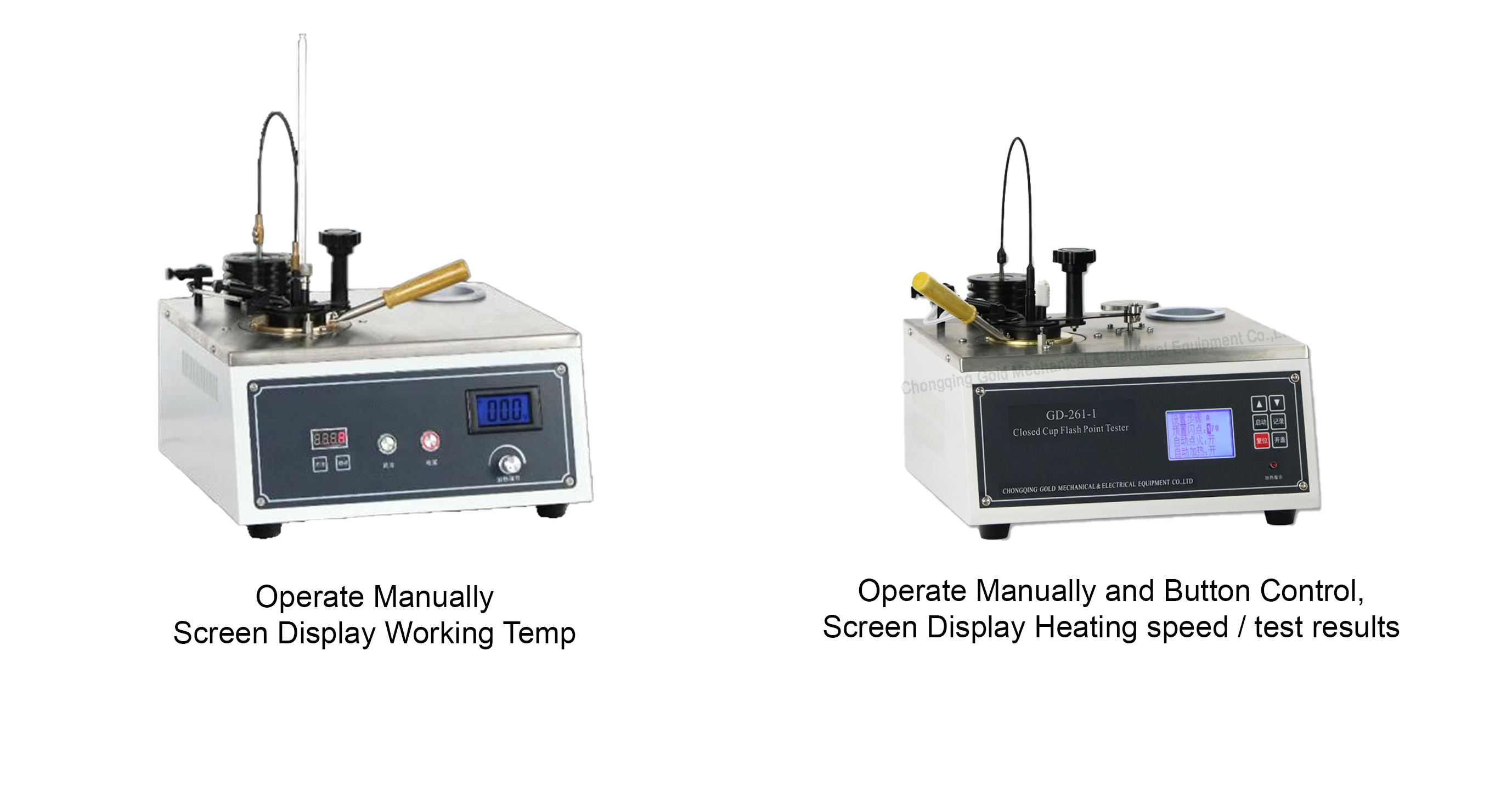

Difference Between GD-261 and GD-261-1
Advantages
1. Microcontroller control technology and LCD display are used, along with an English human-machine interface for easy operation.
2. The LCD screen allows you to set experimental parameters and display the sample temperature in real time. When the flash point occurs, simply press the record button to display and save the flash point value.
3. A high-precision sensor is used to capture the flash point value, and the system automatically records it, eliminating data deviations caused by manual observation and ensuring more accurate and reliable data.
4. The instrument features a novel design and compact structure. Users only need to connect gas or other household combustible gas to conduct the test, ensuring ease of use and accurate test results.
5. A rapid cooling function improves test efficiency.
6. The instrument control program includes selectable methods A, B, and C, and the system automatically controls the heating rate and stirring speed, fully complying with GB/T 261.
Technical Specifications
Item | Specification |
Working power supply | AC (220±10%) V, 50Hz |
Power consumption of the whole machine | ≤ 650W |
Heating device | (1) Furnace body made of silicon carbide material, equipped with 600W electric heating wire; |
Sample heating rate | Step A: 5 to 6 ℃/min; |
Electric stirring device | Stirring motor; Transmission mode: flexible shaft connection; Stirring blade specification: 8mm×40mm |
Stirring speed | (1) 90 to 120 r/min, applicable to Test Step A; |
Standard oil cup | (1) Inner diameter: 50.7mm - 50.8mm; |
Pyrophoric gas source | Pipeline gas or liquefied petroleum gas |
Applicable environment | Temperature: 15 - 35 °C; Relative humidity: ≤ 85% |
External dimensions | 340mm × 330mm × 380mm (Length × Width × Height) |
Net weight | 9kg |
GD-261-1 Semi Auto LCD Screen Pensky Martens Closed Cup Flash Point Test Equipment
Applicable Standards
GB/T261, ASTM D93, ISO 2719
Difference Between GD-261 and GD-261-1
Advantages
1. Microcontroller control technology and LCD display are used, along with an English human-machine interface for easy operation.
2. The LCD screen allows you to set experimental parameters and display the sample temperature in real time. When the flash point occurs, simply press the record button to display and save the flash point value.
3. A high-precision sensor is used to capture the flash point value, and the system automatically records it, eliminating data deviations caused by manual observation and ensuring more accurate and reliable data.
4. The instrument features a novel design and compact structure. Users only need to connect gas or other household combustible gas to conduct the test, ensuring ease of use and accurate test results.
5. A rapid cooling function improves test efficiency.
6. The instrument control program includes selectable methods A, B, and C, and the system automatically controls the heating rate and stirring speed, fully complying with GB/T 261.
Technical Specifications
Item | Specification |
Working power supply | AC (220±10%) V, 50Hz |
Power consumption of the whole machine | ≤ 650W |
Heating device | (1) Furnace body made of silicon carbide material, equipped with 600W electric heating wire; |
Sample heating rate | Step A: 5 to 6 ℃/min; |
Electric stirring device | Stirring motor; Transmission mode: flexible shaft connection; Stirring blade specification: 8mm×40mm |
Stirring speed | (1) 90 to 120 r/min, applicable to Test Step A; |
Standard oil cup | (1) Inner diameter: 50.7mm - 50.8mm; |
Pyrophoric gas source | Pipeline gas or liquefied petroleum gas |
Applicable environment | Temperature: 15 - 35 °C; Relative humidity: ≤ 85% |
External dimensions | 340mm × 330mm × 380mm (Length × Width × Height) |
Net weight | 9kg |
