GD-6536D
GOLD

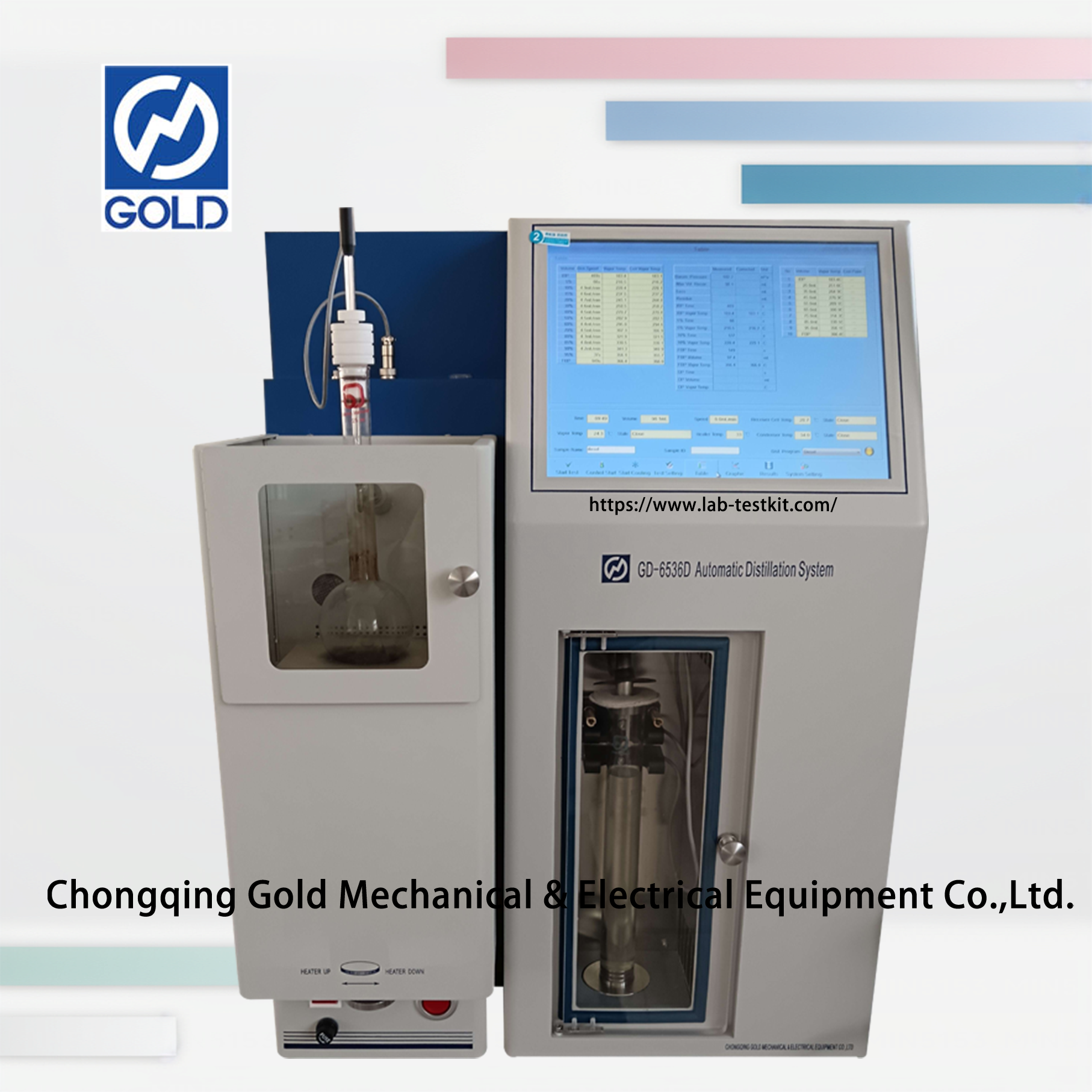

ASTM D86 Automatic Distillation Tester for Petroleum Products
The automatic distillation tester is an automatic distillation testing instrument used to determine the atmospheric distillation range of petroleum products. It is suitable for ASTM D 86, ASTM D 850, ASTM D 1078 and other standards, and is used for distillation testing of gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, diesel, distillate fuel, industrial volatile organic liquids and similar petroleum products. It is an advanced technology, easy to use, and cost-effective distillation equipment.
Work procedure:
The automatic distillation tester for petroleum products includes a heater with automatic fire extinguishing function, a condenser temperature control system, and a receiving room temperature control system. The industrial computer sends the test parameters to the instrument through the distillation program and controls the distillation test according to the start command. After the experiment is completed, the instrument control program will save the experimental data to the database for future reference. According to the requirements, a comprehensive report can be printed.
Specifications:
Temperature control precision of bath | ±0.5℃ |
Power supply | AC(220±10%) V, 50Hz |
Distillation heater | 1000W, 24V |
Temperature range of bath | (0～60)℃ |
Maximum power consumption | 2500W |
Distillate liquid detection | （0～100)mL，resolution 0.01mL |
Distillate liquid detection precision | ≤0.1mL |
Temperature range of receiving chamber | (0～60)℃ |
Working environment | Ambient temp.（10～35)℃；RH≤80% |
Temperature control precision of receiving chamber | ±1℃ |
Dimension | 500mm×530mm×660mm |
Net weight | 85kg |
Features:
Built-in microcomputer. Advanced IPC technology. 12.1 inch light-touch LCD. Man-machine dialog. Easy to operate.
Intelligent SCM control. The heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, printing are all completed automatically.
Automatic distillation tester displays the vapor temperature curve, heater temperature curve and distillation rate curve in real time. Operator can judge whether the indications can meet the standards’ requirements or not in real time.
Imported compressor and temperature sensor. Automatic liquid level tracking system. The test result are reliable and in good repeatability.
The suitable standards and distillation procedures can be added as per customer’s need and different oil samples.
Automatic distillation tester has an automatic barometric pressure detecting function. The barometric correction can be completed automatically. The test result will not be influenced by the barometric pressure difference.
It can calculate the vapor temperature by inputting the residue amount after the test.
There is anti-freezing solution in the cold bath. A circulation stirrer is equipped inside. The liquid level sensor and overflow pipe will make the water leve in the bath normally.
Automatic distillation tester equips an automatic fire-extinguishing device to make the test safe.
Product Details:
ASTM D86 Automatic Distillation Tester for Petroleum Products
The automatic distillation tester is an automatic distillation testing instrument used to determine the atmospheric distillation range of petroleum products. It is suitable for ASTM D 86, ASTM D 850, ASTM D 1078 and other standards, and is used for distillation testing of gasoline, aviation gasoline, jet fuel, solvents with special boiling points, naphtha, diesel, distillate fuel, industrial volatile organic liquids and similar petroleum products. It is an advanced technology, easy to use, and cost-effective distillation equipment.
Work procedure:
The automatic distillation tester for petroleum products includes a heater with automatic fire extinguishing function, a condenser temperature control system, and a receiving room temperature control system. The industrial computer sends the test parameters to the instrument through the distillation program and controls the distillation test according to the start command. After the experiment is completed, the instrument control program will save the experimental data to the database for future reference. According to the requirements, a comprehensive report can be printed.
Specifications:
Temperature control precision of bath | ±0.5℃ |
Power supply | AC(220±10%) V, 50Hz |
Distillation heater | 1000W, 24V |
Temperature range of bath | (0～60)℃ |
Maximum power consumption | 2500W |
Distillate liquid detection | （0～100)mL，resolution 0.01mL |
Distillate liquid detection precision | ≤0.1mL |
Temperature range of receiving chamber | (0～60)℃ |
Working environment | Ambient temp.（10～35)℃；RH≤80% |
Temperature control precision of receiving chamber | ±1℃ |
Dimension | 500mm×530mm×660mm |
Net weight | 85kg |
Features:
Built-in microcomputer. Advanced IPC technology. 12.1 inch light-touch LCD. Man-machine dialog. Easy to operate.
Intelligent SCM control. The heating, cooling, distillate liquid level tracking, distillation rate control, recovered solution control, temperature recording, printing are all completed automatically.
Automatic distillation tester displays the vapor temperature curve, heater temperature curve and distillation rate curve in real time. Operator can judge whether the indications can meet the standards’ requirements or not in real time.
Imported compressor and temperature sensor. Automatic liquid level tracking system. The test result are reliable and in good repeatability.
The suitable standards and distillation procedures can be added as per customer’s need and different oil samples.
Automatic distillation tester has an automatic barometric pressure detecting function. The barometric correction can be completed automatically. The test result will not be influenced by the barometric pressure difference.
It can calculate the vapor temperature by inputting the residue amount after the test.
There is anti-freezing solution in the cold bath. A circulation stirrer is equipped inside. The liquid level sensor and overflow pipe will make the water leve in the bath normally.
Automatic distillation tester equips an automatic fire-extinguishing device to make the test safe.
