GD-1013A
GOLD
Main technical parameters:
| Detection method | computer-controlled, camera directly reads the reading of the glass thermometer, detects the temperature of the oil sample automatically reads the temperature, and automatically controls the flow rate |
| Volume detection accuracy | 0.1ml, measurement range: 0-100ml |
| Temperature measurement accuracy | 0.1℃ |
| Flow rate control accuracy | 4-5ml |
| Refrigeration method | Compressor refrigeration |
| Cold bath temperature range | 0~60 ℃ |
| Initial boiling point control | photoelectric detection |
| Heating method | Imported material furnace wire cutter |
| Power | 2 KW |
| Working power supply | AC220V±10% 50Hz |
Features:

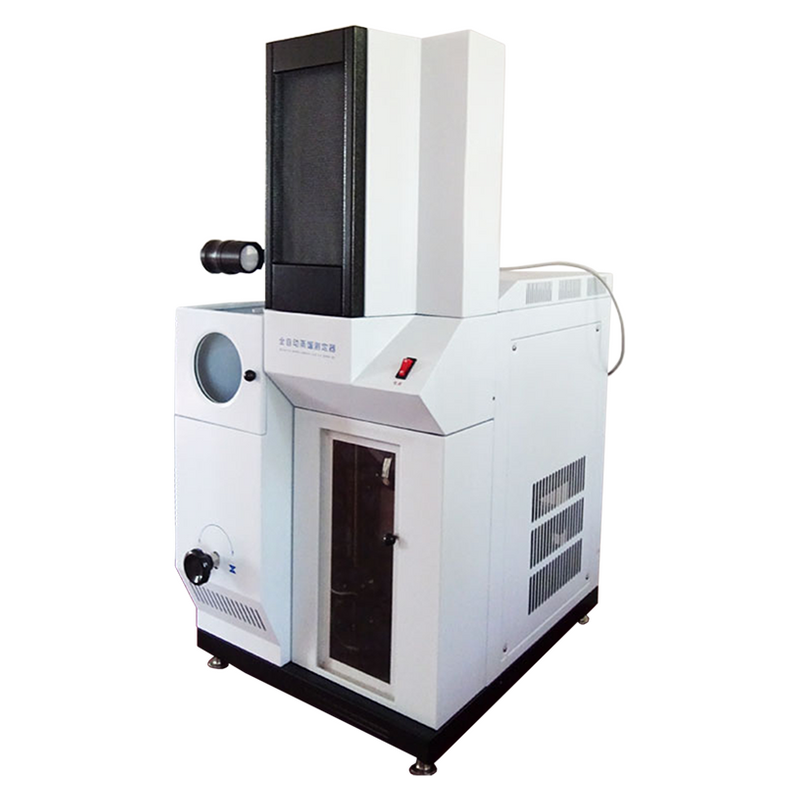

The automatic distillation apparatus uses a camera to simulate human eye operation and directly reads the reading of the glass thermometer. Completely avoiding reading errors caused by differences in physical properties between temperature sensors and glass thermometers, ensuring that the detected distillation temperature achieves a geart effect;
Adopting a hybrid control of computer and microcontroller, the computer screen displays the entire distillation process in real time (including distillation thermometer readings, volume curve graph, time comprehensive curve graph, inner chamber temperature, heating power, recovery volume, temperature required between the initial distillation point and the final distillation point, working time and other parameters). The result can be automatically converted based on atmospheric pressure
The automatic distiller uses imported furnace wire with low thermal inertia and sensitive heating adjustment; Adopting a unique quartz glass furnace cover, it has high thermal efficiency.
The use of specially designed glass inner tubes and specially designed glass flasks ensures the accuracy of measuring the inner tubes, reducing operational difficulties and measurement errors caused by differences between different flasks. The photoelectric automatic tracking of the inner cylinder volume is highly sensitive and accurate.
The automatic distillation apparatus has a complete network operation function, which can be operated and controlled uniformly through computer networking. Can be integrated into the overall network of the laboratory.
