GD-QX-G
GOLD
Working principle:
The octane number meter is determined by the method of measuring the comprehensive dielectric constant of oil products. It is based on an automatic regression technology platform, rigorous mathematical models as the theoretical basis, advanced electronic measurement technology as the means, and the results of the testing machine specified by national standards. It conducts targeted regression and measurement to ensure that the accuracy of the measurement meets the standard requirements. The octane number meter has overcome the difficulty of transferring non physical quantities and achieved the transfer of values from CFR testing machines to QX-G measuring instruments, aligning with relevant national standards.
The octane number meter consists of high-precision digital sensors, microcomputers, color touch screens, and micro printers. The signals collected by the sensors are transmitted to the input terminal of the microcomputer, and after processing by the CPU, the measurement results are transmitted to the touch screen for display. Screen display research method RON, motor method MON, anti explosion index (M+R)/2, and can be stored for browsing, reading, and printing.
Main technical features:
The Octane Number Apparatus adopts innovative high-precision digital sensors, which have strong anti-interference ability, small variation, and high precision; Reproducibility and repeatability are very good.
By inputting two sets of data together with traditional oil detection equipment (distillation range analyzer, density meter), an auxiliary calculation technology platform can be developed to make the determination of diesel cetane index and cetane number more accurate.
Adopting a color touch screen operation mode, the human-machine dialogue is simple, friendly, and convenient. According to the screen display, it can guide users to operate the instrument correctly, greatly improving the technical content of the instrument.
The application of automatic assignment calibration technology has simple calibration procedures, scientific methods, and accurate and reliable calibration results. Regular maintenance and calibration by users can ensure the long-term accuracy and reliability of the instrument.
Determination of gasoline octane number, one measurement can simultaneously obtain research octane number, motor octane number, and anti knock index (one screen, three displays); The determination of diesel cetane number directly displays the cetane number; By entering the standard density and boiling point, the cetane index can be obtained, and the accurate cetane number will be automatically exported (displayed on one screen with two screens).
This Octane Number Apparatus uses less oil sample for measurement, with only 150ml of sample used for each measurement; The measurement time is short, and each measurement is completed within 1 minute.
Specification:
| Precision (confidence level 95%) | Reproducibility: ≤ ±0.5/RON Repeatability: ≤ ±0.2/RON |
| Minimum division | 0.1/RON；0.1/MON; 0.1/CN |
| Response time | 1S |
| Measurement result | Color touch screen display, storage and printing |
| Working power supply | AC（220±10%）V； （50±1）Hz |
| Working environment | ambient temperature ranging from 10 ℃ to 35 ℃; Relative humidity ≤ 85% |
| External dimensions | 250 mm×200 mm×140 mm |

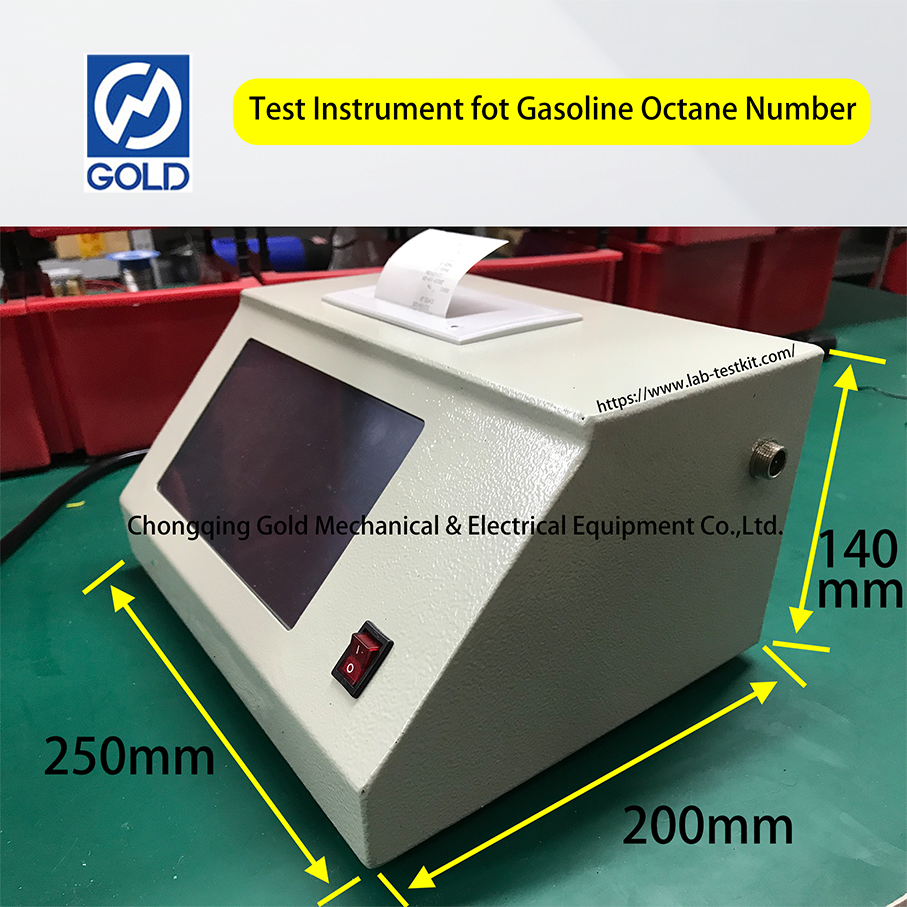

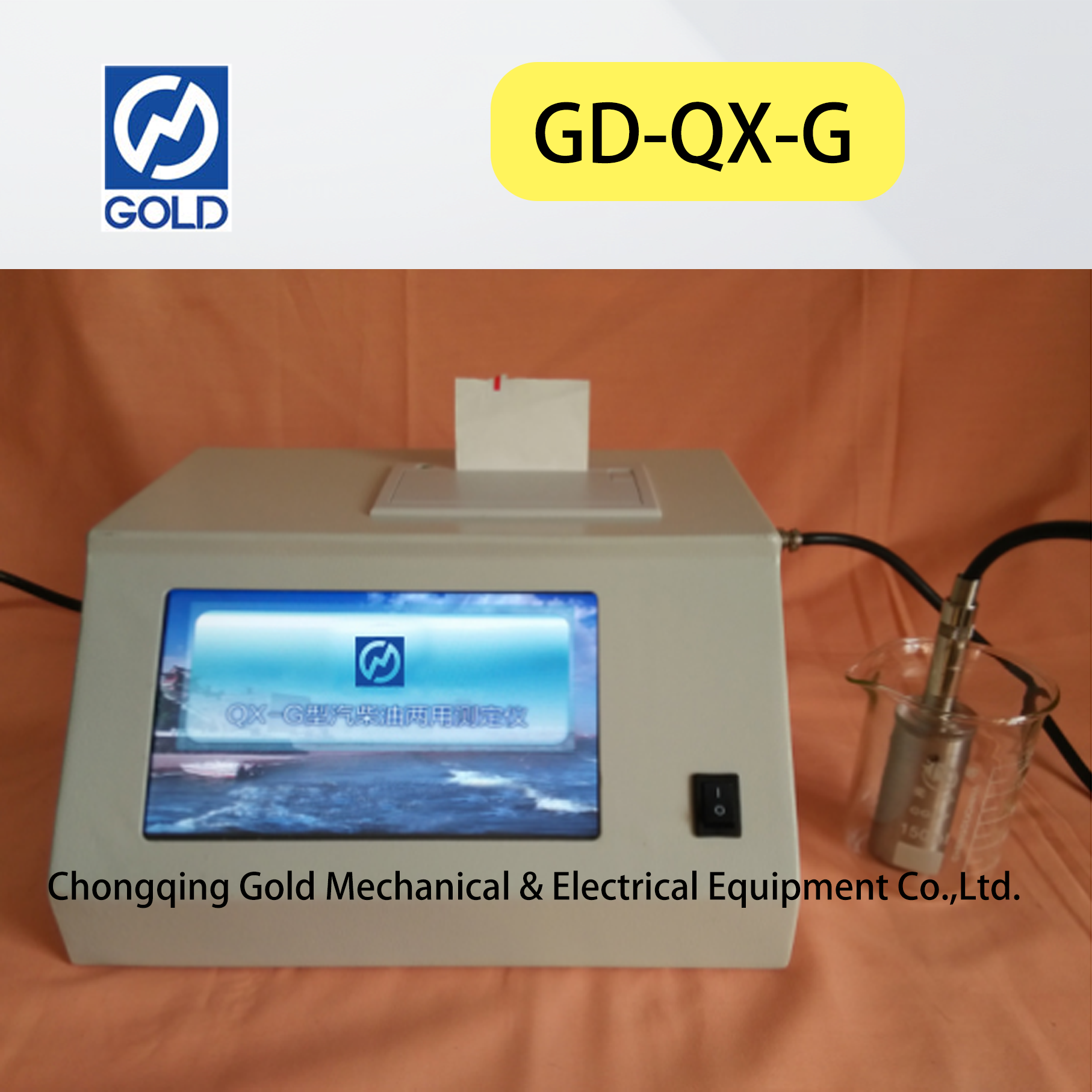

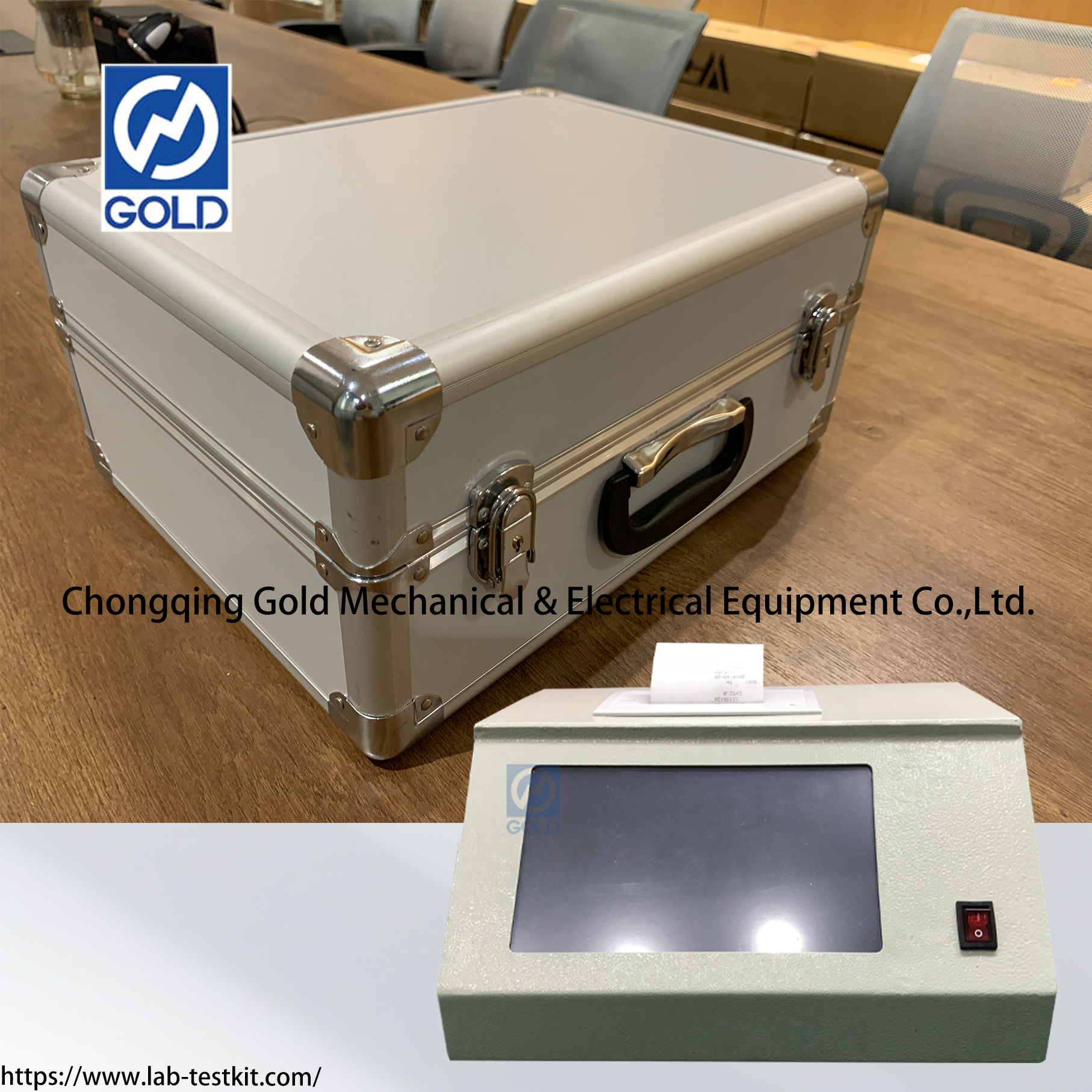

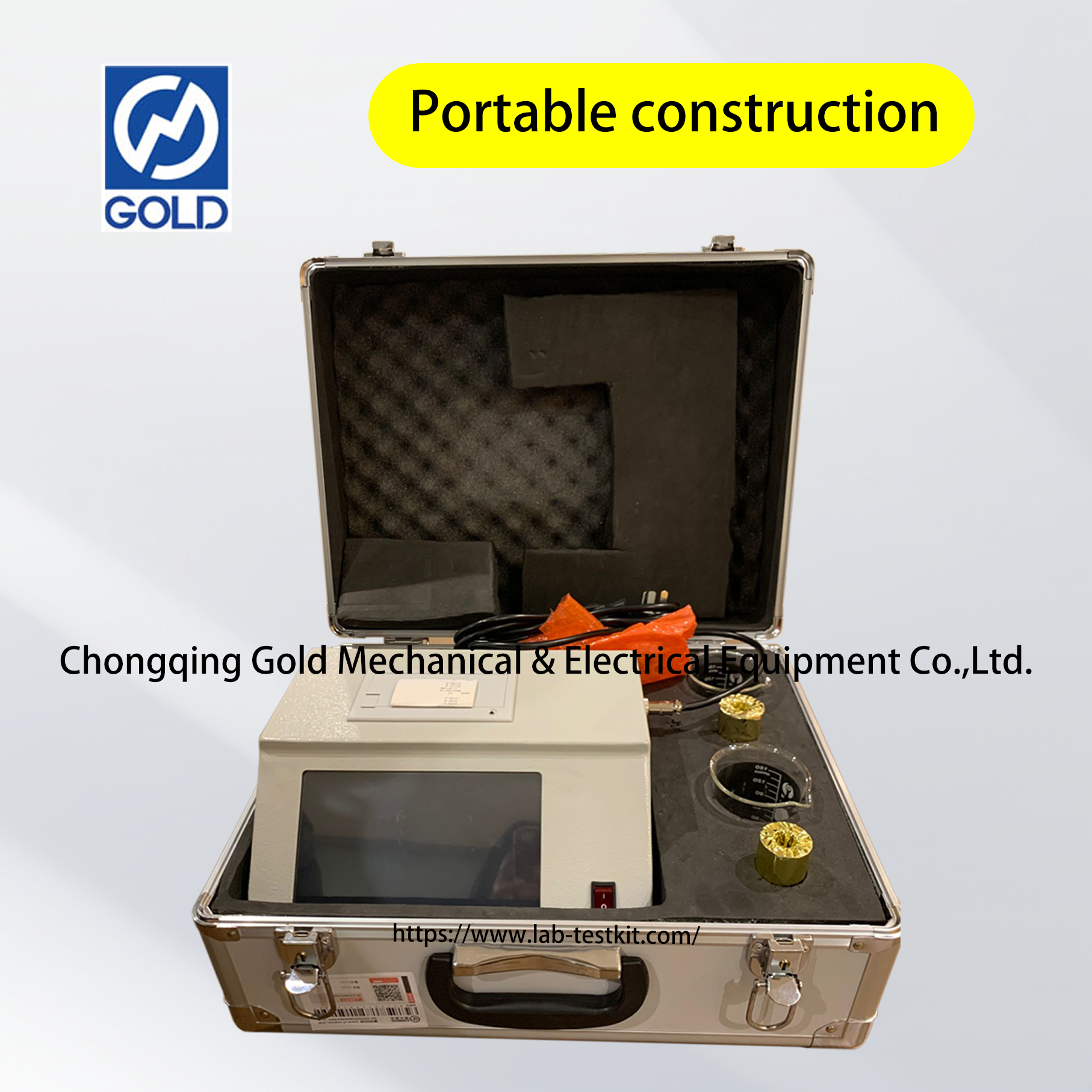

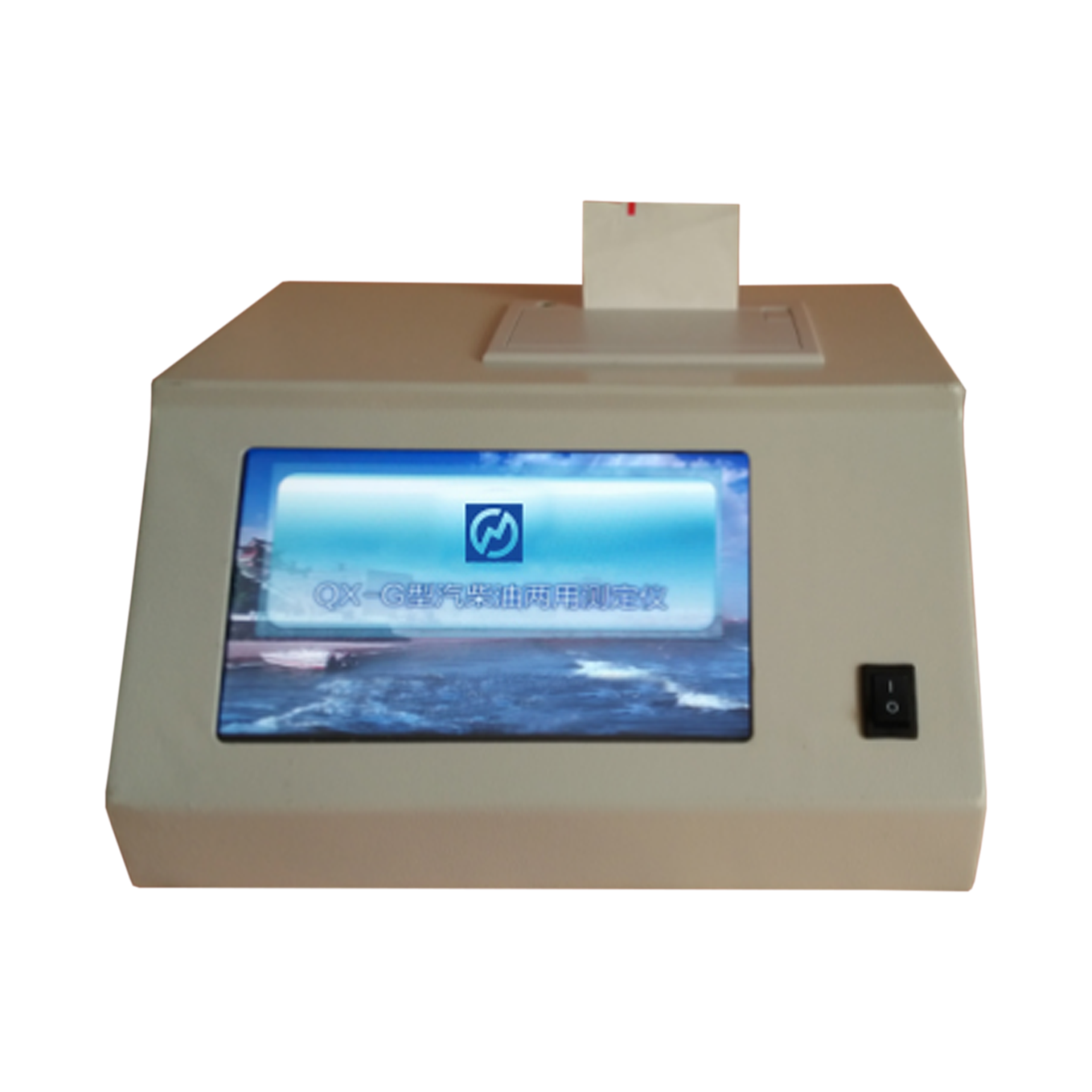

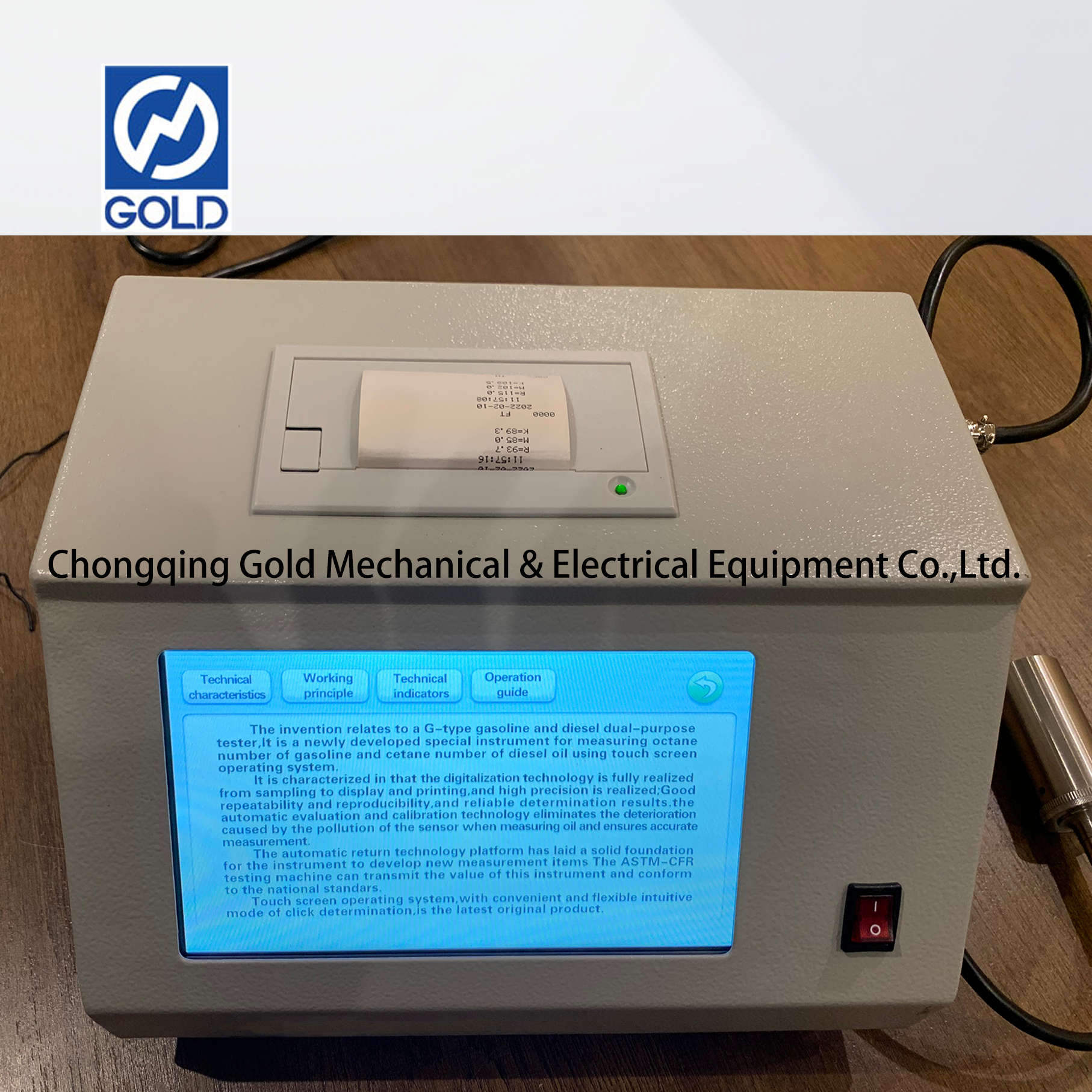

Product Display:
