GD-6536B
GOLD
Features:
1. The distillation tester uses a quartz electric furnace to heat the distillation flask, which is flame free, explosion-proof, and ensures the safety of the experiment. The heating power is continuously adjustable.
2. The low-temperature distillation tester adopts a lifting device to adjust the height of the flask, and is equipped with a high-temperature resistant insulated glass observation window, which can observe the entire test process.
3. The condenser tube water bath has temperature control function, which can be set and adjusted freely within the range of 0 ℃ to 60 ℃. The temperature inside the bath is uniform and meets the requirements of the experiment.
4. The distillation tester adopts an advanced PID self-tuning temperature control system, with high temperature control accuracy (accuracy up to ± 0.5 ℃) and stability.
5. The distillation tester is equipped with a measuring cylinder receiving chamber and adopts a double column distillation method, which can be used for independent testing or simultaneous testing of two samples of the same specification, greatly improving work efficiency.
6. The cooling rate is fast, and the bath temperature can drop from room temperature to 0 ℃ in about 50 minutes.
Main Technical Parameters:
| Heating power of electric furnace | 1300W × 2 |
| Measuring cylinder volume | 100ml, division 1ml |
| Distillation flask | 125mL, meeting the requirements of ASTM D86 standard. |
| Temperature gauge | Temperature range (-2~+300) ℃ and (-2~+400) ℃, with a division of 1 ℃. |
| Electric furnace movable plate | made of quartz plate, with aperture sizes of 32mm, 38mm, and 50mm respectively. |
| Temperature control of condenser tube | ① Temperature control range: (0-60) ℃ can be set arbitrarily. ② Temperature control accuracy: ± 0.5 ℃. ③ Temperature display mode: LED digital display. |
| Temperature control in the receiving room | ① Temperature control range: (0~room temperature) ℃ can be set arbitrarily. ② Temperature display mode: LED digital display. |
| Applicable temperature | 15 ℃~28 ℃. |
| Relative humidity | ≤ 85% |
| Whole machine power consumption | ≤ 4000W |
| Dimensions | 700mm x 520mm x 520mm (length x width x height). |
| Net weight of the instrument | 59kg |

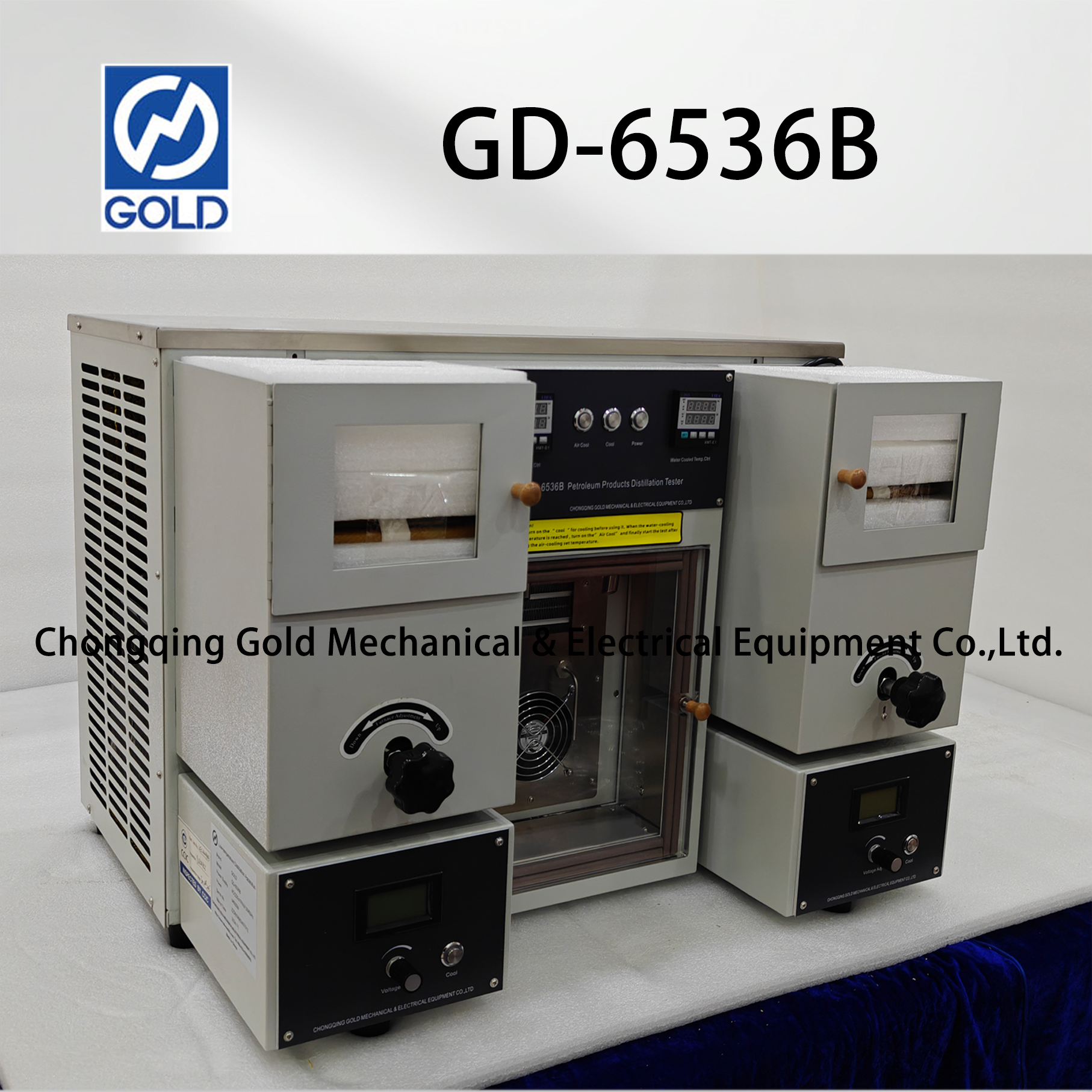

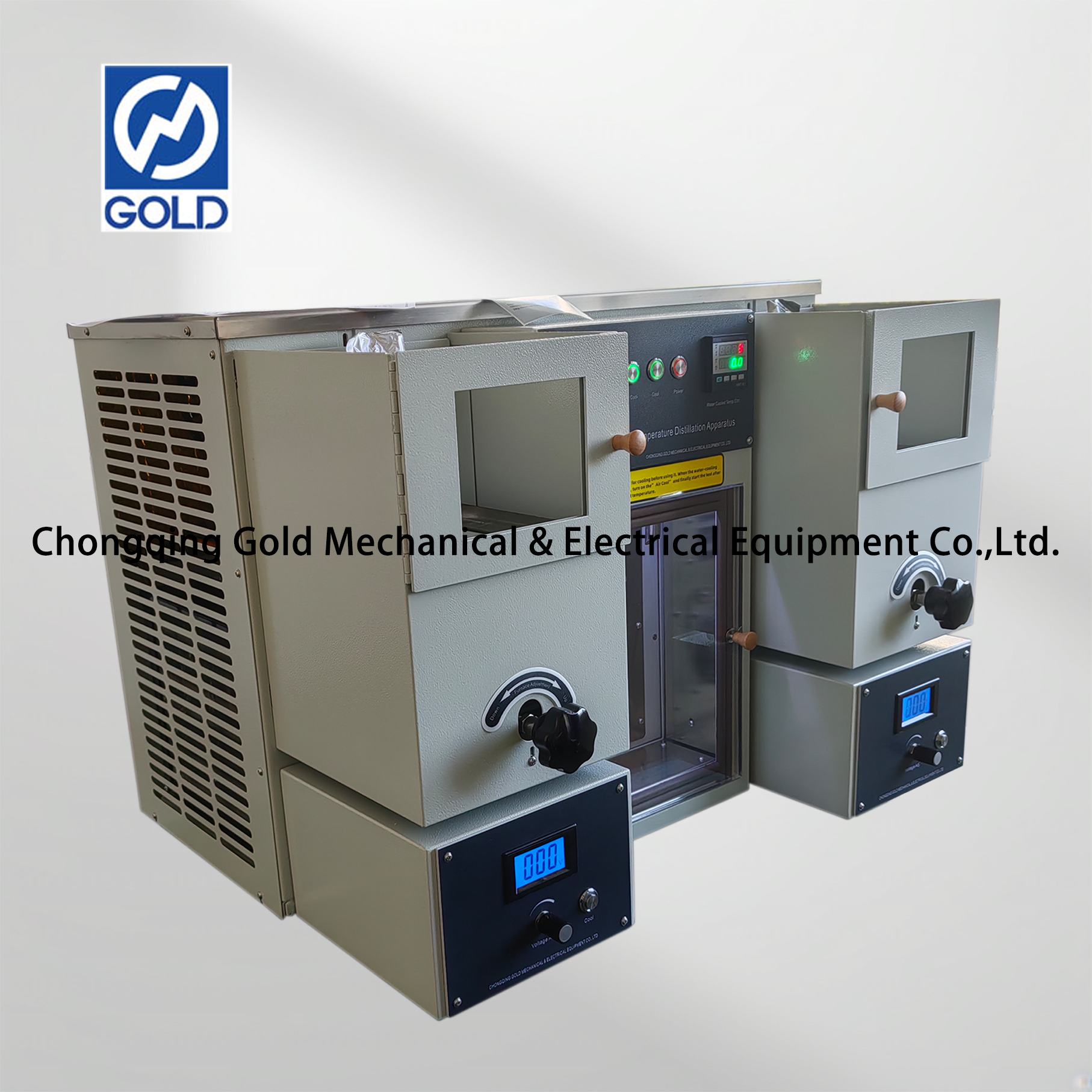

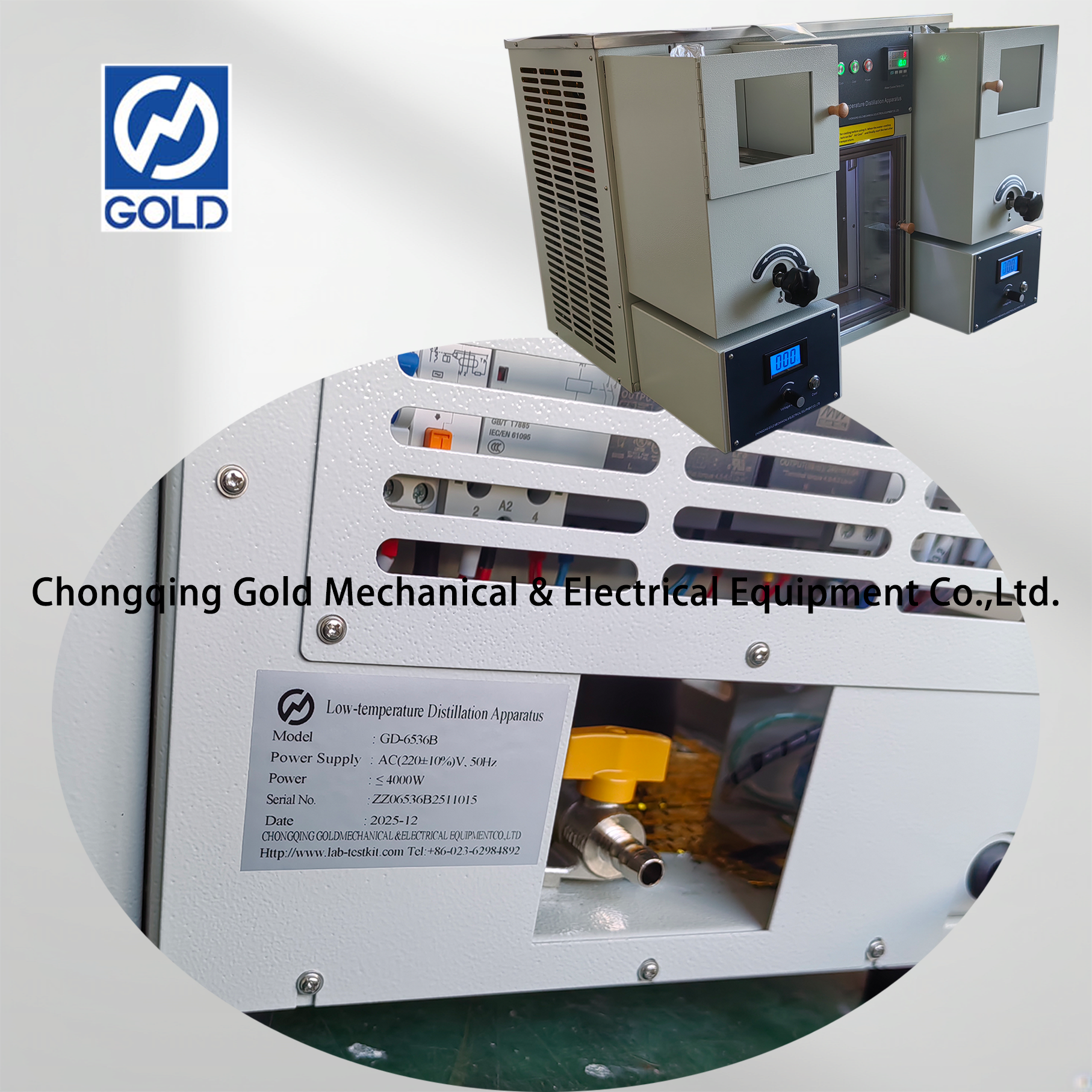

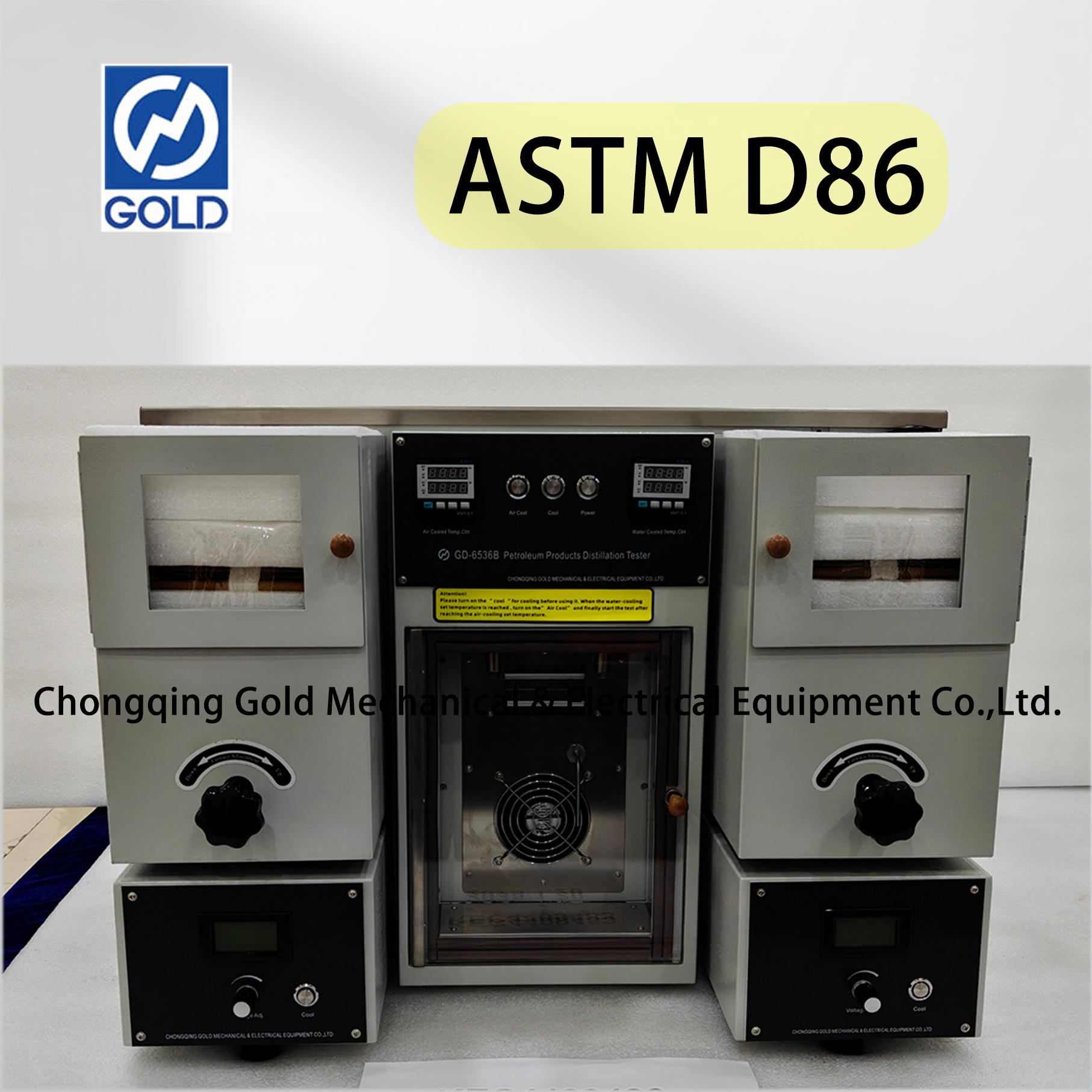

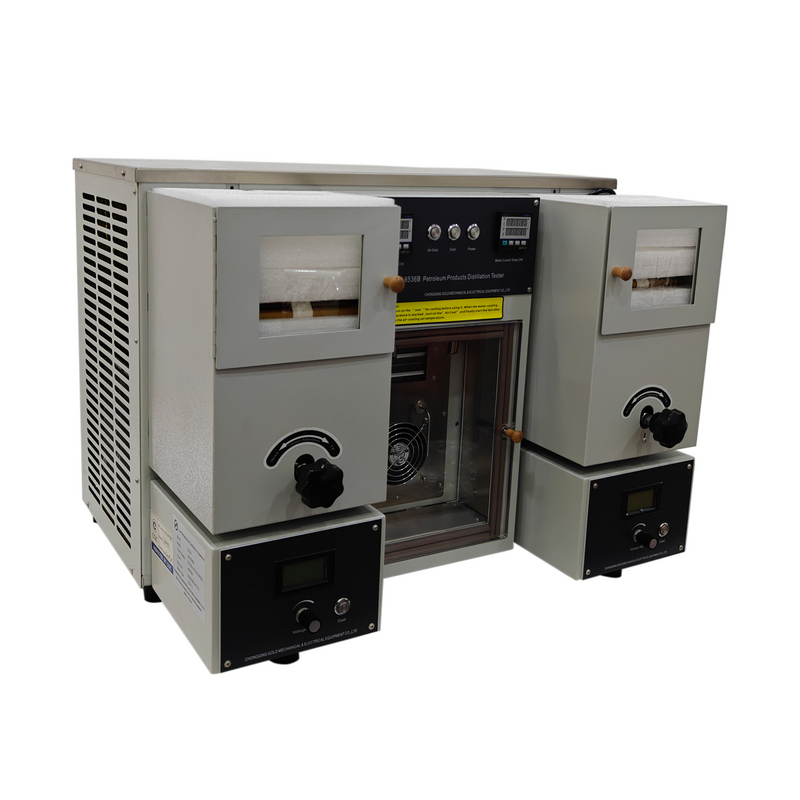

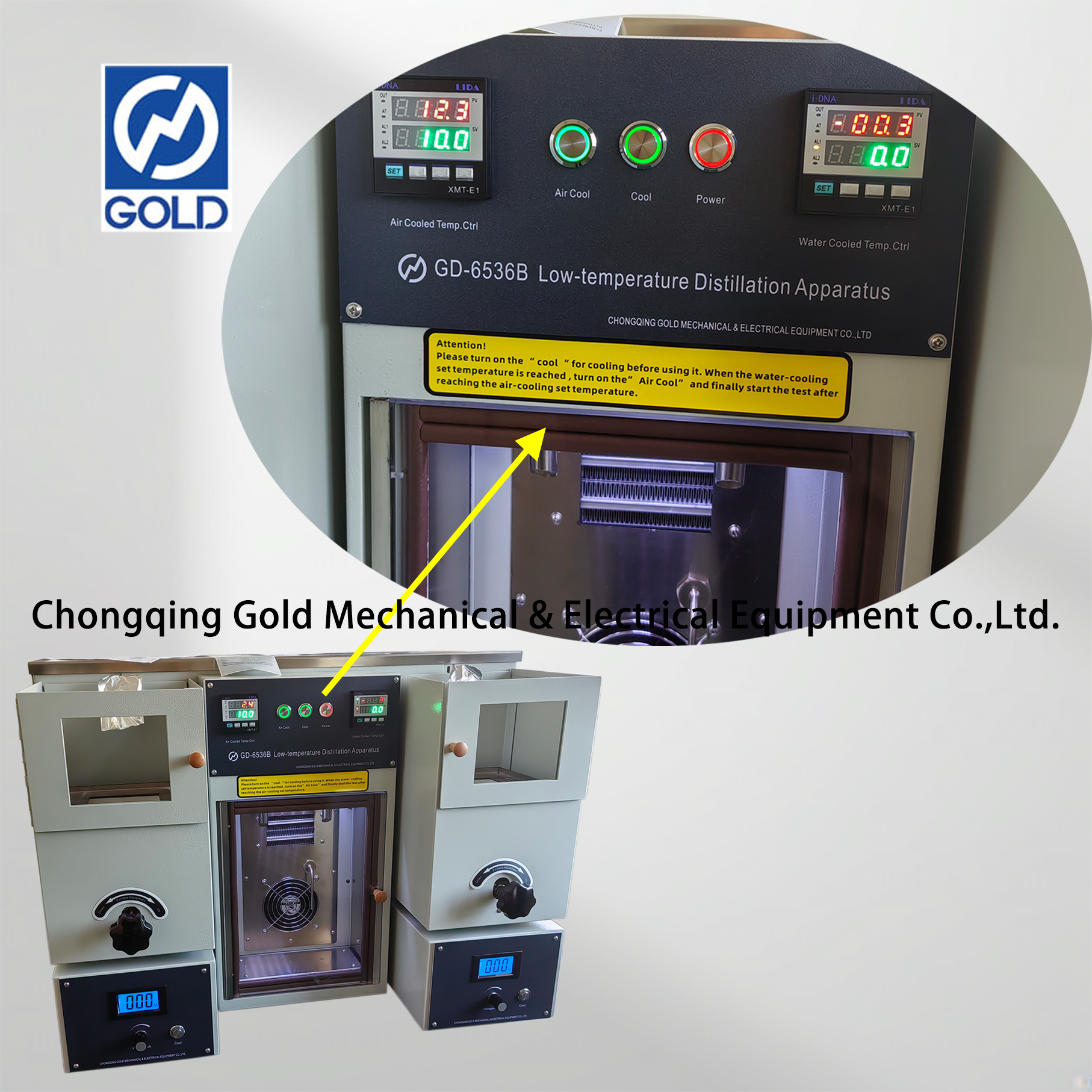

Product Details Display of Low Temperature Distillation Tester:
Features:
1. The distillation tester uses a quartz electric furnace to heat the distillation flask, which is flame free, explosion-proof, and ensures the safety of the experiment. The heating power is continuously adjustable.
2. The low-temperature distillation tester adopts a lifting device to adjust the height of the flask, and is equipped with a high-temperature resistant insulated glass observation window, which can observe the entire test process.
3. The condenser tube water bath has temperature control function, which can be set and adjusted freely within the range of 0 ℃ to 60 ℃. The temperature inside the bath is uniform and meets the requirements of the experiment.
4. The distillation tester adopts an advanced PID self-tuning temperature control system, with high temperature control accuracy (accuracy up to ± 0.5 ℃) and stability.
5. The distillation tester is equipped with a measuring cylinder receiving chamber and adopts a double column distillation method, which can be used for independent testing or simultaneous testing of two samples of the same specification, greatly improving work efficiency.
6. The cooling rate is fast, and the bath temperature can drop from room temperature to 0 ℃ in about 50 minutes.
Main Technical Parameters:
| Heating power of electric furnace | 1300W × 2 |
| Measuring cylinder volume | 100ml, division 1ml |
| Distillation flask | 125mL, meeting the requirements of ASTM D86 standard. |
| Temperature gauge | Temperature range (-2~+300) ℃ and (-2~+400) ℃, with a division of 1 ℃. |
| Electric furnace movable plate | made of quartz plate, with aperture sizes of 32mm, 38mm, and 50mm respectively. |
| Temperature control of condenser tube | ① Temperature control range: (0-60) ℃ can be set arbitrarily. ② Temperature control accuracy: ± 0.5 ℃. ③ Temperature display mode: LED digital display. |
| Temperature control in the receiving room | ① Temperature control range: (0~room temperature) ℃ can be set arbitrarily. ② Temperature display mode: LED digital display. |
| Applicable temperature | 15 ℃~28 ℃. |
| Relative humidity | ≤ 85% |
| Whole machine power consumption | ≤ 4000W |
| Dimensions | 700mm x 520mm x 520mm (length x width x height). |
| Net weight of the instrument | 59kg |
Product Details Display of Low Temperature Distillation Tester:
