Evaporation Loss Tester of Lubricating Greases And Oils
The evaporation loss tester that complies with ASTM D972 standard is a specialized testing equipment used to evaluate the thermal stability and volatility of lubricants at high temperatures; It accurately quantifies the evaporation loss characteristics of lubricating oil by placing the sample in a constant temperature oil bath, heating it at a specified temperature, and introducing a constant flow of hot air to measure the percentage of mass loss of the sample within a specified time.
Features:
The evaporation loss tester is desktop and includes a heating bath and a precise flow meter. There are holes on the stainless steel lid for placing sample cups
Stainless steel structure with ceramic coating;
The oil evaporation loss tester adopts a stainless steel heater;
Precision flowmeter with needle valve, flow rate 0-2L/min;
The evaporation loss tester of Lubricating Greases And Oils is equipped with an air filter and glass wool;
Imported PID temperature controller, digital continuous temperature display, accuracy of 0.1 ℃
The working temperature range of the instrument is from room temperature to 150 ° C; safety measures are taken to prevent overheating or low liquid levels;
Technical Parameters:
| Applicable standard | GB/T7325 ASTM D972 |
| Temperature control method | Imported PID digital temperature controller |
| Temperature control accuracy | Room temperature~150 ± 0.1 ℃ |
| Heating method | oil bath heating |
| Total machine power | 2.5KW |
| Work unit | 2 pipes |
| Flow control | Precision flowmeter |
| Working power supply | AC220V/50Hz |
| Timing method | Digital timer |
| Instrument size | 470*540*440mm |
| Net weight | 25KG |

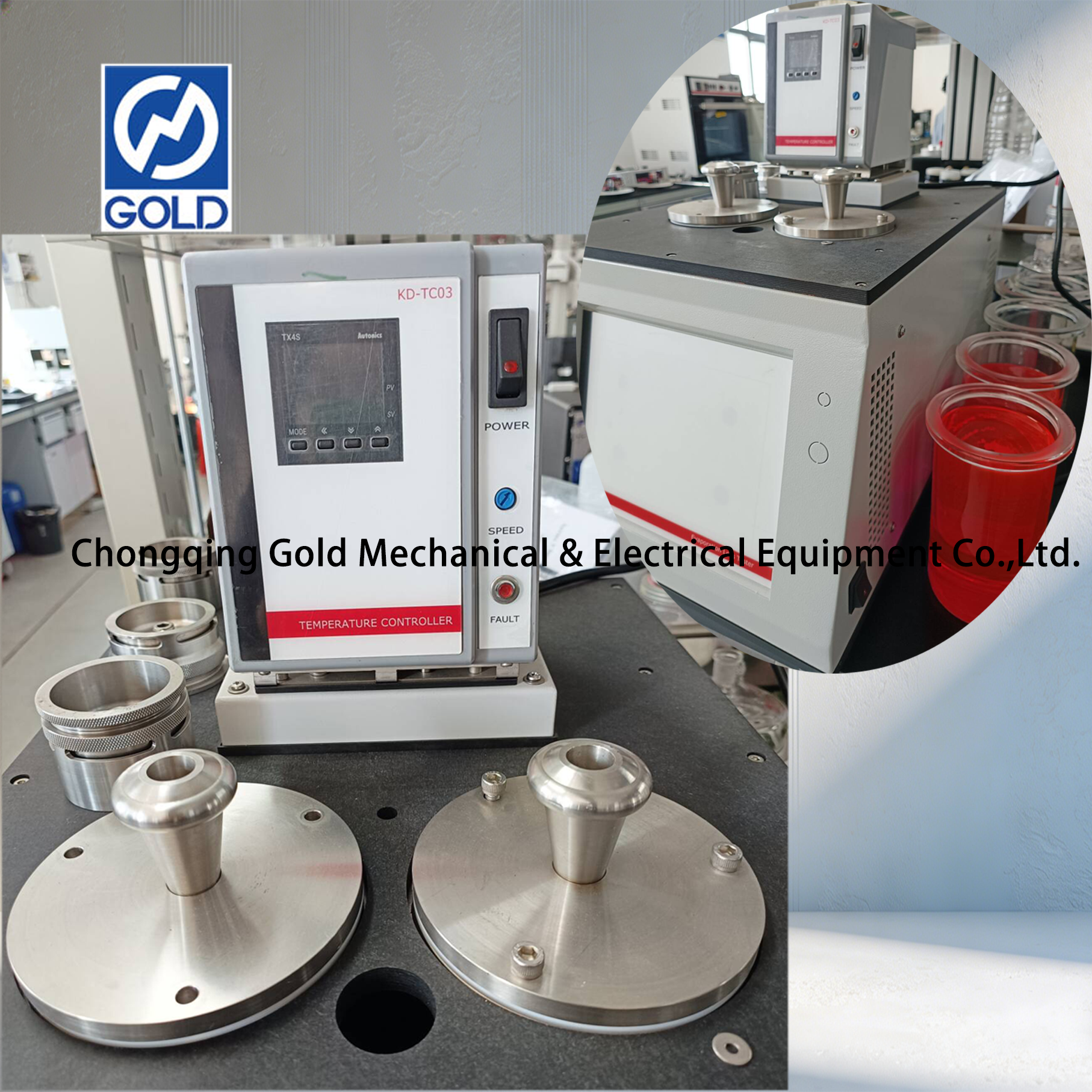

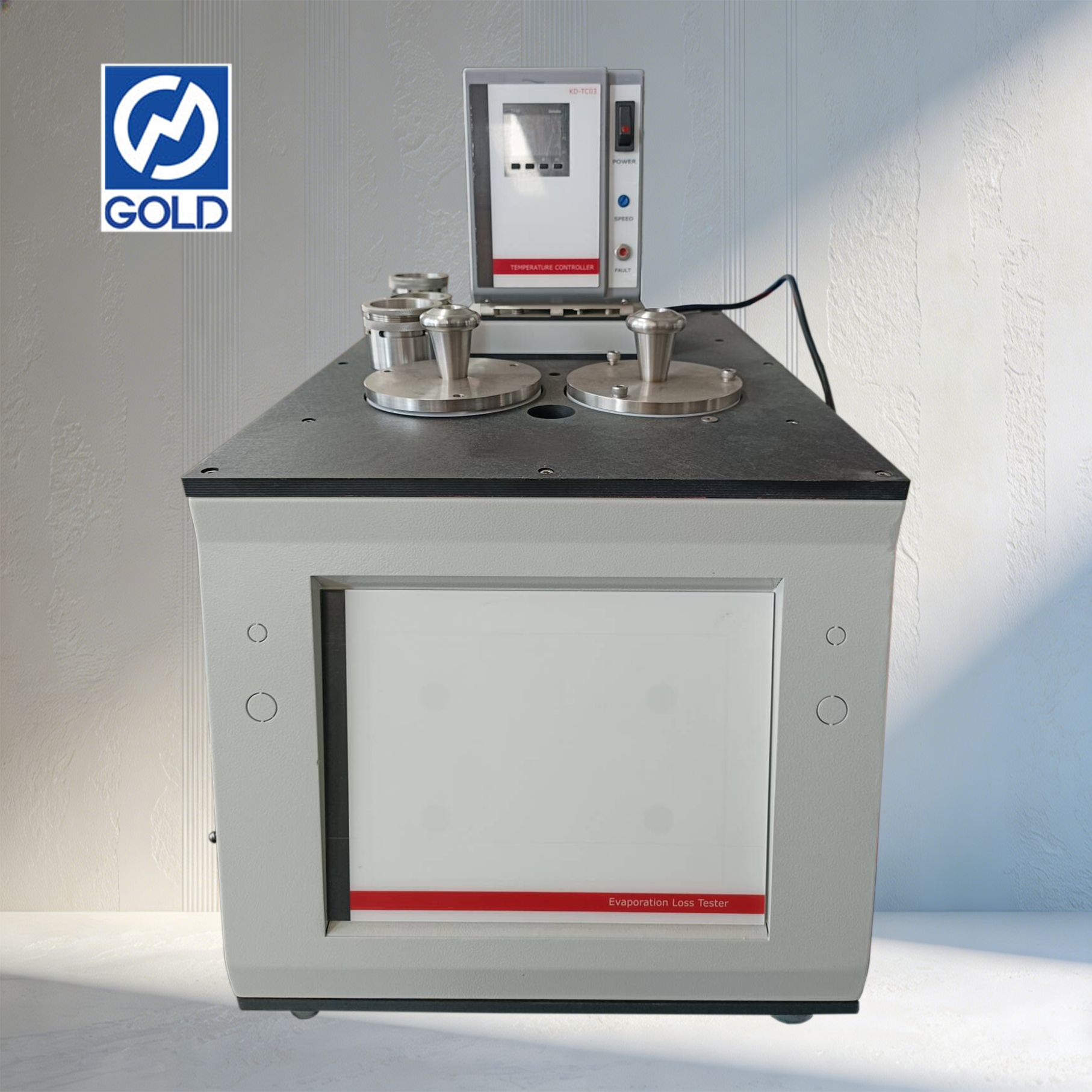

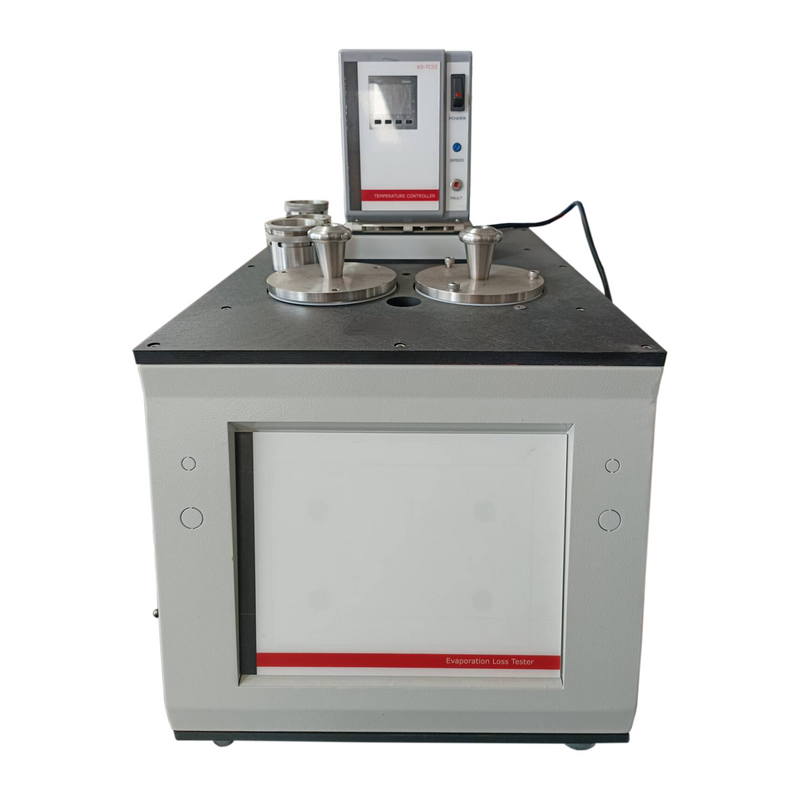

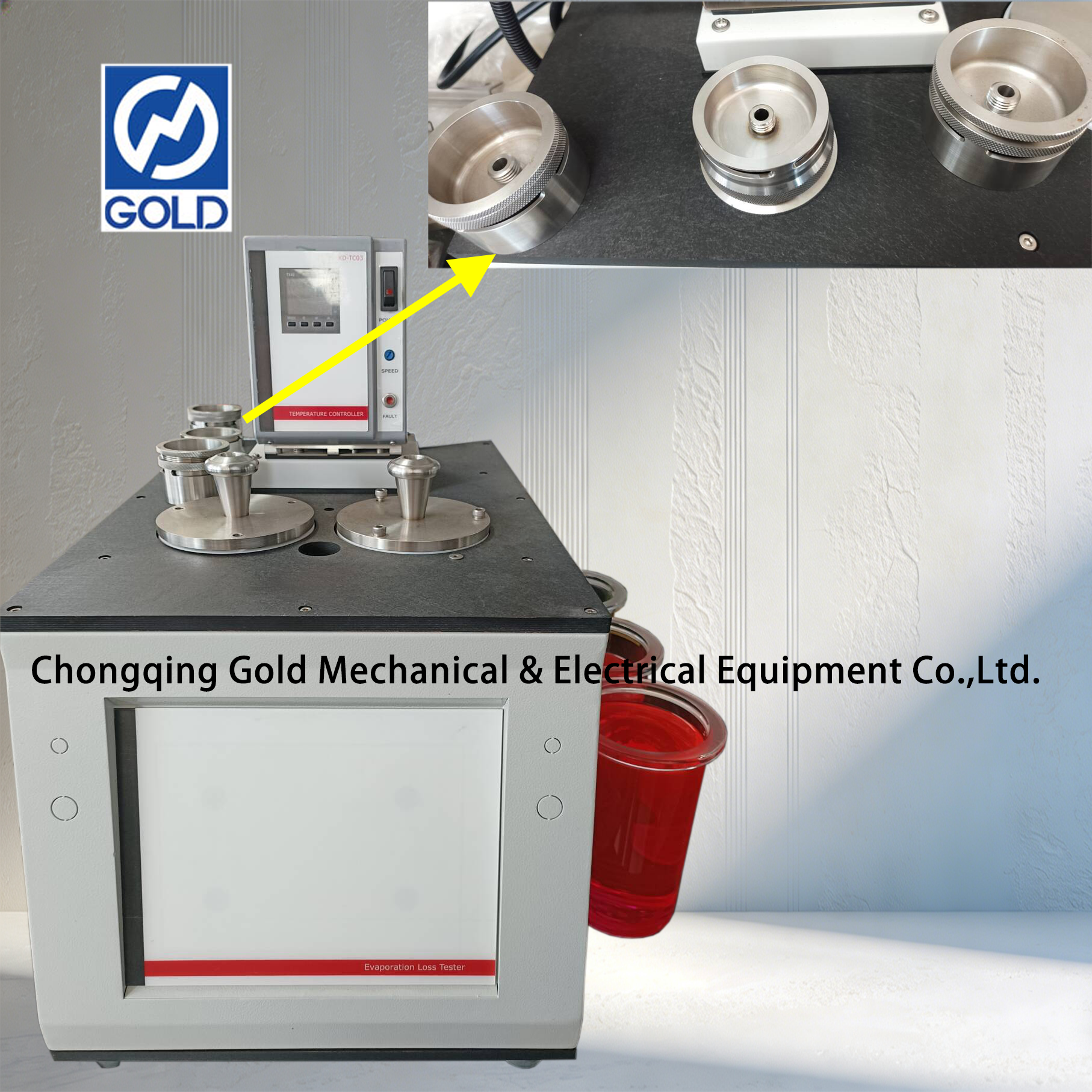

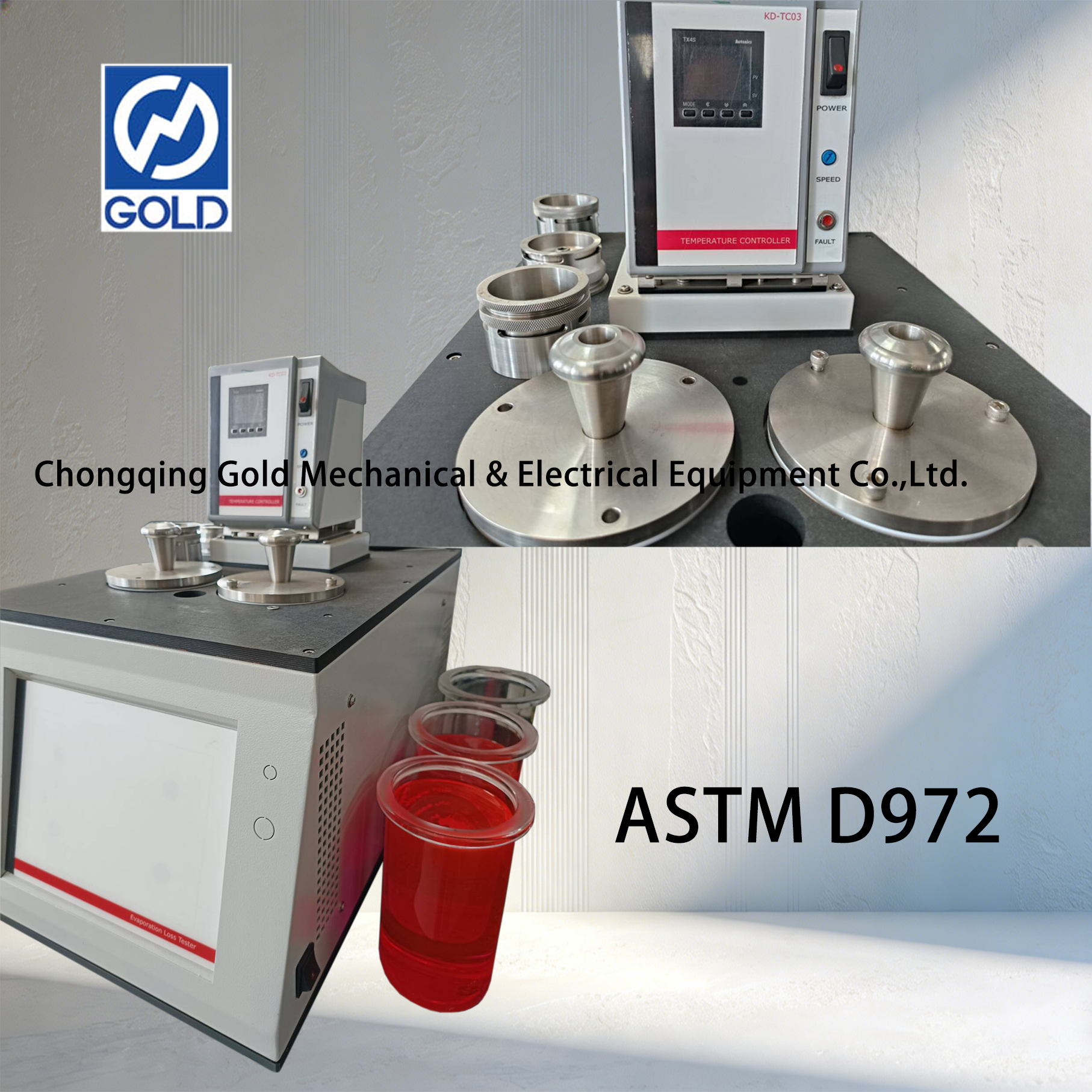

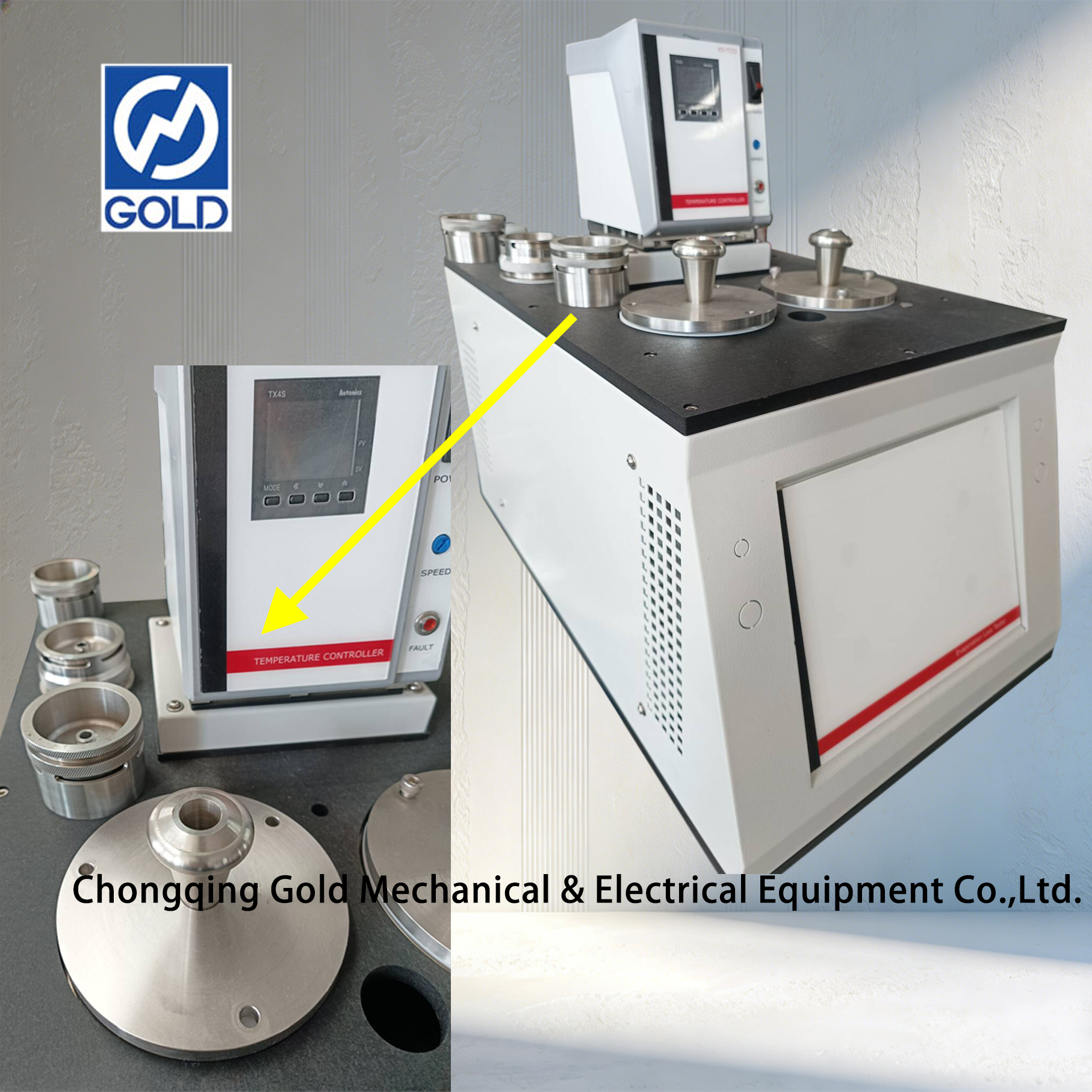

Product Details Display of Evaporation Loss Tester of Lubricating Greases And Oil:
