GD-261ZD
GOLD
GD-261ZD

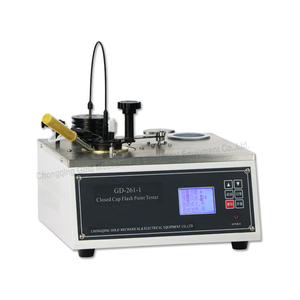

Closed Cup Flash Point Tester (no gas)
Introduction:
The Closed Cup Flash Point Tester is designed according to GB/T 261 Determination of flash point - Pensky-Martens closed cup method and ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester. The instrument adopts the US imported ARM32 embedded SOC system to achieve automation.It has high accuracy and good repeatability.
Features:
1.It adopts HD 7 inch high resolution 800*480 LCD touch screen.
2.English man-machine operation interface, the whole test is automatic, intuitive and easy to operate.
3.Ignition mode: electronic silicon carbon rod ignition technology, electronic flame, no need to connect to gas.
4. The Closed Cup Flash Point Tester has automatic lifting arm, automatic temperature control, automatic ignition, automatic flash point detection, test result saving and printing, automatic air cooling at the end of the test and other full automation functions.
5.The instrument adopts A Class Pt100 high precision temperature sensor imported from Germany to detect the temperature.
6.The instrument has the function of real-time tracking display of sample temperature and test time in an independent operating interface.
7.The instrument adopts a high-precision flash point detector to detect the flash point. The flash point detector cannot touch the sample, the response time is short and the sensitivity is high.
8.The digital module detects atmospheric pressure automatically,the test result is automatically compensated to the correct atmospheric pressure.
9.After the end of the test, forced air cooling to shorten the waiting time.
10.The instrument is equipped with a self -diagnostic system and reminder function, which can store 256 groups of test results.
11.With the setting function of time, date and week
12.With temperature limit function, reach the limit temperature the instrument automatically stop the test and prompt.
13.After the end of the test, the test number and results will be automatically saved and printed.
Parameters:
| 1 | Power supply | AC220V, 50Hz |
| 2 | Working power | 700W |
| 3 | Heating rate and stirring rate | meet GB/T 261-2021, ASTM D93 |
| 4 | Ignition mode | electronic ignition, electronic flame, no need to connect the gas |
| 5 | Repeatability | ≤2℃ |
| 6 | Reproducibility | ≤4℃ |
| 7 | Detection range of flash point | 40℃ ~ 300℃ |
| 8 | Resolution | 0.1℃ |
| 9 | Cooling mode | built-in strong air cooling |
| 10 | Printing mode | by the embedded thermal printer |
| 11 | Ambient temperature | 5 ~ 35℃ |
| 12 | Relative humidity | ≤85% |
| 13 | Dimensions | 425*430*310mm |
