GD-SF04
GOLD

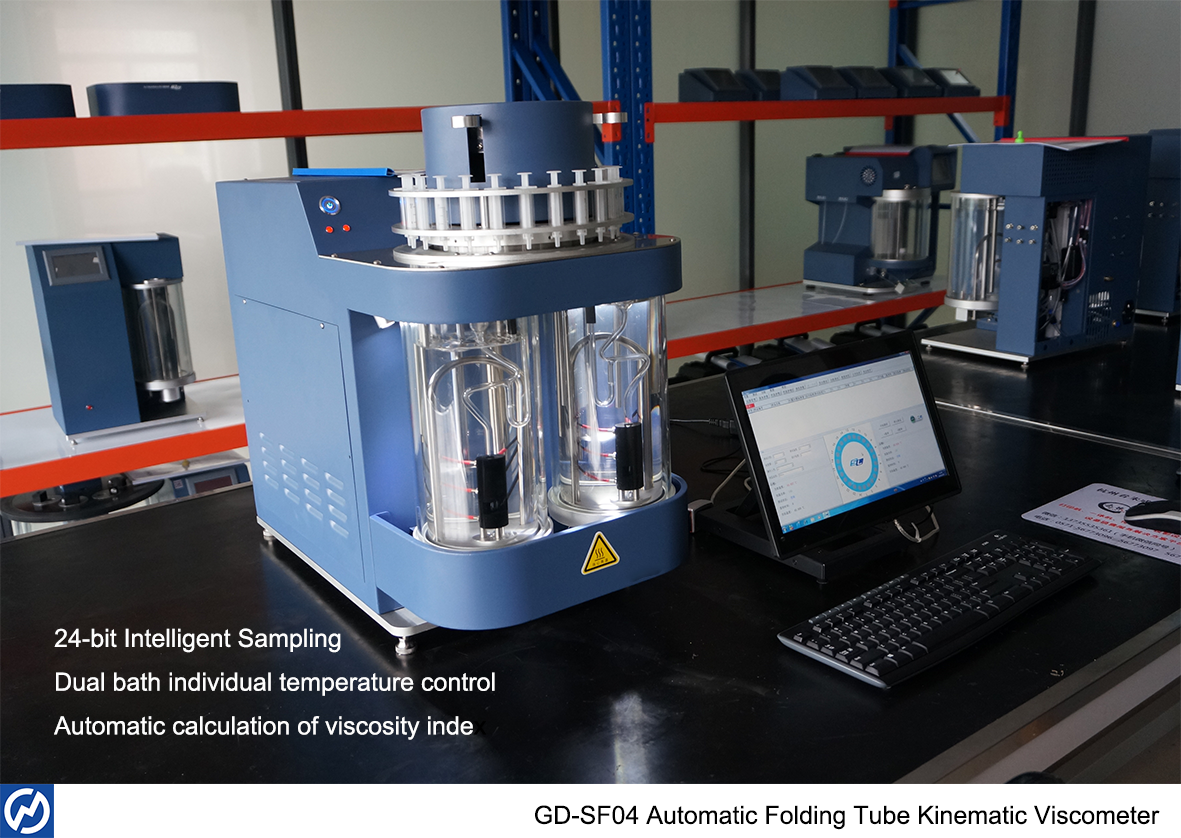

GD-SF04 24-bit autosampling Automated Houillon Viscometer ASTM D7279 D445 D446
Introduction:
The GD-SF04 Automatic Houillon Viscometer is an automated device that swiftly determines oil products' kinematic viscosity, adhering to ASTM D7279 standards. It boasts automatic sampling, testing, and cleaning features, operates around the clock, and rivals imported counterparts.
Key Characteristics:
Swift measurement: Results in fast mode are available in 15 seconds, typically within 3 minutes, with the entire process lasting no longer than 7 minutes.
High automation: Uninterrupted 24/7 operation with automated sampling, measurement, cleaning, drying, result calculation, and repeatability checks. Dual viscosity tube handling during measurement and cleaning.
Versatile sampling: Measures both transparent and opaque samples, including Newtonian fluids like gasoline, diesel, kerosene, cutting fluids, heat transfer oils, additives, and new/used lubricants.
Precise data: Features secondary quantification, automatically cuts sample liquid, controls volume accurately, avoiding pipette limitations, ensuring data accuracy.
Intelligent cleaning: Selects optimal cleaning mode based on viscosity. Dual solvent cleaning is efficient, clean, and cost-effective, using ≤10 ml solvent per cycle.
User-friendly software: Automatically selects viscometers, manages sample test orders, and prioritizes testing. Recognizes and calculates viscosity index automatically.
Auxiliary functions: Includes constant and temperature calibration, timing verification, kinematic to Engler viscosity conversion.
Safety features: Dual over-temperature protection, alarm functions, anti-dry burning, solvent level alerts.
Dual-layer design: Ensures uniform temperature, allowing simultaneous testing and cleaning at different temperatures without interference. Viscosity tube replacement without draining the bath.
Air source power cabinet: Allows immediate cleaning post-test.
Reliable sampling system: Low failure rate, smooth delivery, minimal vibration.
High-precision temperature sensor (PT1000): Stable bath temperature with 0.005℃ accuracy.
Advanced technology: Utilizes high-end optical fiber amplifier and encapsulated fiber for enhanced signal stability and accuracy.
Windows OS: Full English interface, simple operation, and user-friendly. Connects to LIMS, integrates with code scanners for automatic sample info entry.
Disposable filter option: Reduces operator workload for sample pretreatment.
Technical Parameters:
1. Reference Standards: ASTM D7279, D445, D446, NB/SH/T 0956-2017, T/CEC 127-2016.
2. Measuring range: 0.3 - 6,000mm2/s, the measuring span of two viscosity tubes is 100 times.
3. Sample amount: 0.3 - 1 ml; Injection method: 24-bit intelligent injection
4. Bath volume: 2L×2
5. Temperature control range: 20 - 120℃ (the target temperature is lower than 40℃, an additional refrigerator is required)
6. Temperature control accuracy: 0.005℃
7. Timing accuracy: 0.01S
8. Repeatability: ≤0.5%
9. Whole machine power: ≤600W
10. Host size: 350×640×600 (mm)
Product details:
GD-SF04 24-bit autosampling Automated Houillon Viscometer ASTM D7279 D445 D446
Introduction:
The GD-SF04 Automatic Houillon Viscometer is an automated device that swiftly determines oil products' kinematic viscosity, adhering to ASTM D7279 standards. It boasts automatic sampling, testing, and cleaning features, operates around the clock, and rivals imported counterparts.
Key Characteristics:
Swift measurement: Results in fast mode are available in 15 seconds, typically within 3 minutes, with the entire process lasting no longer than 7 minutes.
High automation: Uninterrupted 24/7 operation with automated sampling, measurement, cleaning, drying, result calculation, and repeatability checks. Dual viscosity tube handling during measurement and cleaning.
Versatile sampling: Measures both transparent and opaque samples, including Newtonian fluids like gasoline, diesel, kerosene, cutting fluids, heat transfer oils, additives, and new/used lubricants.
Precise data: Features secondary quantification, automatically cuts sample liquid, controls volume accurately, avoiding pipette limitations, ensuring data accuracy.
Intelligent cleaning: Selects optimal cleaning mode based on viscosity. Dual solvent cleaning is efficient, clean, and cost-effective, using ≤10 ml solvent per cycle.
User-friendly software: Automatically selects viscometers, manages sample test orders, and prioritizes testing. Recognizes and calculates viscosity index automatically.
Auxiliary functions: Includes constant and temperature calibration, timing verification, kinematic to Engler viscosity conversion.
Safety features: Dual over-temperature protection, alarm functions, anti-dry burning, solvent level alerts.
Dual-layer design: Ensures uniform temperature, allowing simultaneous testing and cleaning at different temperatures without interference. Viscosity tube replacement without draining the bath.
Air source power cabinet: Allows immediate cleaning post-test.
Reliable sampling system: Low failure rate, smooth delivery, minimal vibration.
High-precision temperature sensor (PT1000): Stable bath temperature with 0.005℃ accuracy.
Advanced technology: Utilizes high-end optical fiber amplifier and encapsulated fiber for enhanced signal stability and accuracy.
Windows OS: Full English interface, simple operation, and user-friendly. Connects to LIMS, integrates with code scanners for automatic sample info entry.
Disposable filter option: Reduces operator workload for sample pretreatment.
Technical Parameters:
1. Reference Standards: ASTM D7279, D445, D446, NB/SH/T 0956-2017, T/CEC 127-2016.
2. Measuring range: 0.3 - 6,000mm2/s, the measuring span of two viscosity tubes is 100 times.
3. Sample amount: 0.3 - 1 ml; Injection method: 24-bit intelligent injection
4. Bath volume: 2L×2
5. Temperature control range: 20 - 120℃ (the target temperature is lower than 40℃, an additional refrigerator is required)
6. Temperature control accuracy: 0.005℃
7. Timing accuracy: 0.01S
8. Repeatability: ≤0.5%
9. Whole machine power: ≤600W
10. Host size: 350×640×600 (mm)
