GD-LPC-P3
GOLD
ISO 4406 Particle Counter for Oil Contamination Analysis
Introduction:
In modern industry, the cleanliness of the oil fluid is crucial to the normal operation and service life of the equipment. ISO 4406 Particle Counter for oil contamination analysis, as a device specialized in on-site rapid detection of oil contamination, perform well in terms of detection speed and accuracy, but also have a high degree of portability, and can be easily operated in a variety of complex environments.
Features:
1. The photoresistance (shading) method test principle specified by the International Hydraulic Standards Committee.
2. High-precision laser sensor, wide test range, stable performance, low noise and high resolution.
3. High-precision metering pump sampling method, adjustable sampling speed, high sampling volume accuracy.
4. The pipeline uses 316L and PTFE materials to meet the detection of various organic solvents and oil products.
5. For laboratory or field measurement, optional pressure reducing device for online high pressure measurement.
6. The Particle Counter can be connected to the pressure chamber to form positive / negative pressure to achieve the detection of high viscosity samples and sample degassing.
7. It can use standard sampling bottles, sampling cups and other sampling containers, or directly connect to the hydraulic system for online testing to meet the testing requirements of different industries.
8. Built-in multiple calibration curves, compatible with all common standards at home and abroad for calibration.
9. Built-in GJB-420A, GJB-420B, NAS1638, ISO4406, SAE4059E, and ГOCT17216 and other commonly used standards, support custom standard tests, and set the required standards according to customer needs.
10. 1000 particle size channels can be set to facilitate particle size analysis.
11. Built-in data analysis system, can automatically determine the sample level according to the standard, with automatic data processing and printing functions.
12. Color touch screen operation, Chinese input, with preset, input, modification, storage functions, easy and fast operation.
13. With RS232 interface, it can be connected to a computer or laboratory platform for data processing, and USB can also be used for data storage.
14. Built-in lithium battery, suitable for field work, can be used without external power supply.
15. Embedded design, high strength shell, easy to carry, suitable for all kinds of construction machinery.
Reference Standards of Particle Counter:
Including NAS1638 standard, GJB420A standard, GJB420B standard, ISO4406 standard, SAE4059DPC standard, SAE4059CPC standard, GB/T14039, GOST17216 standard, QC/T29104 standard, JB/T9737 standard, DL/ T432 standard, SAE749D standard and HH005-2018 standard.
NAS1638（Particles/100ml）
ISO 4406

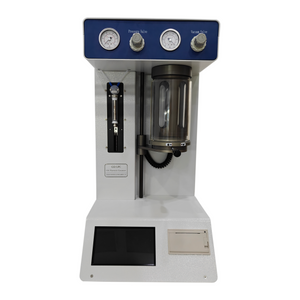

Real Photos of Particle Counter:
