GD-LPC-LW
GOLD

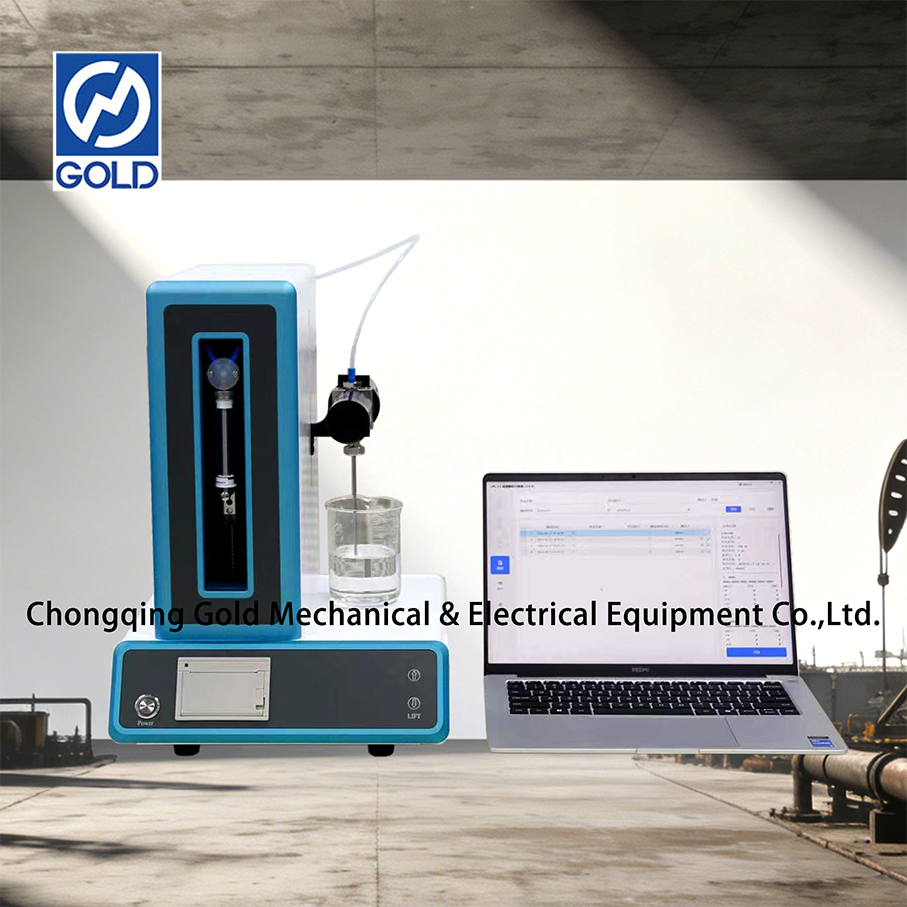

Low Viscosity Liquid Particle Counter
The liquid particle counter is developed based on the counting principle of photoresist (shading) method. It can provide fast, accurate, reliable, and reproducible detection results, suitable for detecting the size and quantity of solid particles in various low viscosity liquids. Widely used in the fields of aerospace, power semiconductors, petrochemicals, automotive manufacturing, etc. for low viscosity oil contamination analysis, precision component cleanliness evaluation, chemical reagent and cleaning agent particle detection, as well as purified liquid and ultrapure water particle determination.
Feaures:
The liquid particle counter is equipped with high-precision laser sensors, with a wide testing range, stable performance, low noise, and high resolution
Adopting high-pressure injection pump sampling method, the sampling volume can be set by oneself, the injection speed is stable, and the sampling accuracy is high
The Low Viscosity Liquid Particle Counter is equipped with multiple calibration curves, which are compatible with all commonly used domestic and foreign standards for calibration
Support custom standard testing, naming and grading custom standards
The liquid particle counter can be set up to 64 detection channels simultaneously according to customer needs
Built in data analysis system, one test can provide all standard test data and pollution levels
The Low Viscosity Liquid Particle Counter can perform cleaning and testing, with pre-set target cleaning requirements for particle concentration. During the cleaning process, the cleaning status is displayed in real-time and automatically stops when the requirements are met
Lift sensor design, suitable for various sampling containers, meeting the detection requirements of different industries
A control system supports multiple sensor settings, and the system control software can be installed on a tablet, laptop, or desktop computer
Technical Parameters：
Sensitivity | 0.8μm (ISO4402) or 3μm(c) (ISO11171) |
Sample viscosity | ≤100cSt |
Particle size range | 0.8μm～600μm |
Sampling speed | 5～80mL/min |
Resolution | Better than 6% |
Sampling volume | 0.2～6000mL, interval 0.1mL |
Light source | Semiconductor laser |
Sampling accuracy | Better than ±0.2% |
Repeatability | RSD<2% |
Detection channels | 8～64 channels selectable (factory default 64), particle size can be set arbitrarily |

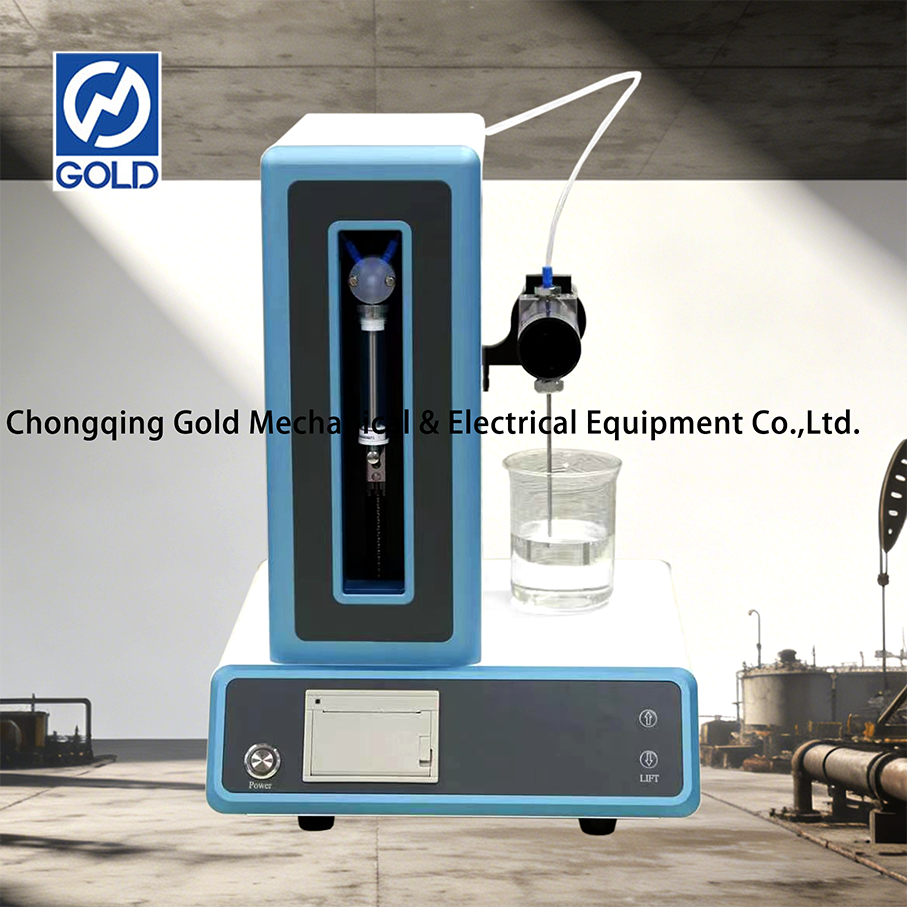

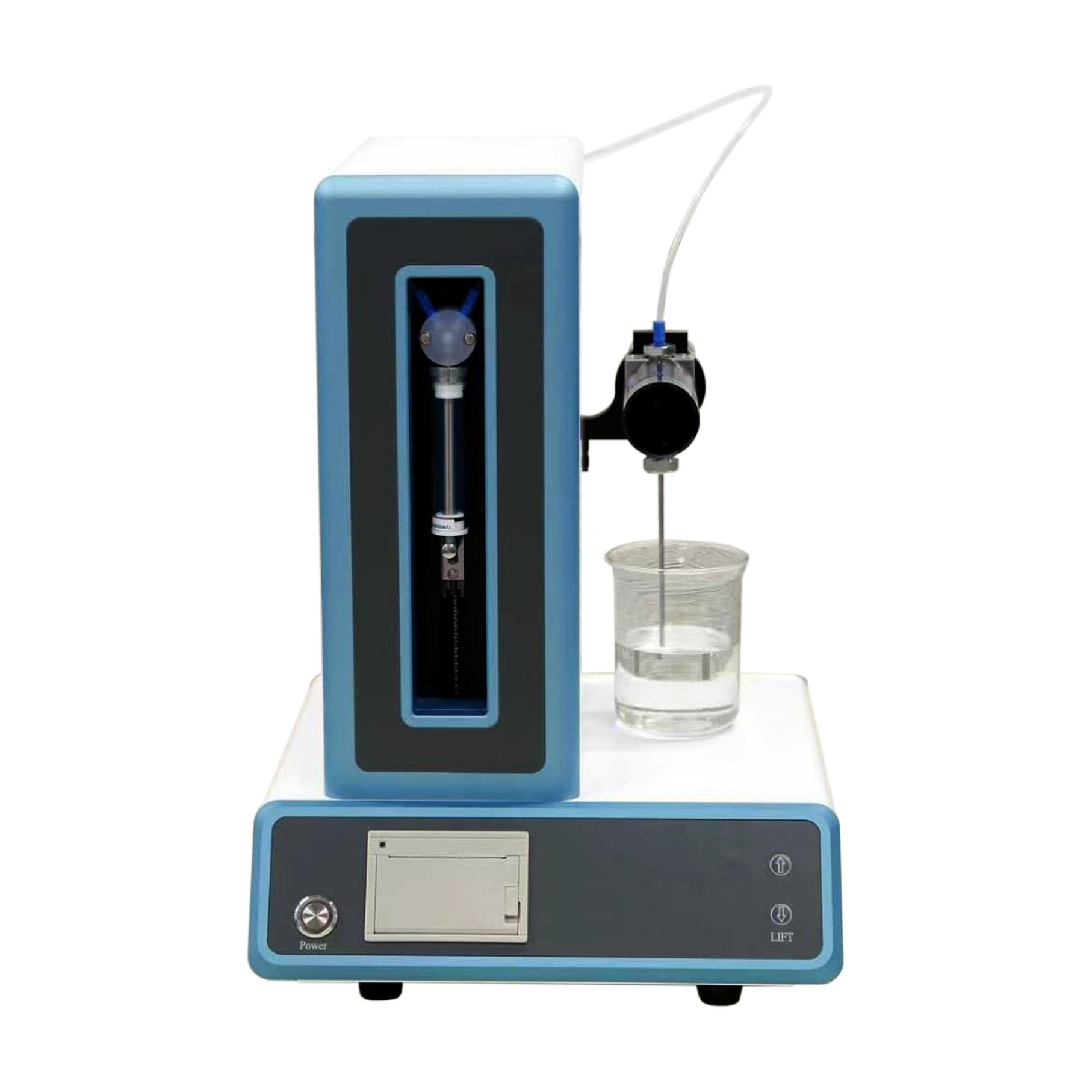

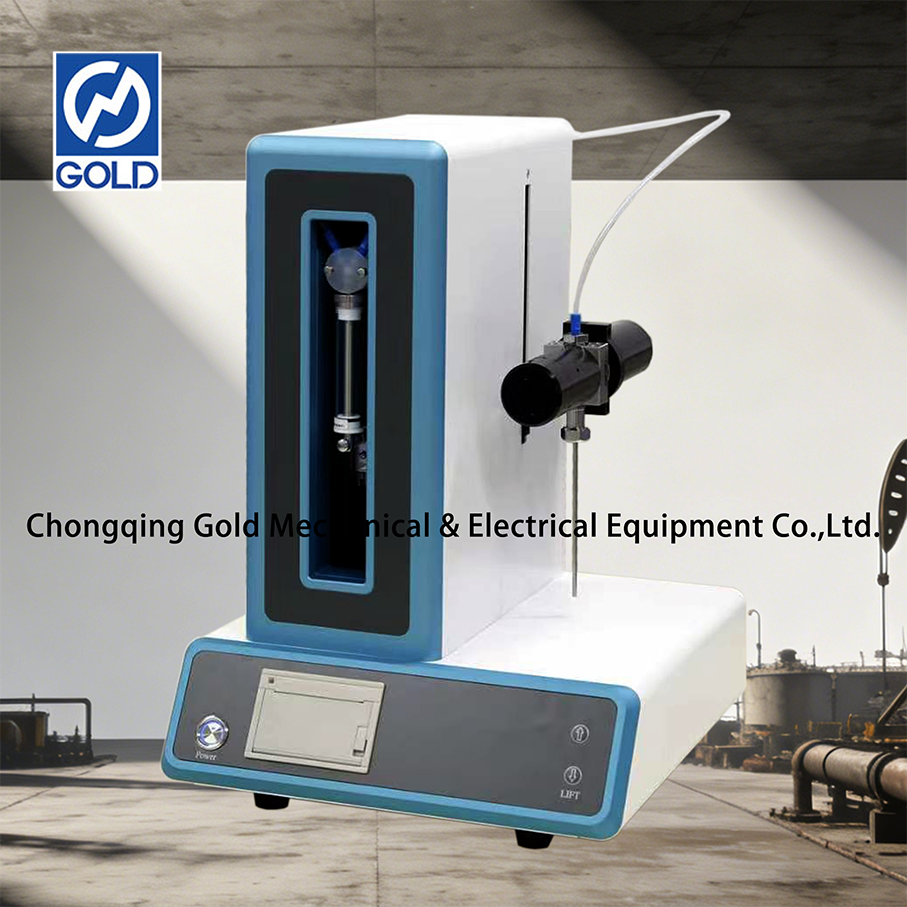

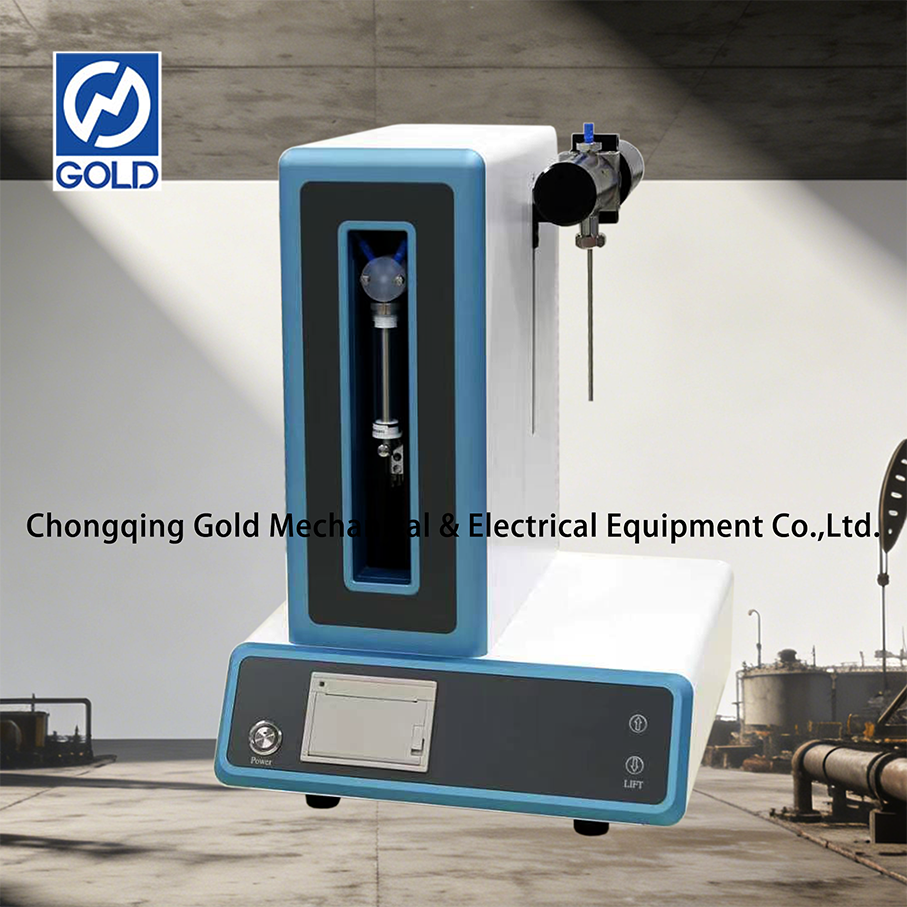

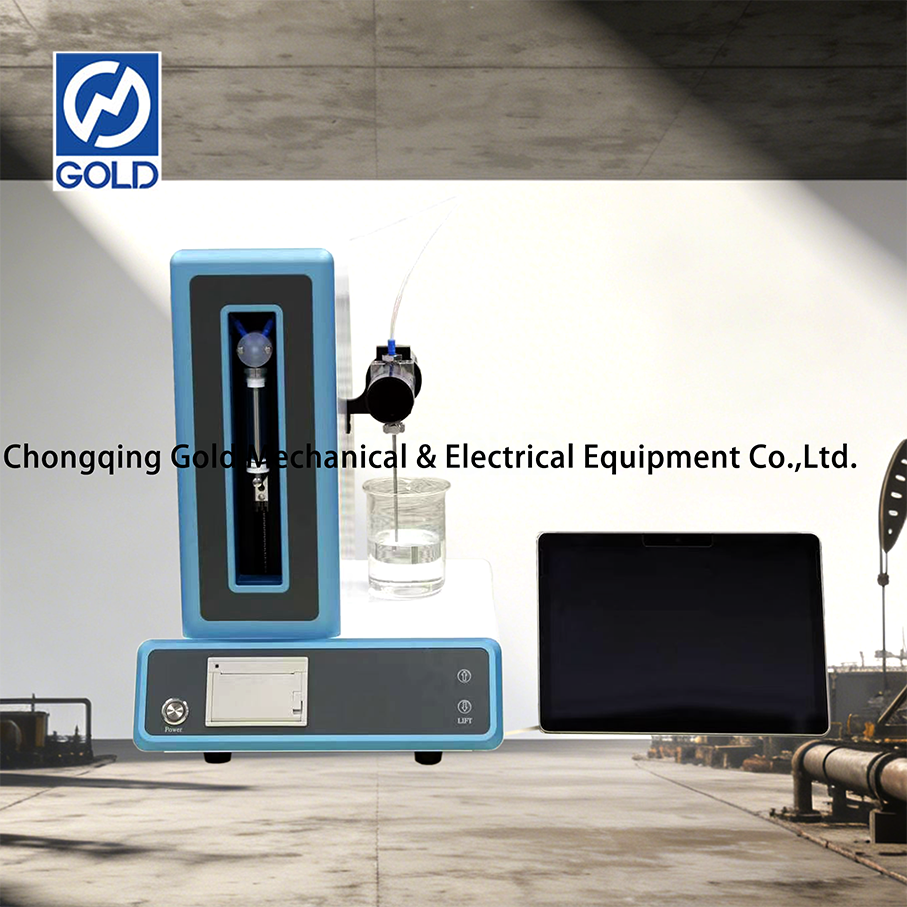

Product Details Display of Liquid Particle Counter:
