GD-2020 PLUS
GOLD

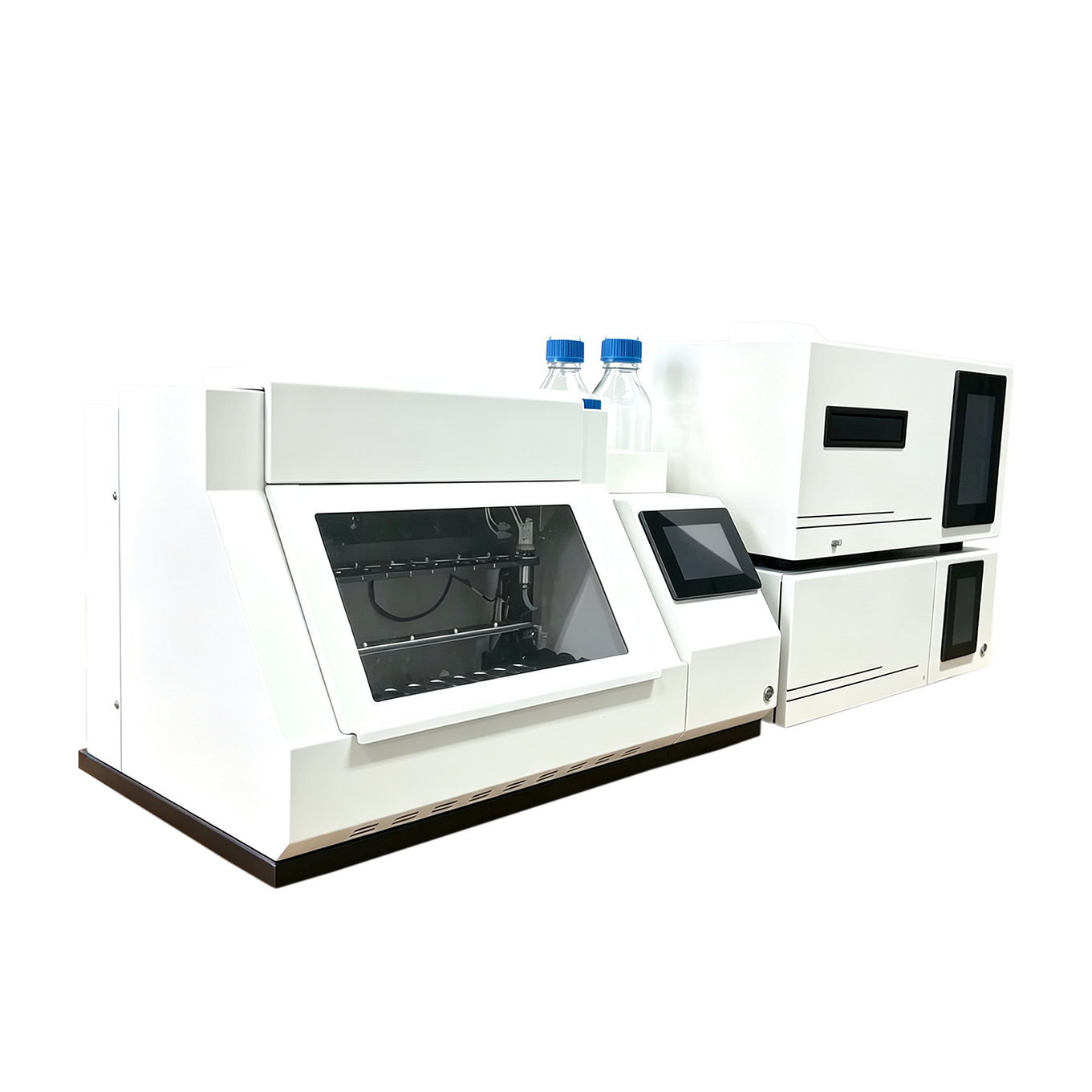

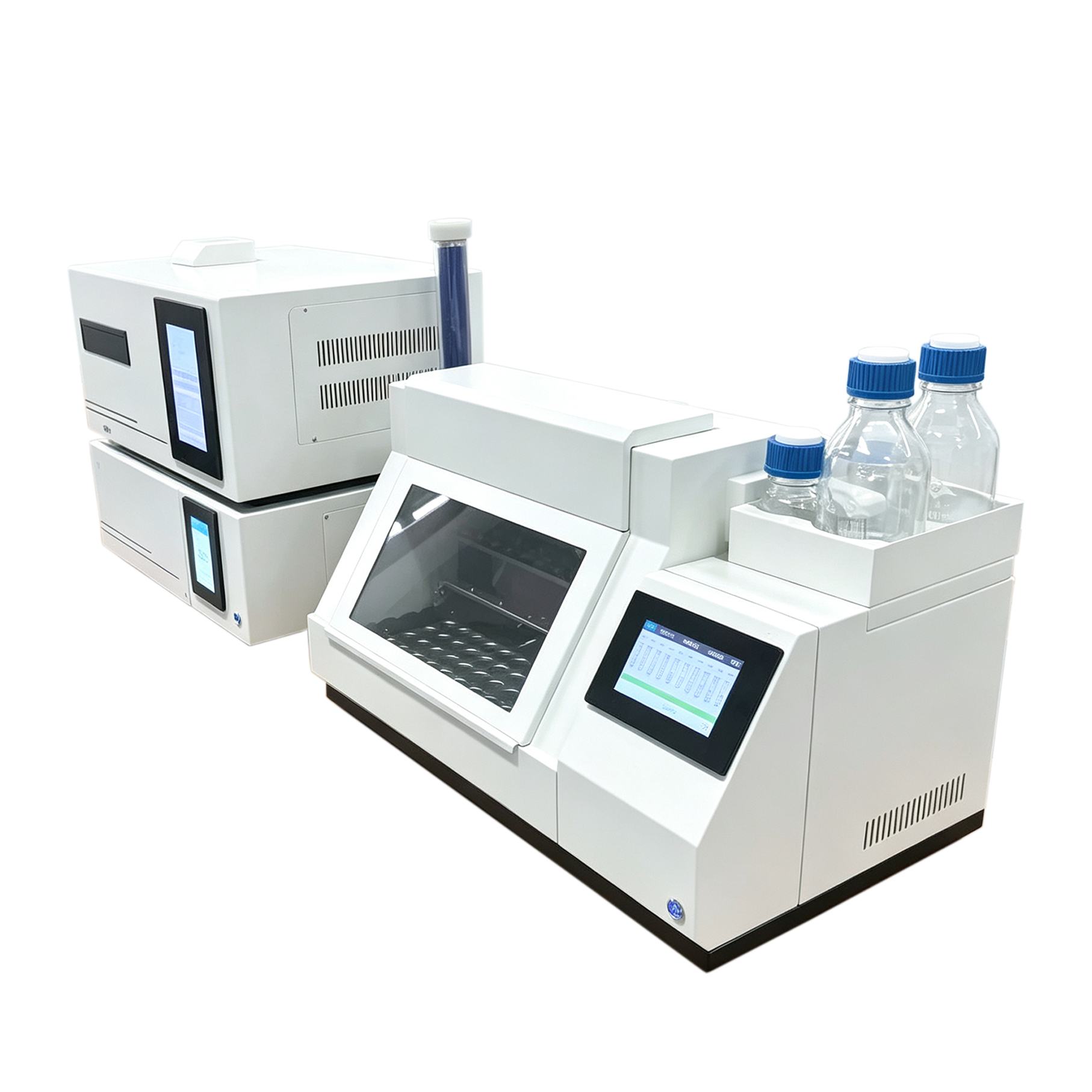

Rod Prep Chromatography Analyzer

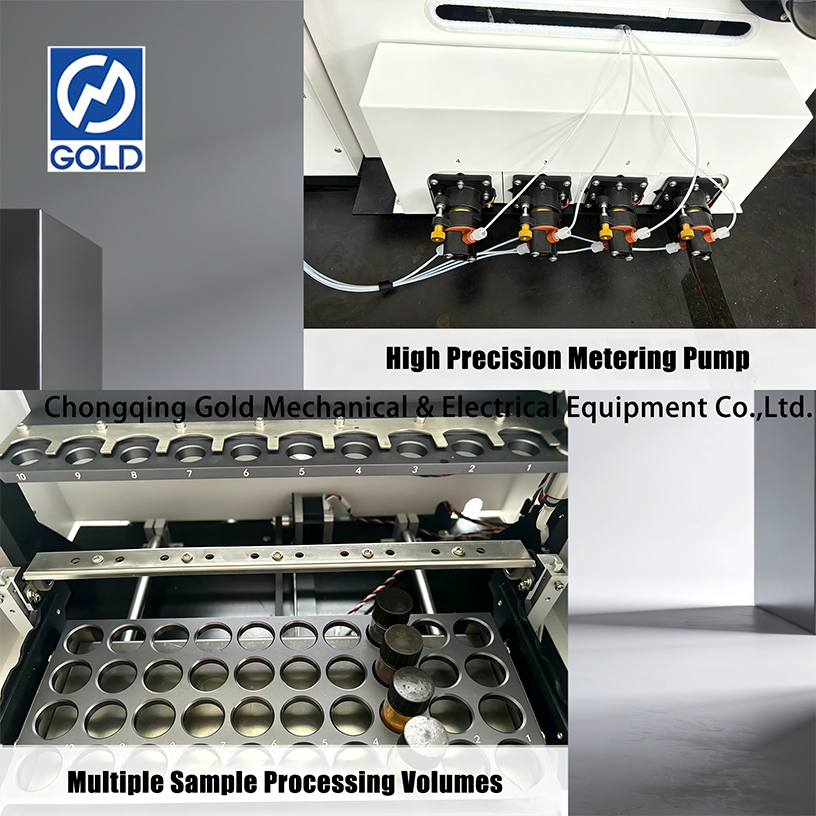

The Rod Prep Chromatography Analyzer is an integrated system suitable for routine preparative analysis in analytical laboratories. The Rod Prep Chromatography Analyzer adopts a modular design, utilizing a precise and flexible robotic arm, a multi-functional sample selection system, corrosion-resistant multi-flow paths, and a high-flow metering pump. It enables rapid separation of various fractions in samples, reducing the single analysis time to 30 minutes and significantly improving sample processing efficiency.
Principle:

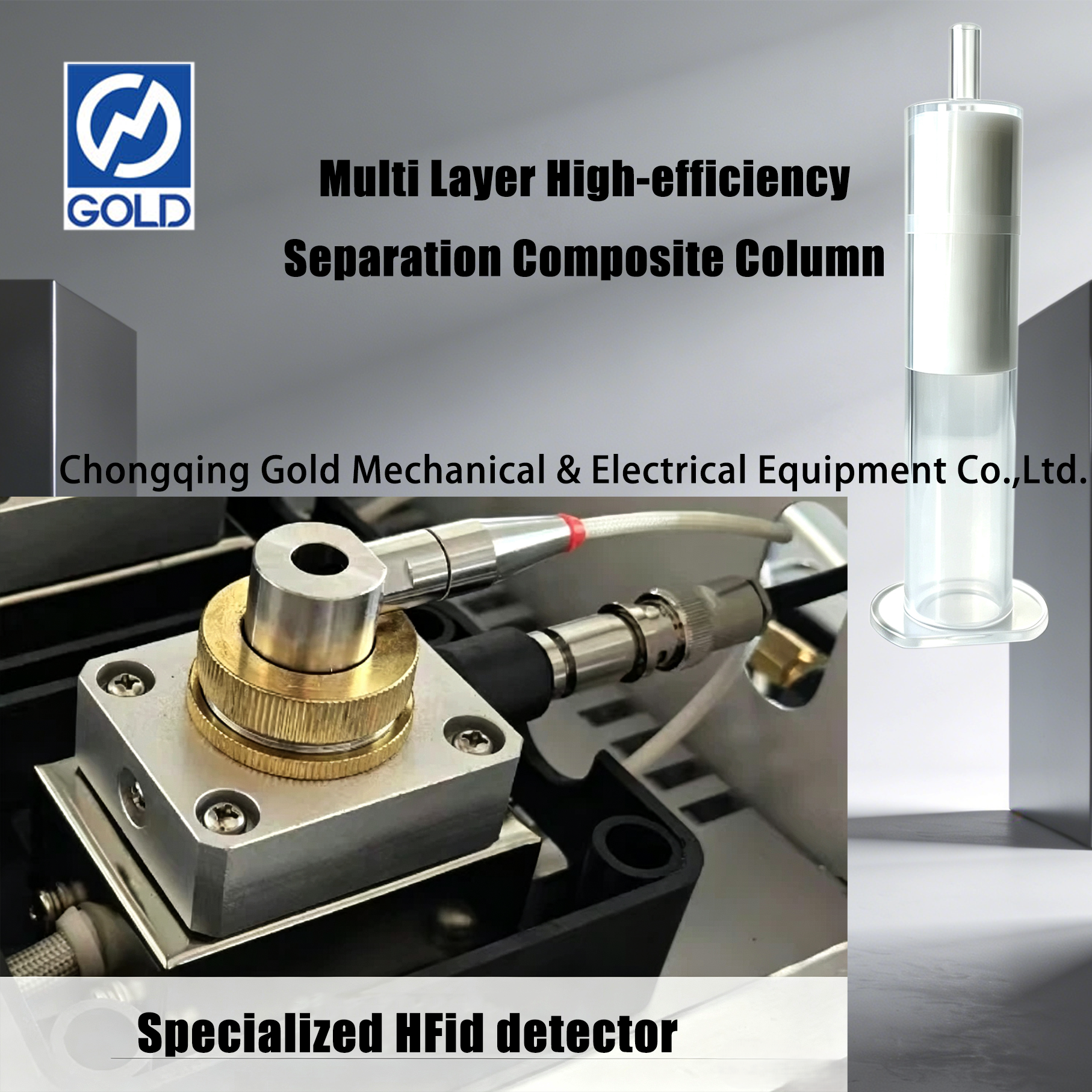

The Rod Prep Chromatography Analyzer processes samples—including crude oil, residue, wax oil, slurry oil, lubricating oil, tar, and bitumen—by first diluting them with a solvent and then quantitatively introducing them into a separation column. Through the sequential use of solvents with different polarities, the sample is separated into saturated hydrocarbons, aromatic hydrocarbons, resins, and asphaltenes, which are eluted into collection containers. Each separated fraction is then applied to a designated position on a chromarod. The chromarods transport the samples through a detector at a constant speed for scanning. The resulting ion current signals are collected and processed by a computer, yielding the final analytical results.
Features:
Simplicity: The Rod Prep Chromatography Analyzer is easy to operate, offers rapid analysis with short turnaround times, and delivers accurate data.
Environmental Friendliness: Solvent consumption is extremely low, which significantly reduces health risks and promotes both environmental protection and operator safety.
Cost-Effectiveness: The Rod Prep Chromatography Analyzer’s sample analysis rod can be reused indefinitely, resulting in very low operating costs.
Versatility: The Chromatography Analyzer can directly analyze a wide range of organic compounds, including high-boiling-point samples that are difficult to process via gas chromatography. It is widely used in fields such as pharmaceuticals and healthcare, environmental chemistry, petrochemicals, petroleum geology, coal chemicals, and fine chemicals.
Technical Parameters：
| Number of channels | 10 |
| Pump flow rate | 0- 50 mL/min |
| Solvent types | 4 types, 25- 500 mL independent solvent bottles |
| Sample volume | 0.1 mL- 5 mL |
| Composite column volume | 6 mL、12 mL |
| Mechanical arm positioning accuracy | 0.01 mm |
| Waste collection | Separate collection, 2- channel |
| Liquid-level radar | Standard equipped |
| Low-level alarm | Real-time monitoring with low-level alarm prompt |
| Operating temperature | 0- 40℃ |

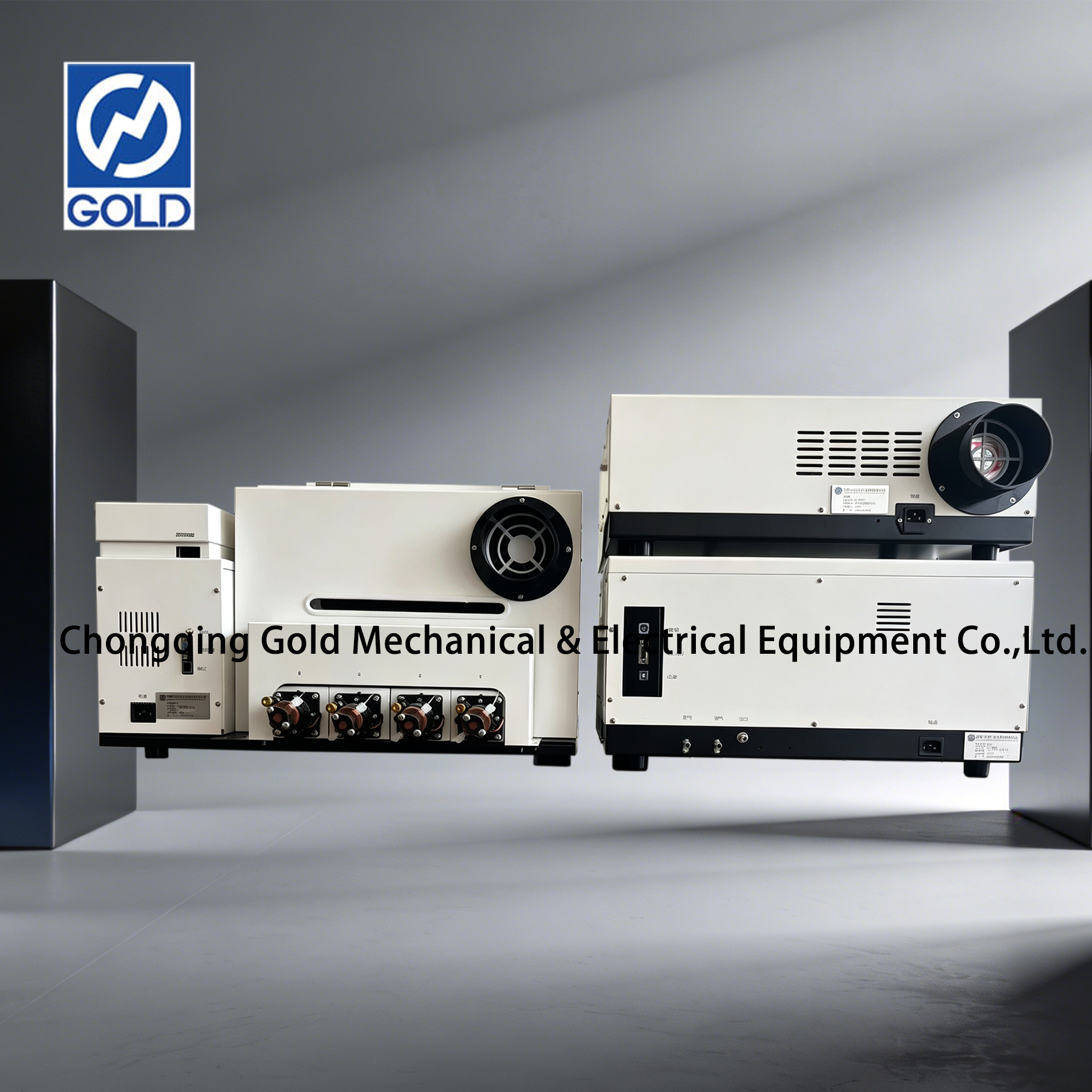

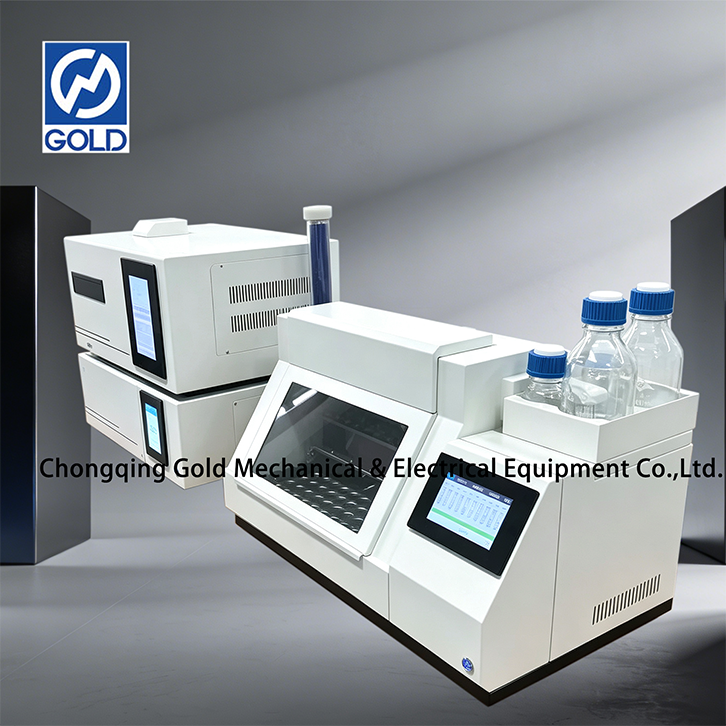

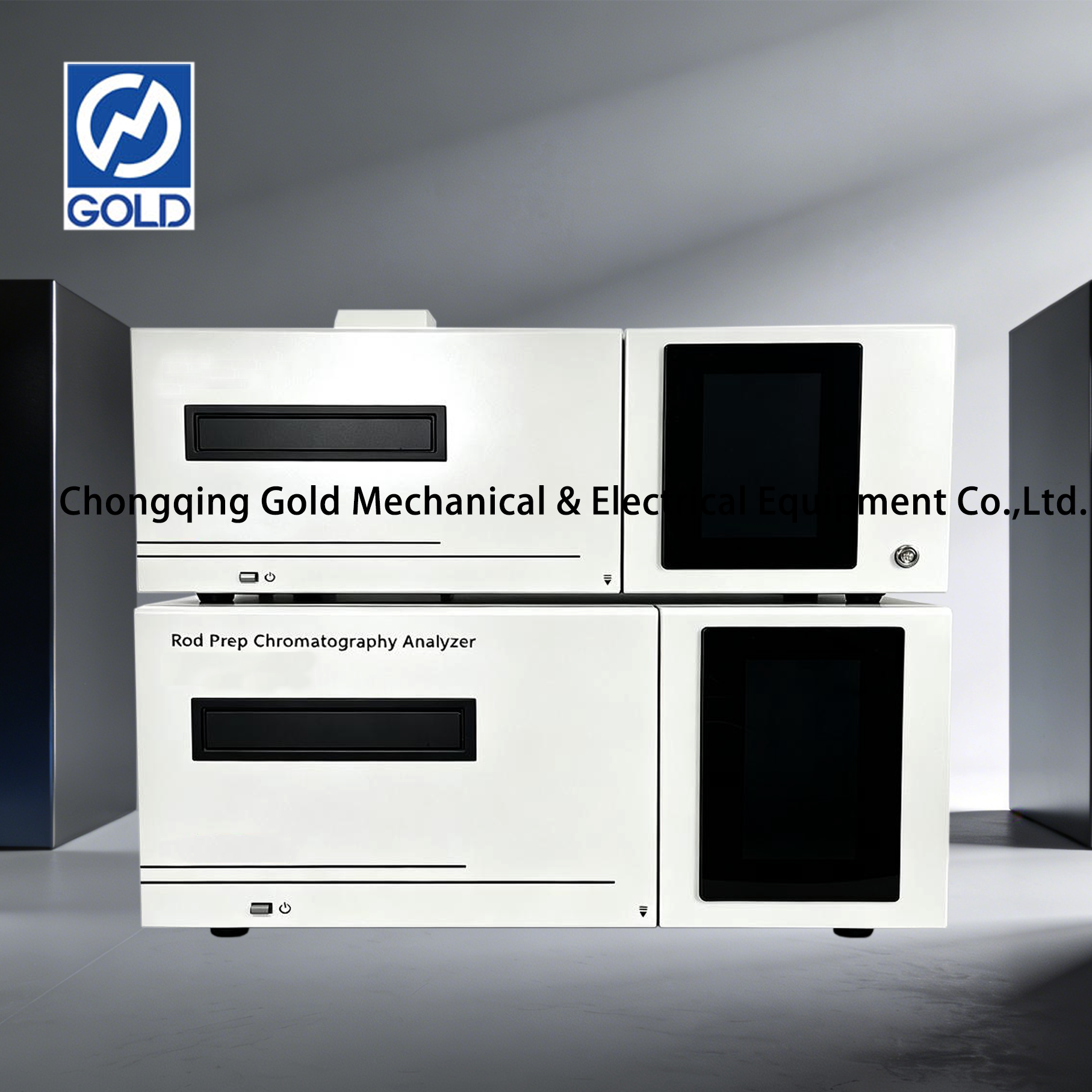

Product Details Display of Rod Prep Chromatography Analyzer:
