GD-300
GOLD
Electronic Densimeter
Electronic Densimeter is combined high-precision electronic balance and a patented container,can measure various density in easy and speedy way with its original specific gravity calculation software.The machine adopts Archimedes’ principle and the determination of (relative)density value is based on the density of at 4℃:1g/cm3.
Features:
Through the DIS function, a measurement method for memorizing steps can be selected.
German imported sensors for better measurement repeatability.
The Electronic Densimeter adopts a non flip type measuring frame for easier operation.
Waterproof body film, protecting the interior of the body from water leakage.
PC material sink, wear-resistant, drop resistant, corrosion-resistant.
0.5mm stainless steel suspension wire, not bent or deformed, perpendicular to the suspension bar and not touching the sink.
The Electronic Densimeter adopts a measurable percentage of the main material content in binary mixed materials.
Any solid state can be measured.
Floating bodies, particles, powders, sheets, and wires can all be measured.
Water can be used as the medium, but other liquid media can also be used.
The Electronic Densimeter adopts a water temperature compensation function.
The Densimeter is equipped with a windproof and dust-proof cover and a standard RS-232 communication interface.
Optional DE-40 printer for automatic printing of measurement results.
The Electronic Densimeter is adaptable to the field, laboratory, and other locations.
Operating Procedures:
When the Electronic Densimeter displays 0.000g, place the product on the measuring platform. After the display stabilizes, press the ENTER key to save the reading. The status symbol M1 on the display will change to M2.
Place the product in water. After the display stabilizes, press the ENTER key to save the reading. The status symbol M2 will disappear, and the triangle symbol will point to the SG mark, which indicates the density value.
Technical Parameters:
| Maximum weighing capacity | 300g |
| Weighing accuracy | 0.005g |
| Density accuracy | 0.001 g/cm³ |
| Density range of Electronic Densimeter | 0.001~99.999g/cm³ |
| Density measuring frame | ABS one-piece injection molded, flip-top-free measuring frame |
| Result display | Density, volume, percentage content |
| Measurement type | Density of any solid form |
| Measuring water tank | One-piece injection molded professional transparent measuring water tank (Dimensions: 15.3 cm (L) × 10.7 cm (W) × 9.3 cm (H)) |
| Parameter settings | Water temperature setting, measuring medium density setting, binary material mixing ratio |
| Standard accessories | ①Main unit, ②Water tank, ③Measuring platform, ④Tweezers, ⑤Thermometer, ⑥Weights, ⑦Windproof and dustproof cover, ⑧One set of particle measuring accessories, ⑨One set of float measuring accessories, ⑩One power transformer |
| Power supply of Electronic Densimeter | AC100V~240V 50HZ/60HZ |
| Weight/Dimensions | 4.5kg/42.5*17.5*32.5cm |

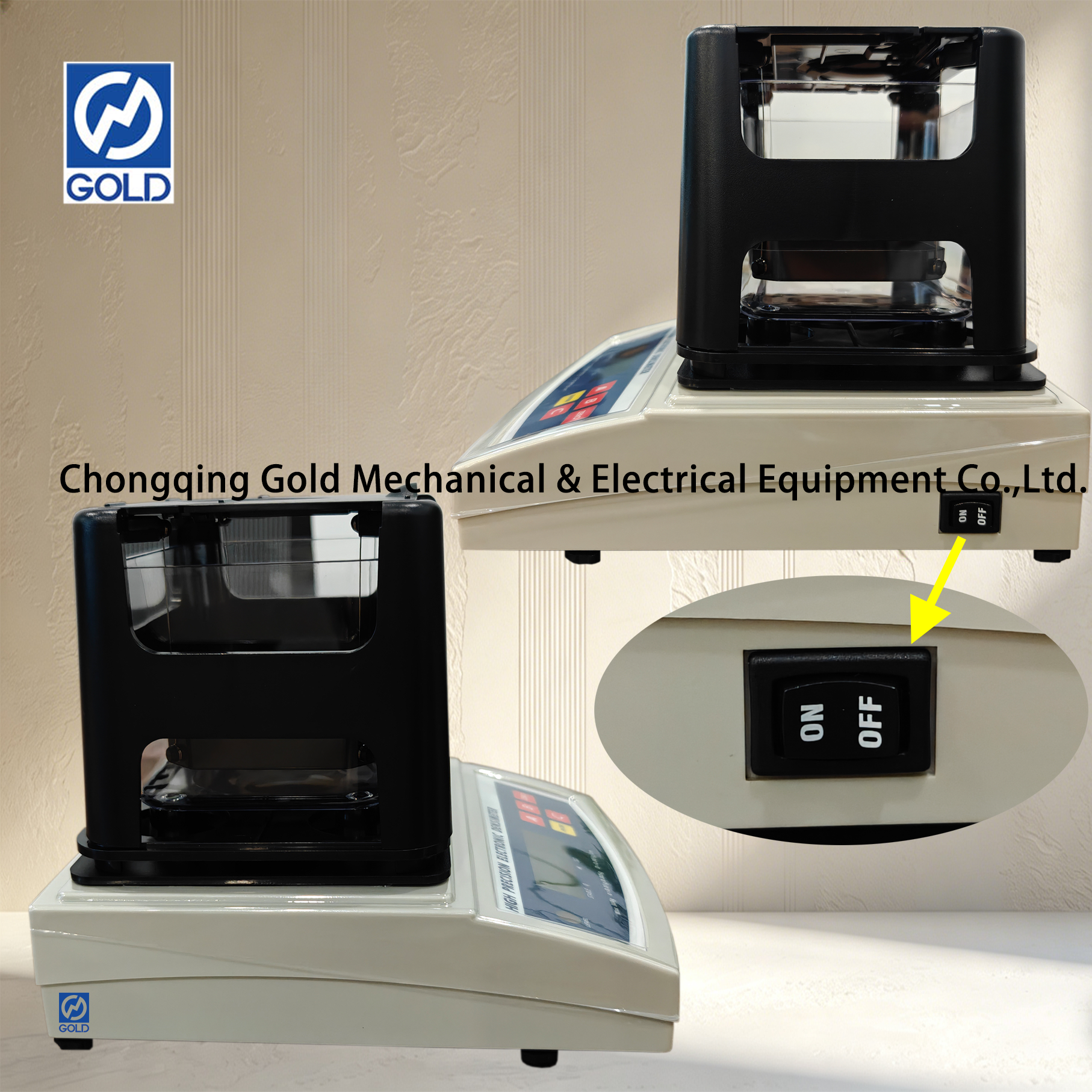

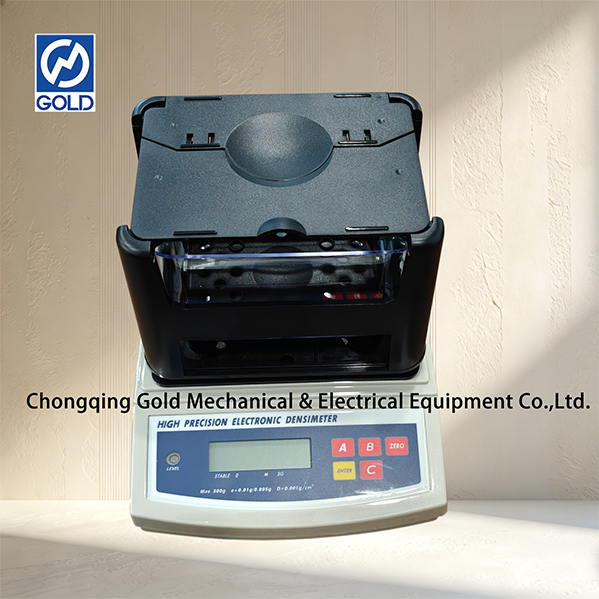

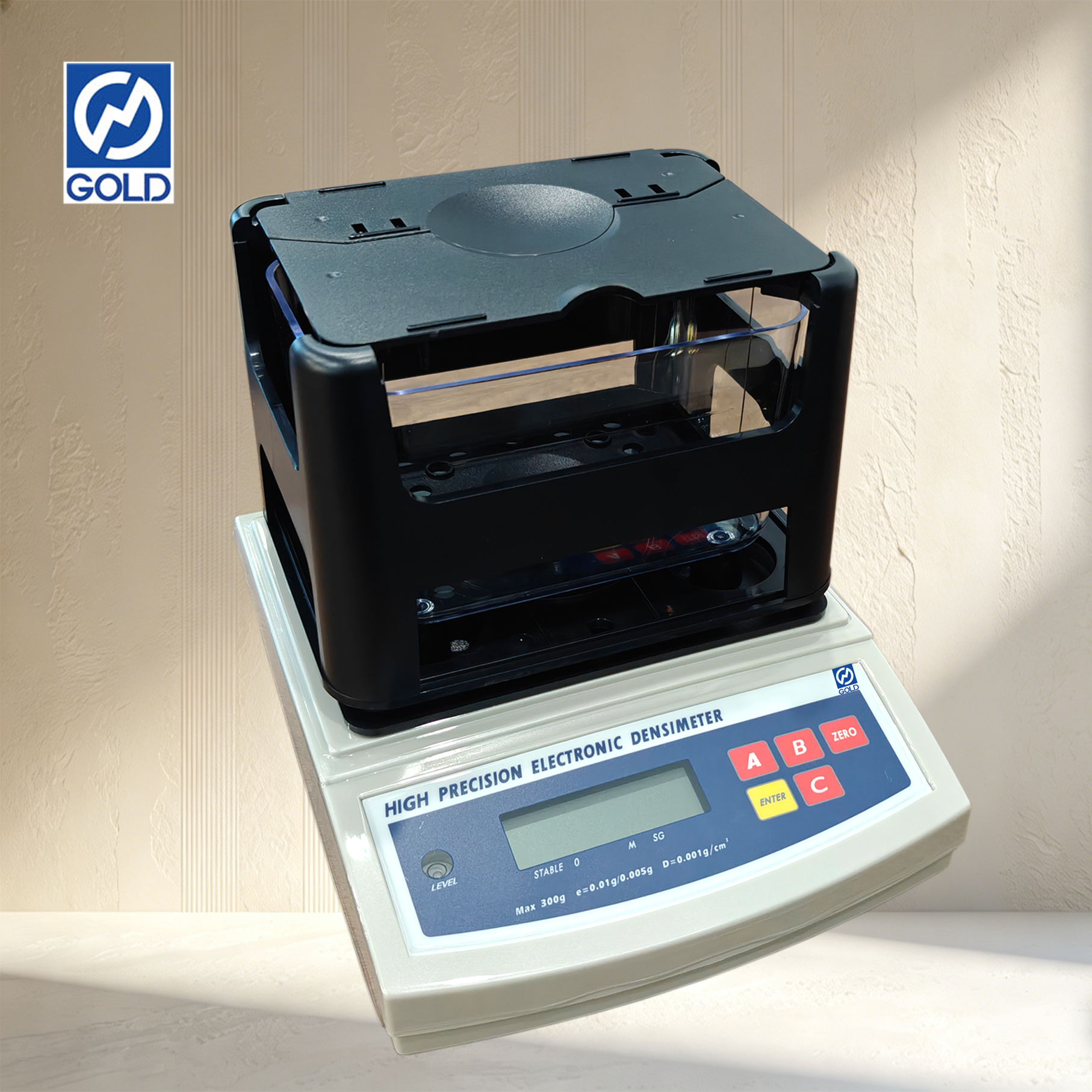

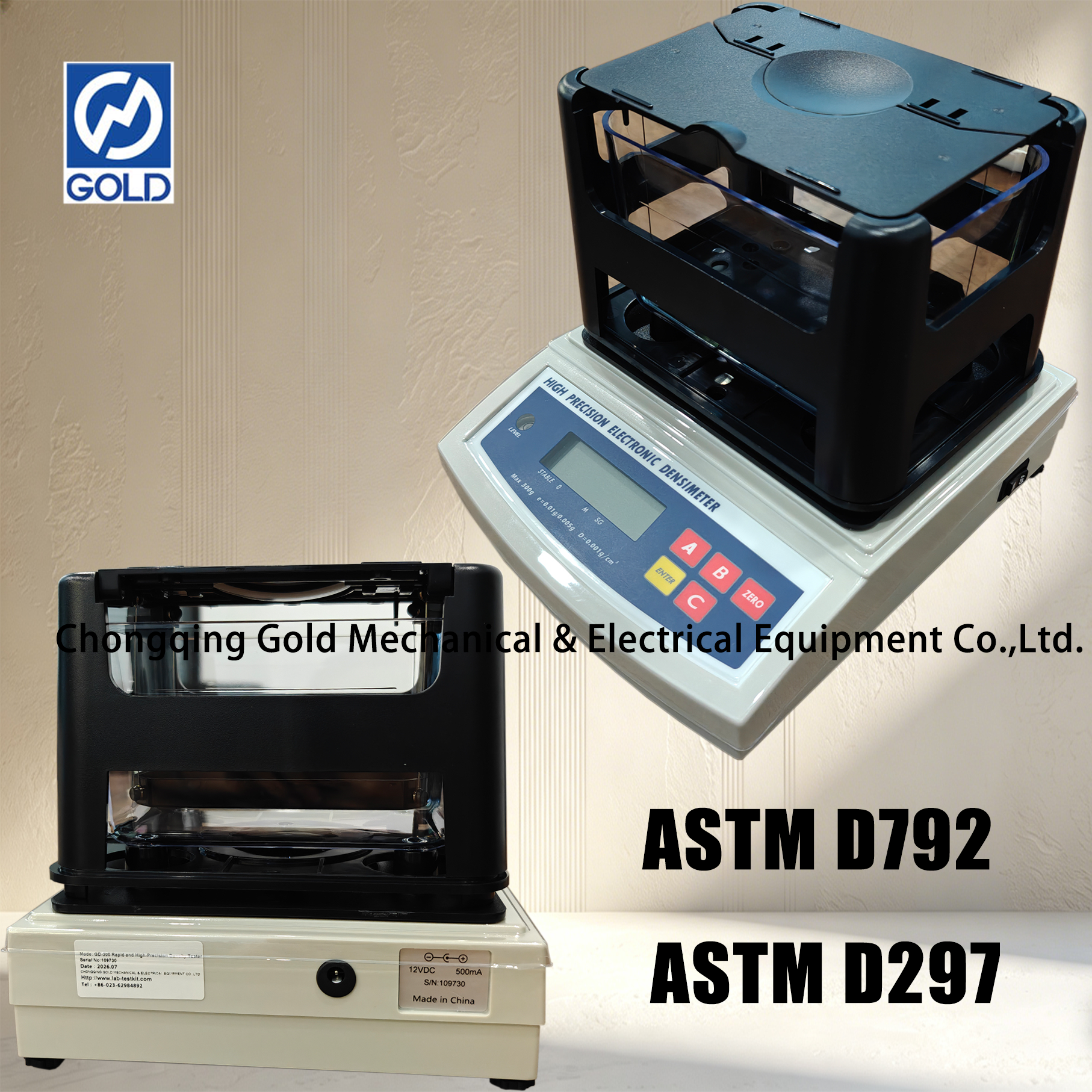

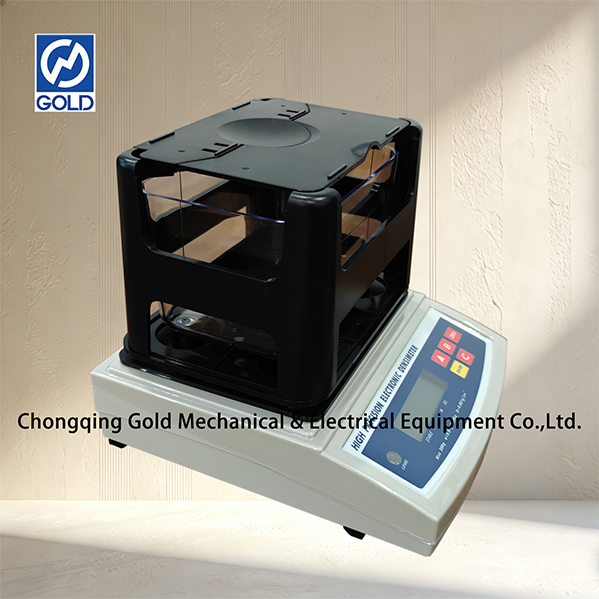

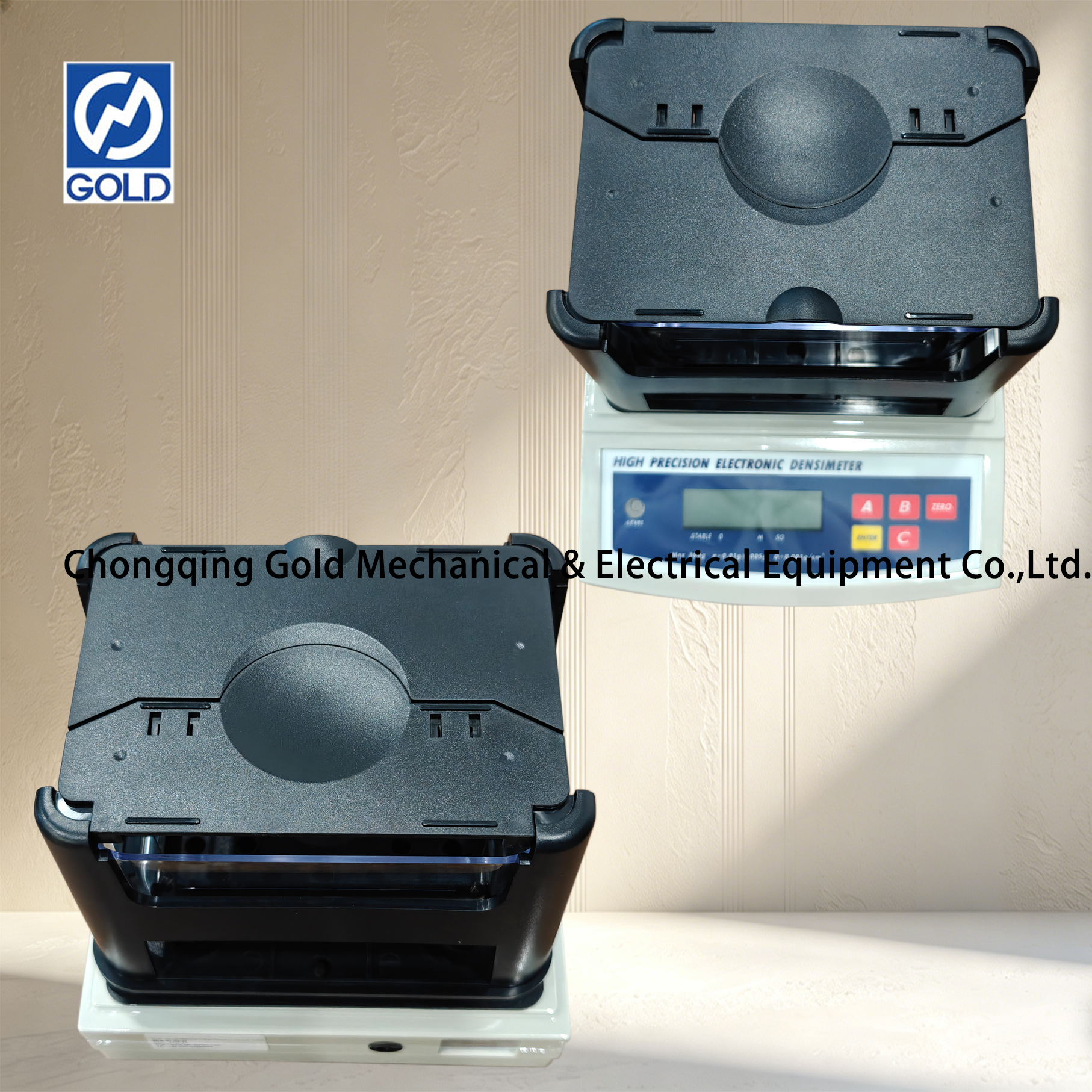

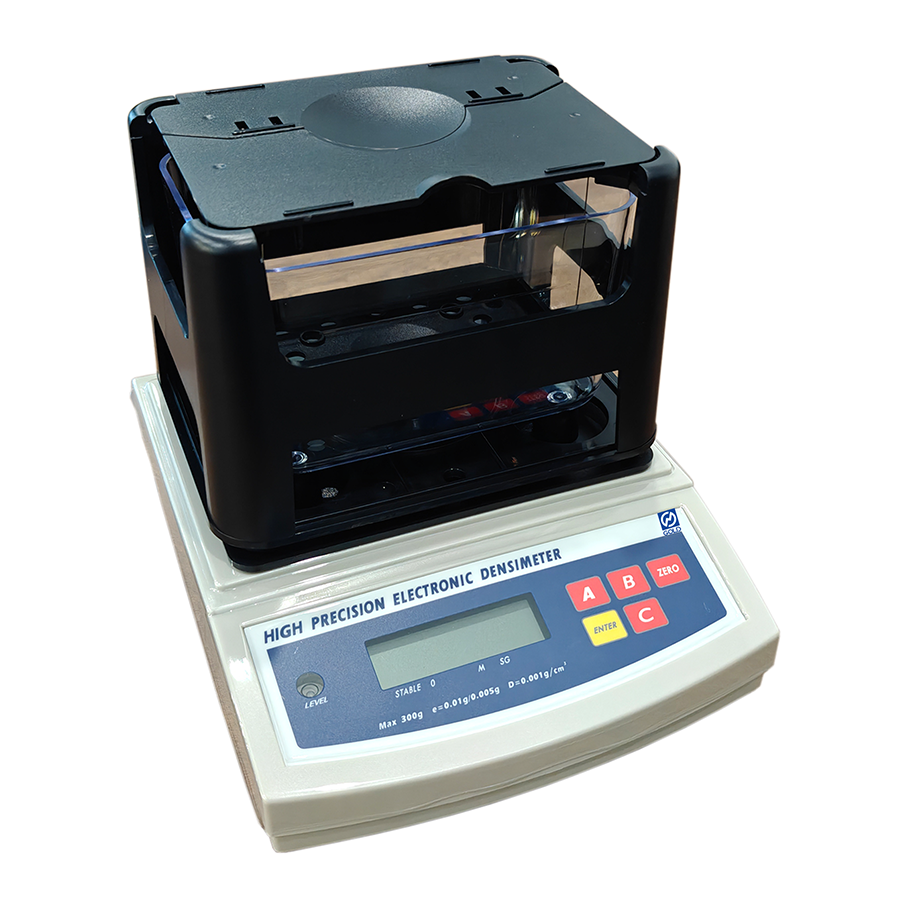

Product Details Display of Electronic Densimeter:
