Retort Kit
The retort provides a means for separating and measuring the
volumes of water, oil, and solids contained in a sample of drilling fluid. A known volume of sample is heated to vaporize
the liquid components which are then condensed and collected in
a graduated receiver tube. Liquid volumes are determined from
reading the oil and water phases on the graduated cylinder.
The total volume of solids, both suspended and dissolved, is
obtained by noting the difference of the total sample volume
versus the final liquid volume collected. Calculations are
necessary to determine the volume of suspended solids since any
dissolved solids will be retained in the retort. Relative volumes
of low-gravity solids and weight materials may also be
calculated.
Features:
-
Retorts are electrically heated and thermostatically controlled to shut off at 932℉ (500 ℃). These retorts operate on either 220V, 50/60Hz.
-
Retort models have 1000 watts of power.
-

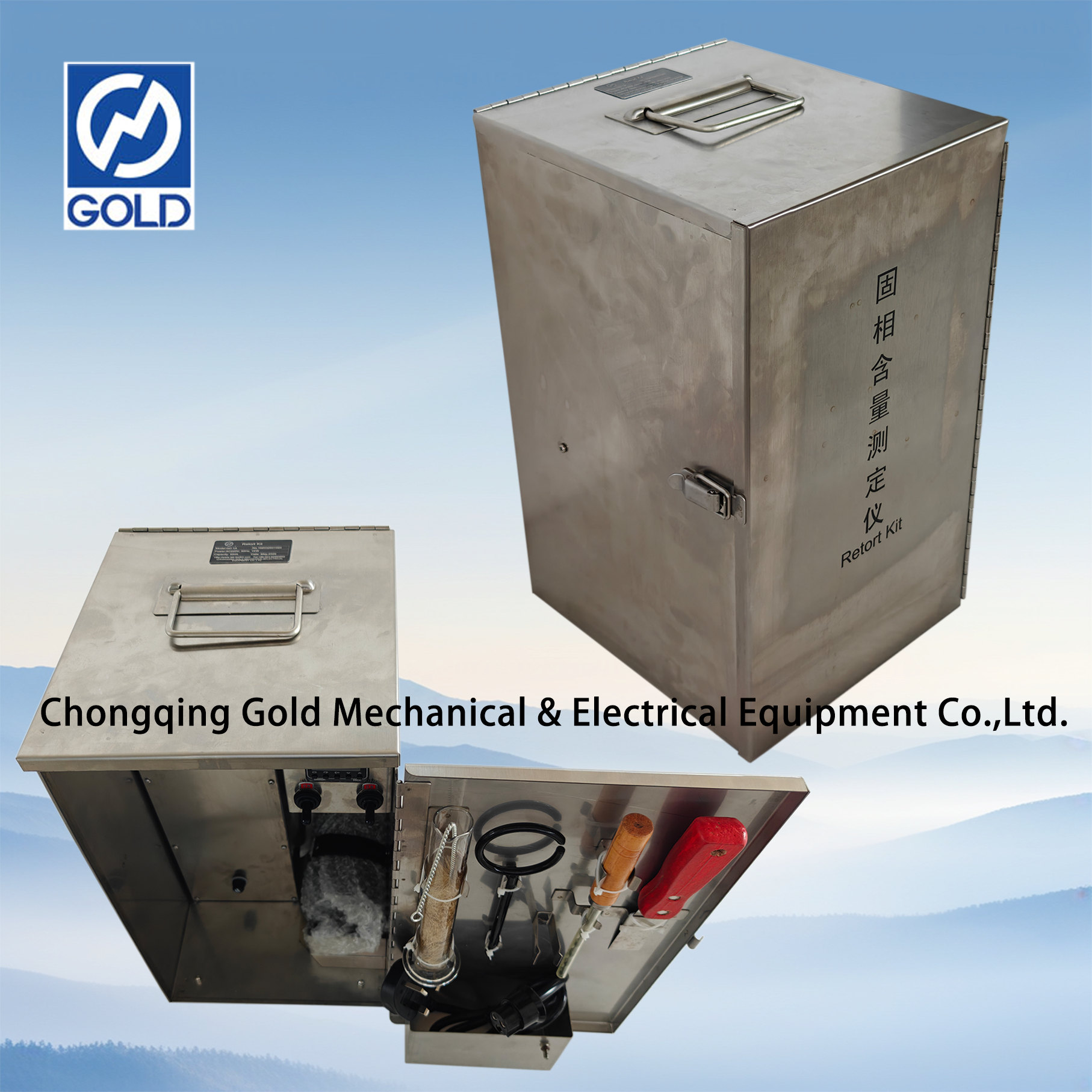

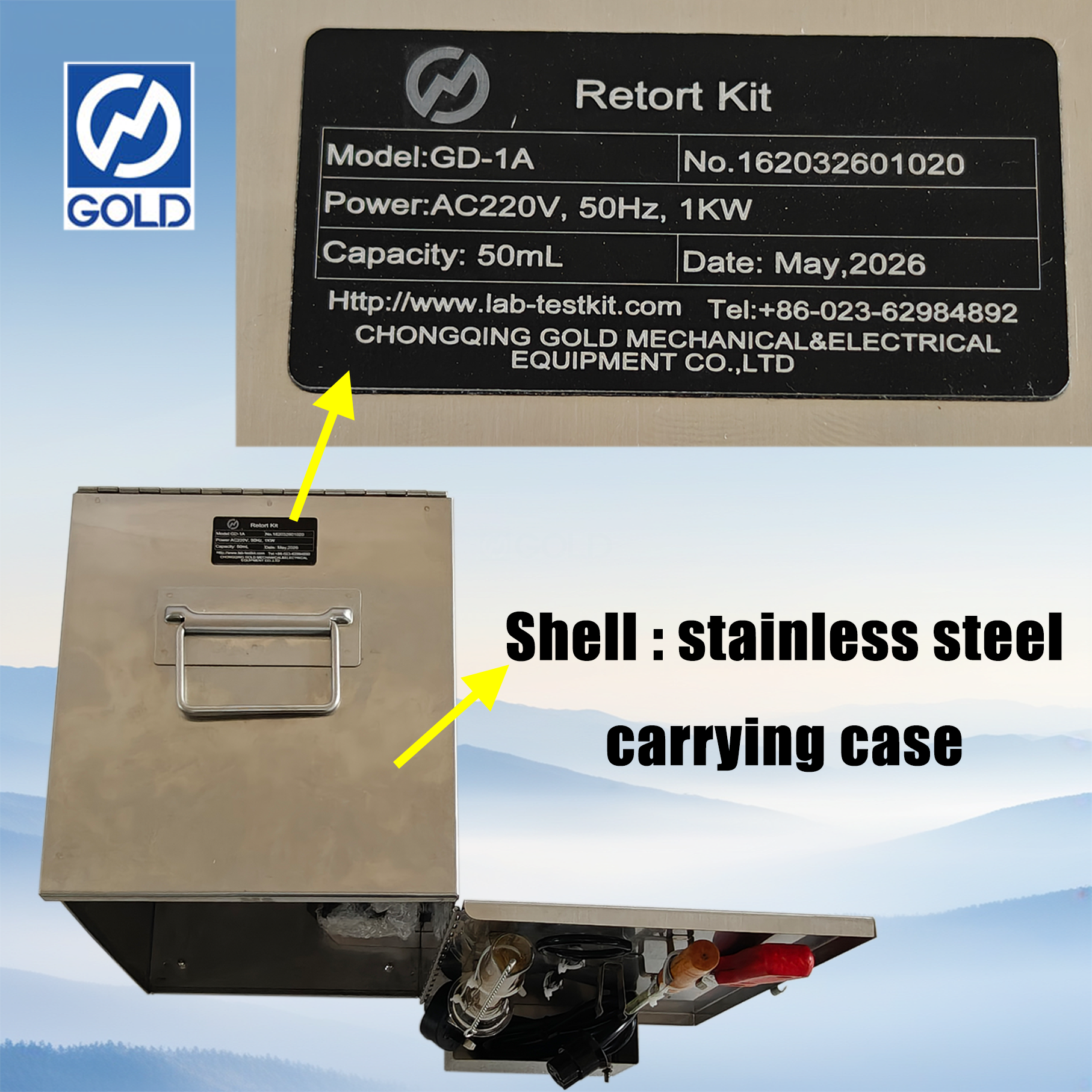

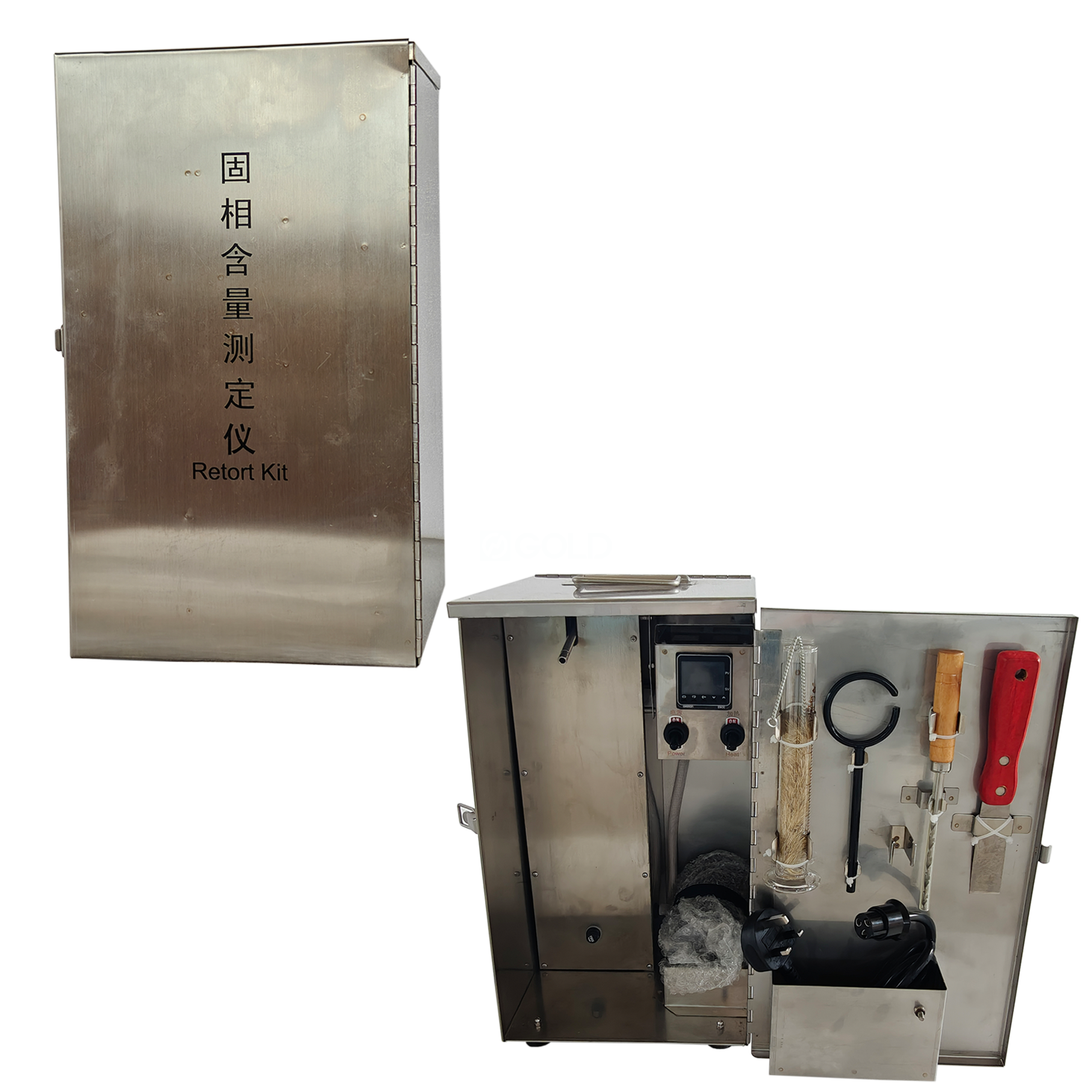

The retort is packaged in a stainless steel carrying case.
-
The retort is composed of a 50 ml sample chamber that contains an upper boiling chamber and distillation tube, measuring lid and a condenser.

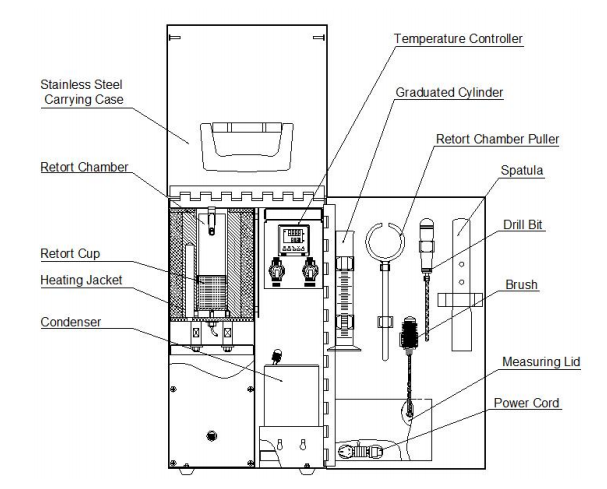

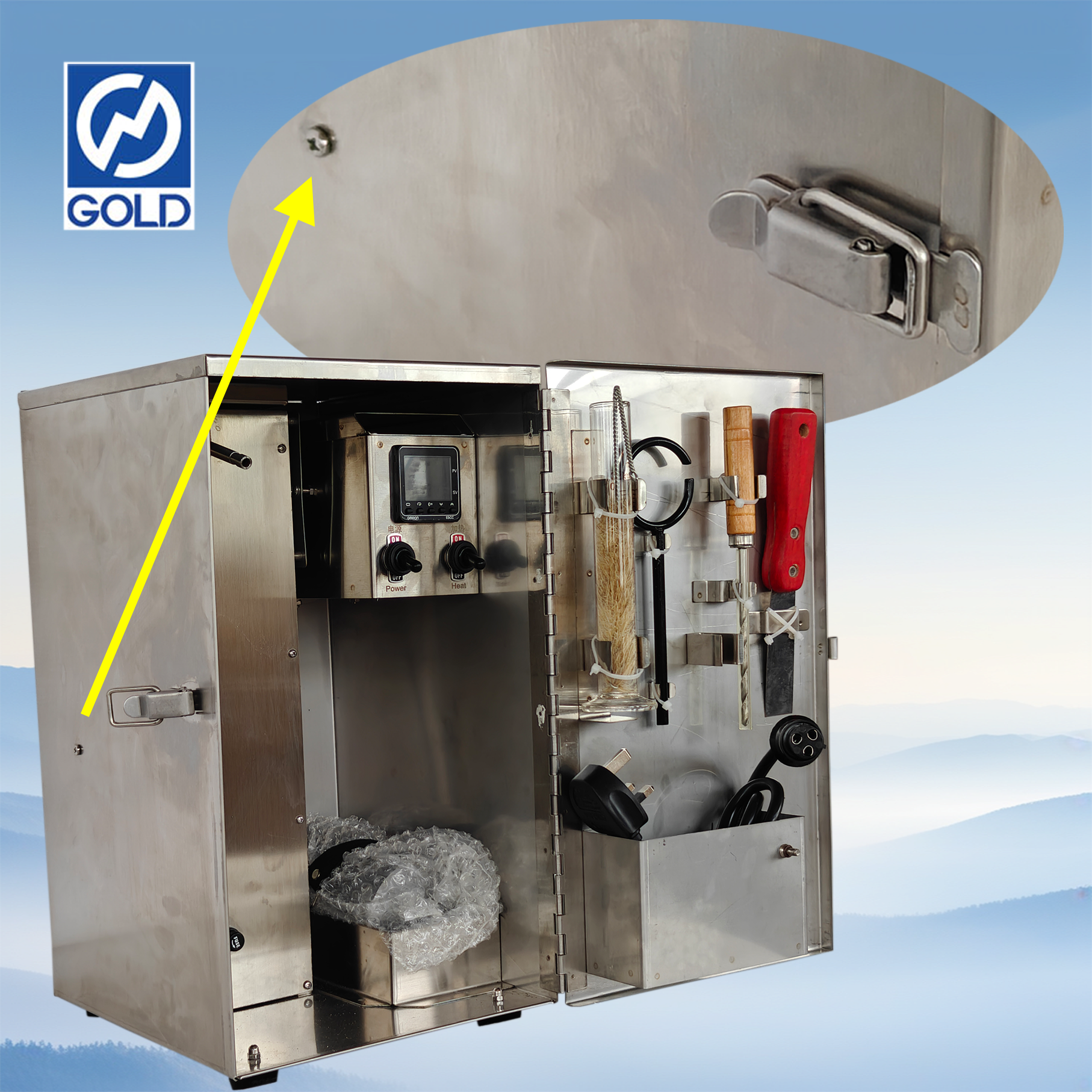

Structure:
Technical Parameter:
| Category | Specification |
| Power Requirements | AC(220±11)V 50/60Hz |
| 1000W |
| Maximum Temperature | 932℉ (500℃) |
| Capacity Of Graduated Cylinder | 50±0.5ml |
| Stainless Steel Case Dimensions | 240×260×400(mm) |
| Weight | 16.3 kg |

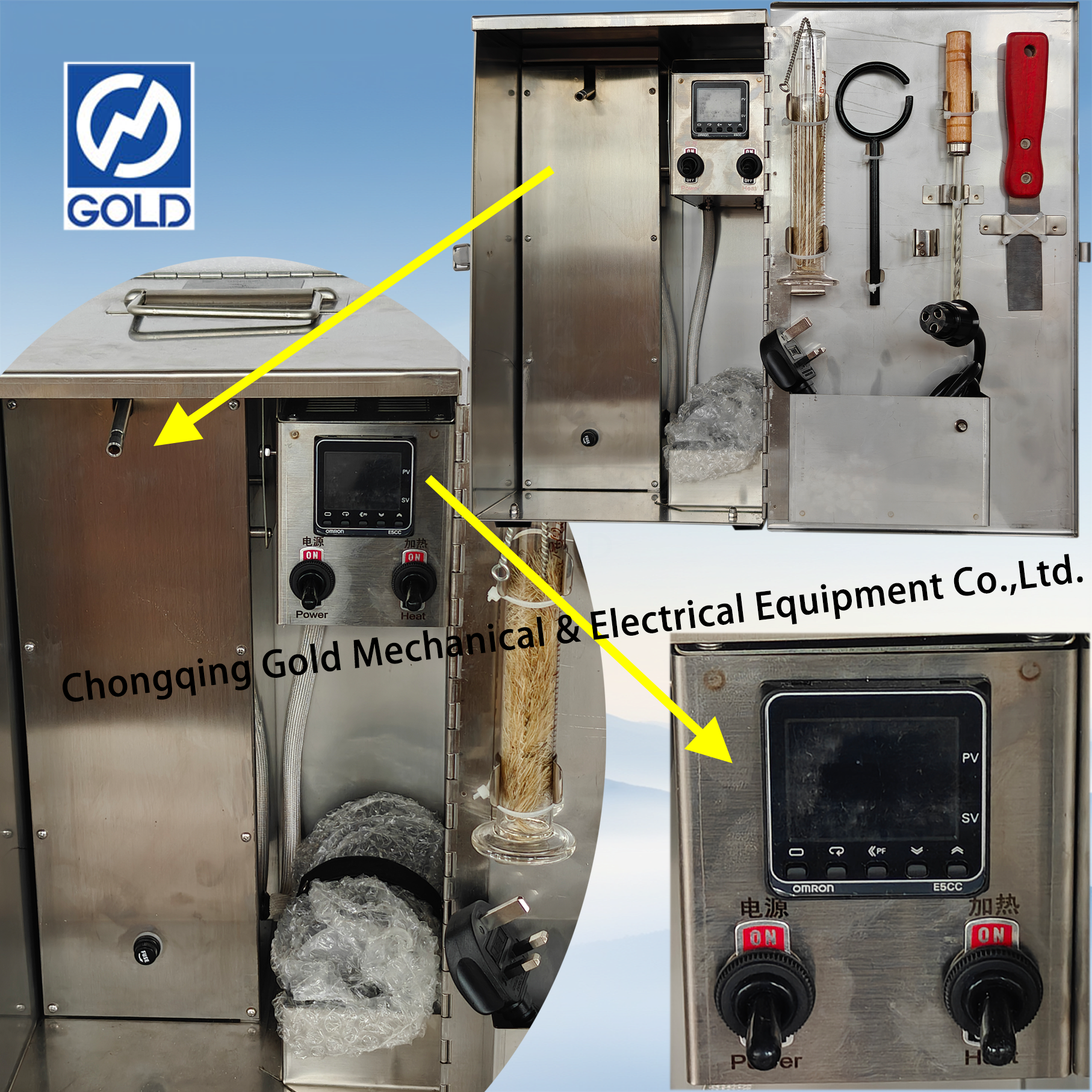

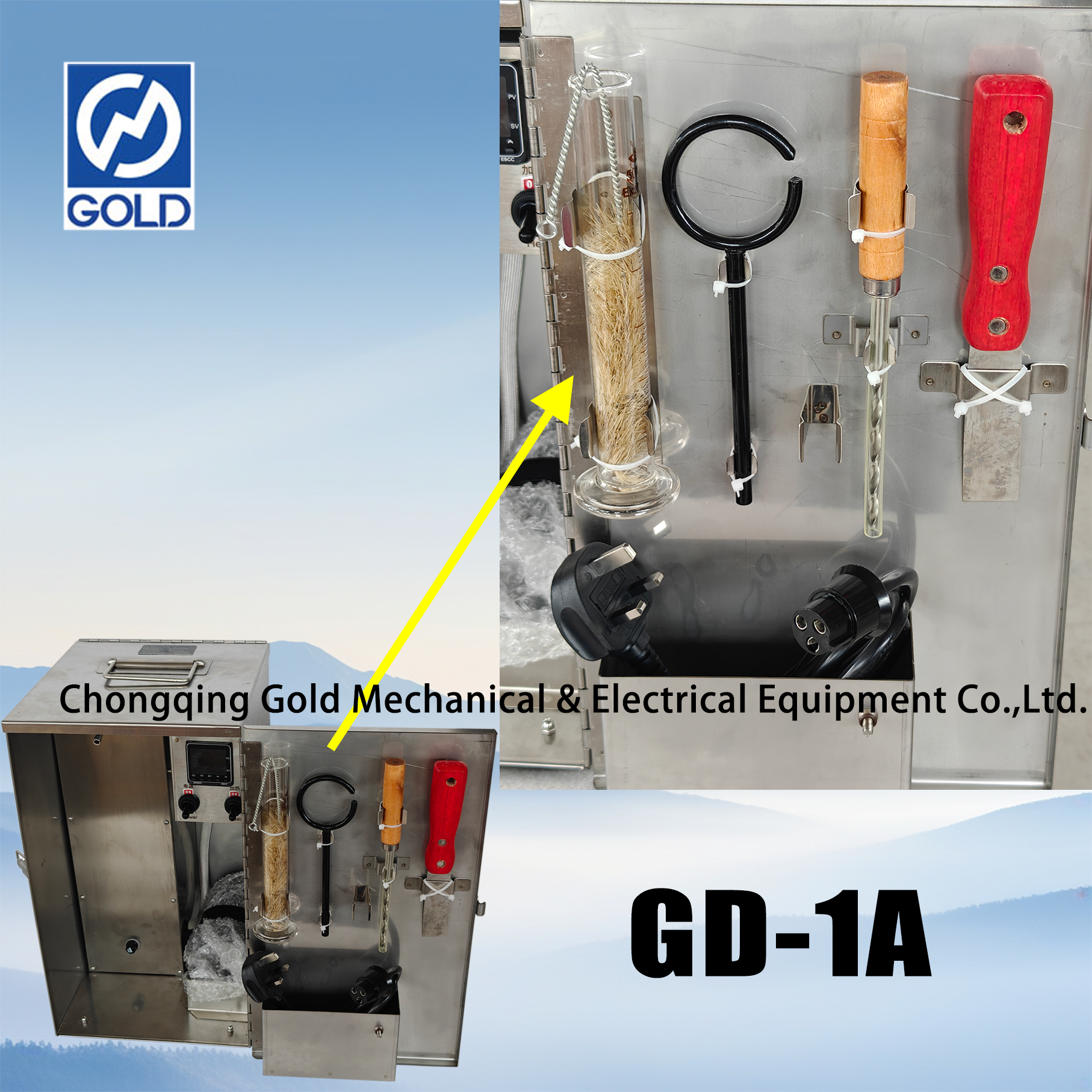

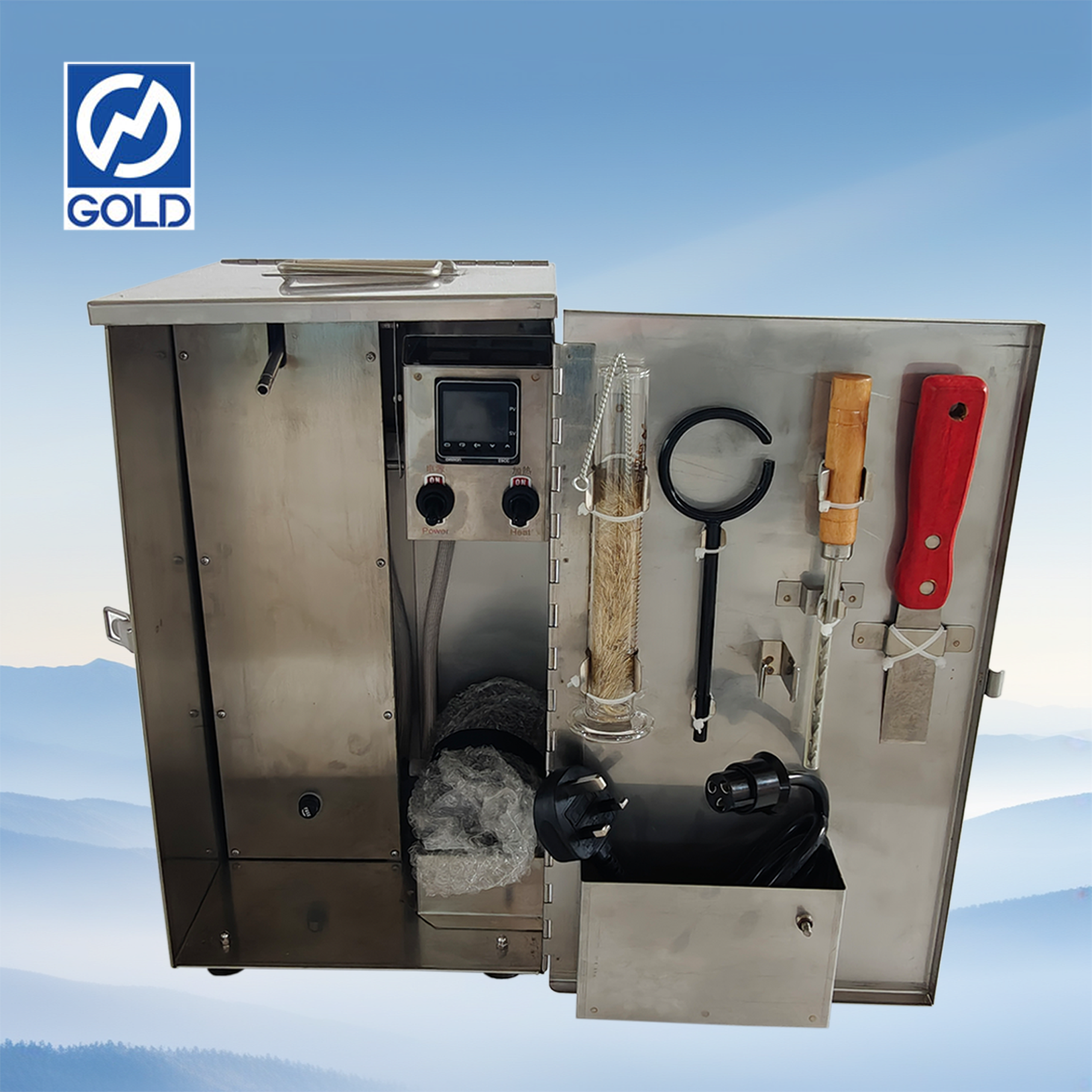

Product Details of Retort Kit:
