GD-RWD50
GOLD

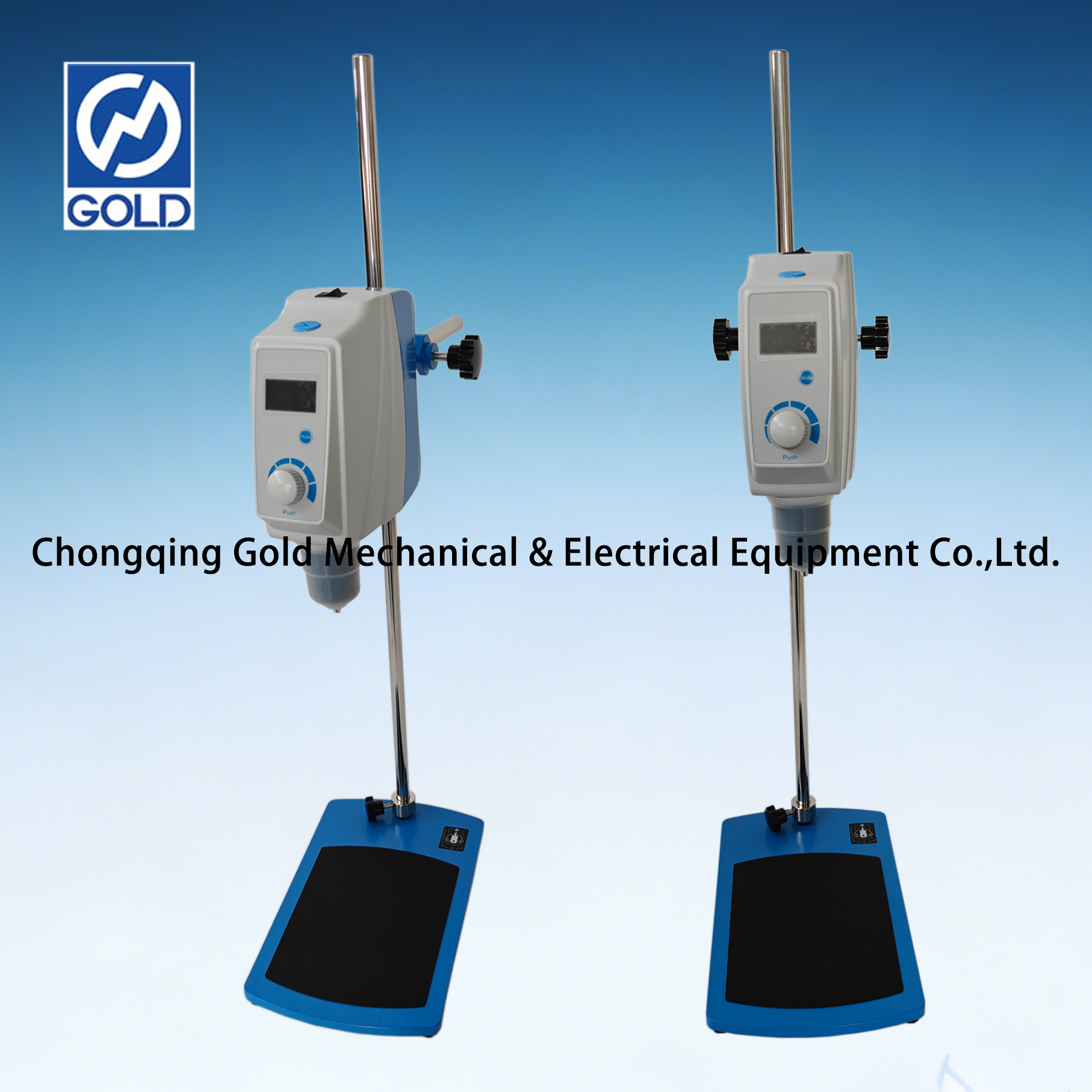

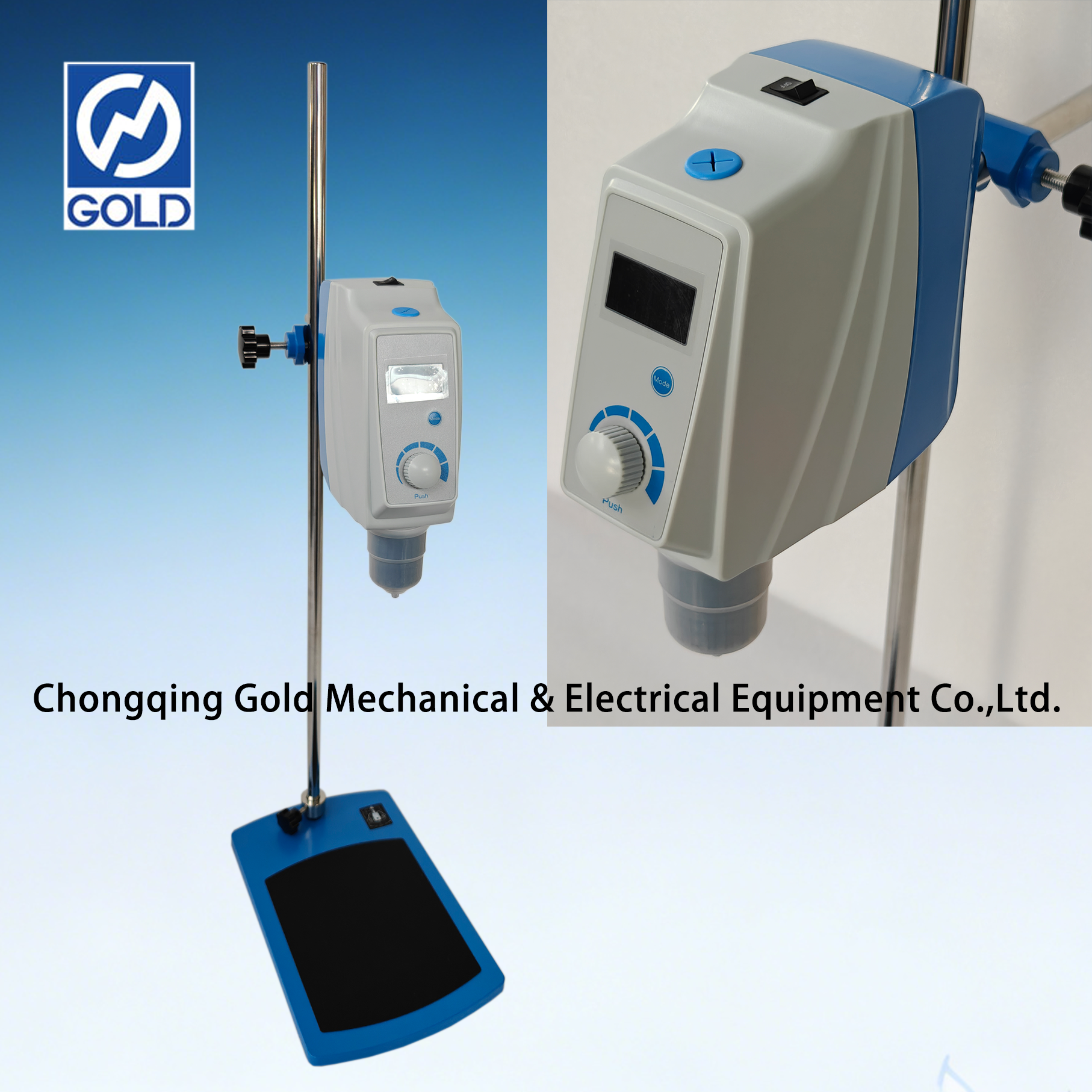

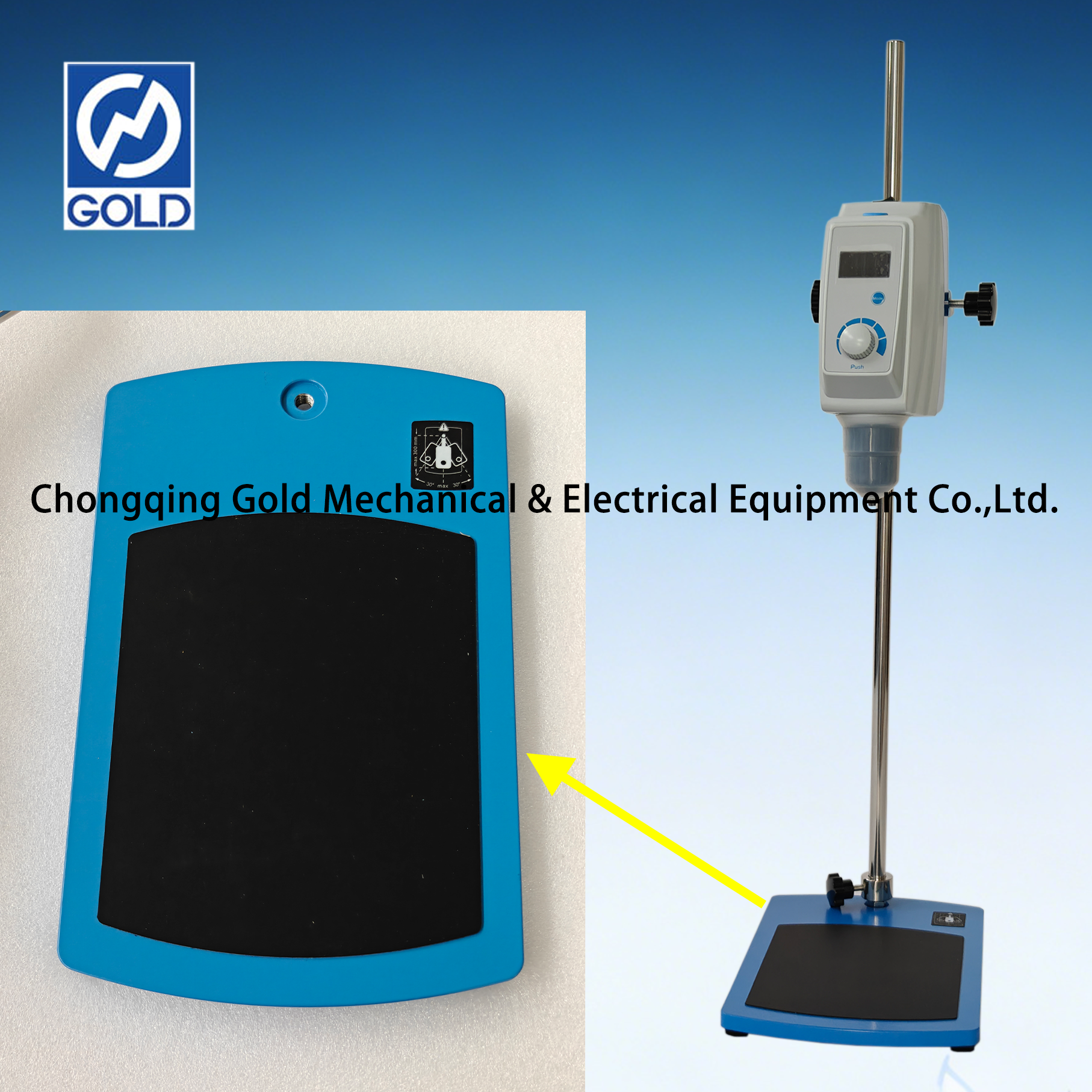

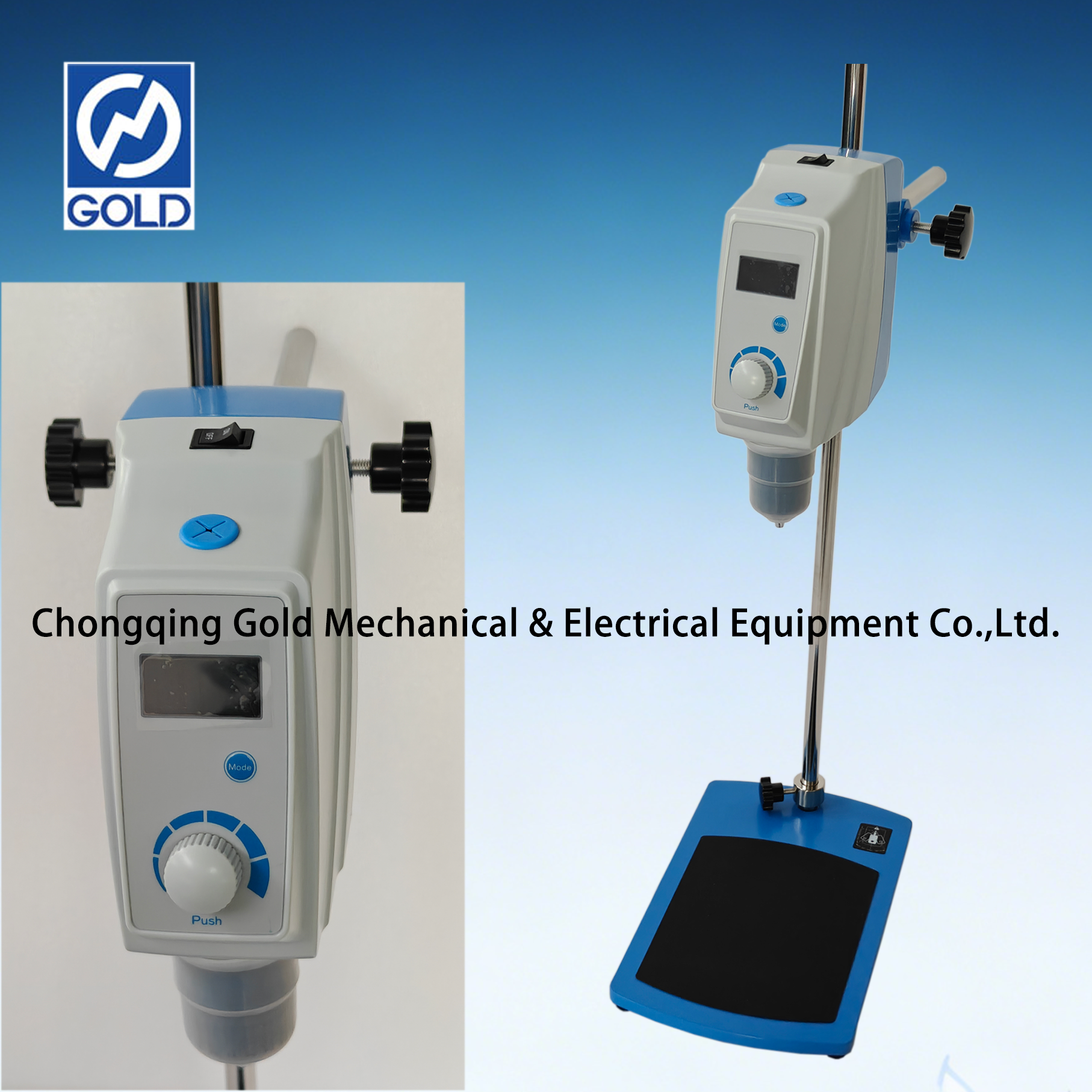

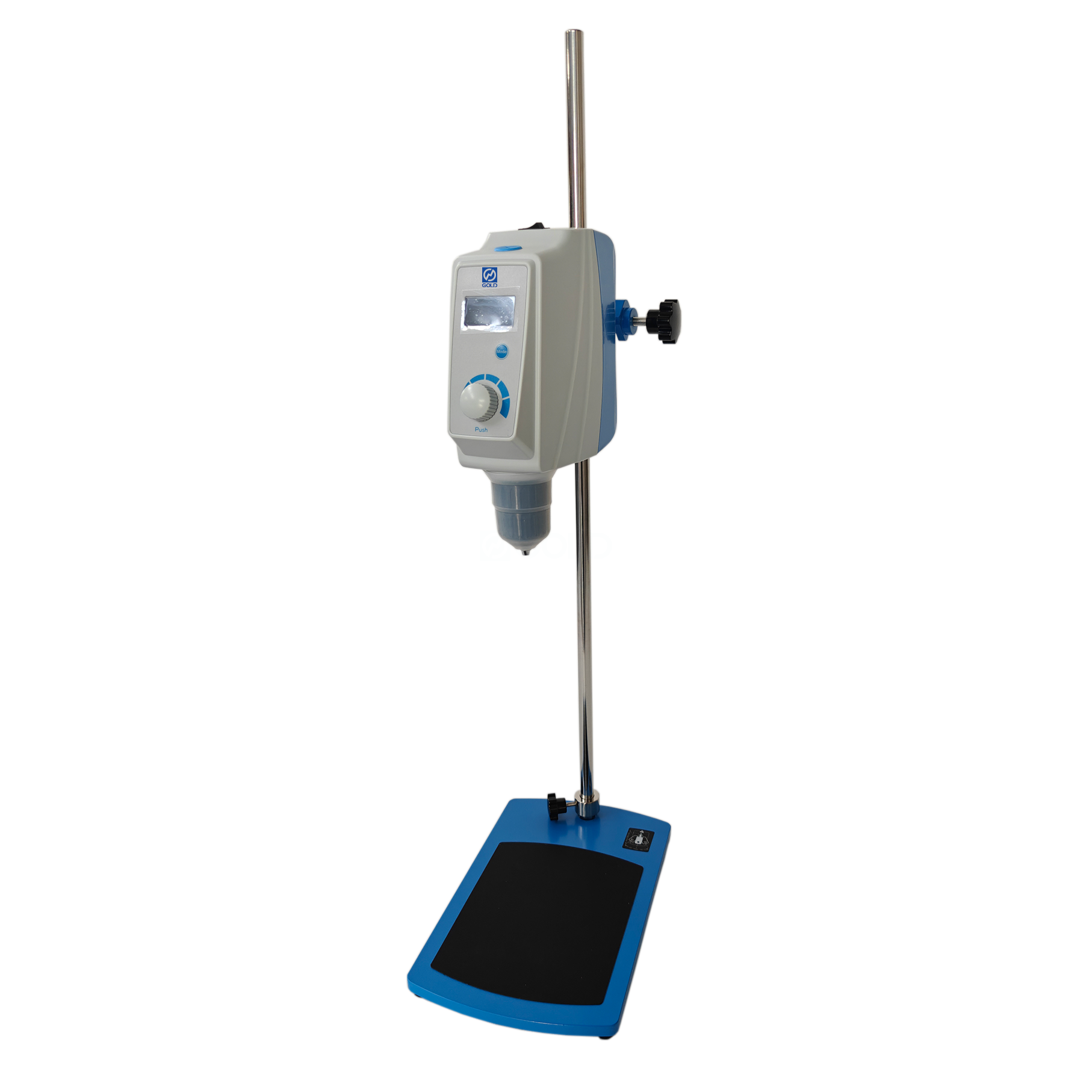

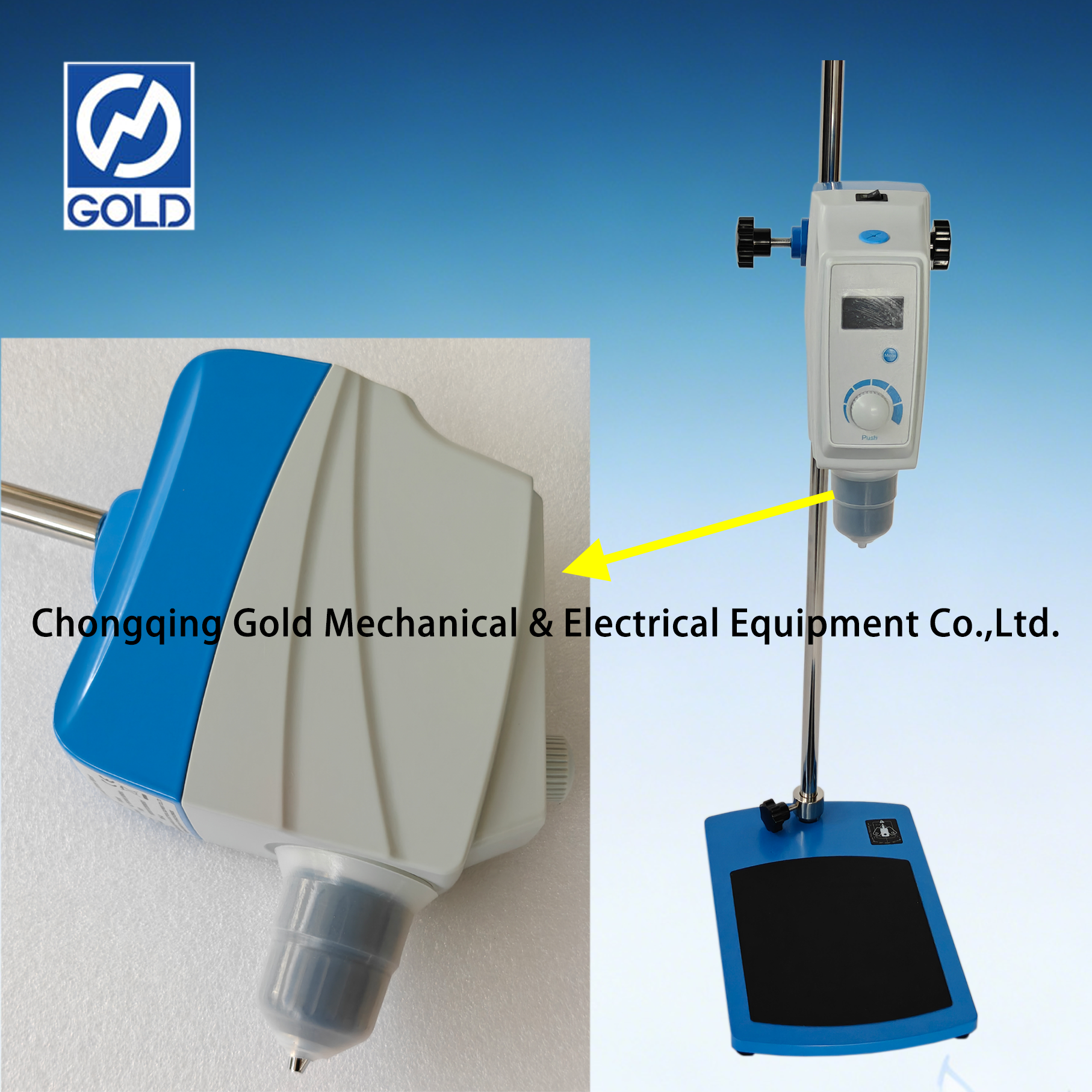

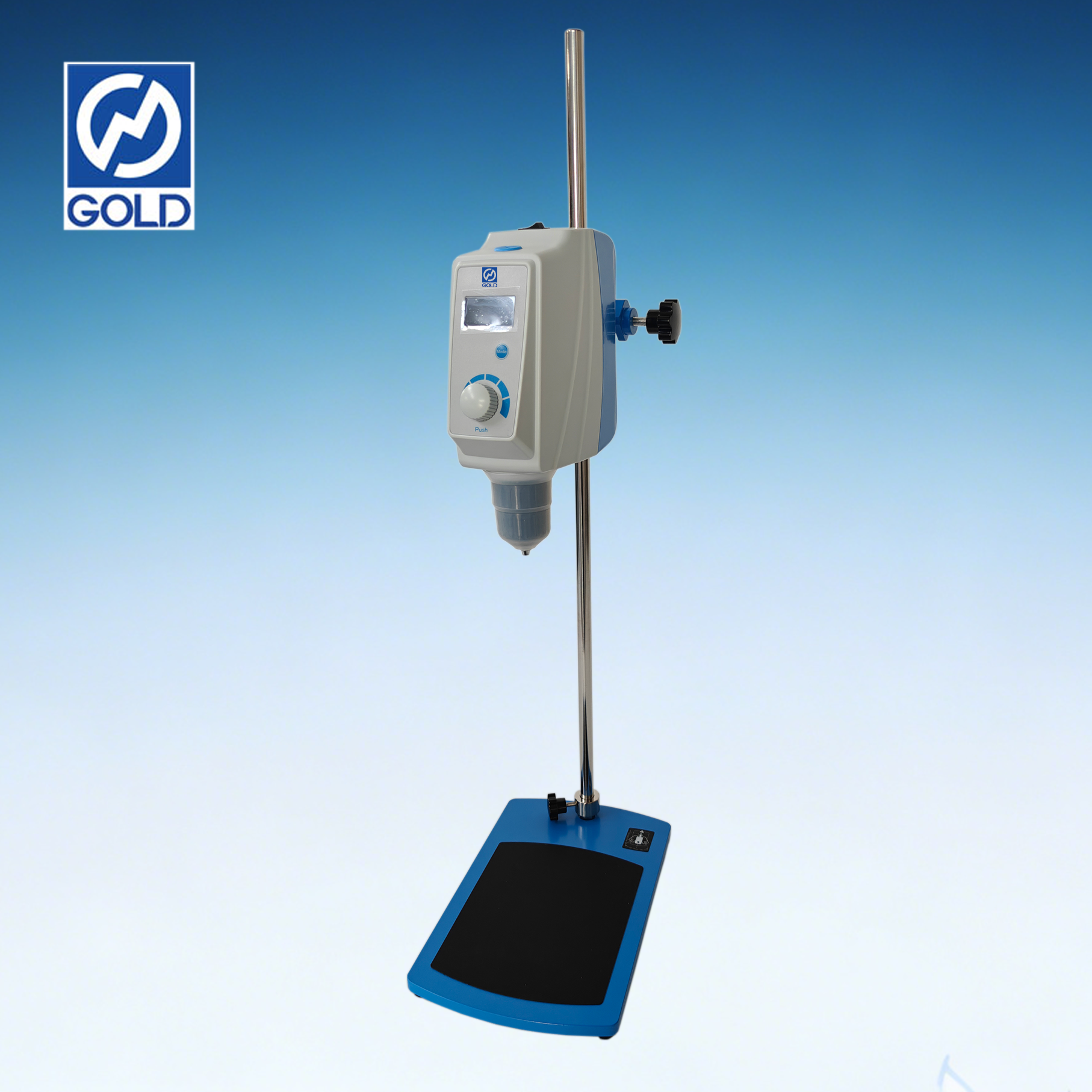

Overhead Electric Stirrer
The LCD Overhead Electric Stirrer features a self-locking chuck and is optionally available with a proprietary square lifting clamp .
Equipped with a large LCD screen and adjustable speed and timing settings, it is designed for mixing solid-liquid or liquid-liquid samples, as well as medium-to-high viscosity materials. It is primarily used in fields such as scientific research, pharmaceuticals, chemicals, petrochemicals, cosmetics, food processing, and biotechnology.
Features:
The Overhead Electric Stirrer adopts an LCD screen display, and the speed and time can be roughly adjusted. The working time can also be fine tuned during operation;
Speed 30-2200rpm, can maintain a constant speed, with controllable high and low speeds;
The Overhead Electric Stirrer adopts a DC brushless motor, which can operate safely for a long time and has outstanding performance;
Equipped with overload and motor protection, in case of overload, short circuit or abnormality, the circuit will be automatically cut off and an alarm will be triggered to ensure experimental safety;
The Overhead Electric Stirrer is equipped with a stirring blade penetration hole, and users do not need to adjust the installation height of the instrument, only the installation position of the stirring rod is needed;
The torque can be automatically adjusted according to the viscosity changes of the sample, making experimental operations convenient;
There are various types of stirring blades and supports available for the instrument.
Technical Parameters：
| Adapter Input Voltage (V) | 100–240 |
| Adapter Output Voltage (V) | 24 |
| Frequency (Hz) | 50–60 |
| Max .Stirring Capacity (L) | 20 |
| Speed Range (rpm) | 30–2200 |
| Speed Display of Overhead Electric Stirrer | LCD |
| Speed Accuracy (rpm) | ±1 |
| Speed Adjustment Mode | Coarse +fine adjustment |
| Timer Range (min) | 1–9999 |
| Time Display | LCD |
| Max .Torque (N·cm) | 40 |
| Max .Viscosity (mPa·s) | 10000 |
| Input Power (W) | 60 |
| Output Power (W) | 50 |
| Protection Class | IP42 |
| Motor Protection | Automatic stop with fault display |
| Safety Protection | Chuck protective cover +anti-slip pad |
Product Details Display of Overhead Electric Stirrer:
