GD-LPC-P50
GOLD
Features:
The liquid particle counter adopts the principle of light blocking method and uses high-precision laser sensors, with small size, high accuracy, and stable performance
The particle counter is suitable for laboratory or on-site testing, and can also be equipped with a pressure reducing device for online high-pressure measurement, real-time monitoring of particle contamination in the oil system
External pressure chamber can form positive/negative pressure to achieve detection and sample degassing of high viscosity samples
Built in data analysis system, capable of displaying real data of particle size in each channel and automatically determining sample grade
The portable particle counter tubing is made of 316L and PTFE materials to meet the detection of various organic solvents and oils
The liquid particle counter has cleaning and backwashing modes, making it convenient for users to use and maintain the equipment
Built in particle pollution level standards such as ISO4406, NAS1638, SAE4059, GJB420A, GJB420A, GB/T14039, etc
The portable particle counter has a built-in calibration function and can be calibrated according to standards such as GB/T21540, ISO4402, GB/T18854, etc
Built in data analysis system, capable of automatically determining sample grade based on standards, with automatic data processing and printing functions
The portable particle counter is equipped with a built-in micro water sensor and temperature sensor
The liquid particle counter has printing and storage functions, a 10.2-inch large screen, and easy and fast operation
Ultra large storage, can be stored inside the instrument or on external storage devices
Embedded design, high-strength casing, easy to carry, suitable for various types of construction machinery
Technical Parameters:
| Light source | semiconductor laser |
| Offline detection speed | 5-60mL/min |
| Offline detection of sample viscosity | ≤ 100cSt (pressure chamber can be selected for high viscosity) |
| Online pressure detection | 0.1-0.6Mpa (optional pressure reducing device can reach a maximum pressure of 42Mpa) |
| Particle size range | 1-500 μ m |
| Interface | USB interface, power interface |
| Data storage | Provides 1000 sets of data storage space and supports USB storage |
| Sensitivity | 1 μ m or 4 μ m (c) |
| Overlapping error limit | 40000 particles/ml |
| Counting volume | 1-999ml |
| Counting accuracy | error less than ± 10% |
| Protection level | IP67 |
| Test interval | 1-24 hours |
| Test sample temperature | 0-80 ℃ |
| Water activity reference value | 0-1aw (± 0.03aw) |
| Water content | 1-360ppm (± 10%) |
| Working temperature | -20-60 ℃ |
| Charging | DC12.6V AC100~240V |
| Weight | 5.5kg |
| Screen size | 10.2 inches |
| Battery capacity | 8000mAh |
| Volume | 365 × 295 × 170mm |

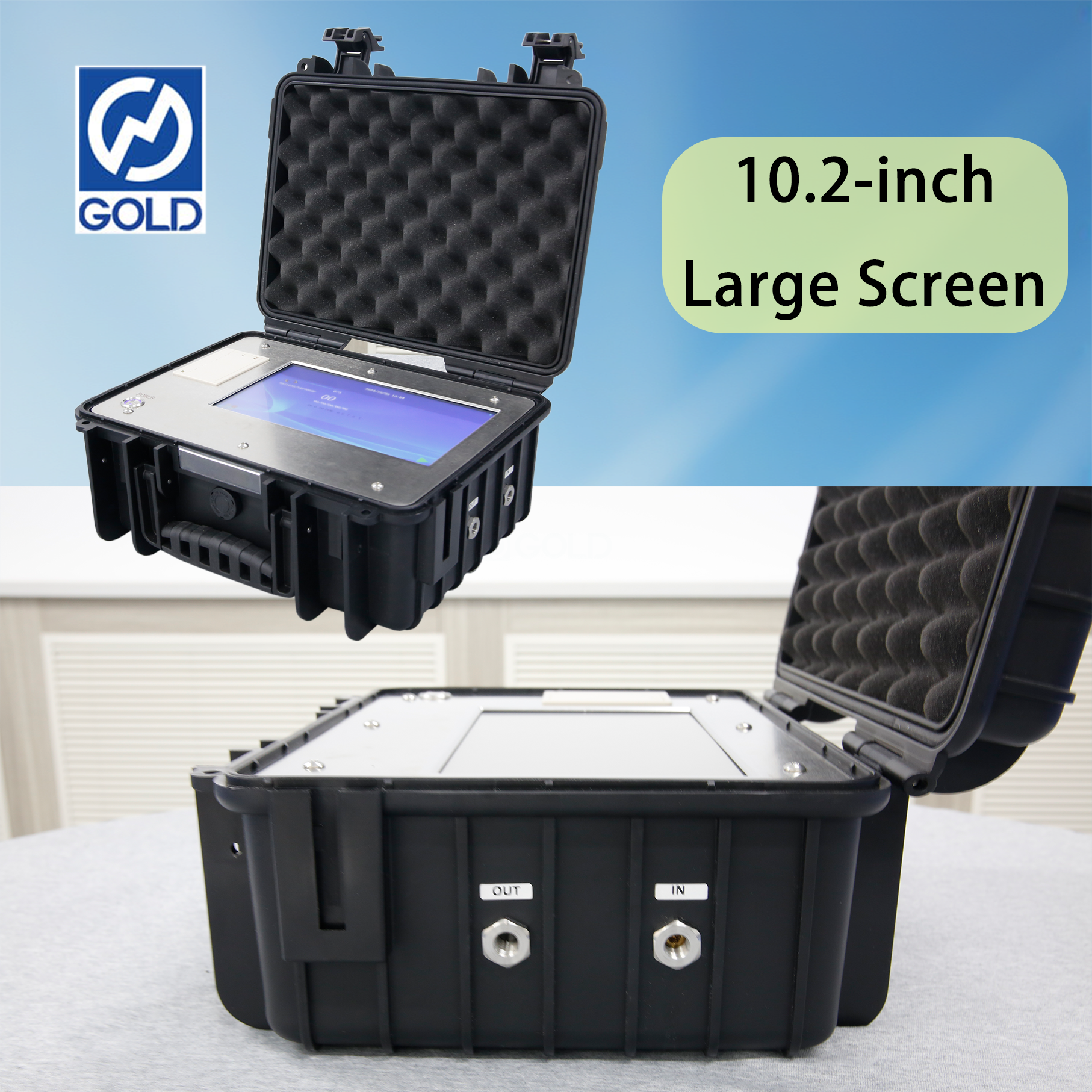

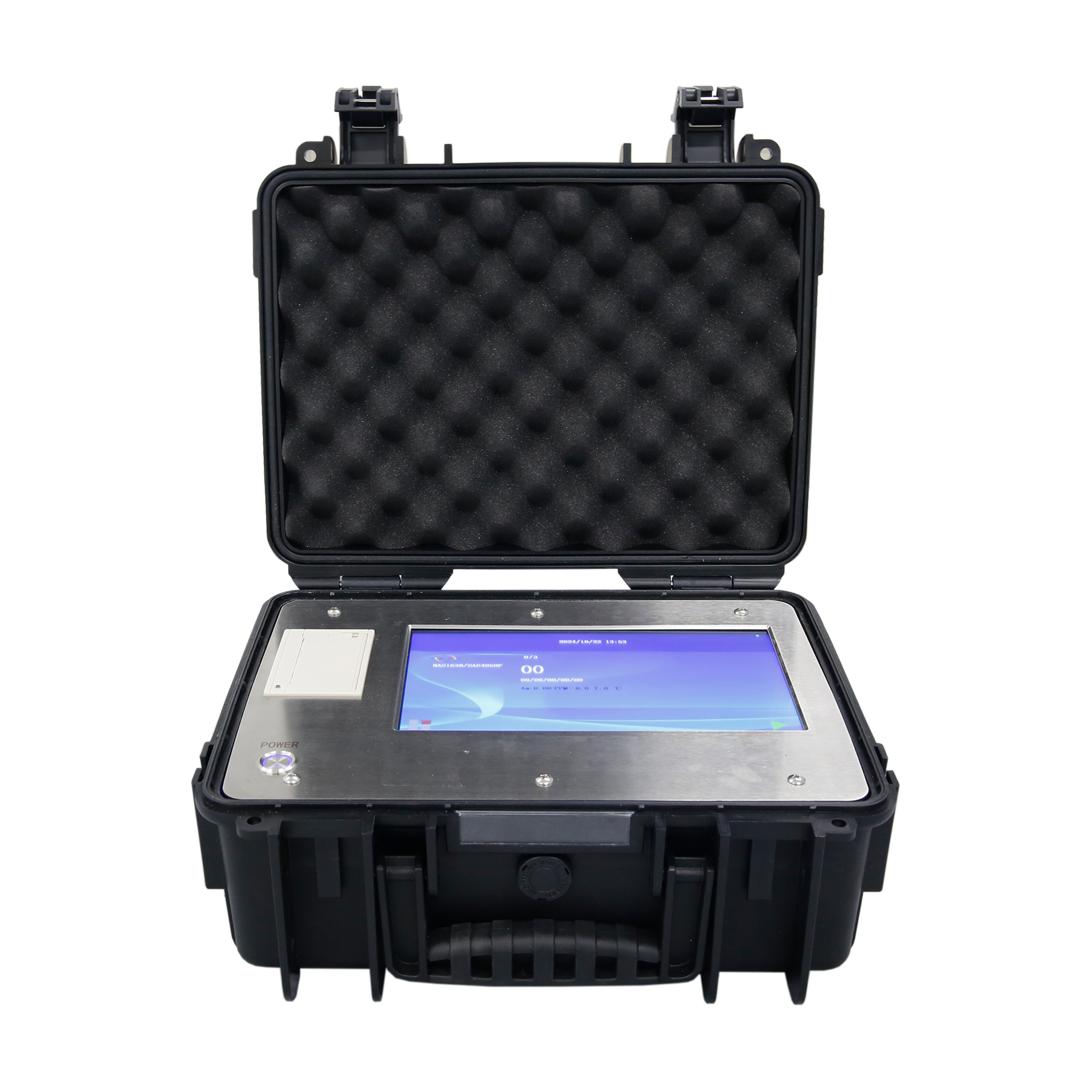

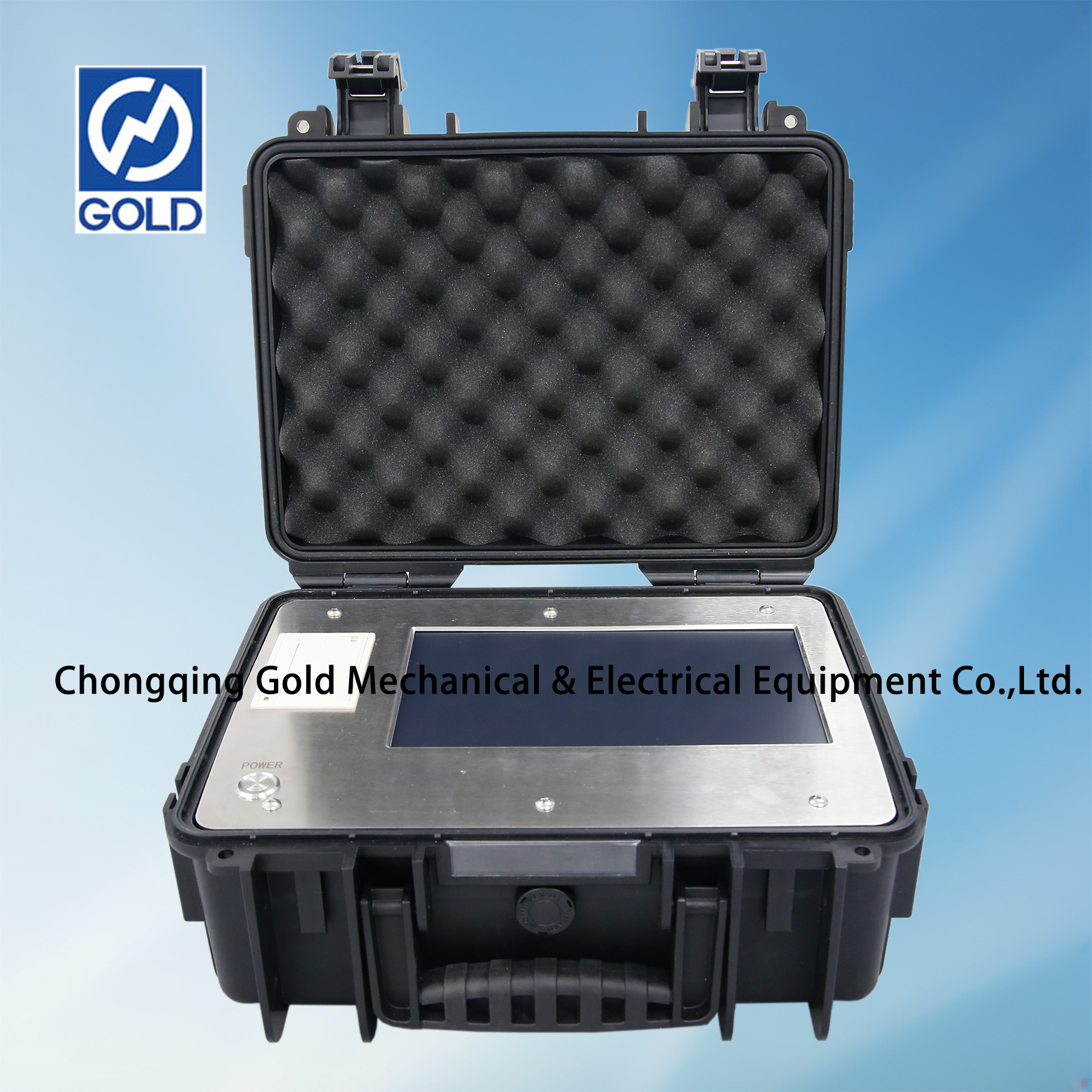

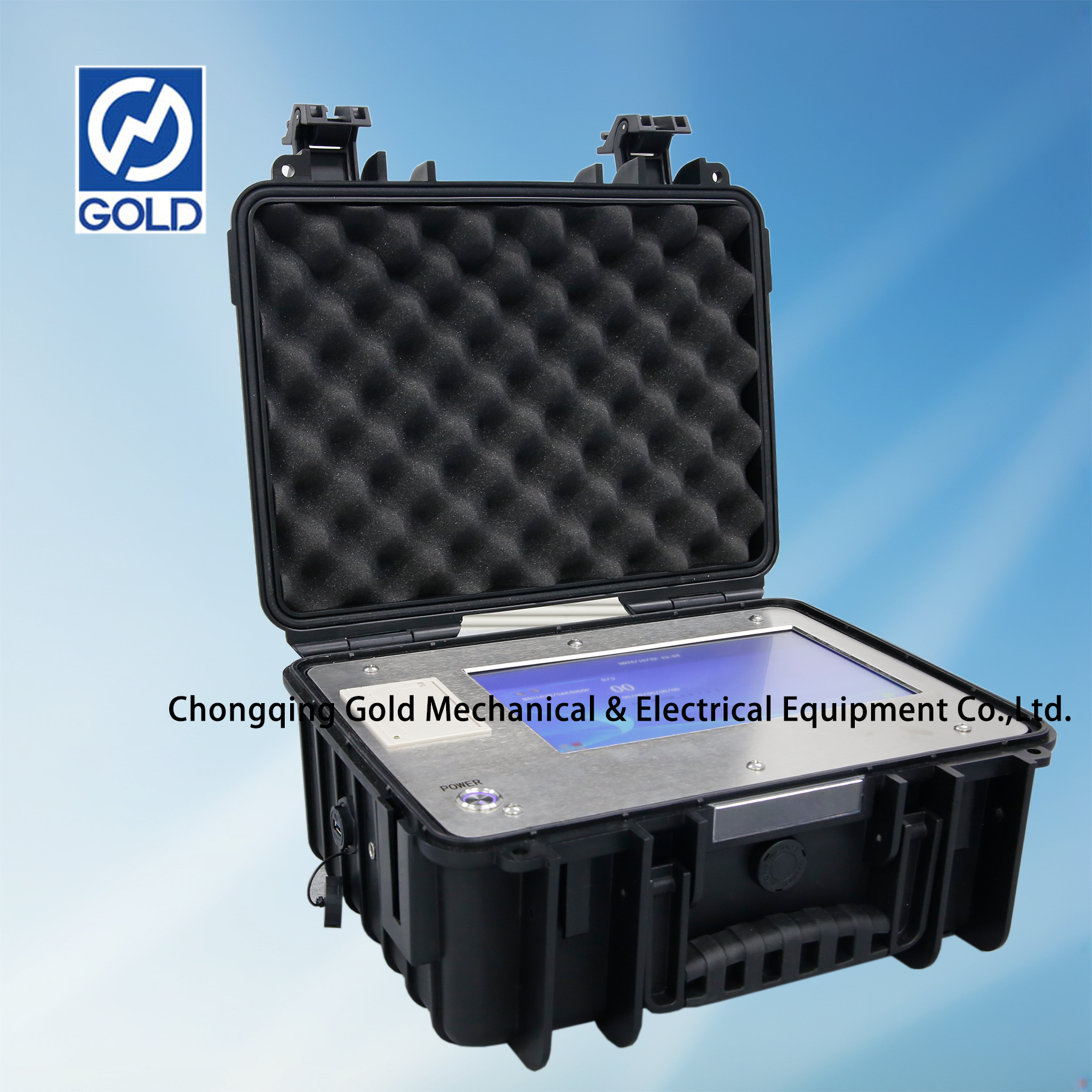

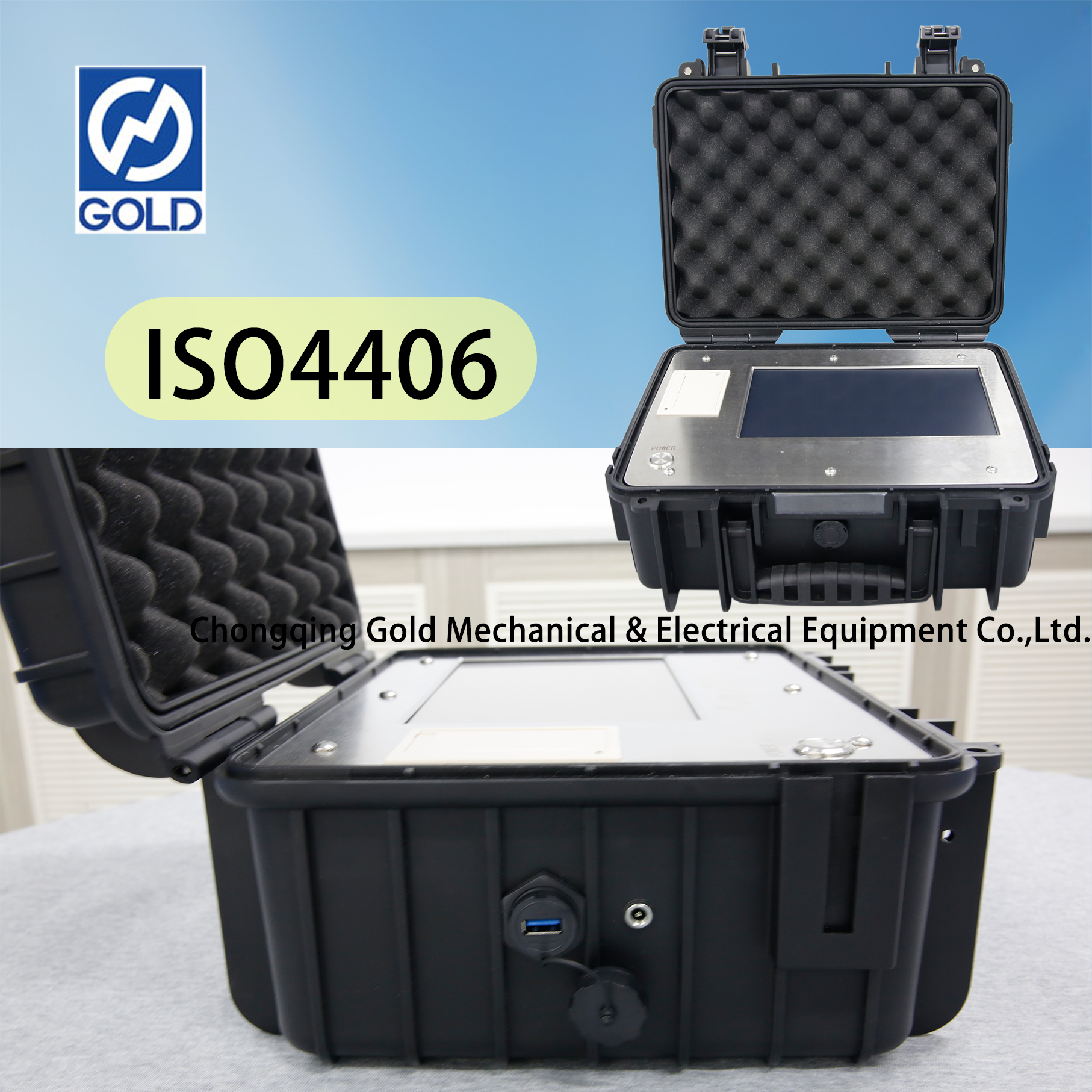

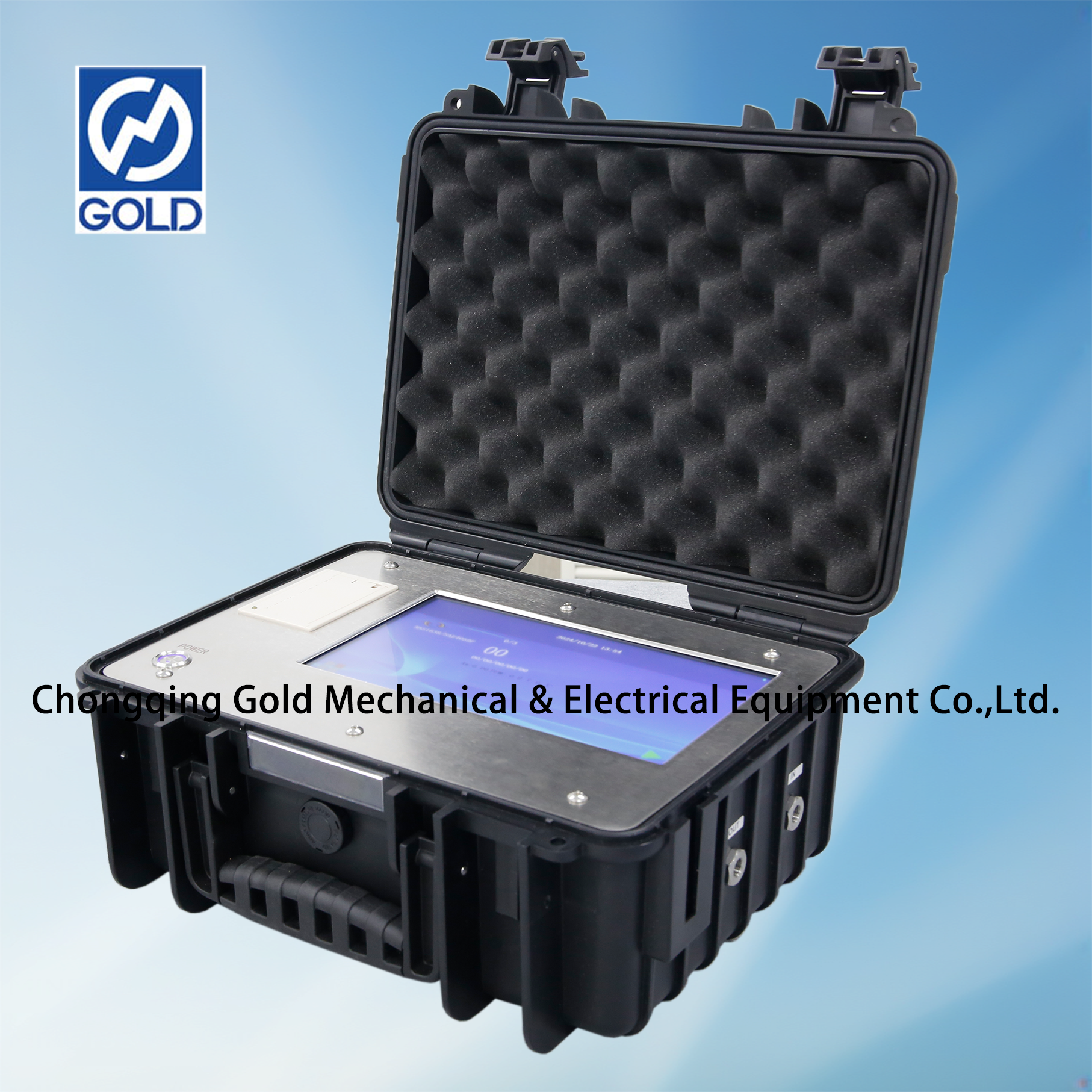

Product Details Display of Portable Liquid Particle Counter:
