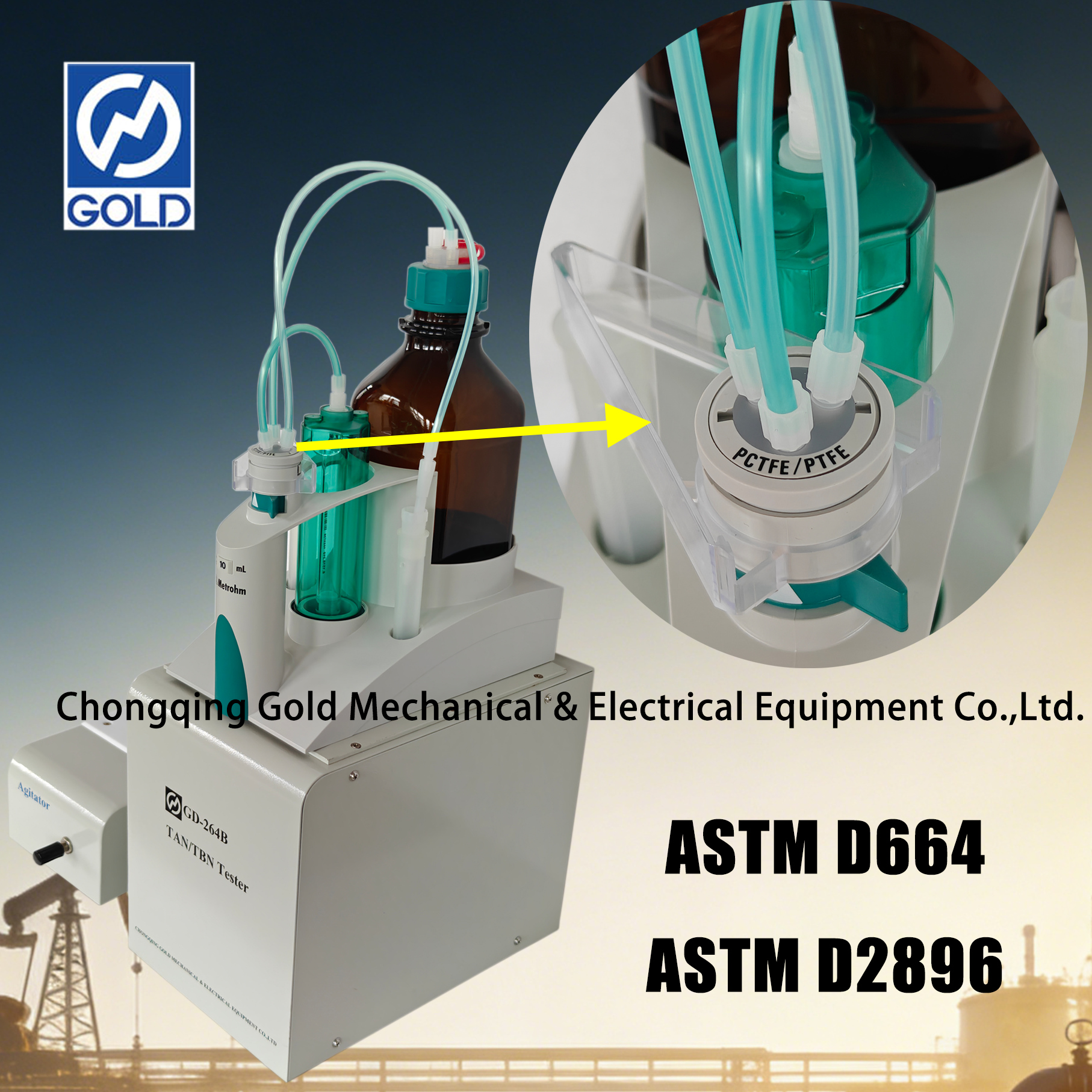

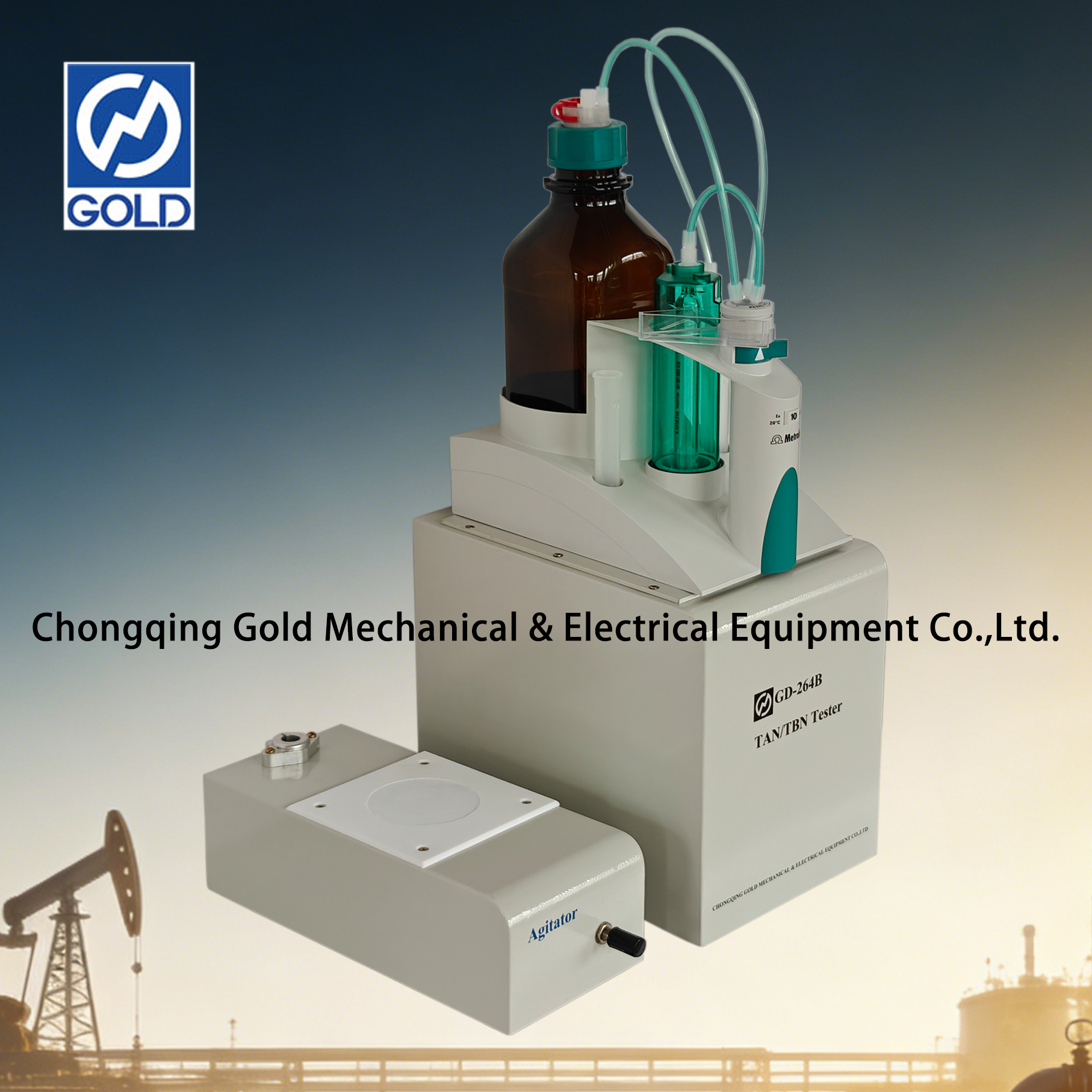

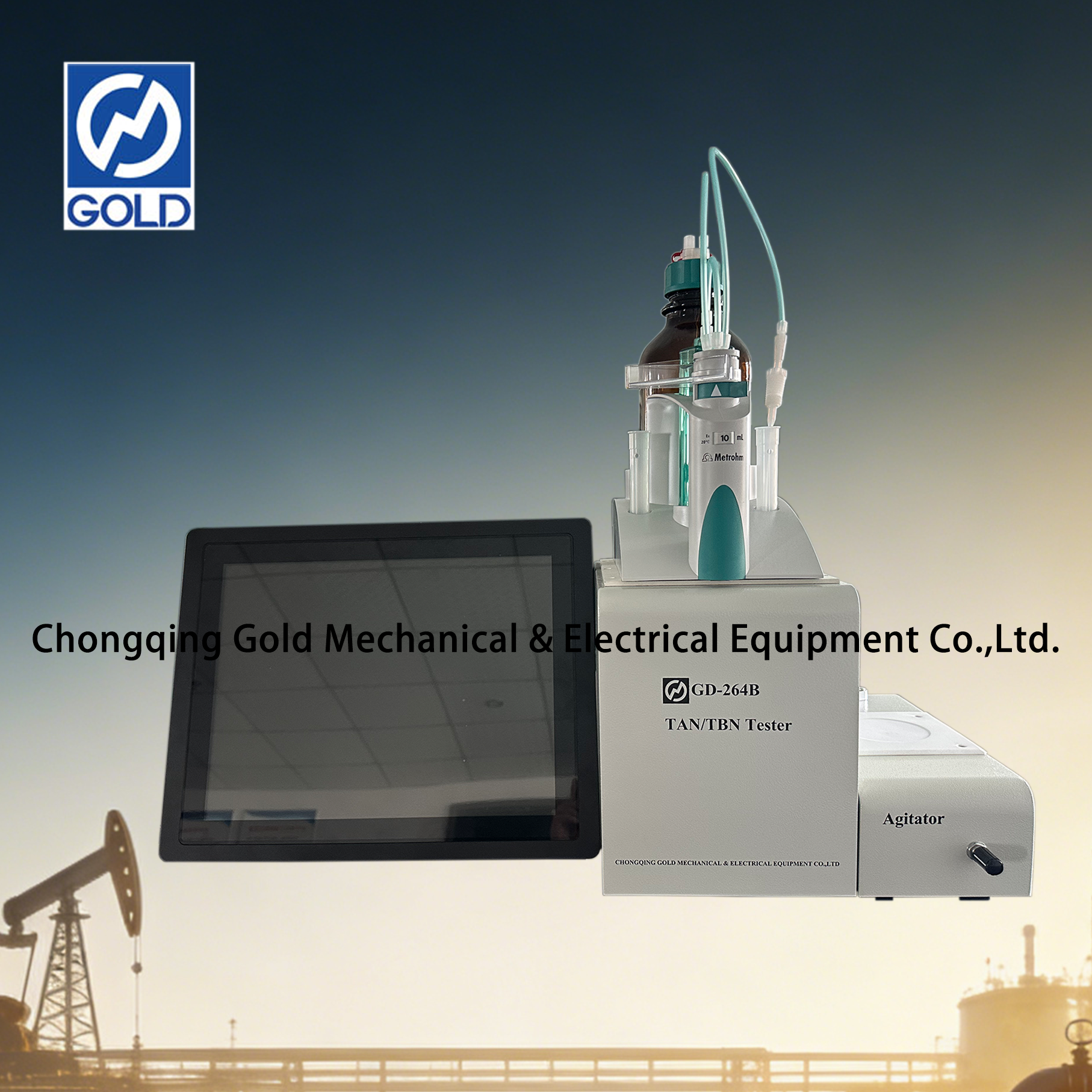

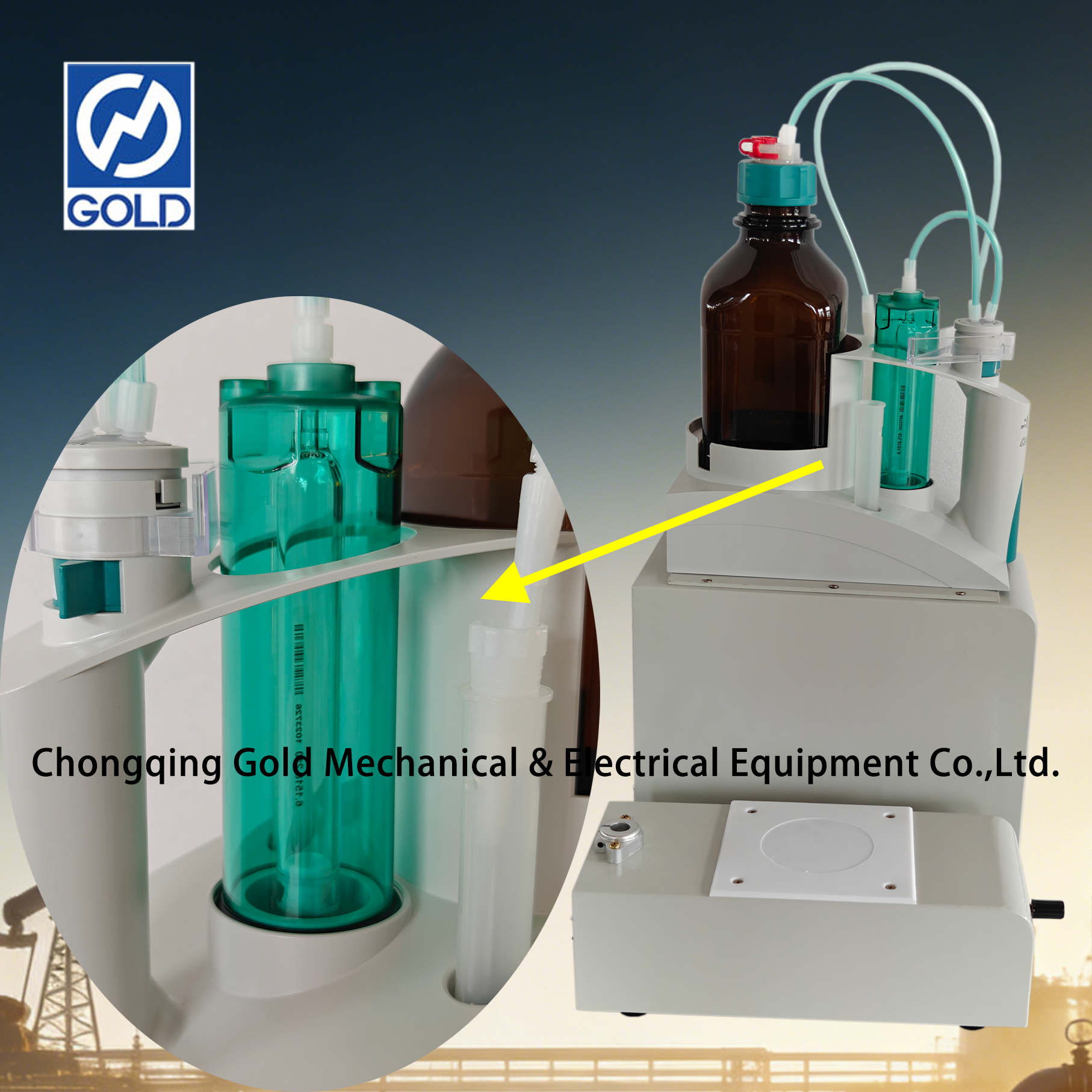

TAN/TBN Tester
TAN/TBN Tester consists of hardware circuit, titration device and PC machine three parts, under the support of the application software, to achieve the determination of acid value in petroleum products. TAN/TBN Tester has simple structure, beautiful appearance, high degree of automation and accurate analysis results. It is an ideal intelligent instrument necessary for all petrochemical laboratories, analysis rooms and scientific research departments.
Features:
The TAN/TBN Tester uses the Windows operating system and operates in a human-machine dialogue mode, which is simple and easy to understand.
All key components of the titration device are imported, with stable and reliable performance and low transmission noise.
The TAN/TBN Tester is capable of automatic cleaning, automatic liquid addition, constant liquid addition, and organic combination of mechanical and electrical components.
Multi parameter setting and calibration make the analysis of different types of samples simple, fast, with shorter analysis time and more accurate results.
Automatic endpoint determination without the need for an indicator, suitable for acid value analysis, titration results, and data storage of various light and dark colored oils in petrochemical products, providing complete titration data for analysis and research.
The total acid value/total base number Tester adopts dual high resistance input and a three electrode system, which ensures more stable and reliable electrode potential.
Technical Parameter:
| Ambient temperature | 5℃ ~35℃ |
| Relative humidity | not more than 80% |
| Working power supply | AC (220 ± 11) V, frequency 50 ± 1H z |
| Potential measurement range | (0~ ±1999.5) mV |
| Basic error of the electronic unit | 0.1%±0.5mV with full reading |
| Input impedance | Ri 11012Ω |
| Titter volume | 10ml |
| Titter accuracy | ± 0.1% (F.S) |
| Titter drop time | (60 ± 10) seconds (F.S) |
| Accuracy | the relative error of results is less than 5% |
| Size of the instrument | 350×280×178mm |
| Instrument weight (main unit) | 8KG |

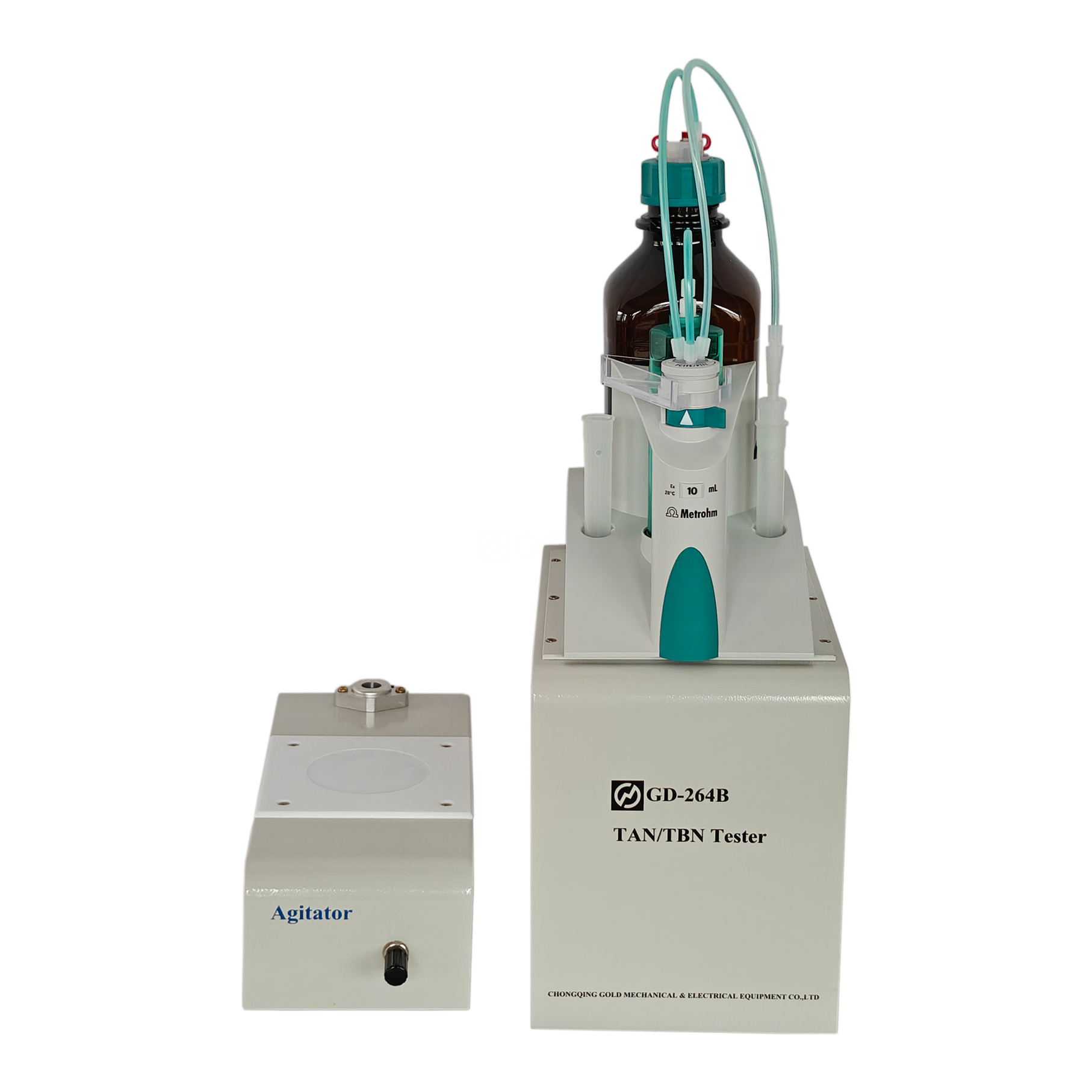

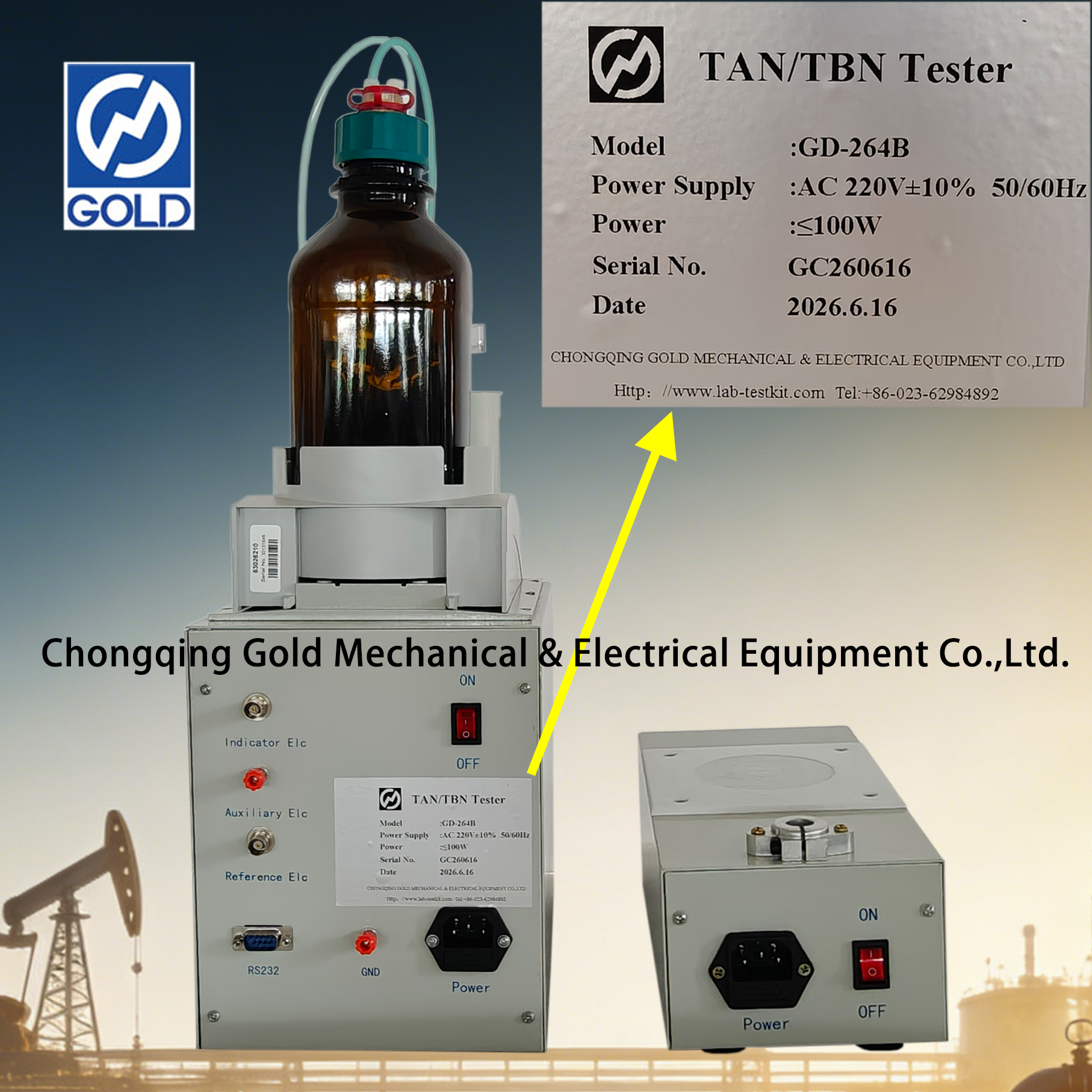

Product Details of TAN/TBN Tester:
