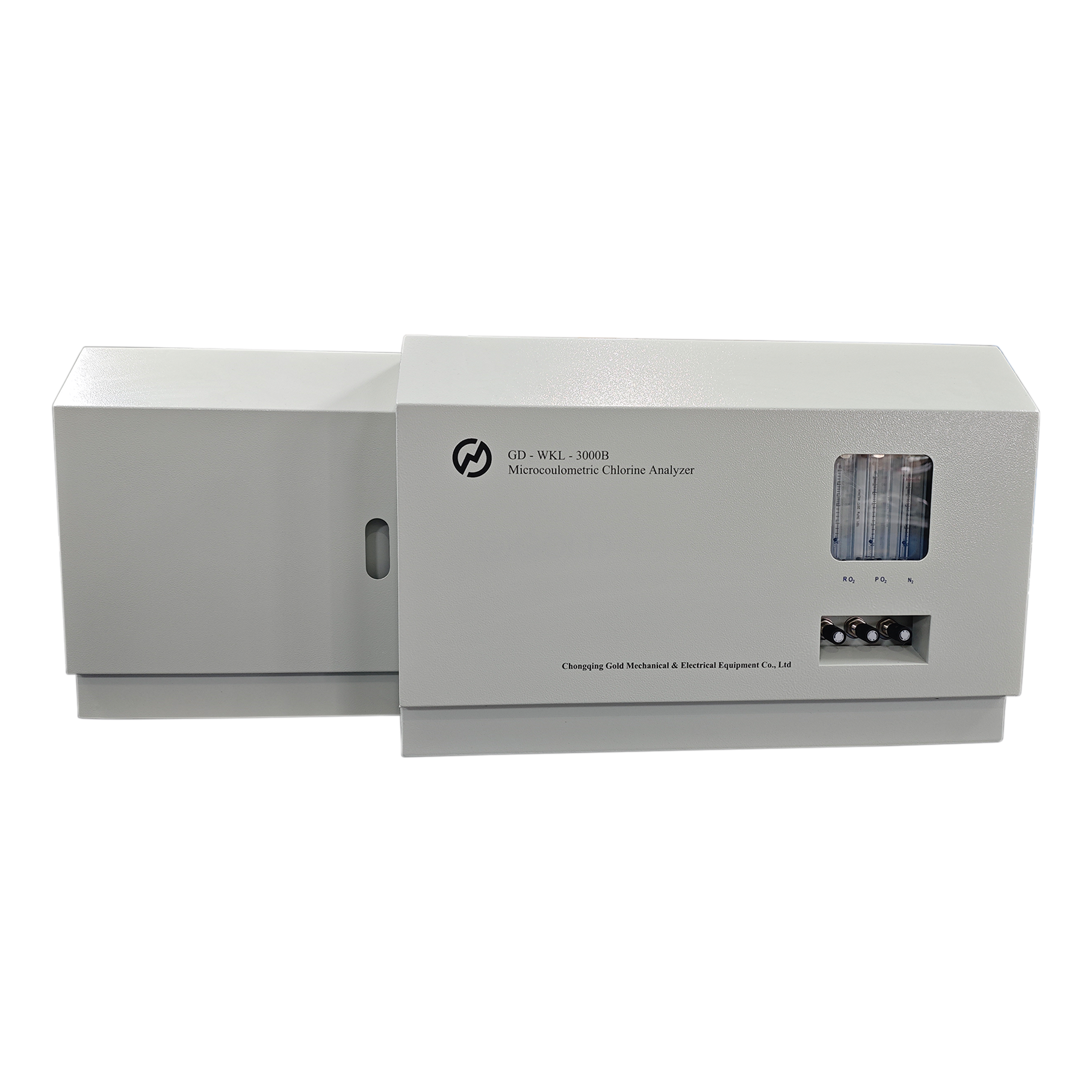

Microcoulometric Chlorine Analyzer
The microcoulometric chlorine analyzer is the latest product that utilizes microcoulometric analysis technology and computer-controlled microcoulometric titration. Reliable performance, simple operation, good stability, and easy installation. This instrument is suitable for analyzing trace amounts of sulfur, chlorine, and nitrogen in petrochemical products, and is widely used in petroleum, chemical, and scientific research fields.
Operational Principle:

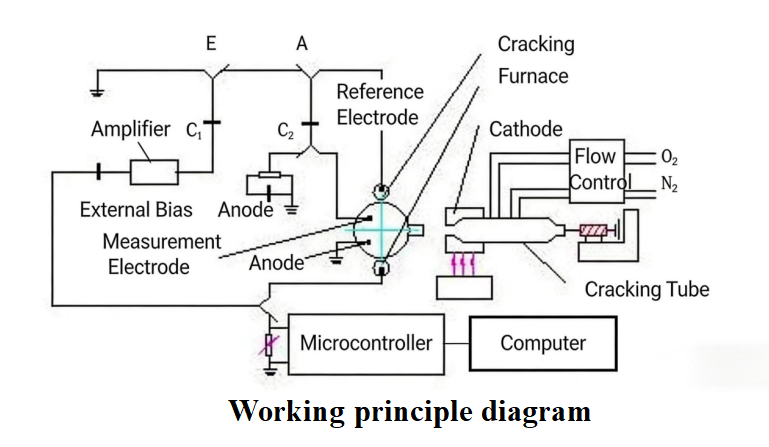

The target component in the sample undergoes conversion into titratable species within the pyrolysis tube. These species are carried by the carrier gas into the titration cell where they react with the titrant, altering its concentration. The measuring electrode responds to this concentration change by generating corresponding electrical potential signals, which modulate the potential difference between the reference and measuring electrode pairs. When this potential deviation deviates from the instrument's preset bias voltage, the resulting differential value serves as the input signal for the coulometric amplifier. After amplification, the output voltage is applied to the electrolysis electrode pairs in the cell. The anode continuously generates titrant to compensate for consumption until equilibrium concentration is achieved. The instrument measures the electrical energy consumed during electrolysis and calculates the target component's concentration using Faraday's law of electrolysis.
The GD-WKL-3000B micro-coulometric chloride analyzer operates on the principle of micro-coulometric titration, featuring a zero-balance working mode. It consists of a coulometric amplifier, titration cell, and suitable electrolyte, forming a closed-loop negative feedback system.
Features:
The microcoulometric chloride analyzer runs on the Windows operating system platform and has a user-friendly interface, improving the convenience and efficiency of analysts' operations.
During the system analysis process, operating conditions, analysis parameters, and results are directly displayed on the monitor.
Parameters and results can be saved and printed as needed for future reference and archiving.
Technical Parameters:
