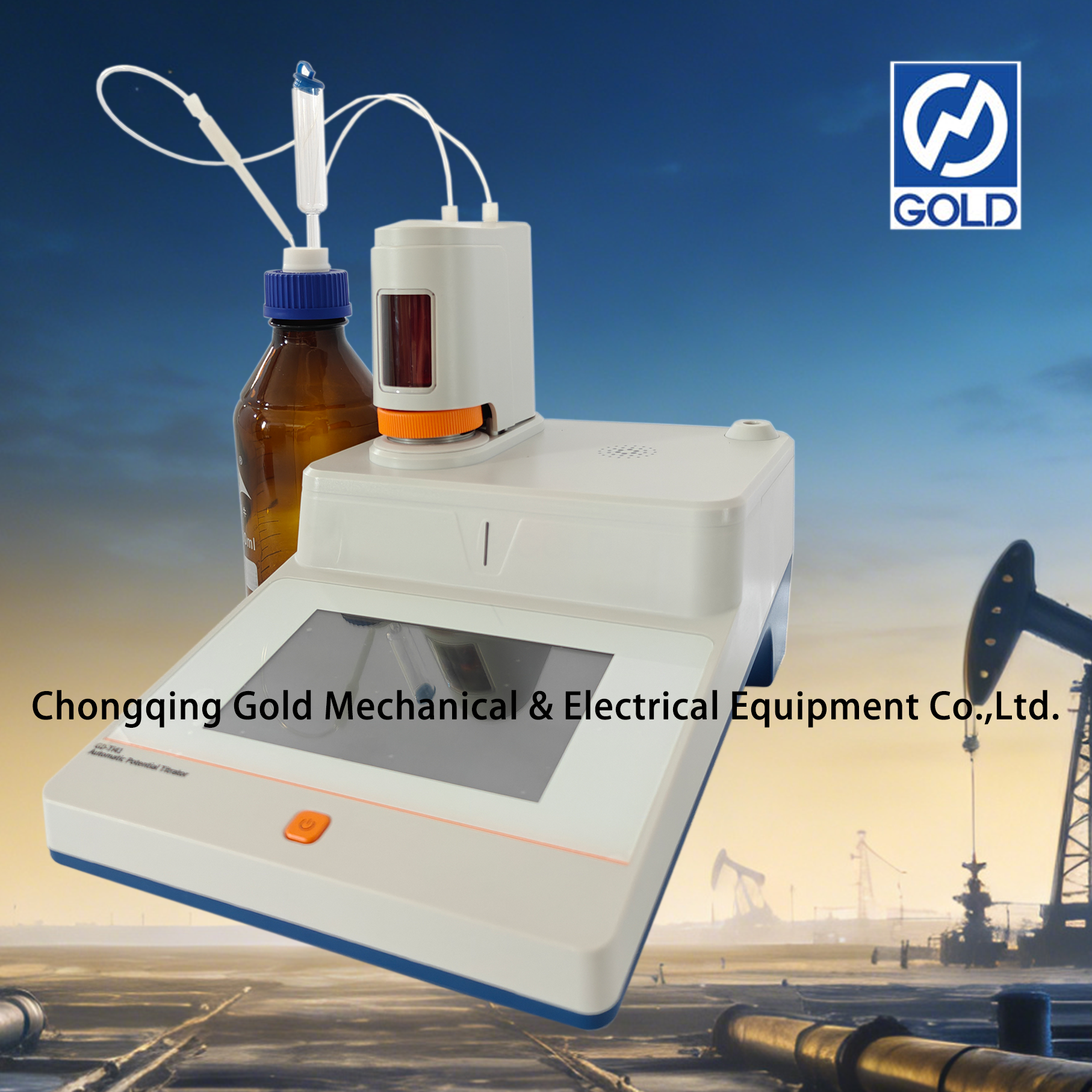

Automatic Potential Titrator

Automatic Potential Titrator

The automatic potential titrator is a versatile device designed to automate the titration process, eliminating the need for manual intervention. By automating this process, the potential titrator ensures consistent and reproducible results, minimizing human error and increasing the overall efficiency of titration experiments.

Features:

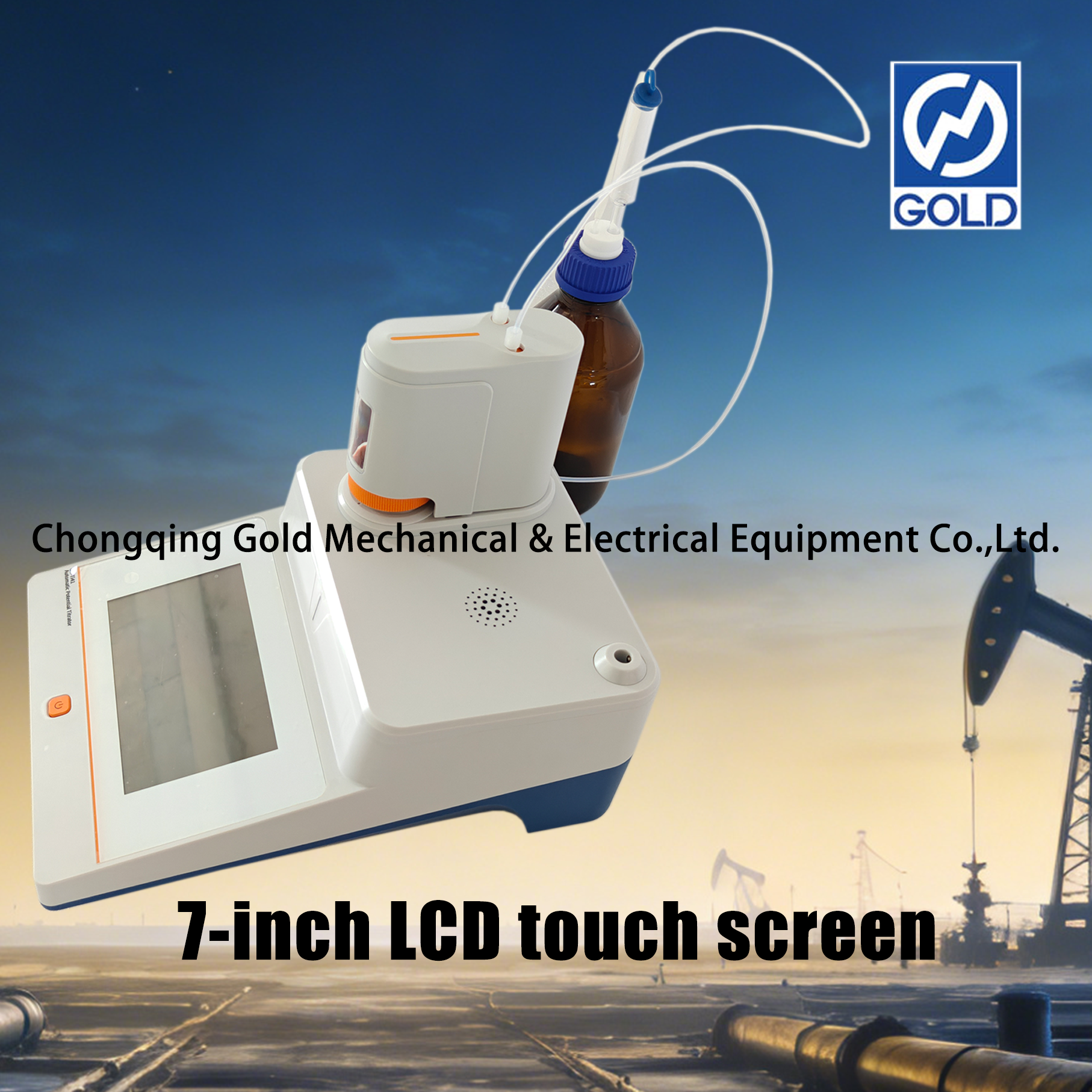

1. Color High contrast LCD touchscreen, 7.0 inches.

2. Detection module expansion of permanent stop titration, conductance titration, photometric titration and temperature titration analysis.

3. Replaceable burette with high-accuracy (5ml, 10 mL or 20mL selectable).

4. The potential titrator can be fitted with an additional burette driver (optional) to support reagent dosing or titration.

5. Burette line using acid and alkali resistance, perchloric acid resistance, organic reagent corrosion resistant material, can be non-aqueous titration.

6. The auto potential titrator support upper mixer and lower mixer.

7. Support the following titration modes: DET (dynamic equivalence point titration), MET (monotone equivalence point titration), SET (Preset Endpoint Titration) ,constant pH titration, Blank titration, and MAT (manual titration).

8. Support acid-base titration, non-aqueous phase acid-base titration, REDOX titration, precipitation titration and complex titration and other titration methods.

9. Potential titrator has titrant management.

10. 1-3 points calibration with Standard Recognition.

11. Selectable pH buffer groups, including NIST, DIN, GB.

12. Displays the test method, titration curve and measurement results in real time.

13. Formula editor can display calculation results directly.

Technical Parameters:

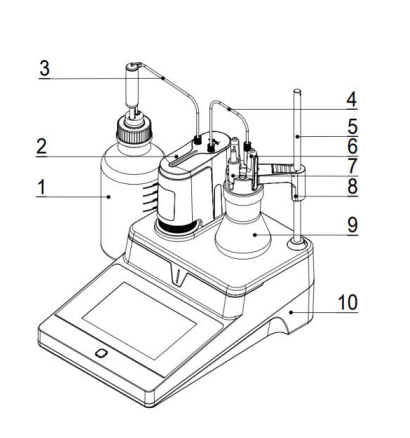

Structures:



1. Titration bottle

2. Burette cover

3. Infusion tube

4. Dropping tube

5. Electrode support rod

6. Measuring electrode

7. Temperature electrode

8. Electrode holder

9. Beaker

10. Titrator

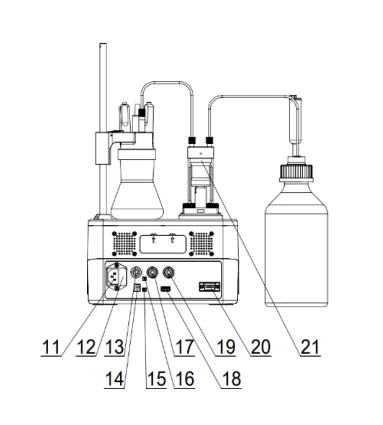

11. Power socket

12. Fuse

13. Four aviation socket

14. Stirrer socket

15. Ground socket

16. Reference socket (Earphone)

17. Meas 1 socket (BNC(Q9))

18. USB

19. Meas 2 socket (BNC(Q9))

20. RS-232 (COM1)

21. Burette valve

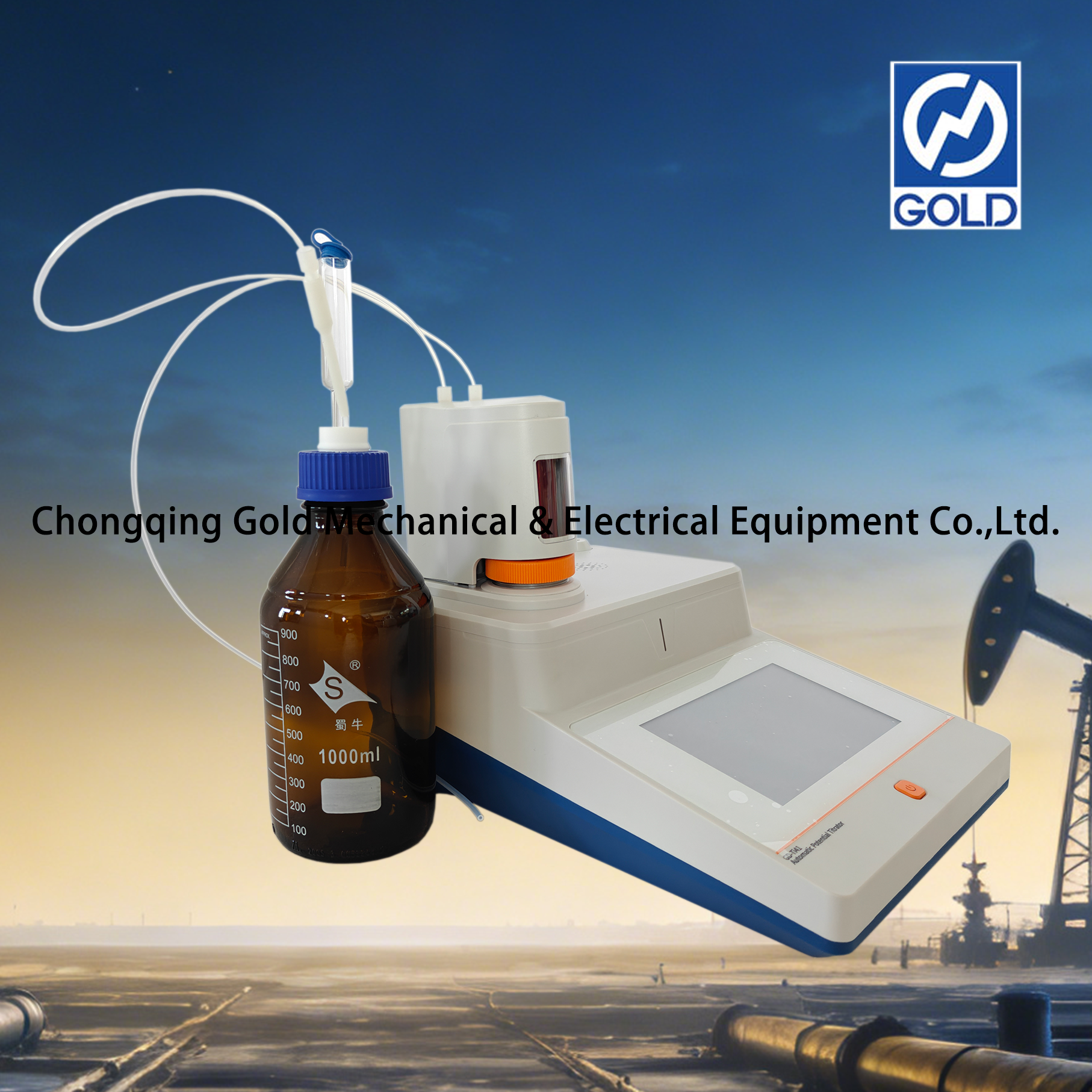

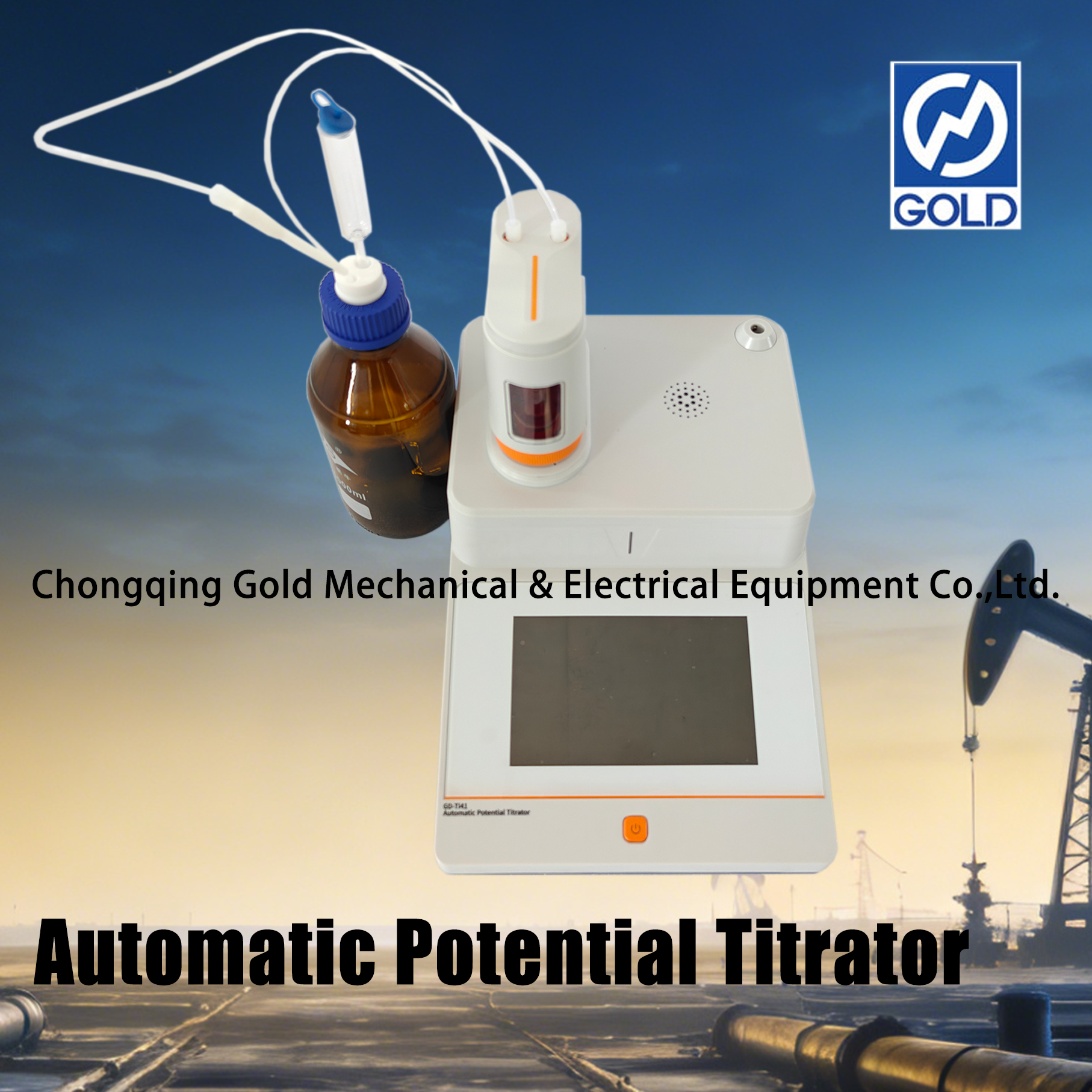

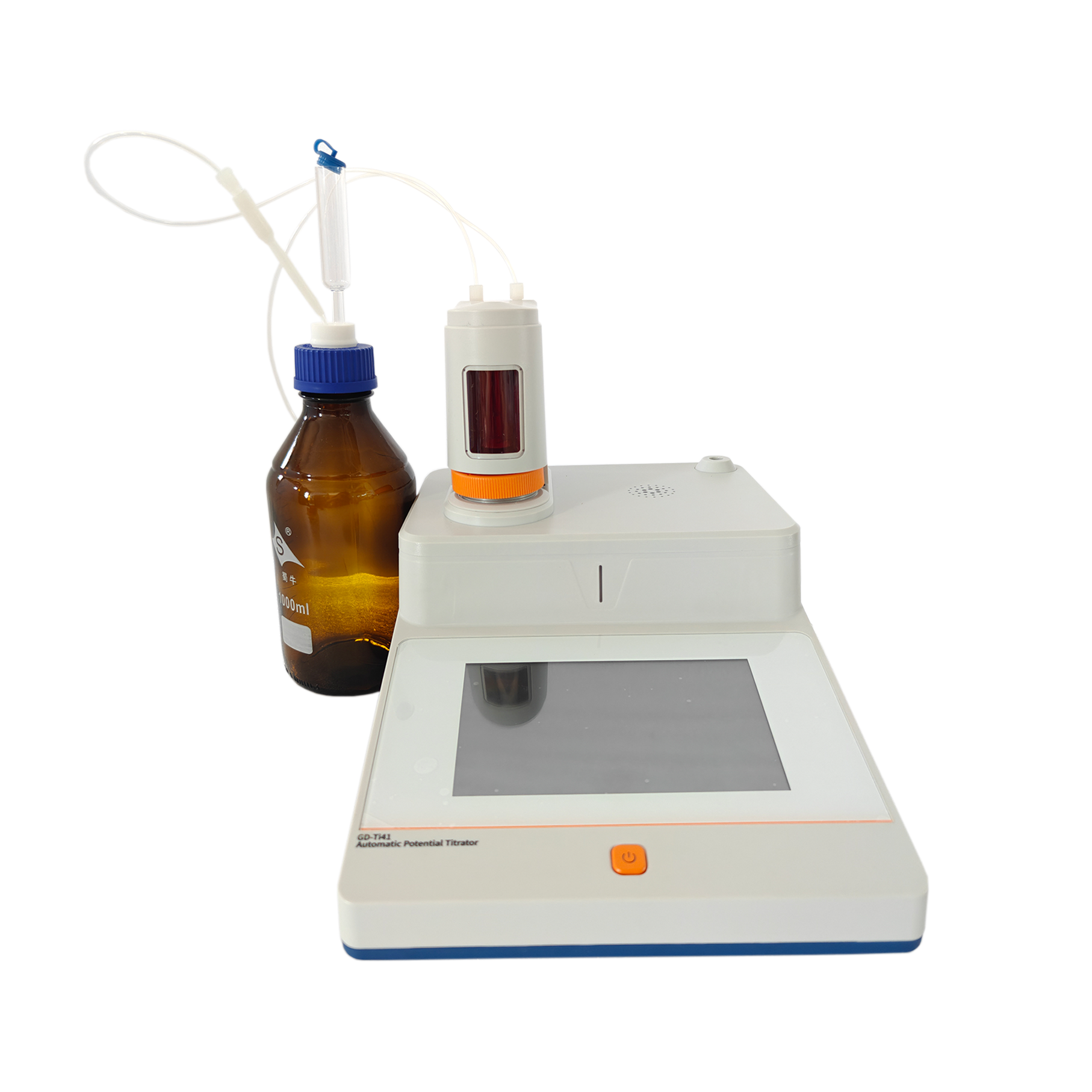

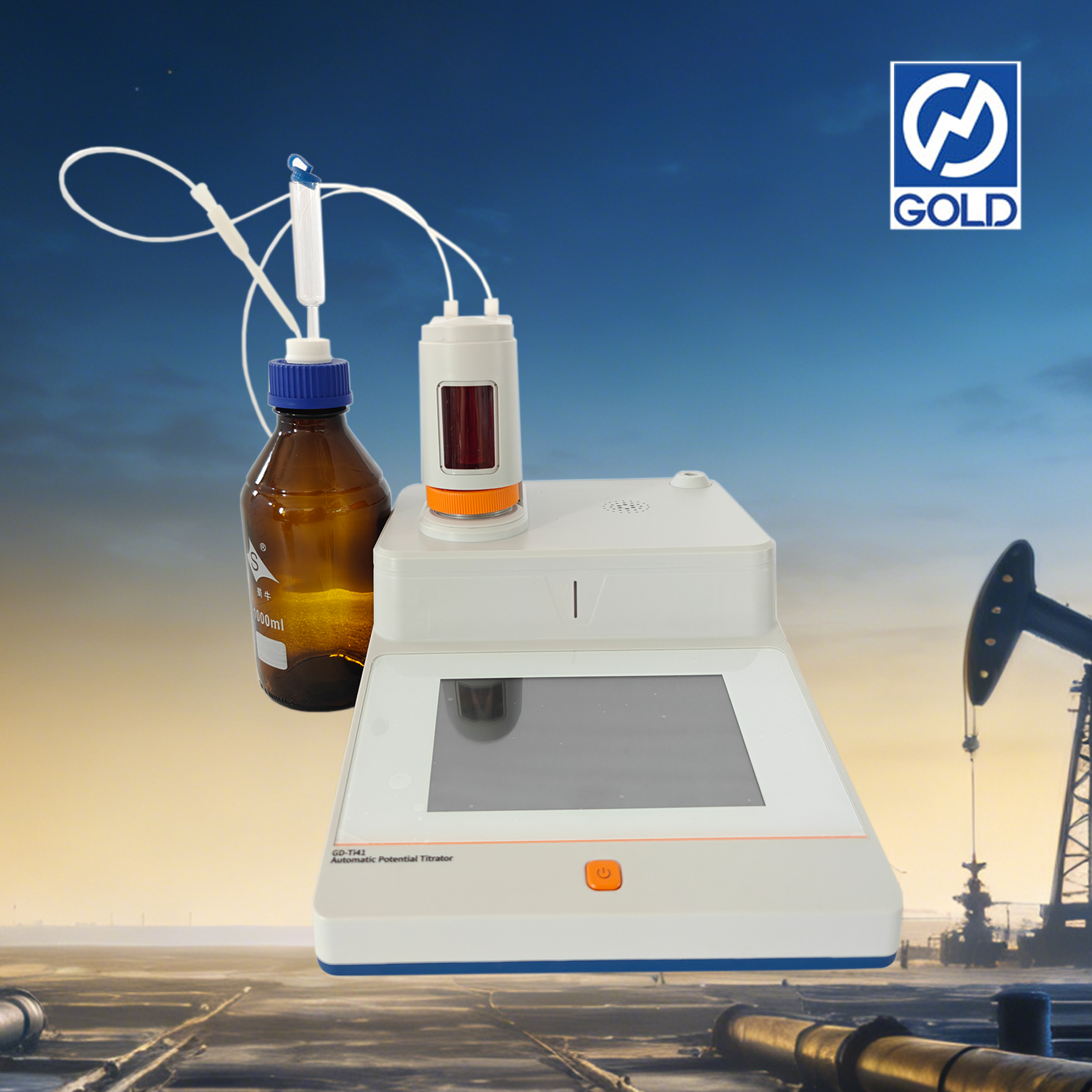

Product Details of Automatic Potential Titrator:
