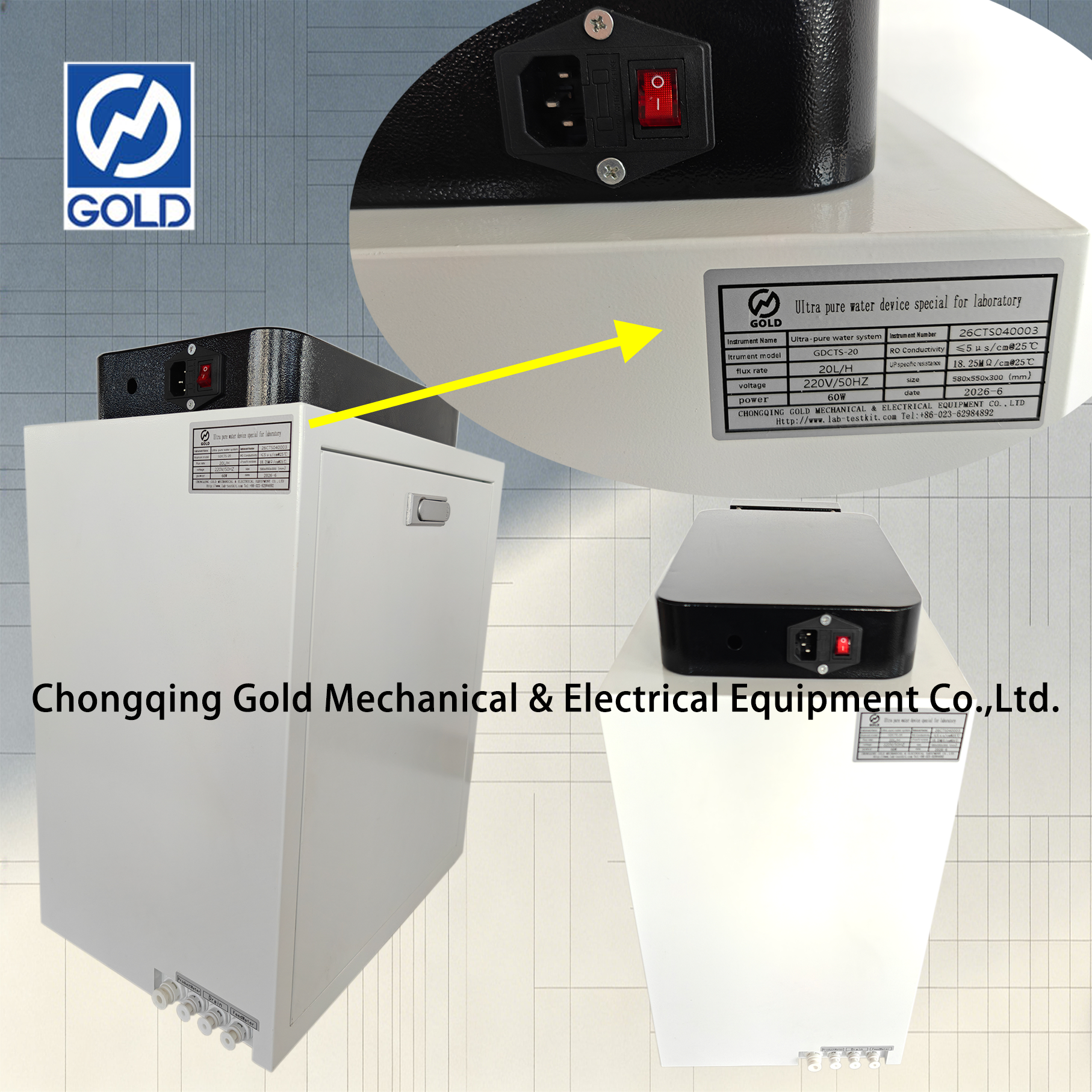

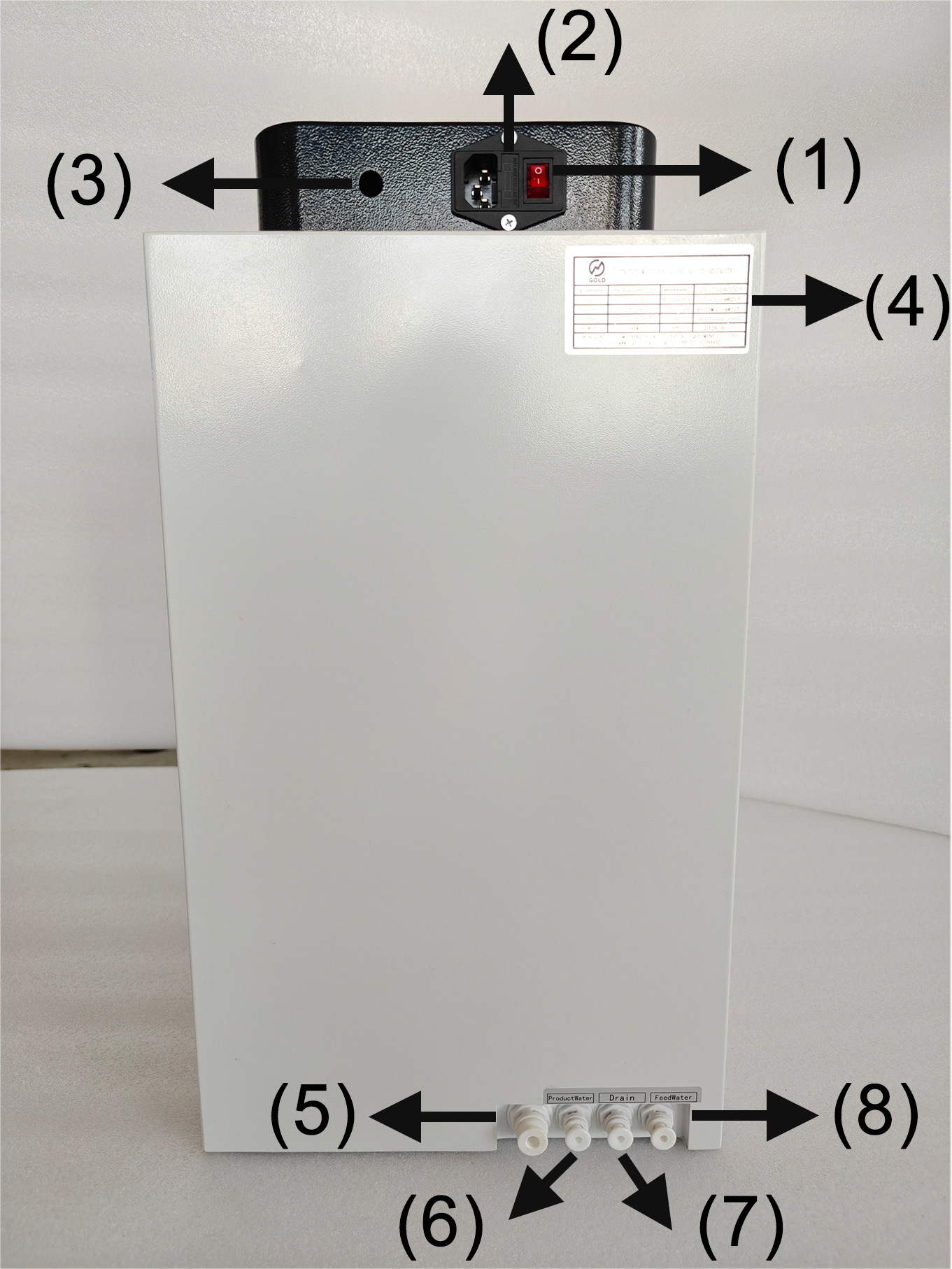

(1) Power socket switch
Connect the power cord of the ultrapure water machine and insert its plug into the laboratory power socket.
Note: The power supply of this machine is 220VAC/50Hz.
(2) Insurance Box
In the event of a power outage, use a single-blade screwdriver to pry open the fuse box and replace the fuse.
Note: Under normal operating conditions, the ultrapure water system is equipped with two fuse links—one for regular installation and one as a backup.
(3) Level controller interface (or reserved)
Connect the liquid level controller to the water tank. Note that there is a small notch, allowing insertion in only one direction.

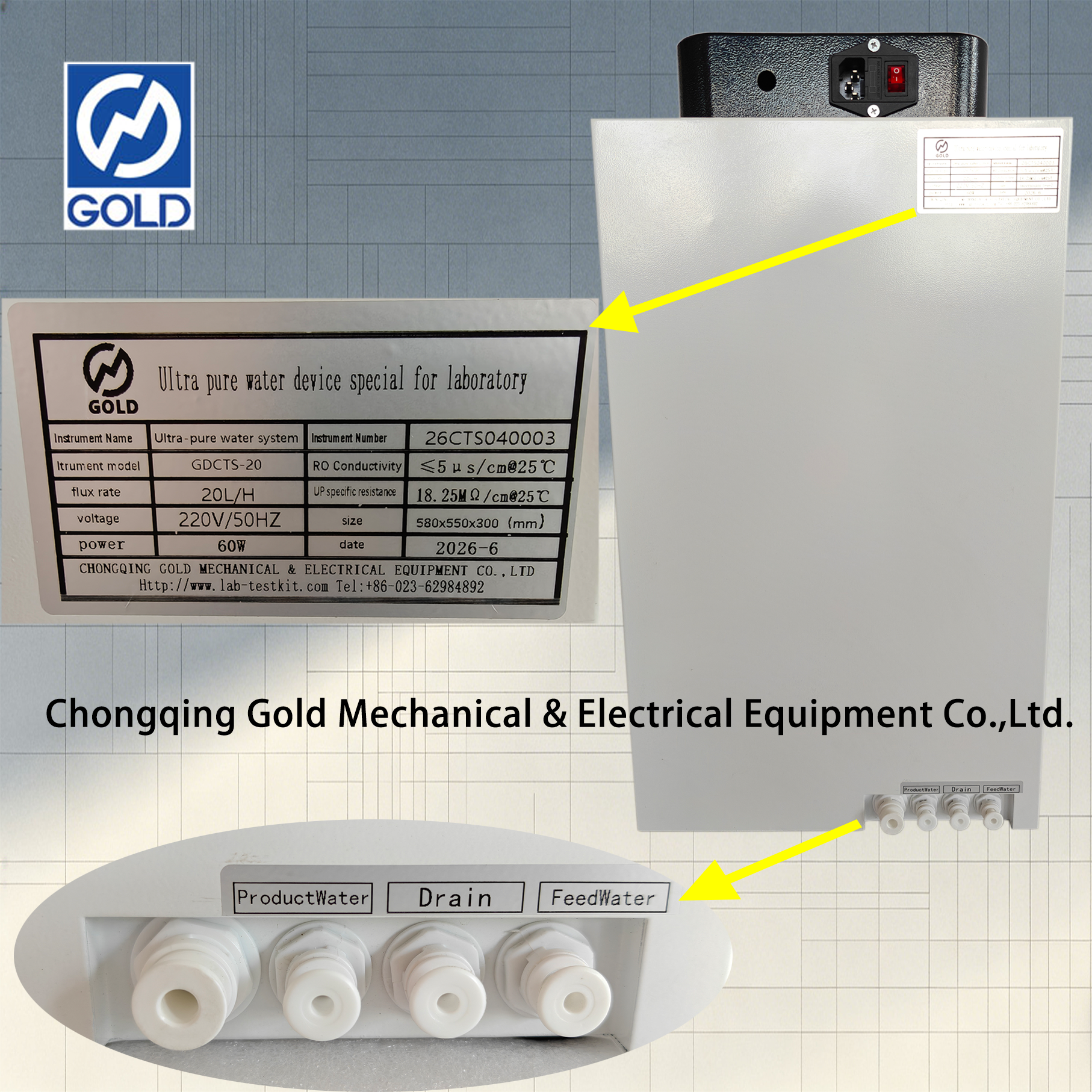

(4) Duty plate
Information such as the device model, power supply, and power rating.
(5) Water storage tank interface (or reserved)
Connect the PE pipe to the pressure water tank interface, then insert the PE pipe into the pressure water tank ball valve.
(6) Biochemistry analyzer interface (or reserved)
Use this port with a biochemical analyzer or for upgrades. If the pure water machine is equipped with a pressure tank, do not connect to this port. If the pure water machine has a tank with a three-way connector outlet, connect this port to the three-way connector at the tank outlet using a PE pipe.
(7) Wastewater Interface
Connect the wastewater interface with a PE pipe, then place the PE pipe into the laboratory sink or insert it into the drain outlet.
(8) Inlet interface
Connect the PE pipe to the inlet interface, and then connect the PE pipe to the inlet tee interface or fauceti nterface, etc., at the source of raw water.
Technical Parameter:
| Minimum feed water pressure | 0.2 MPa (pressure under the minimum feed water flow rate condition) |
| Minimum feed water flow rate | 0.2 m³/hr |
| Water temperature | 5~35 ℃ |
| Total soluble solids | TDS: ≤ 200 mg/L; if the TDS value exceeds 300 mg/L, consider installing a water softener |
| Residual chlorine | ≤ 0.3 mg/L |
| Total iron of Ultra-Pure Water Machine | ≤ 0.5 mg/L |
Product Details of Ultra-Pure Water Machine:
