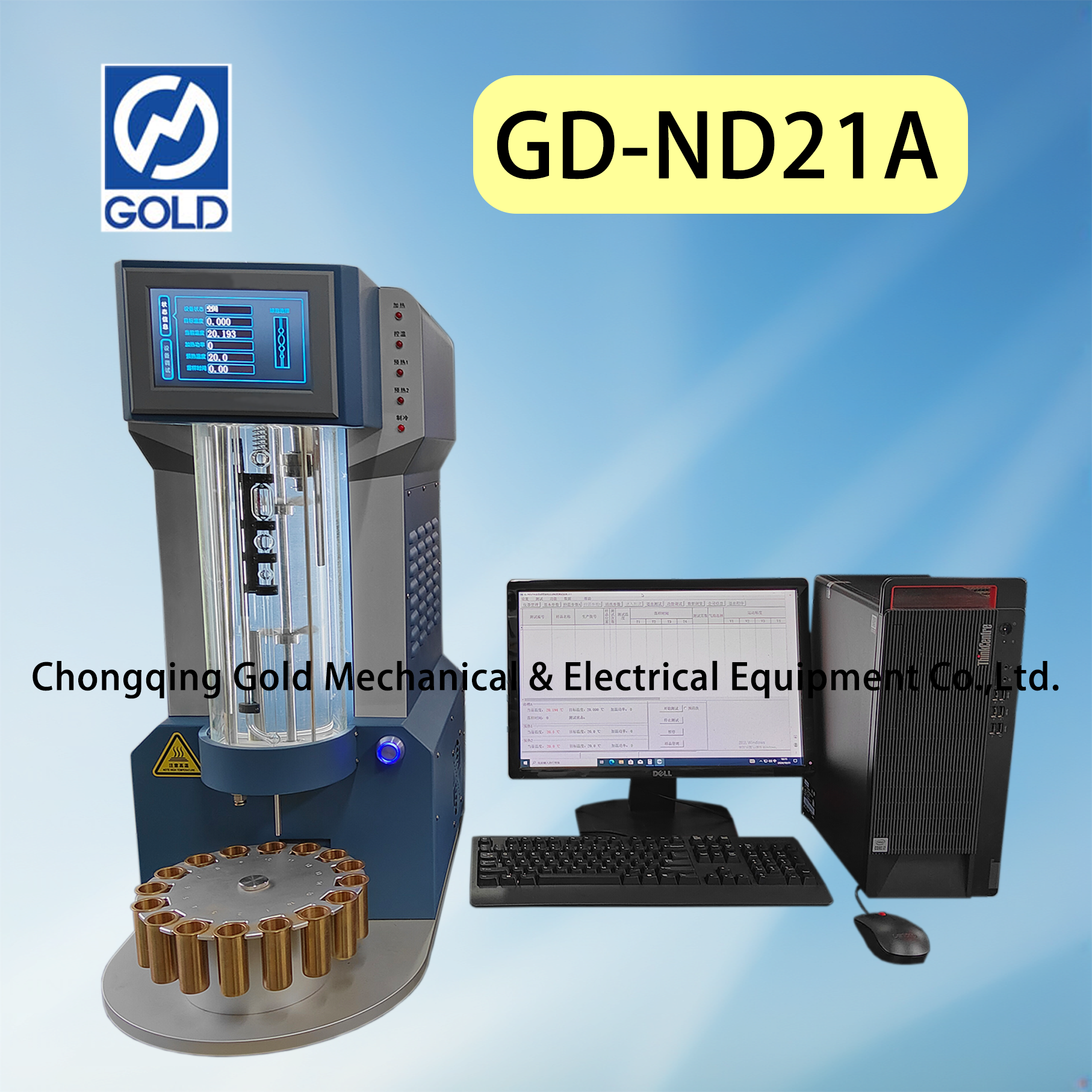

GD-ND21A
GOLD
Fully Automatic Wide Range
Kinematic Viscometer
The fully automatic kinematic viscometer is a automatic instrument used to measure the kinematic viscosity of transparent and opaque Newtonian fluids, designed and manufactured according to ASTM D445, D446, ISO3104, GB/T265, and GB/T30515 standards. And strictly follow the transparent and opaque liquid testing methods of ASTM D445 and the capillary viscometer specification standards of ASTM D446. Its automation function significantly improves testing efficiency and data reliability. This kinematic viscometer has functions such as automatic intelligent preheating, automatic sample injection, automatic detection, and automatic sample cleaning and drying, and its performance is comparable to similar imported instruments.
Adopting standards:
ASTM D445 and ASTM D446
Testing principle: The liquid passes through a calibrated glass capillary under the action of gravity, and the flow time is measured to calculate the kinematic viscosity (ν=K × t, where K is the capillary constant and t is the flow time).
Applicable liquids: transparent liquids (such as lubricating oil) and opaque liquids (such as heavy oil, asphaltene solution).
Temperature control: precise constant temperature bath (such as 40 ℃± 0.005 ℃, 100 ℃± 0.005 ℃) to ensure consistency of testing conditions.
Work environment：
Working power supply | AC220V ± 10% 50Hz ± 10% |
Environmental temperature | 10-28 ℃ |
Relative humidity | <80% RH |
Other | There is no strong vibration, airflow, strong electromagnetic interference, or corrosive gas around the laboratory. |
Features:

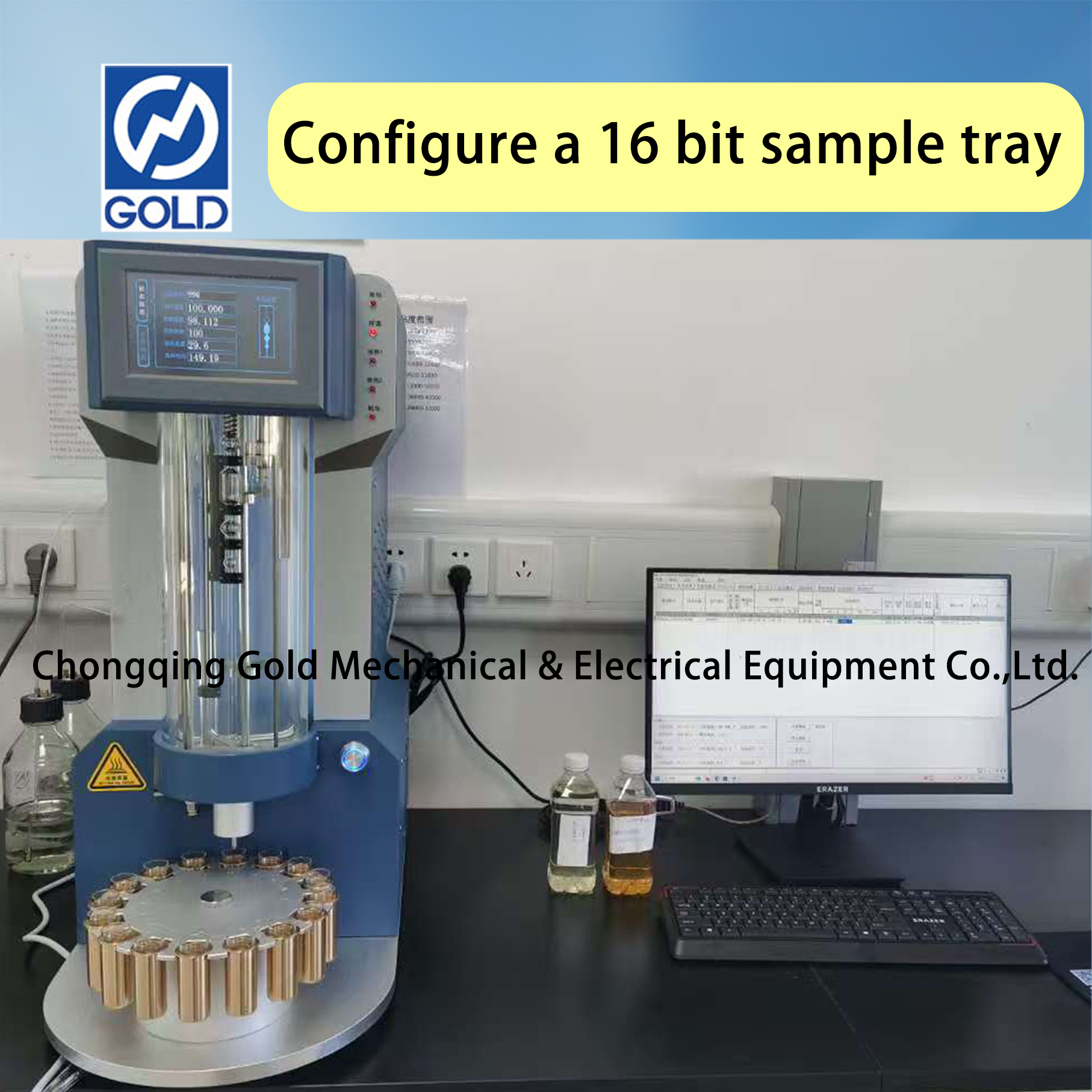

The automatic kinematic viscometer is equipped with a 16 bit sample tray, which can work continuously for 24 hours. The intelligent preheating, injection, measurement, cleaning, drying, result calculation, and repeatability calculation of the samples are all automatically completed.
The kinematic viscometer adopts photoelectric or thermal detection, which can measure transparent and opaque samples, including new and in use Newtonian fluids such as gasoline, diesel, kerosene, lubricating oil, etc.
The system of the kinematic viscometer comes with automatic calibration of viscosity constants, as well as auxiliary functions such as temperature calibration, internal clock timing calibration, automatic conversion of motion viscosity to Engler viscosity, and automatic calculation of viscosity index.
The kinematic viscometer has dual functions of software and hardware over temperature protection, over temperature alarm, anti dry burning protection, lack of cleaning solution prompt, waste liquid cleaning prompt, etc., ensuring the safe operation of the instrument.
The automatic kinematic viscometer adopts a double-layer glass bath design, PT1000 high-precision temperature sensor, and double blade stirring, which makes the temperature of the constant temperature bath stable and accurate, and the temperature control accuracy reaches 0.005 ℃.
The kinematic viscometer has an automatic intelligent dual solvent cleaning function, and the cleaning mode can be customized. While cleaning the viscometer, the sample cup can be cleaned completely, eliminating the need to clean the sample cup separately.
Technical parameter:
According to the standards | ASTM D445, D446, ISO3104, GB/T265, GB/T30515 |
Measurement range | 0.3~10000mm2/s, with a single viscosity tube measuring a span of 100 times. |
Sample quantity | 16 digits |
Bath capacity | 3 L |
Temperature control range | 20-100 ℃ (with built-in Peltier cooling) |
Temperature control accuracy | 0.005 ℃ |
Timing accuracy | 0.01 seconds |
Repeatability | ≤ 0.4% |
Whole machine power | ≤ 1000W |

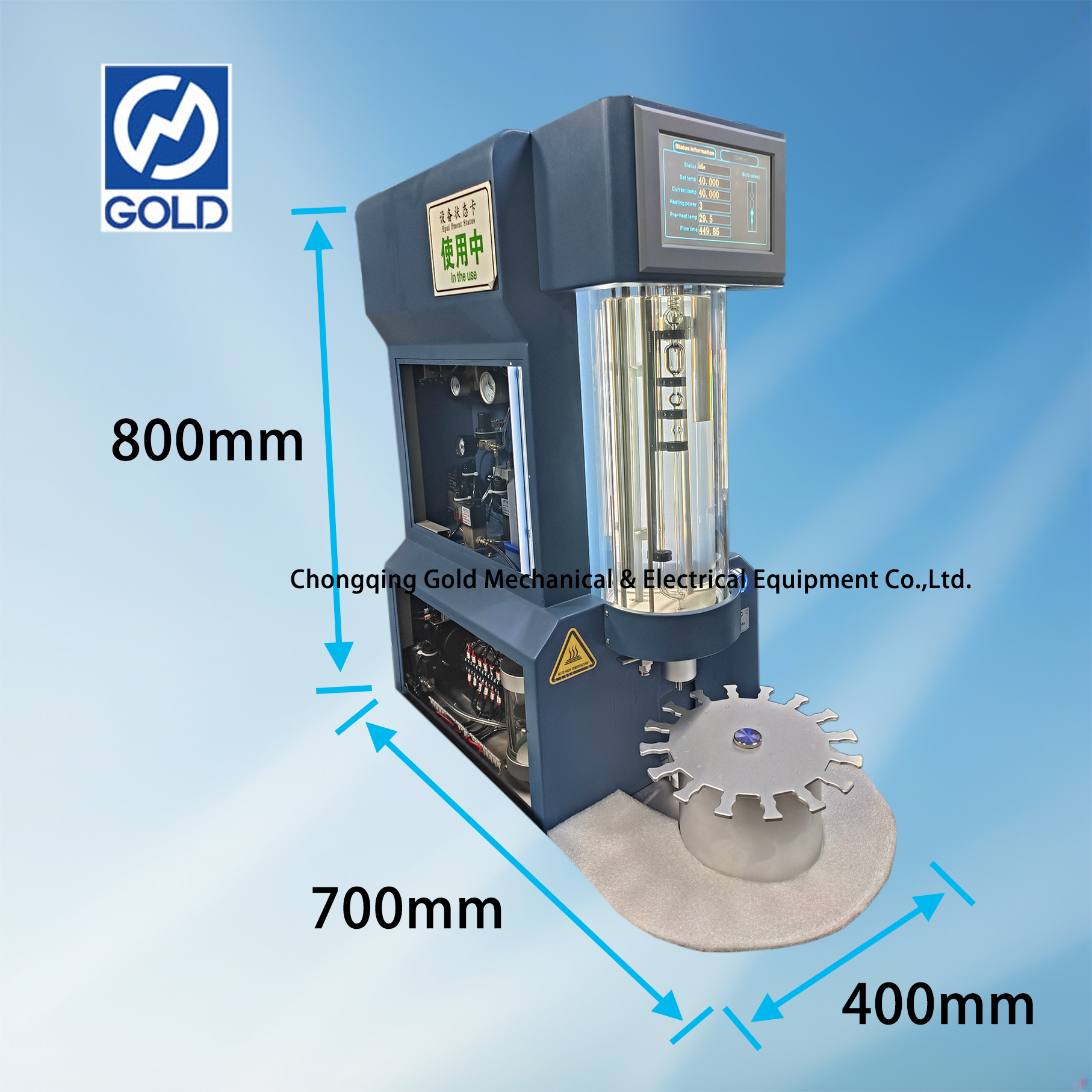

Host size | 400 × 700 × 800 (mm) |
Product details:
Fully Automatic Wide Range
Kinematic Viscometer
The fully automatic kinematic viscometer is a automatic instrument used to measure the kinematic viscosity of transparent and opaque Newtonian fluids, designed and manufactured according to ASTM D445, D446, ISO3104, GB/T265, and GB/T30515 standards. And strictly follow the transparent and opaque liquid testing methods of ASTM D445 and the capillary viscometer specification standards of ASTM D446. Its automation function significantly improves testing efficiency and data reliability. This kinematic viscometer has functions such as automatic intelligent preheating, automatic sample injection, automatic detection, and automatic sample cleaning and drying, and its performance is comparable to similar imported instruments.
Adopting standards:
ASTM D445 and ASTM D446
Testing principle: The liquid passes through a calibrated glass capillary under the action of gravity, and the flow time is measured to calculate the kinematic viscosity (ν=K × t, where K is the capillary constant and t is the flow time).
Applicable liquids: transparent liquids (such as lubricating oil) and opaque liquids (such as heavy oil, asphaltene solution).
Temperature control: precise constant temperature bath (such as 40 ℃± 0.005 ℃, 100 ℃± 0.005 ℃) to ensure consistency of testing conditions.
Work environment：
Working power supply | AC220V ± 10% 50Hz ± 10% |
Environmental temperature | 10-28 ℃ |
Relative humidity | <80% RH |
Other | There is no strong vibration, airflow, strong electromagnetic interference, or corrosive gas around the laboratory. |
Features:
The automatic kinematic viscometer is equipped with a 16 bit sample tray, which can work continuously for 24 hours. The intelligent preheating, injection, measurement, cleaning, drying, result calculation, and repeatability calculation of the samples are all automatically completed.
The kinematic viscometer adopts photoelectric or thermal detection, which can measure transparent and opaque samples, including new and in use Newtonian fluids such as gasoline, diesel, kerosene, lubricating oil, etc.
The system of the kinematic viscometer comes with automatic calibration of viscosity constants, as well as auxiliary functions such as temperature calibration, internal clock timing calibration, automatic conversion of motion viscosity to Engler viscosity, and automatic calculation of viscosity index.
The kinematic viscometer has dual functions of software and hardware over temperature protection, over temperature alarm, anti dry burning protection, lack of cleaning solution prompt, waste liquid cleaning prompt, etc., ensuring the safe operation of the instrument.
The automatic kinematic viscometer adopts a double-layer glass bath design, PT1000 high-precision temperature sensor, and double blade stirring, which makes the temperature of the constant temperature bath stable and accurate, and the temperature control accuracy reaches 0.005 ℃.
The kinematic viscometer has an automatic intelligent dual solvent cleaning function, and the cleaning mode can be customized. While cleaning the viscometer, the sample cup can be cleaned completely, eliminating the need to clean the sample cup separately.
Technical parameter:
According to the standards | ASTM D445, D446, ISO3104, GB/T265, GB/T30515 |
Measurement range | 0.3~10000mm2/s, with a single viscosity tube measuring a span of 100 times. |
Sample quantity | 16 digits |
Bath capacity | 3 L |
Temperature control range | 20-100 ℃ (with built-in Peltier cooling) |
Temperature control accuracy | 0.005 ℃ |
Timing accuracy | 0.01 seconds |
Repeatability | ≤ 0.4% |
Whole machine power | ≤ 1000W |
Host size | 400 × 700 × 800 (mm) |
Product details:
