GD-510G
GOLD

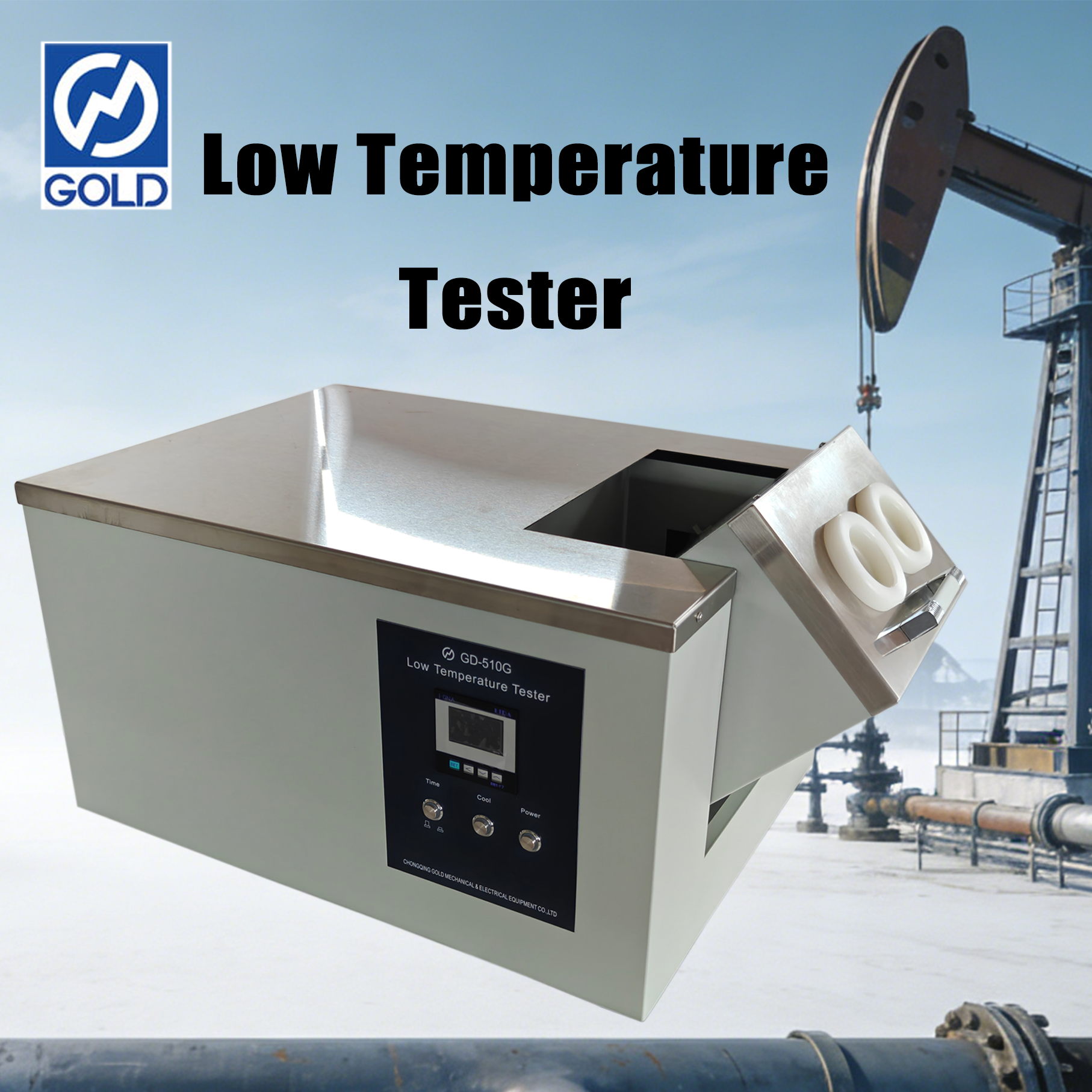

Low Temperature Tester
This multifunctional low-temperature tester can complete the detection of oil cold filter point, cloud point, and pour point, and is compatible with international corresponding detection standards, following the requirements of ASTM D6371, ASTM D2500, and ASTM D97 standards. The equipment integrates multiple testing functions, runs stably, and produces accurate test results. It is suitable for low-temperature flow performance testing of various petroleum products and is a commonly used equipment in oil quality inspection, research and development, and production processes.
Structure:
The low-temperature tester adopts environment-friendly compressor, advanced digital temperature controller and unique metal cold bath, with good refrigeration effect, high temperature control precision and even and stable cold bath temperature. It is mainly composed of desktop chassis and flip bucket cold bath. Compact structure, reasonable layout, high temperature control accuracy, simple and convenient operation .

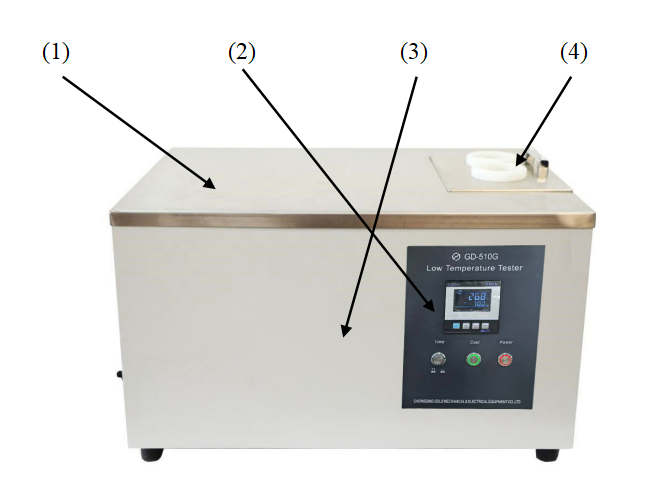

(1) Main unit

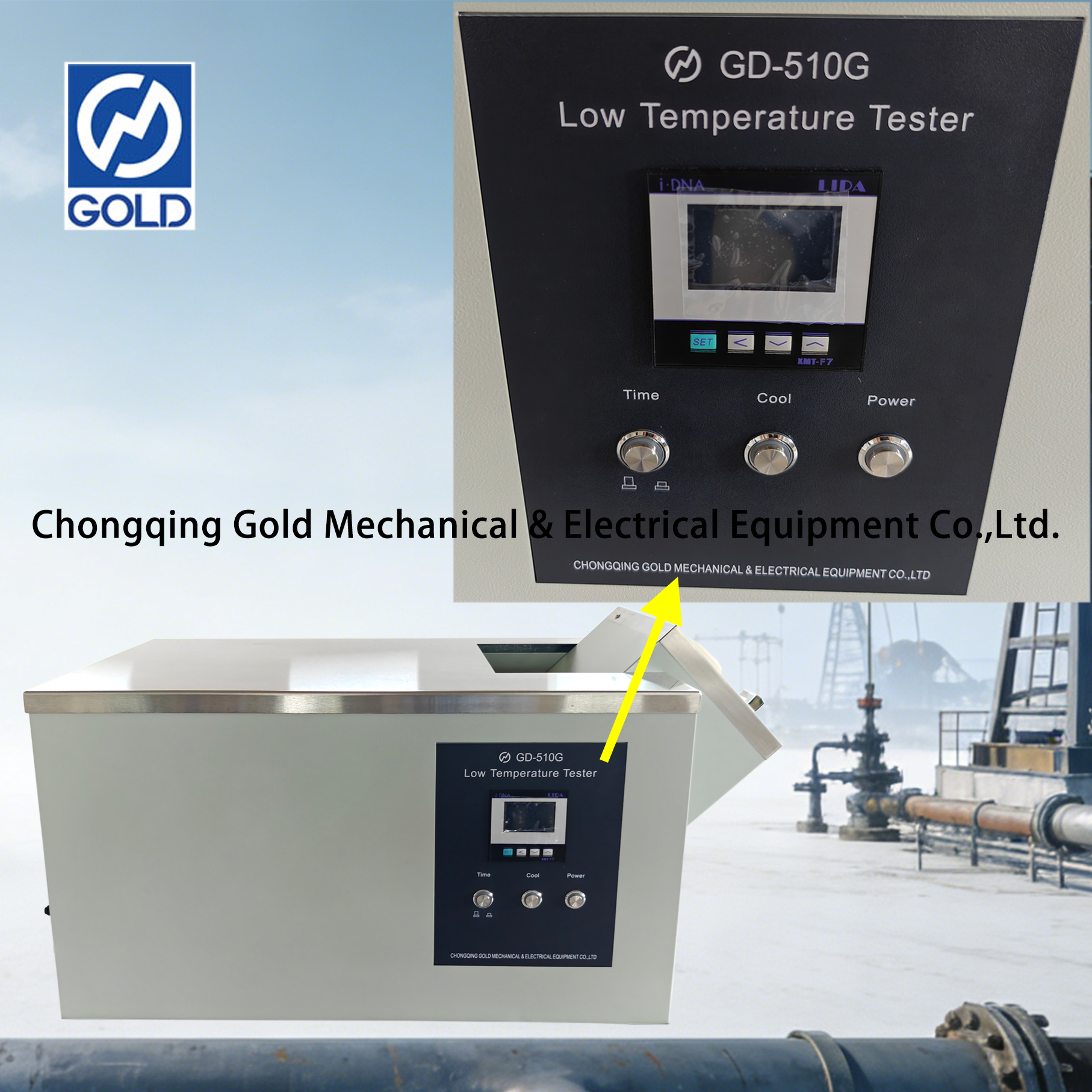

(2) Operation panel
(3) Constant-temperature bath: Provide the constant temperature required for the test

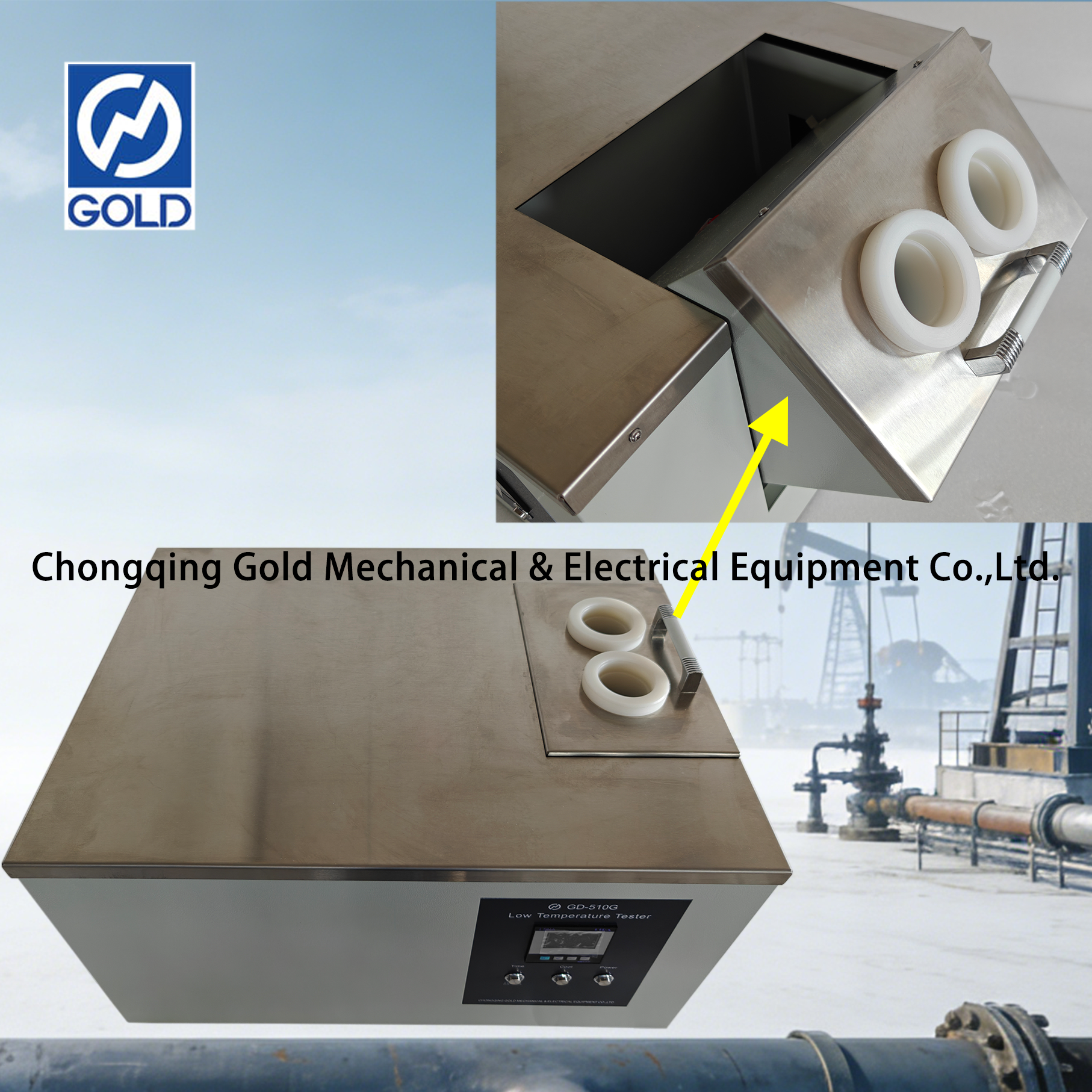

(4) Test bath: In which the sample is placed, two bath isothermal
Technical Parameters:
| Power supply | AC 220V±10%, 50 Hz |
| Cold trough | one trough with two bathes. And the temperatures in two bathes are equal |
| Temperature controlling range of cold trough | -70 ℃~0℃ |
| Temperature controlling accuracy | ±0.5 ℃ |
| Refrigeration system | refrigeration compressor of new type |
| Ambient temperature | 15℃～35℃ |
| Relative humidity | ≤85% |
| Total power consumption | ≤1000 W |
| Dimension | 620㎜×460㎜×340㎜ |
| Net Weight | 50kg |
Product Details of Low Temperature Tester:
