GD-6536C
GOLD

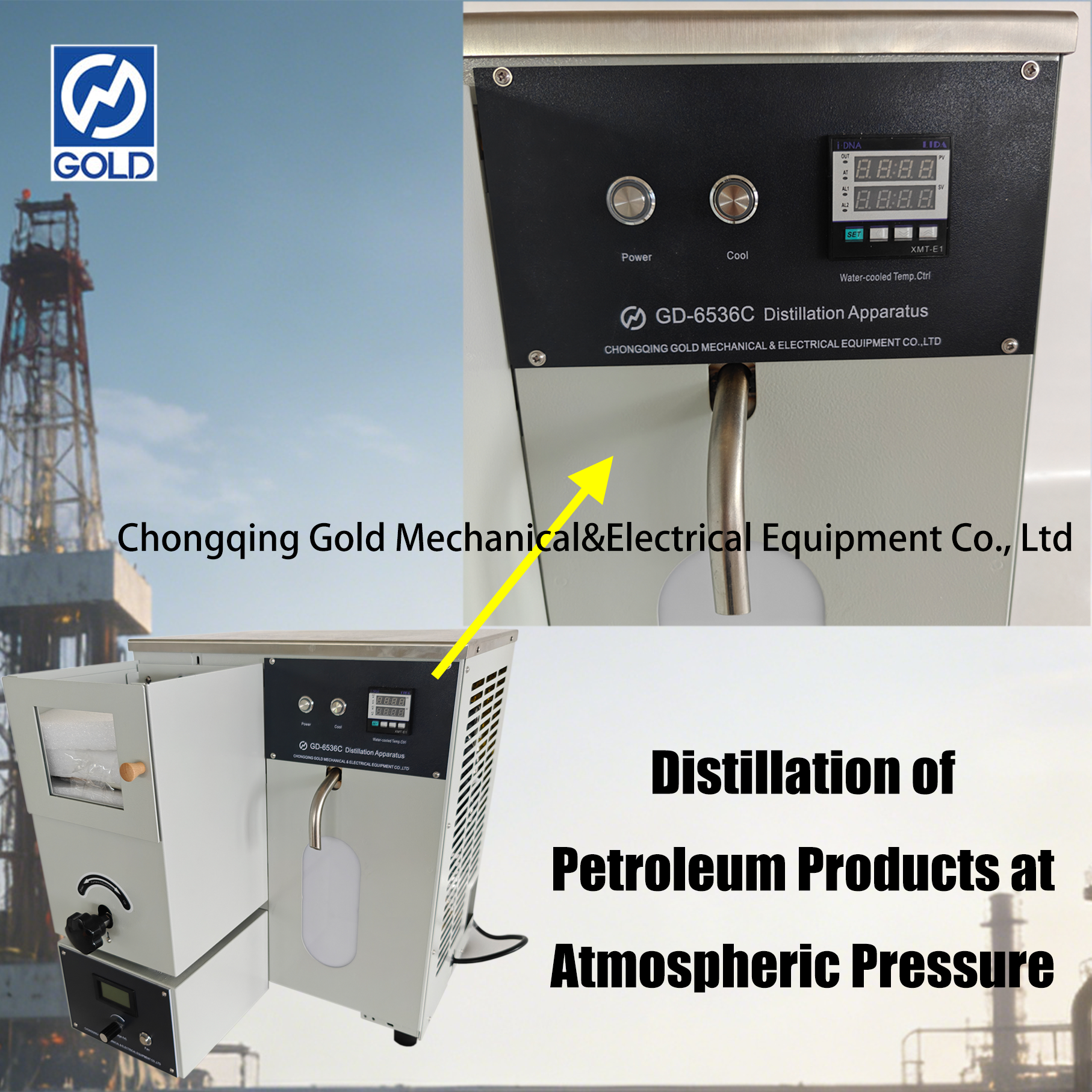

The Laboratory Distillation Apparatus uses a quartz electric furnace to heat the distillation flask without open fire and anti explosion, so as to ensure the safety of the experiment, and the heating power is continuously adjustable.

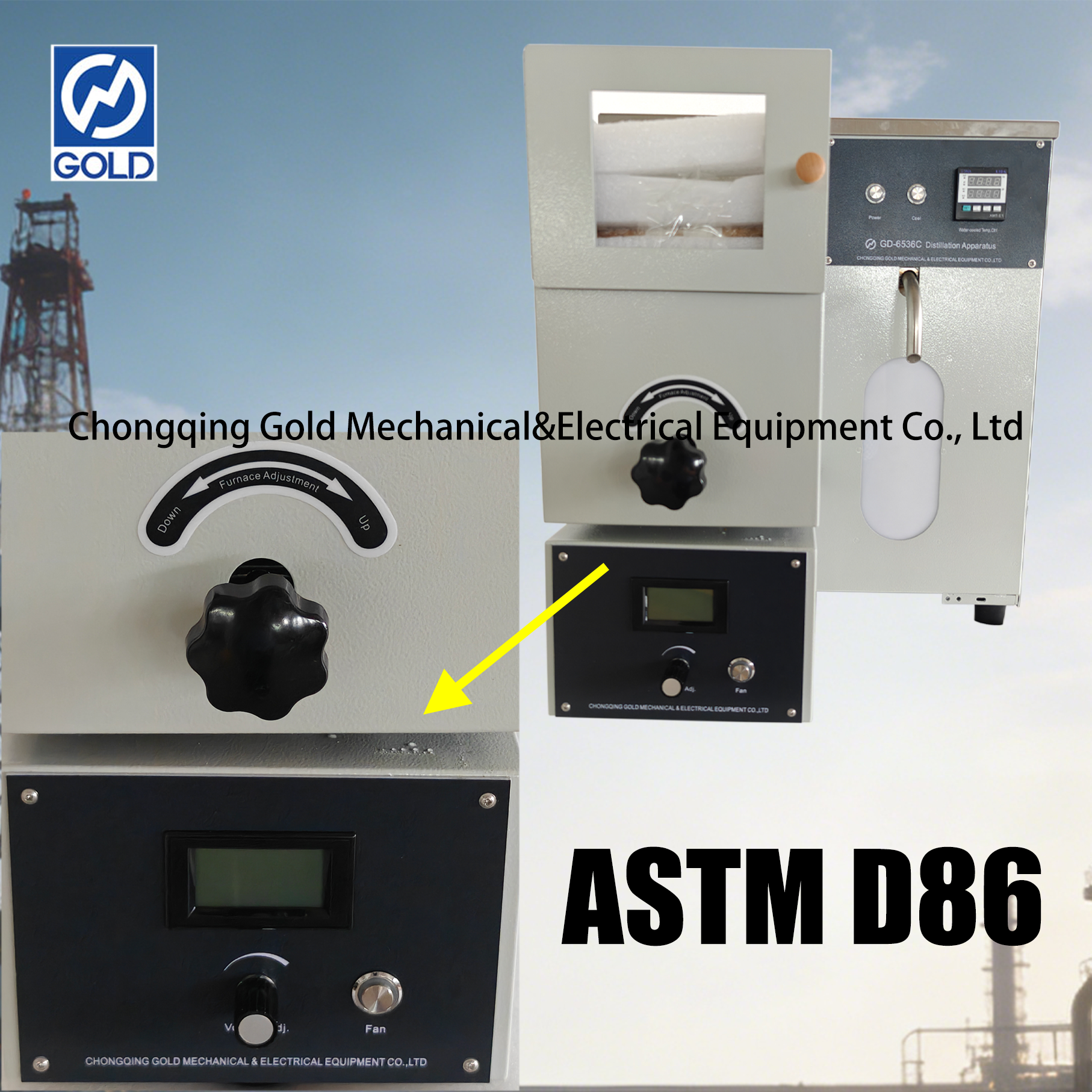

The height of the flask is adjusted by the lifting device, and the observation window of high-temperature and heat insulating glass is equipped to observe the whole test process.
The condensing tube water bath has temperature control function, which can be set and adjusted arbitrarily within the range of 0 ℃ ~ 60 ℃. The temperature in the bath is uniform and meets the test requirements.

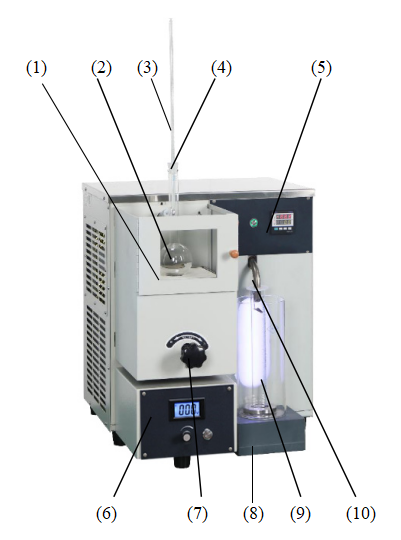

Main structure:
Technical Parameters:
| Power supply | AC 220 V±10%, 50 Hz |
| Total consumption | ≤2300W |
| Heating power | 1300W |
| Graduated flask cubage | 100 ml. Each scale division is 1 ml |
| Distillation flask | 125 ml |
| Thermometer | Total immersion. They are from -2 to 300 ℃ and from -2 to 400 ℃. The scale divisions of them are 1 ℃ |
| Moving plate | Made by SiC. Diameters of holes are φ32mm, 38mm, and 50mm |
| Condensing tube temperature control | Range: 0 ℃to 60 ℃; Temperature accuracy: ±0.5 ℃; Temperature display mode: LED digital display |
| Ambient temperature | 15℃～28℃ |
| Dimension | 540mm*435mm*515mm |
| Net weight | 30kg |

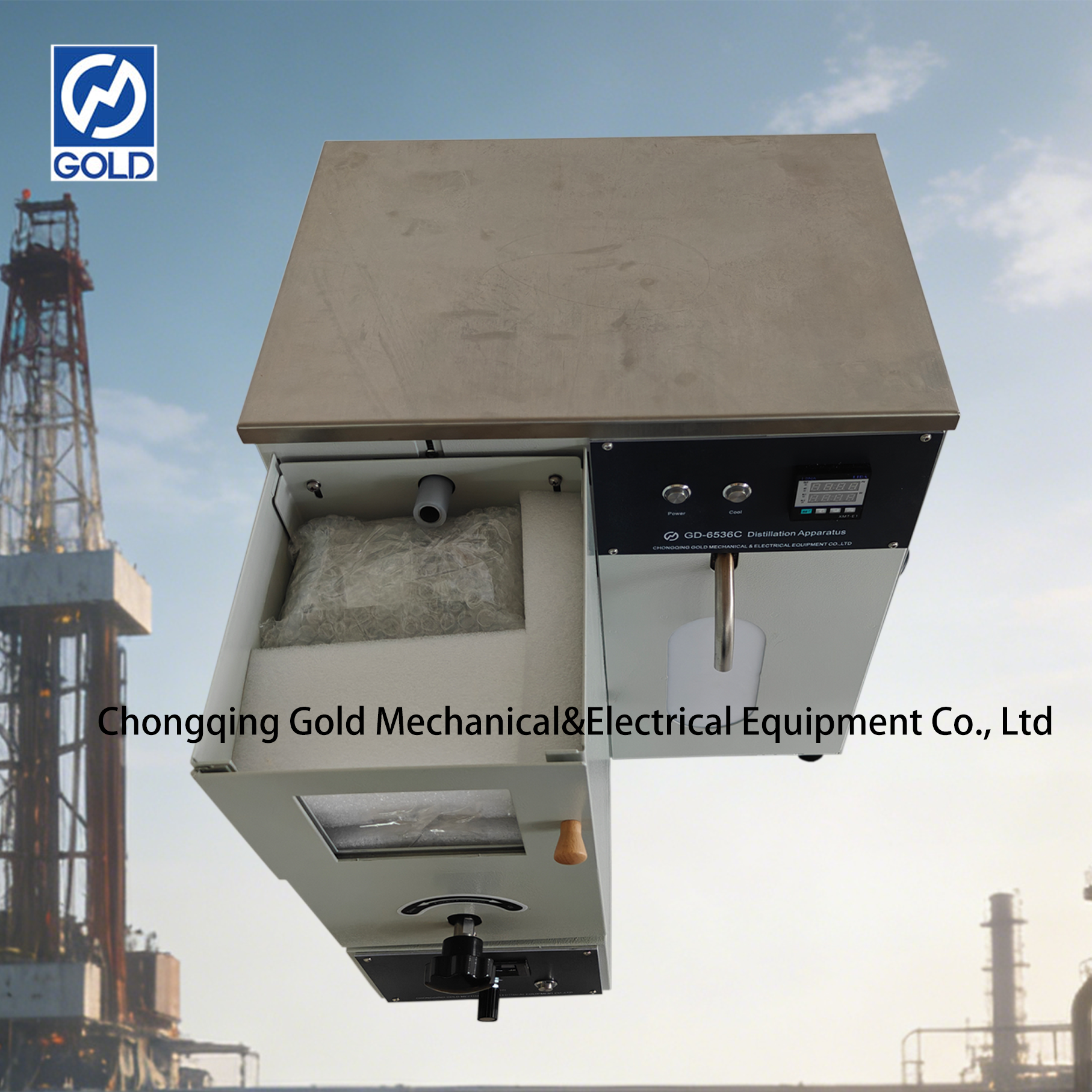

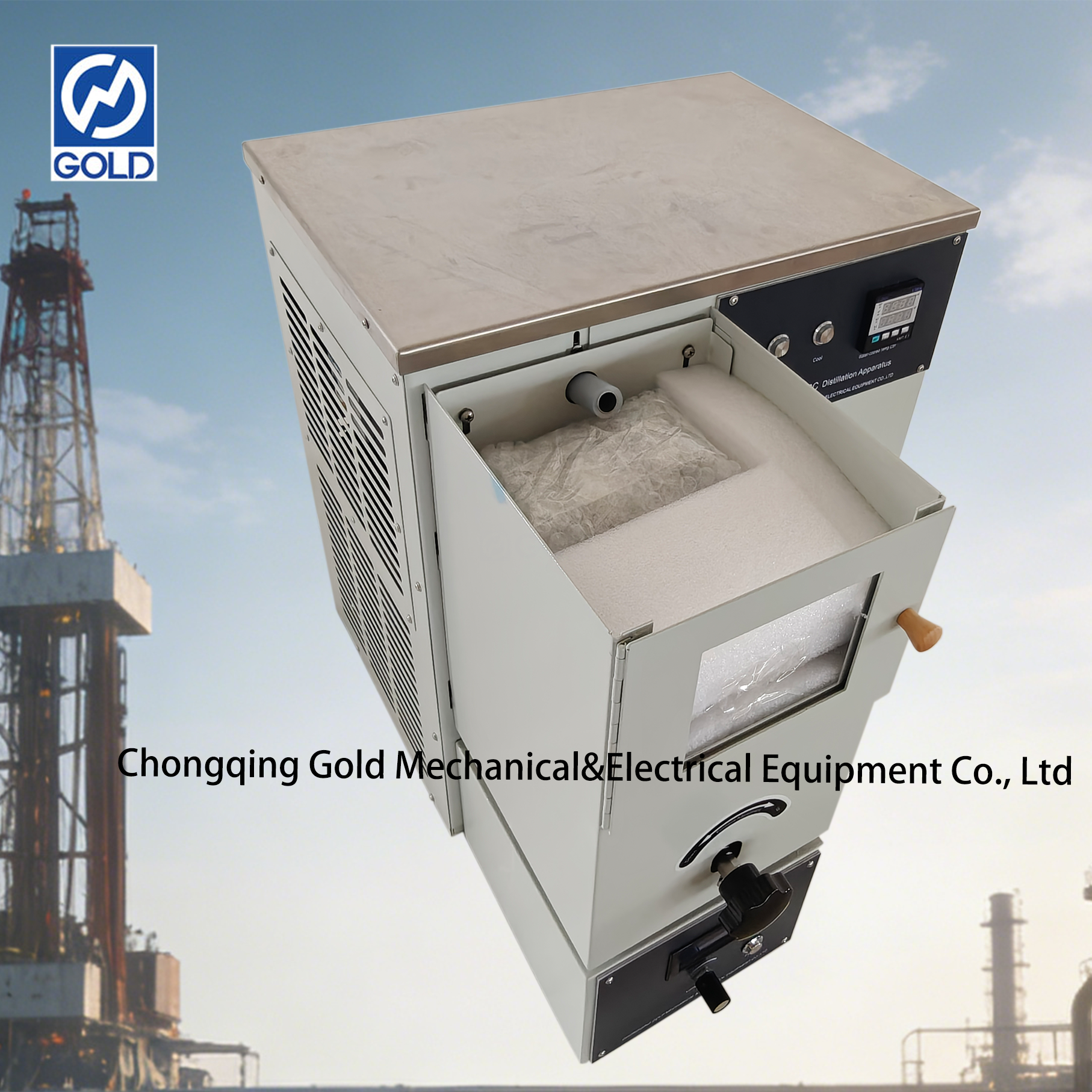

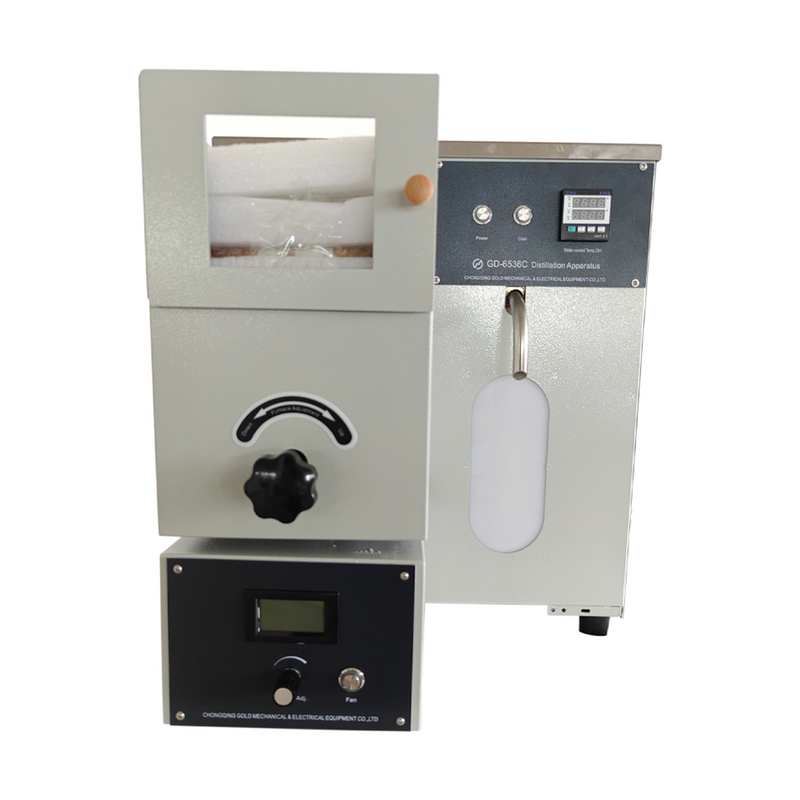

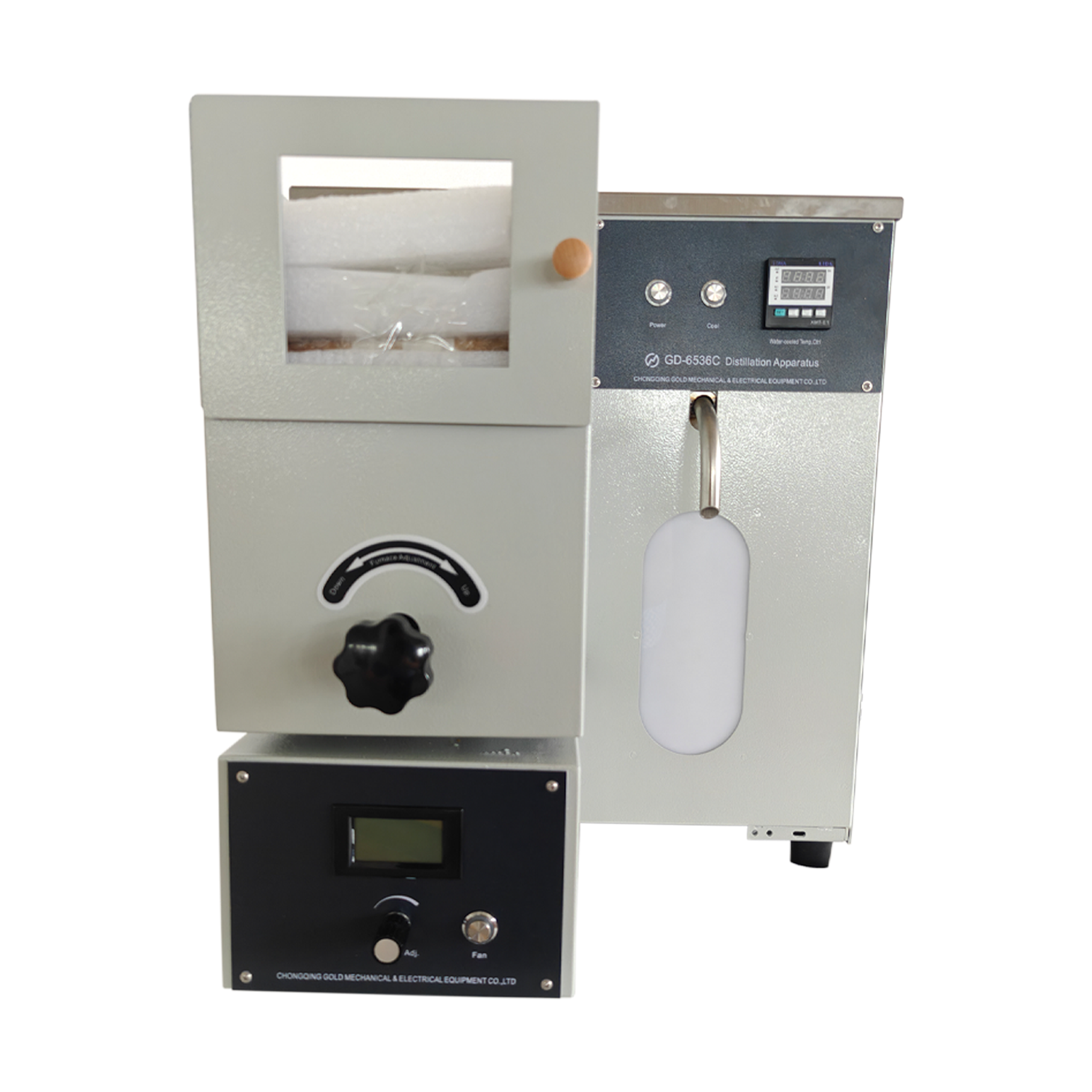

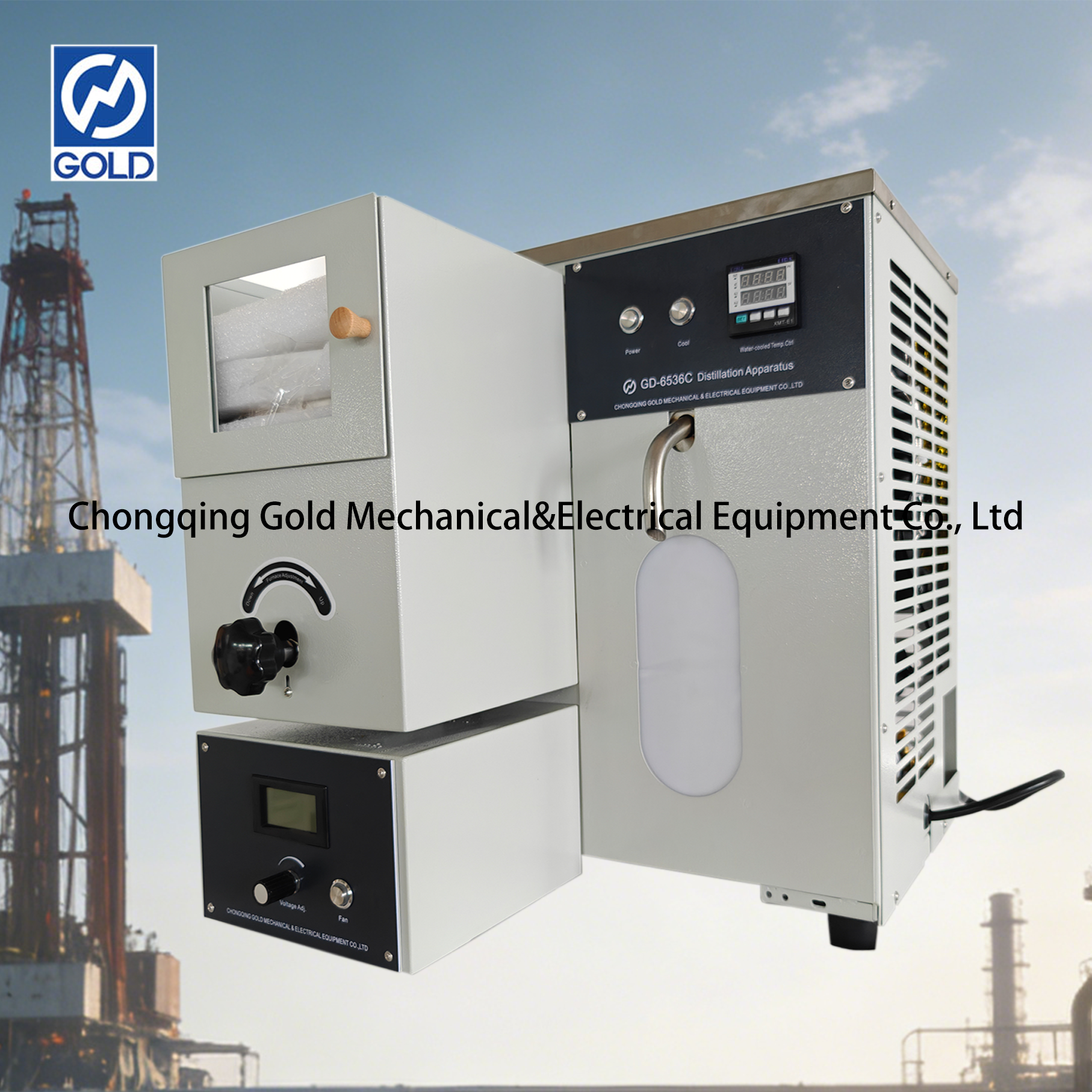

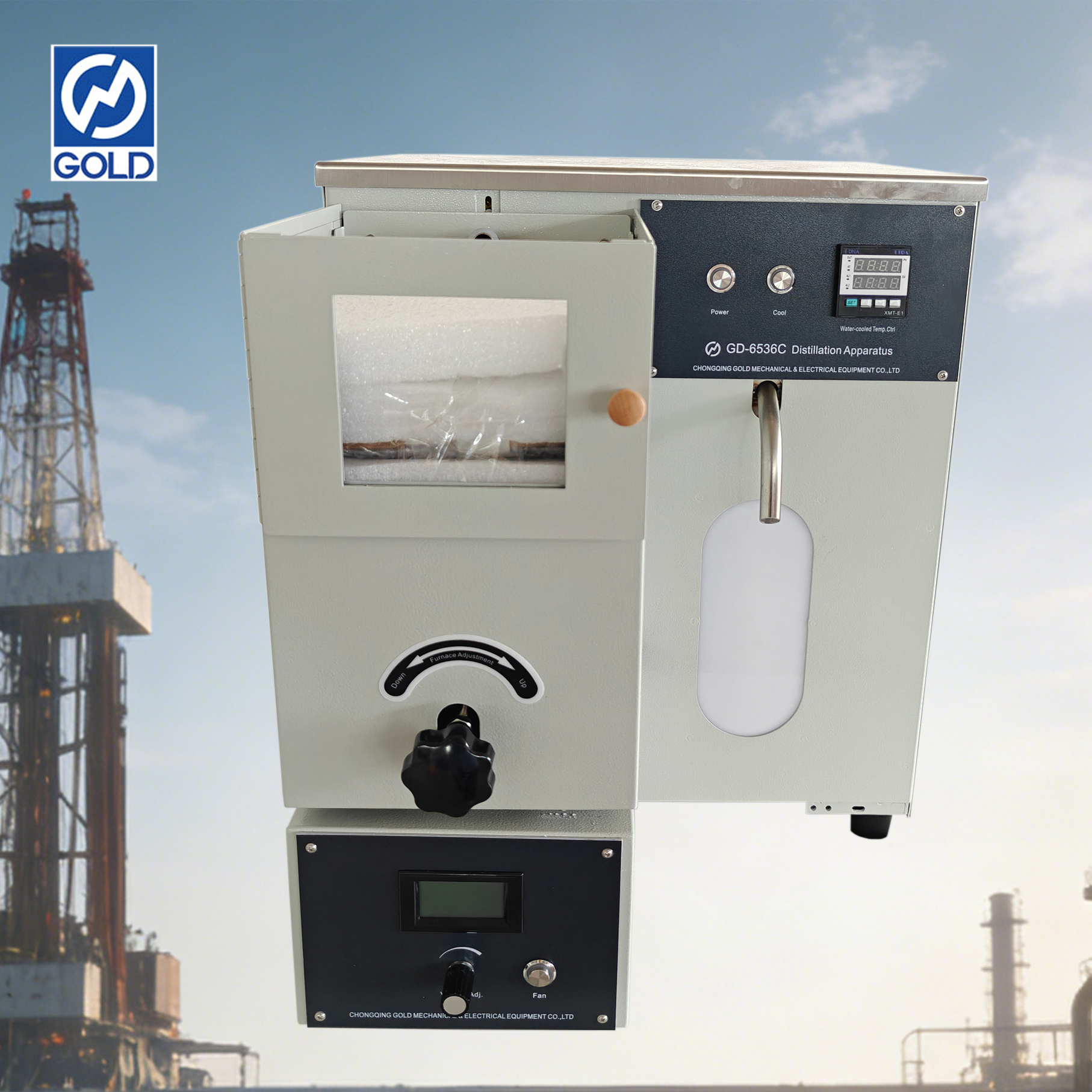

Product Details of Distillation Apparatus:
