ASTM D4052 Automatic Digital Density Meter for Liquids

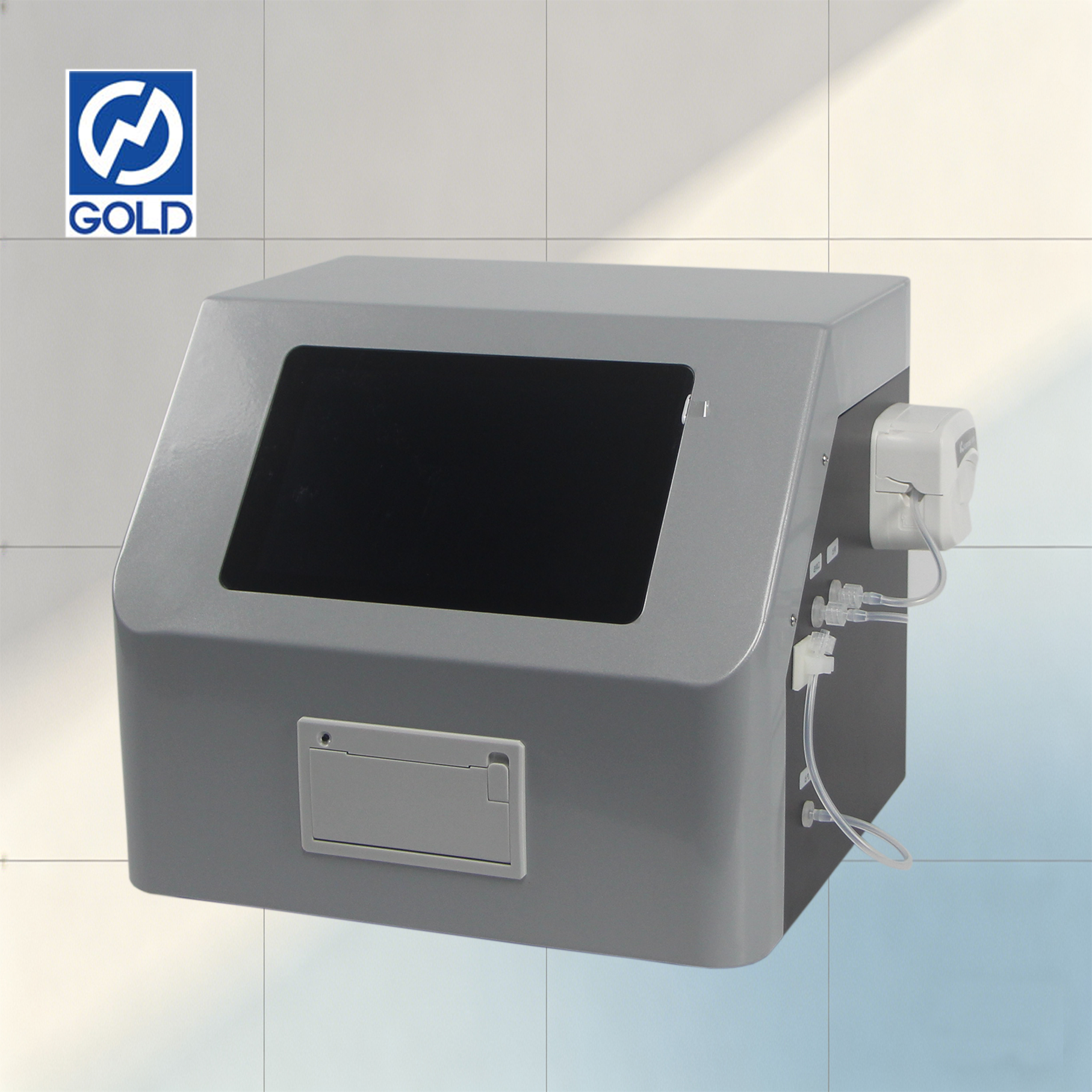

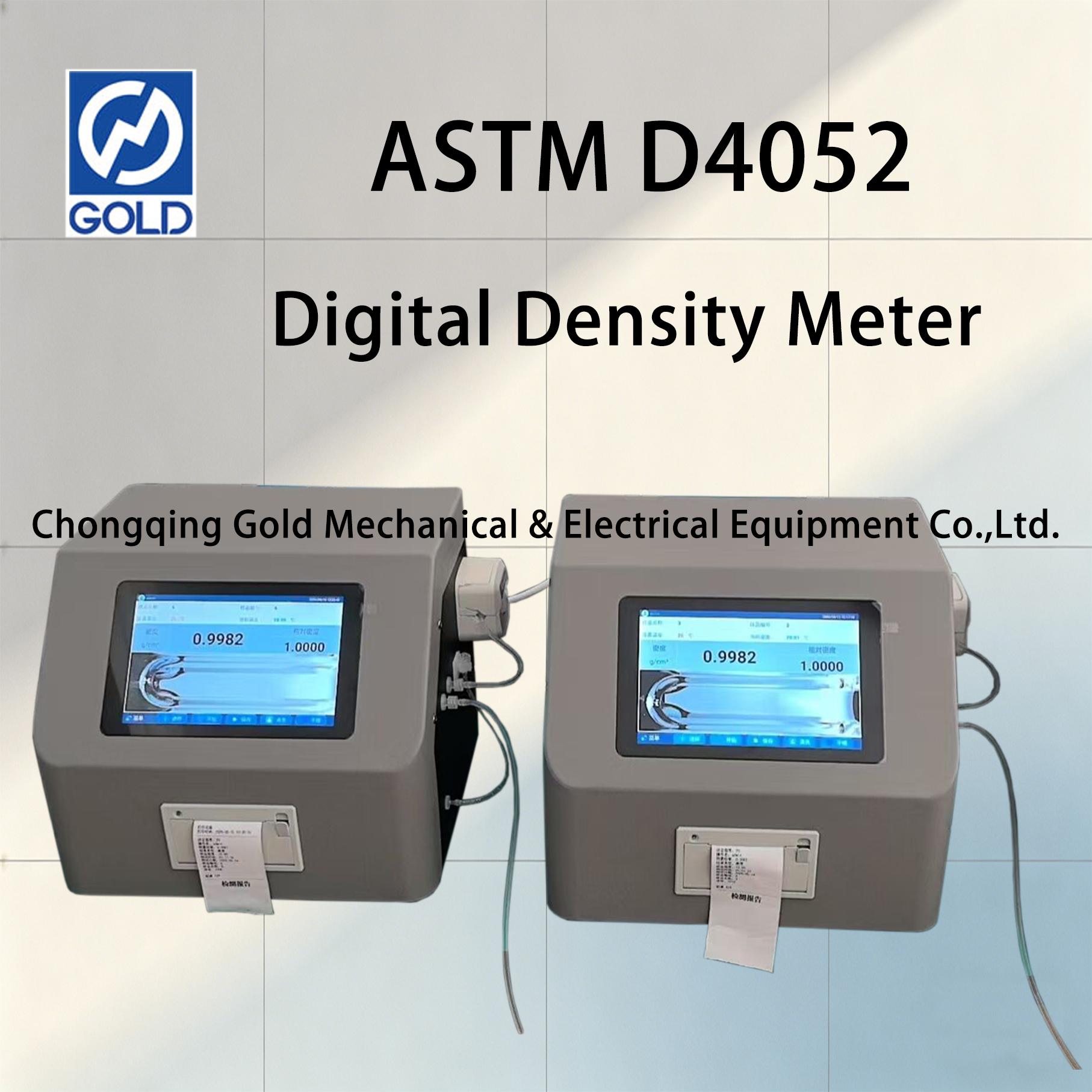

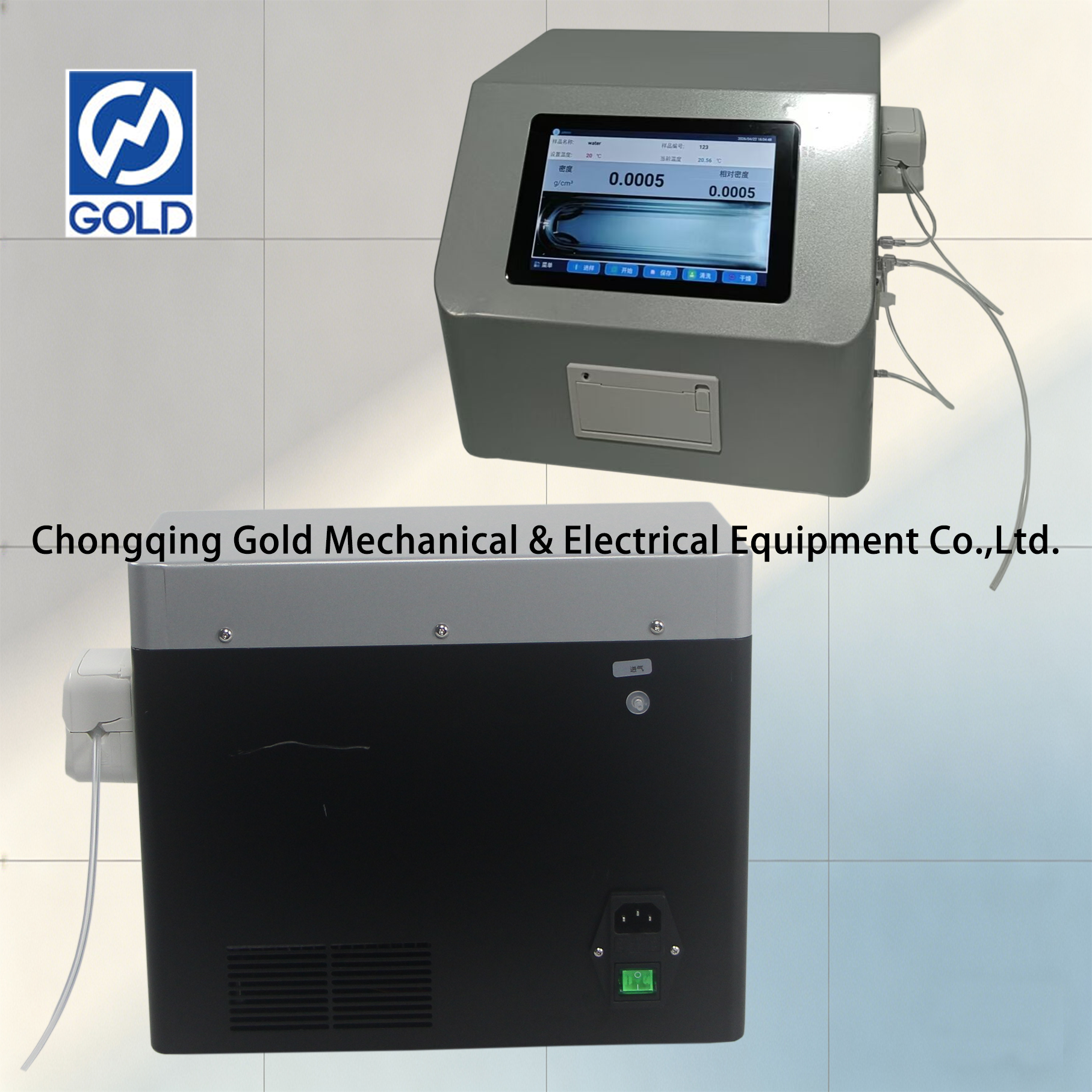

Automatic Digital Density Meter for Liquids

The Automatic Digital Density Meter utilizes the U-tube oscillation method at its core, incorporating precise temperature control and supporting automatic sample loading, unloading, and cleaning. Specifically designed for petroleum and liquids, it automatically calculates density, relative density, and API gravity, with results matching the requirements of the ASTM D4052 international standard.

Core principle:

The Digital Density Meter for Liquids adopts the principle of oscillating U-shaped tube resonance. The U-shaped glass tube serves as the elastic oscillation chamber, and after being filled with a fixed volume of the liquid to be measured, an excitation signal is applied by an electromagnetic excitation module to cause the U-shaped tube to produce free resonance oscillation; The oscillation period is determined by the mass of the liquid inside the tube - the higher the liquid density, the greater the overall mass, and the longer the oscillation period. The instrument collects the oscillation period through high-precision sensors, inputs it into the preset calibration formula, and automatically calculates and outputs the liquid density value.

Features:

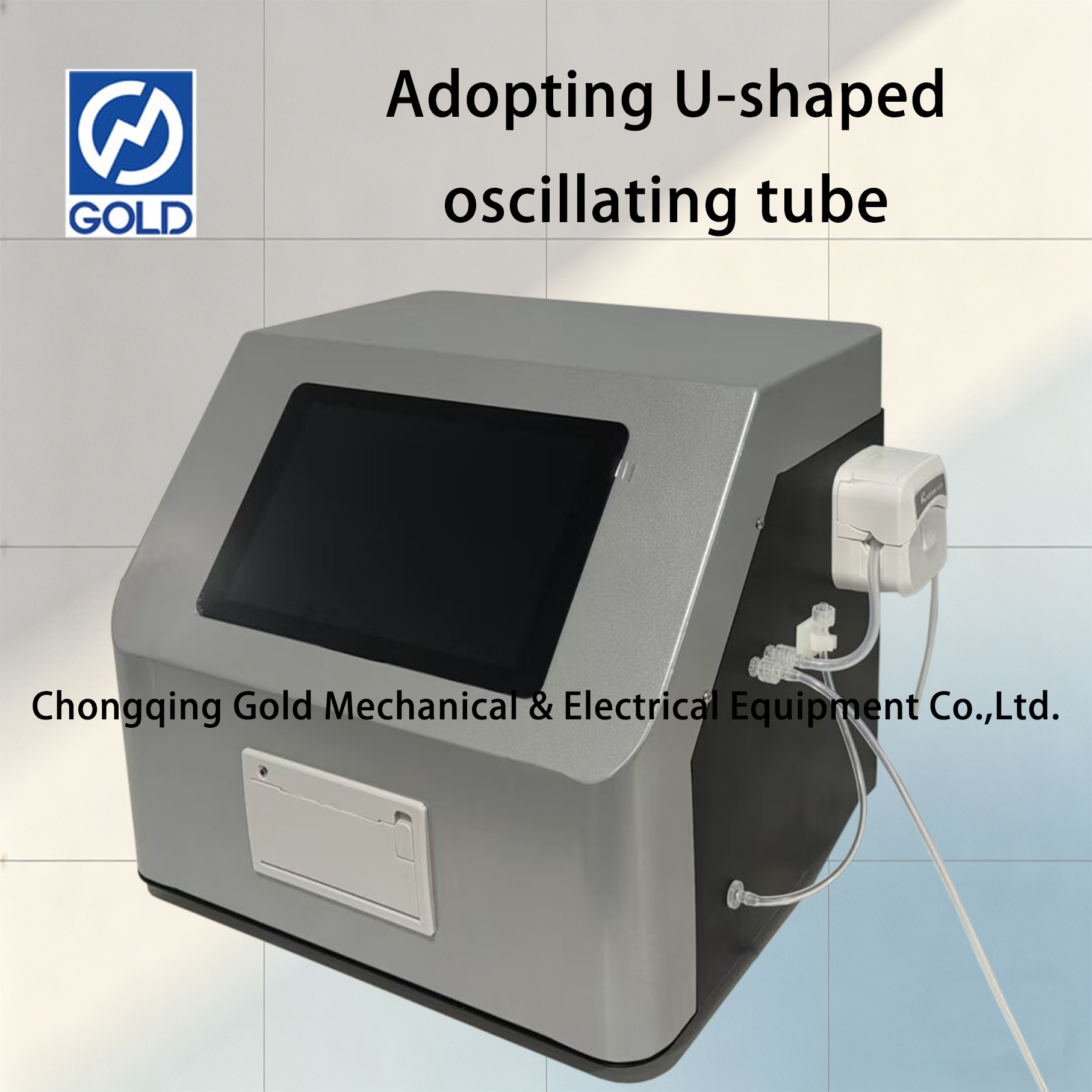

1. Measurement unit (core component): (1) U-shaped oscillating tube: made of high-temperature resistant borosilicate glass material, with a wall thickness of 0.8-1.2mm, designed with no dead corners for easy cleaning and sample replacement; (2) Electromagnetic excitation module: using high-frequency electromagnetic coils with stable excitation intensity to ensure stable resonance of the U-shaped tube;

2. Control unit: The Digital Density Meter adopts an embedded microprocessor with a main frequency of ≥ 1GHz, equipped with data acquisition, algorithm calculation, parameter control and communication functions, supports multi parameter settings (measurement mode, constant temperature, calibration parameters, etc.), response speed ≤ 10ms, ensuring measurement efficiency.

3. Constant temperature unit: The Density Meter for Liquids adopts Peltier constant temperature technology, combined with high-precision temperature sensors (resolution 0.01 ℃), with a constant temperature range of 5-45 ℃ and temperature control stability of ± 0.02 ℃, effectively eliminating the influence of temperature on liquid density and U-tube deformation, ensuring measurement repeatability.

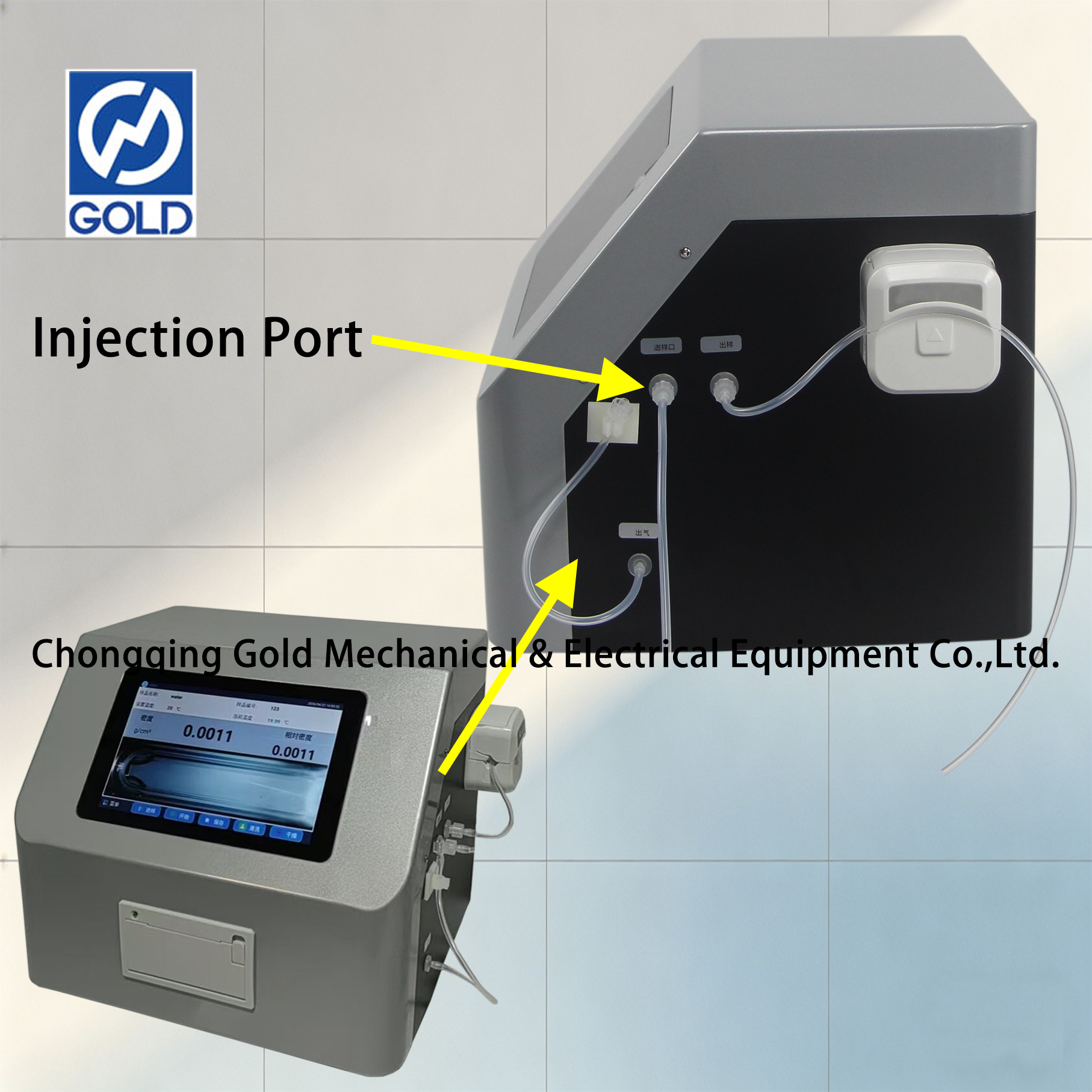

4. Sample injection unit: The Automatic Digital Density Meter is equipped with a micro peristaltic pump, with adjustable injection speed, supporting automatic injection, sampling and cleaning to avoid cross contamination of samples; The injection port is made of corrosion-resistant material (PTFE), which is compatible with various samples such as acid and alkali, organic solvents, etc.

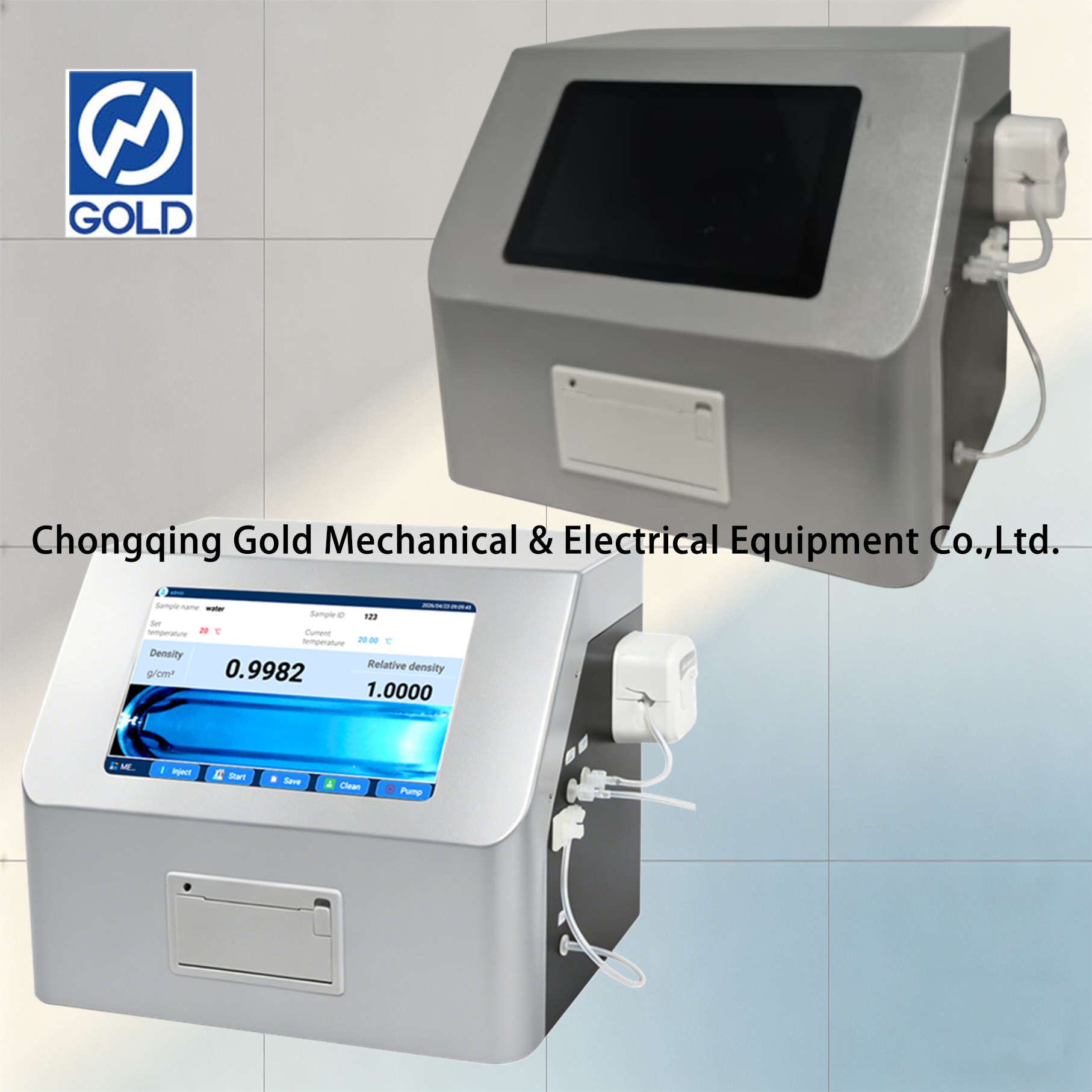

5. Data processing and display unit: (1) Data processing: Built in density calculation algorithm, temperature compensation algorithm, can automatically convert relative density, concentration (alcohol content, sugar content, API degree, etc.), supports data storage (≥ 10000 sets); (2) Display interface: 8-inch color touch screen, clear display of density values, constant temperature, measurement time, calibration status and other parameters, supporting Chinese/English switching, easy operation.

6. Communication interface: The Digital Density Meter is equipped with USB, RS232, and Ethernet interfaces, supporting data export (CSV format), computer remote control, and laboratory LIMS system docking, meeting the requirements of CPA type evaluation data upload and user data management.

Technical Parameters:

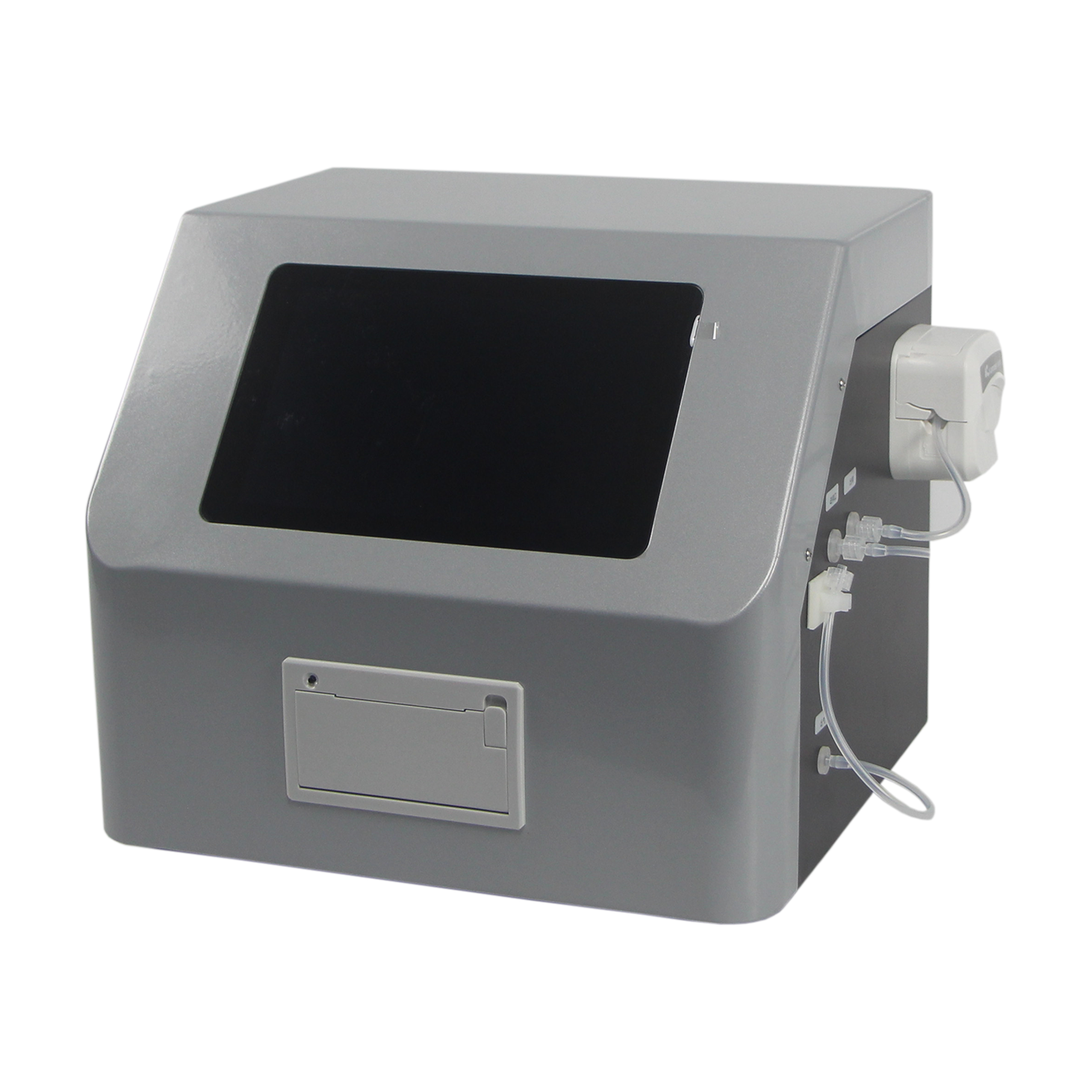

Product Details of Digital Density Meter:
